When selecting the right valve for industrial applications, confusion often arises between globe valve vs check valve. Both play crucial roles in fluid flow control but differ significantly in design, functionality, and usage. This article explores these differences, highlights their respective strengths, and provides guidance to help you make informed decisions.

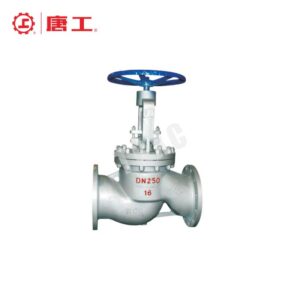

What is a Globe Valve?

A globe valve is a type of valve used for regulating flow in a pipeline. It consists of a movable disk-type element and a stationary ring seat in a generally spherical body. The valve operates by moving the disk (or plug) in and out of the seating area, allowing precise control over the flow rate. Globe valves are commonly used in applications where throttling and frequent operation are required, such as in cooling water systems, fuel oil systems, and feedwater or chemical feed systems. They are known for their good shut-off capabilities and are suitable for both on-off and regulating services.

What is a Check Valve?

A check valve, also known as a non-return valve, is designed to allow fluid to flow in one direction only, preventing backflow. It operates automatically, opening when the fluid flows in the desired direction and closing when the flow reverses, thus protecting equipment and preventing contamination. Common types of check valves include swing check valves, lift check valves, and ball check valves. They are widely used in various industries, including water treatment, chemical processing, and oil and gas, to ensure unidirectional flow and safeguard systems from potential damage caused by reverse flow.

Advantages and Disadvantages of Globe Valve vs Check Valve

Advantages of Globe Valve:

• Precise Flow Regulation: Globe valves are excellent for throttling and modulating flow, allowing for fine adjustments to flow rate, which is crucial in systems requiring regular modulation.
• Good Sealing Capability: They ensure a tight seal when closed, critical for stopping flow during maintenance or emergencies.
• Versatility in Maintenance: The disc and seat can be replaced or resurfaced, prolonging valve life and ensuring efficient operation.

Disadvantages of Globe Valve:

• Higher Pressure Drop: The tortuous flow path in a globe valve can lead to a significant pressure drop, which should be considered while designing flow parameters.
• Increased Operating Force: More force is required to operate globe valves, especially in high-pressure settings, often necessitating automated actuators.
• Slower Operation: Their design is not suited for situations requiring quick opening or closing due to the multi-turn operation.

Advantages of  Check Valves:

• Prevents Backflow: Check valves are designed to allow fluid to flow in one direction only, preventing backflow and protecting downstream equipment from damage.
• Automatic Operation: They operate automatically without the need for external control or pressure, relying on gravity and fluid pressure to open and close.
• Simple Design: Check valves have an inexpensive and simple design, making them cost-effective and easy to maintain.

Disadvantages of  Check Valves:

• Potential for Water Hammer: In systems with high-velocity flow, check valves can cause water hammer due to sudden closure, leading to potential system damage.
• Limited to One-Way Flow: They are suitable only for applications requiring unidirectional flow and cannot be used for flow regulation or throttling.
• Maintenance Challenges: While generally low maintenance, check valves can become stuck in the open or closed position if debris accumulates, necessitating periodic inspection.

How to Choose Between Globe Valve vs Check Valve

Application Purpose:

• Globe Valves: Designed for regulating or throttling flow, globe valves allow precise control over fluid flow rates. They are ideal for applications requiring frequent adjustment or flow modulation.
• Check Valves: Engineered to permit flow in one direction only, check valves prevent backflow, safeguarding equipment and maintaining system integrity. They operate automatically without manual intervention.

Operational Requirements:

• Flow Control: If your system demands precise flow regulation, a globe valve is appropriate.
• Backflow Prevention: For systems where preventing reverse flow is critical, a check valve is suitable.

Installation Considerations:

• Globe Valves: Typically installed where flow control is needed; however, they can introduce a significant pressure drop due to their design.
• Check Valves: Often placed at pump outlets or in pipelines to prevent backflow; they generally offer minimal resistance to flow when open.

Maintenance and Reliability:

• Globe Valves: Require regular maintenance to ensure sealing surfaces remain effective, especially in systems with high pressure or corrosive media.
• Check Valves: Generally low maintenance but should be inspected periodically to ensure they are free from debris that could impede operation.

Cost Implications:

• Globe Valves: Often more expensive due to their complex design and flow control capabilities.
• Check Valves: Typically more cost-effective, especially in applications where only backflow prevention is needed.

Conclusion

Globe valves and check valves serve distinct functions within fluid control systems. Globe valves are primarily utilized for regulating and throttling flow, offering precise control over fluid dynamics. They are well-suited for applications requiring frequent adjustment and reliable shut-off capabilities. Conversely, check valves are designed to permit unidirectional flow, automatically preventing backflow to protect system integrity. They operate without manual intervention, making them essential in systems where reverse flow could cause damage or contamination.
