A globe valve and a control valve are not opposite valve types. Globe describes the valve-body and closure-motion design, while control describes the process duty and working assembly. A globe valve can therefore be part of a control-valve assembly, and a control valve can also use a ball, butterfly or plug body.
To avoid a false comparison, classify the valve by body and motion, duty and command, and supply scope. A handwheel globe valve, an actuated on-off globe valve and a modulating globe control valve may share a similar body, but they do not perform the same duty or include the same equipment. Body style alone cannot establish control performance, application fit or a fair cost comparison.
The direct answer: globe is a design; control is a duty
What globe valve describes
A globe valve names a valve-body and closure-motion family. Its stem drives a plug towards or away from a seat, and plug travel changes the available flow area. The globe valve construction may be operated by hand or paired with an actuator. The word globe does not define the command signal or control duty.
What control valve describes
A control valve is named for the job performed by the working assembly. It changes the valve opening to regulate a process variable such as flow, pressure, temperature or level. Depending on the control method, the command may come from a controller or from a self-operated mechanism.
The valve body may use a sliding-stem globe or angle design, or a rotary ball, butterfly or plug design. In a powered control-valve assembly, the body and trim are paired with an actuator, while a positioner and other accessories are added when the duty requires them. The word control therefore does not identify one body shape.
| Comparison point | Globe valve | Control valve |
|---|---|---|
| Primary label | Body and closure-motion design | Process-control duty and working assembly |
| Body options | Globe-style body with linear stem and plug movement | Globe, angle, ball, butterfly, plug and other suitable bodies |
| Possible operation | Manual, actuated on-off or modulating | Controller-driven modulation or self-operated regulation, depending on type |
| Typical supply scope | Bare valve, hand-operated valve or actuated valve | Valve and actuator, with positioning and control accessories as required |
| Relationship | Can be configured as a globe control valve | May use a globe-style or rotary body |
One globe body can serve three different duties
The same globe-style body can be used for manual throttling, actuated on-off service or modulating control. The main difference is how the plug position is set and whether the valve responds to changes in the process.
Manual throttling is not closed-loop control
With a handwheel, the operator sets the stem and plug position. This can restrict flow at a chosen operating point, but the valve cannot correct its own position when upstream pressure, downstream pressure or process demand changes. Manual throttling controls the valve opening rather than automatically holding a process variable at its setpoint.
A fixed handwheel position may be adequate when conditions change slowly and manual adjustment is acceptable. It should not be treated as equal to a control valve that responds continuously to process feedback.
Actuated does not always mean modulating

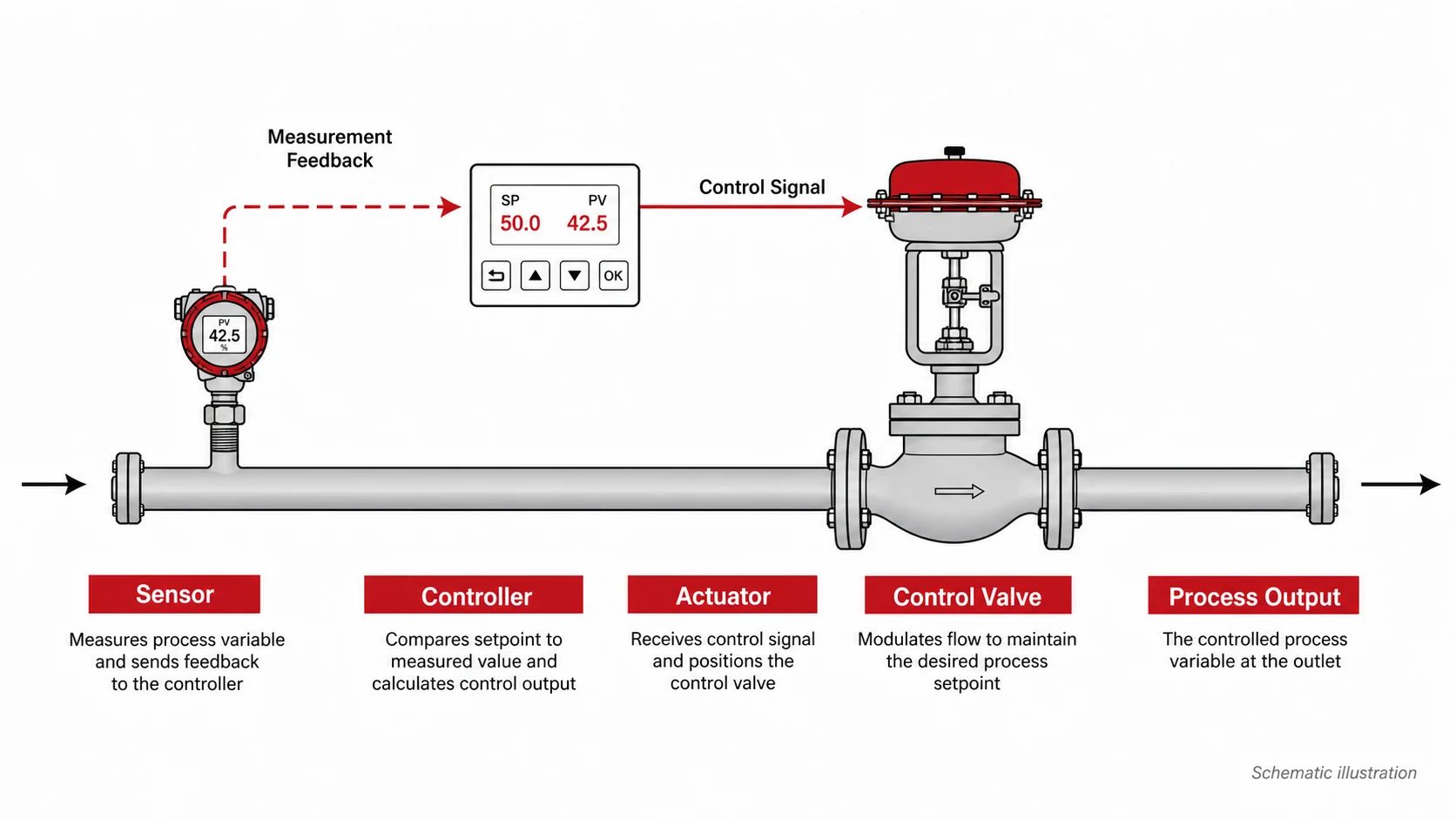

In modulating service, a controller compares the measured process variable with its setpoint and sends a changing command to the valve. The actuator moves the stem to intermediate positions. When a positioner is included, it measures valve travel and adjusts the actuator output to help the valve follow the command.
The difference between an on-off valve and a modulating valve lies in the commanded movement and process duty. An actuator may receive only open and close commands, in which case the globe valve remains an actuated on-off valve. The presence of a pneumatic, electric or hydraulic actuator does not by itself prove modulating capability.
External controller signals are not the only way to regulate a process. A self-operated regulator uses the process pressure or temperature, acting through a sensing element and spring, to move the valve without a PLC or DCS command. It still needs to be classified separately from manual throttling, actuated on-off service and controller-driven modulation.
When a globe-style body belongs on the control-valve shortlist
Once modulating duty has been defined, the useful comparison is between globe-style and rotary control-valve bodies. Both can regulate a process. The better candidate depends on how each design handles the required flow, pressure drop, medium and installed control range.
Where globe-style trim earns consideration
A globe-style body is a strong candidate when the trim must be adapted to a demanding throttling duty. Plug, seat and cage options can provide different flow characteristics, reduced-capacity trim and staged pressure reduction. These options are useful when the required capacity is small compared with the line size, or when pressure drop, cavitation or aerodynamic noise must be managed through a purpose-built trim design.
Globe construction does not guarantee good control by itself. An oversized trim can make small stem movements produce large flow changes, while an actuator that lacks enough force or stable positioning can prevent the plug from following its command. Narrow trim passages may also be unsuitable for media containing fibres, suspended solids or material that can build up inside the valve.
When a rotary control body may fit better
A segmented ball, eccentric plug or butterfly control valve may be the stronger candidate when the service needs high flow capacity in a smaller and lighter assembly. Some rotary flow paths also provide more room for fibres or suspended solids, although solids handling still depends on the exact closure element, seat design and internal cavities.
Rotary movement does not limit a valve to on-off service. A characterised ball or other purpose-built rotary element can provide modulating control when its sizing, actuator and positioning system match the process. High pressure drop, cavitation, noise, seat loading and required shaft torque still need to be checked for the selected design.
The choice among linear and rotary control-valve body types should be based on the actual operating cases rather than the body name alone. Minimum, normal and maximum flow and pressure drop affect the usable control range, while the medium and shut-off duty affect the trim and seat options that can remain on the shortlist.
Conclusion
The useful selection rule is to describe the body design, operating duty and supply scope separately. A globe-style body may serve manual, on-off or modulating duty, but its installed control performance still depends on the trim, sizing, actuator and operating conditions. Apply the same distinction when reviewing MacoTango control valves: choose the body and trim for the service, then match the actuator and control accessories to the required response.
