Valves play a critical role in controlling fluid flow, pressure, and direction in various industries. Globe valves are known for their precise flow control, making them ideal for applications requiring accurate throttling and frequent operation. In contrast, diaphragm valves excel in maintaining fluid purity and handling corrosive or viscous fluids, making them suitable for industries like pharmaceuticals and food processing. This article highlights the key differences between globe valve vs diaphragm valve, helping to guide informed valve selection for specific industrial requirements.

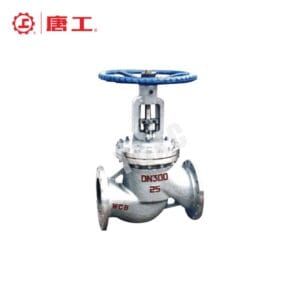

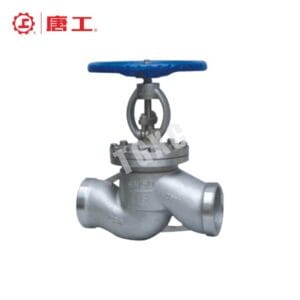

Overview of Globe Valves

Globe valves are linear motion valves designed to start, stop, and regulate fluid flow within a pipeline. Their key components include a movable disk (or plug) and a stationary ring seat housed within a typically spherical body. The disk moves perpendicularly to the seat, allowing for precise flow control. When the valve is open, fluid flows through the space between the disk and seat; closing the valve involves lowering the disk onto the seat to halt flow. This design makes globe valves suitable for applications requiring frequent operation and precise throttling, such as in water treatment, chemical processing, and steam services. They are also known for their good shut-off capabilities and relatively short opening and closing times.

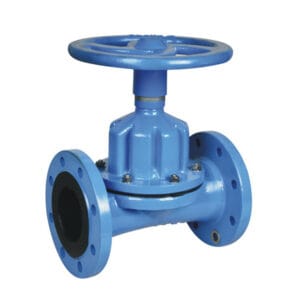

Overview of Diaphragm Valves

Diaphragm valves utilize a flexible diaphragm to control fluid flow. The diaphragm acts as a barrier between the process fluid and the valve’s operating mechanism, preventing contamination and leakage. In operation, the diaphragm is pressed against a weir or seat to close the valve, and lifted away to open it, allowing fluid to pass through. This design is particularly advantageous in applications involving corrosive or viscous fluids, as the fluid contacts only the diaphragm and valve body, both of which can be constructed from a variety of chemically resistant materials. Diaphragm valves are commonly used in industries such as pharmaceuticals, food and beverage, and water treatment, where maintaining fluid purity and preventing contamination are critical. They are also appreciated for their leak-proof seal and ease of maintenance, though they are generally limited to lower pressure and temperature applications.



Design and Construction: Globe Valve vs Diaphragm Valve

Globe valves feature a spherical body divided into two halves by an internal baffle, with a movable disk (or plug) and a stationary ring seat. The disk is connected to a stem, which is operated by a handwheel or actuator. This design allows for precise flow regulation and is suitable for high-pressure applications.

Diaphragm valves consist of a valve body with two or more ports, an elastomeric diaphragm, and a weir or seat upon which the diaphragm closes the valve. The diaphragm acts as a barrier between the process fluid and the valve’s operating mechanism, preventing contamination and leakage. This design is particularly advantageous in applications involving corrosive or viscous fluids.



Operating Principles

In globe valves, the disk moves perpendicularly to the seat, allowing fluid to flow through the space between the disk and seat. Turning the handwheel or actuator raises or lowers the disk, thereby regulating flow. This linear motion design provides excellent throttling capabilities and is commonly used in applications requiring frequent operation and precise flow control.

Diaphragm valves operate by moving a flexible diaphragm up and down to open or close the flow path. When the valve is closed, the diaphragm presses against the weir or seat, sealing off the flow. Lifting the diaphragm away from the seat opens the valve, allowing fluid to pass through. This design ensures that the process fluid only contacts the valve body and diaphragm, making it suitable for handling corrosive or abrasive media.



Advantages and Disadvantages of Globe Valves

Advantages:

• Precise Flow Control: Globe valves offer excellent throttling capabilities, making them ideal for applications requiring precise flow regulation.
• Good Shut-off Capability: The design ensures a tight seal, providing effective isolation when needed.
• Durability: With fewer moving parts, globe valves are robust and have a long service life.
• Ease of Maintenance: Their straightforward design allows for relatively simple maintenance and repairs.

Disadvantages:

• Higher Pressure Drop: The flow path through a globe valve is more tortuous, leading to a higher pressure drop compared to other valve types.
• Manual Operation Effort: Larger globe valves may require significant force to operate manually, potentially necessitating actuators for easier control.
• Weight and Size: Globe valves are generally heavier and bulkier than other valves with similar pressure ratings, which can be a consideration in system design.



Advantages and Disadvantages of Diaphragm Valves

Advantages:

• Leak-proof Seal: The flexible diaphragm provides a tight seal, effectively preventing leaks.
• Corrosion Resistance: Since the process fluid contacts only the diaphragm and valve body, materials can be selected to handle corrosive media effectively.
• Suitable for Slurries and Viscous Fluids: The design accommodates fluids with suspended solids or higher viscosity, reducing the risk of clogging.
• Ease of Maintenance: With fewer components and a simple design, diaphragm valves are relatively easy to maintain.

source:Leflow

Disadvantages:

• Limited Pressure and Temperature Range: Diaphragm valves are generally suitable for low-pressure and low-temperature applications, typically not exceeding 180°C.
• Size Limitations: They are not ideal for larger pipe diameters, often limited to DN ≤ 200mm.
• Limited Throttling Capability: While they can regulate flow, diaphragm valves are less effective for precise throttling compared to globe valves.
• Diaphragm Wear: The diaphragm is a wear component that may require periodic replacement, especially in demanding applications.



pplications of Globe Valves

Globe valves are widely used in various industries due to their precise flow control and effective shut-off capabilities. Key applications include:

• Water Treatment Systems: Employed to regulate flow rates and ensure accurate dosing of chemicals.
• Chemical Processing: Utilized for precise control of process fluids, ensuring accurate flow regulation.
• Oil and Gas Industry: Applied in fuel oil systems requiring leak-tightness and control valve bypass systems.
• Steam Applications: Suitable for steam services due to their ability to handle high temperatures and pressures.
• Power Generation: Used in cooling water systems requiring flow regulation and high-point vents and low-point drains.



Applications of Diaphragm Valves

Diaphragm valves are favored in industries where contamination-free and reliable flow control is essential. Their applications include:

• Pharmaceutical Industry: Ideal for processes requiring high purity and sterility, preventing contamination.
• Food and Beverage Industry: Used in hygienic applications to handle products intended for human consumption.
• Water Treatment Plants: Suitable for handling corrosive and abrasive fluids, ensuring leak-proof operation.
• Biotechnology: Employed in processes involving bioreactors and fermenters, handling fluids containing microorganisms.
• Chemical Processing: Applied in systems requiring corrosion-resistant flow control for aggressive chemicals.



How to Choose Between Globe Valve vs Diaphragm Valve

Selecting the appropriate valve for your application is crucial to ensure optimal performance, safety, and longevity. When deciding between globe valves and diaphragm valves, consider the following factors:

Application Requirements

• Flow Control Precision: Globe valves offer precise throttling capabilities, making them suitable for applications requiring accurate flow regulation.
• Media Characteristics: Diaphragm valves are ideal for handling corrosive, abrasive, or viscous fluids, as the process media contacts only the valve body and diaphragm, reducing contamination risks.

Pressure and Temperature Conditions

• High-Pressure/High-Temperature Applications: Globe valves are better suited for high-pressure and high-temperature environments due to their robust construction.
• Low-Pressure/Moderate-Temperature Applications: Diaphragm valves are typically limited to lower pressure and temperature ranges, depending on diaphragm material.

Installation Space and Orientation

• Space Constraints: Globe valves are generally bulkier and may require more installation space, which could be a consideration in system design.
• Orientation Flexibility: Diaphragm valves can be installed in various orientations, offering greater flexibility in system layout.

Cost Considerations

• Initial Investment: Diaphragm valves are generally less expensive initially but may incur additional costs over time due to diaphragm replacements.
• Long-Term Costs: Globe valves may have a higher upfront cost but can be more cost-effective in the long run due to their durability and suitability for high-pressure applications.



Maintenance Considerations: Globe Valve vs Diaphragm Valve

Proper maintenance of both globe and diaphragm valves is essential to ensure their longevity, efficiency, and safe operation. Below are key maintenance considerations for each valve type:

Globe Valves

• Regular Inspections: Conduct visual inspections to identify signs of wear, corrosion, or leakage. Pay special attention to the valve body, bonnet, stem, and seating surfaces.
• Cleaning: Remove any debris or sediment from the valve internals to prevent obstruction and ensure smooth operation. Regular cleaning helps maintain optimal flow characteristics.
• Lubrication: Apply appropriate lubricants to the stem and other moving parts to reduce friction and prevent seizure. Ensure compatibility of lubricants with the process media to avoid contamination.
• Seal Inspection and Replacement: Regularly check the condition of packing and gaskets. Replace them if signs of degradation or leakage are observed to maintain sealing integrity.
• Operational Testing: Periodically operate the valve through its full range to ensure smooth movement and verify that it seats properly when closed. This practice helps in early detection of potential operational issues.



Diaphragm Valves

• Diaphragm Inspection and Replacement: Regularly inspect the diaphragm for signs of wear, cracking, or deformation. Replace the diaphragm as per the manufacturer’s recommended intervals or if any damage is detected to prevent leaks and ensure proper sealing.
• Proper Assembly: Ensure correct assembly during diaphragm replacement. Improper installation can lead to poor valve performance, leaks, or contamination. Follow the manufacturer’s assembly instructions meticulously.
• Avoid Over-Tightening: When assembling or installing the valve, avoid over-tightening bolts or the diaphragm itself, as this can cause damage and reduce the valve’s lifespan. Use a torque wrench if necessary to apply the correct torque as specified by the manufacturer.
• Storage Conditions: Store spare diaphragms and valves in a dry, cool environment away from direct sunlight to prevent material degradation. Proper storage extends the shelf life of diaphragms and maintains their performance characteristics.
• Operational Checks: Operate the valve periodically to ensure that the diaphragm moves freely and seats correctly. This practice helps in maintaining the valve’s readiness and identifying potential issues early.



Conclusion

Globe valves and diaphragm valves serve distinct purposes, each suited to specific applications. Globe valves excel in precise flow control and durability, making them ideal for high-pressure and high-temperature environments, such as water treatment, steam services, and chemical processing. In contrast, diaphragm valves are best for handling corrosive or viscous fluids, ensuring fluid purity, and are widely used in industries like pharmaceuticals and food processing.
