Pneumatic linear actuators are a vital component in various industrial systems, known for their ability to convert compressed air into precise linear motion. These actuators are commonly used in valve automation, controlling the flow of fluids in pipelines and ensuring efficient operations across diverse sectors such as oil and gas, water treatment, and HVAC. Their high speed, force output, and explosion-proof safety features make them indispensable in hazardous environments, while their low maintenance and cost-effectiveness contribute to long-term operational efficiency. This article explores the key components, working principles, types, and applications of pneumatic linear actuators, providing a comprehensive understanding of their role in modern industrial automation systems.

What Are Pneumatic Linear Actuators?

Pneumatic linear actuators are mechanical devices that convert compressed air into linear motion, consisting of a cylinder housing a piston connected to a rod. When compressed air enters the cylinder, it moves the piston, causing the rod to extend or retract. These actuators are essential in industrial automation due to their speed, simplicity, and cost-effectiveness. They offer rapid response times and can operate in harsh environments without the need for electrical components. Their straightforward design ensures reliability and ease of maintenance, making them ideal for applications that require precise and quick linear motion. In valve manufacturing, pneumatic linear actuators are commonly used to automate the opening and closing of valves, providing the necessary force to operate different valve types such as gate valves, globe valves, and control valves for efficient flow control in pipelines. Beyond valve operations, these actuators are widely utilized in material handling, packaging, and assembly lines, where controlled linear motion is crucial.

Key Components of Pneumatic Linear Actuators

Cylinder Barrel: The Core Structure

The cylinder barrel serves as the foundational structure of a pneumatic linear actuator. Typically constructed from durable materials such as aluminum or stainless steel, it houses the piston and rod assembly. The barrel’s design ensures a sealed environment, allowing for the controlled movement of the piston in response to compressed air pressure. Its robust construction withstands the internal pressures generated during operation, maintaining the actuator’s integrity and performance.

Pistons and Rods: Converting Air Pressure into Motion

Within the cylinder barrel, the piston and rod assembly plays a pivotal role in converting compressed air into linear motion. The piston, often equipped with seals to prevent air leakage, divides the cylinder into two chambers. When compressed air is introduced into one chamber, it exerts force on the piston, causing it to move. This movement is transmitted through the piston rod, which extends or retracts, depending on the actuator’s design. The piston and rod assembly’s precision and durability are crucial for the actuator’s responsiveness and longevity.

Air Supply System: Compressed Air as the Power Source

The air supply system is essential for providing the compressed air that powers the actuator. It includes components such as compressors, air tanks, and filtration units. The compressor generates the necessary air pressure, which is stored in tanks and conditioned through filtration to remove contaminants. Clean, dry air is vital to prevent corrosion and ensure the smooth operation of the actuator. The air supply system’s capacity and maintenance are directly linked to the actuator’s performance and reliability.

Valves and Control Systems: Regulating Movement

Valves and control systems are integral to directing the flow of compressed air into the actuator, thereby regulating its movement. Directional control valves determine the path of the air, controlling the extension and retraction of the piston rod. Flow control valves manage the speed of movement by adjusting the air flow rate. Additionally, pressure relief valves protect the system from overpressure conditions. The precision and responsiveness of these control systems are vital for applications requiring accurate and repeatable actuator movements.

Working Principle of Pneumatic Linear Actuators

Step 1: Compressed Air Intake and Pressure Build-Up

Pneumatic linear actuators operate by converting compressed air into mechanical motion. The process begins when compressed air enters the actuator’s cylinder through an intake port. This intake pressurizes the internal chamber, creating a force that acts upon the piston. The pressure build-up is essential for generating the necessary force to move the actuator’s rod.

Step 2: Piston Movement and Linear Force Generation

As the compressed air fills the cylinder, it exerts pressure on the piston, causing it to move along the cylinder’s axis. This movement converts the energy from the compressed air into linear force. The piston is connected to a rod, which extends or retracts, depending on the actuator’s design. The linear force generated is utilized to perform various tasks, such as opening or closing valves, moving materials, or positioning components in industrial applications.

Step 3: Directional Control via Valves (Single vs. Double-Acting)

The direction of the actuator’s movement is controlled by valves that regulate the flow of compressed air into and out of the cylinder. In a single-acting actuator, compressed air is applied to one side of the piston, with a spring mechanism returning the piston to its original position when the air pressure is released. This design is commonly used for applications requiring movement in one direction. In contrast, a double-acting actuator allows compressed air to be applied to both sides of the piston, enabling movement in both directions. This configuration provides greater control and is suitable for applications requiring precise positioning in multiple directions.

Step 4: Exhaust and Return Mechanisms

After the actuator completes its movement, the compressed air is exhausted from the cylinder through exhaust ports. In single-acting actuators, the return mechanism, often a spring, returns the piston to its original position. In double-acting actuators, the exhaust ports allow the air to exit the cylinder, and the actuator returns to its starting position when the air pressure is reversed or released. Proper exhaust and return mechanisms are crucial for the actuator’s efficiency and responsiveness, ensuring smooth operation and minimizing wear over time.

This video provides an overview of pneumatic actuators, including their types and applications.

Source:RealPars

Types of Pneumatic Linear Actuators

Single-Acting vs. Double-Acting Actuators

Pneumatic linear actuators are primarily categorized based on their actuation mechanism:

• Single-Acting Actuators: These actuators utilize compressed air to move the piston in one direction, typically extending the rod. A spring mechanism then returns the piston to its original position when the air pressure is released. This design is cost-effective and suitable for applications where movement in one direction suffices.

• Double-Acting Actuators: In contrast, double-acting actuators use compressed air to move the piston in both directions—extending and retracting the rod. This configuration offers greater control and is ideal for applications requiring precise positioning in multiple directions.

(Learn more about the differences between single-acting and double-acting pneumatic actuators in our detailed blog article.)

Rodless Actuators for Compact Spaces

Rodless actuators are designed without an external rod, making them ideal for applications with space constraints. They employ internal mechanisms, such as magnetic coupling or cable systems, to achieve linear motion. This design allows for longer strokes in a compact form factor, making them suitable for applications where space is limited.

Guided Actuators for Precision Applications

Guided actuators incorporate linear guides or bearings to ensure the piston moves along a precise path, minimizing lateral movement and enhancing accuracy. This design is particularly beneficial in applications requiring high precision and load-bearing capabilities, such as in robotics and automated assembly lines.

Advantages and Limitations of Pneumatic Linear Actuators

Pneumatic linear actuators offer several advantages and limitations that are important to consider when selecting the appropriate actuation system for specific applications. Below is a comparative table highlighting these aspects:

Applications in Valve Manufacturing and Industrial Systems

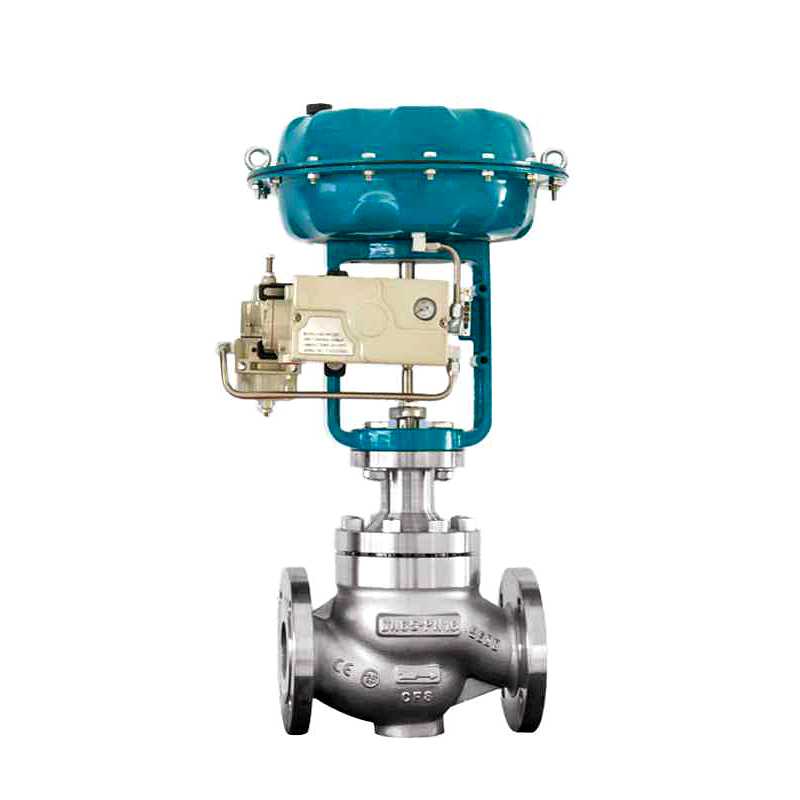

Valve Automation: Controlling Flow in Pipelines

Pneumatic linear actuators are integral to valve automation, enabling precise control over fluid flow in pipelines. By converting compressed air into linear motion, these actuators efficiently open and close valves, ensuring optimal flow regulation. Their rapid response times and high force output make them ideal for applications requiring swift and reliable valve operation.

Use Cases in Oil & Gas, Water Treatment, and HVAC

• Oil & Gas Industry: In the oil and gas sector, pneumatic actuators are employed to control valves that direct the movement of fluids, such as crude oil and natural gas, through pipelines and processing facilities. Their robustness and reliability are essential for maintaining the safety and efficiency of operations in this demanding environment.

• Water Treatment: Pneumatic actuators are utilized in water treatment plants to automate the opening and closing of valves, facilitating the controlled flow of water through various treatment stages. Their ability to operate in wet and harsh environments, coupled with their low maintenance requirements, makes them well-suited for this application.

• HVAC Systems: In heating, ventilation, and air conditioning (HVAC) systems, pneumatic actuators control dampers and valves, regulating airflow and temperature within buildings. Their simplicity and cost-effectiveness contribute to the efficient operation of HVAC systems.

Integration with Smart Systems for IoT-Driven Operations

The integration of pneumatic actuators with Internet of Things (IoT) technologies has revolutionized industrial automation. By incorporating smart sensors and connectivity, these actuators enable real-time monitoring and control, enhancing operational efficiency and predictive maintenance capabilities. This integration allows for data-driven decision-making and improved system performance across various industries.

Conclusion

In conclusion, pneumatic linear actuators are essential components in valve automation, offering high-speed, forceful, and cost-effective solutions for controlling fluid flow across various industrial sectors. Their adaptability to diverse applications, including oil and gas, water treatment, and HVAC systems, underscores their significance in modern industrial operations. Advancements in integrating these actuators with smart systems further enhance their functionality, enabling IoT-driven operations that improve efficiency and predictive maintenance capabilities. Understanding the working principles, types, and applications of pneumatic linear actuators is crucial for selecting the appropriate actuation system to meet specific operational requirements.
