A pneumatic rotary actuator can complete a 90° stroke on a test bench and still fail to open or fully seat the installed valve. This can happen when actuator torque is checked at catalogue air pressure instead of the minimum pressure available during stroking, or when selection relies on only one valve torque figure.
For a ball, butterfly or plug valve, the actuator must cover breakaway, running and reseating torque across the full stroke. A spring-return unit must provide enough torque during both the air and spring strokes, while a double-acting actuator depends on adequate pressure and airflow to both chambers. The mounting flange, coupling, valve stem, fail position and control accessories must also work as one assembly.
Evaluating these details together helps distinguish an undersized actuator from restricted air delivery, excessive valve friction, poor mounting alignment or a control-device fault. It also gives engineers, purchasers and maintenance teams a sound basis for selecting a pneumatic rotary actuator that will operate the valve under actual plant conditions.
What a Pneumatic Rotary Actuator Does on a Valve

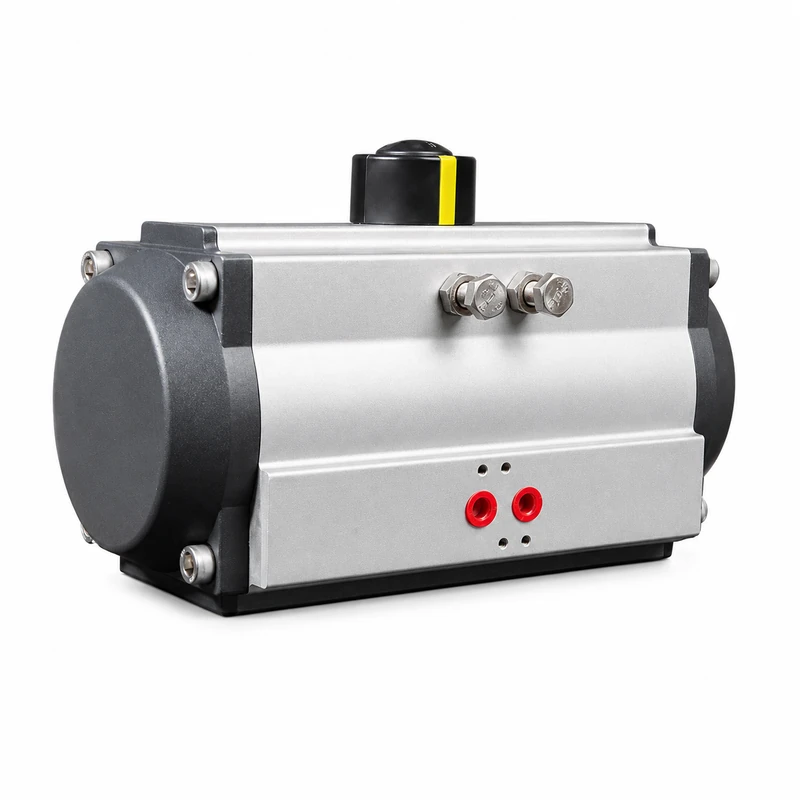

A pneumatic rotary actuator turns the stem of a ball, butterfly or plug valve through a limited angle, most often a quarter turn between the closed and open positions. Compressed air acts on an internal piston or vane, and the actuator mechanism converts that force into torque at the output shaft.
The actuator does not contact or control the process medium directly. Its output shaft drives the valve stem through a direct mounting interface or through a bracket and coupling. The valve seat, differential pressure and closure-element design create the torque demand, while the actuator supplies the torque needed to unseat, move and reseat the valve. MacoTango’s valve actuation basics provide wider context on how the actuator fits into the complete valve assembly.
An on-off package may also include a solenoid valve, limit switch box and position indicator. Modulating service normally requires a suitable positioner and feedback arrangement so the actuator can hold intermediate valve positions without excessive deadband. A rotary actuator is generally unsuitable for valves that require straight-line stem travel, such as most globe and gate valves; the rotary and linear actuator differences should be checked before selecting the actuator type.
This video delves into the design aspects of pneumatic rotary actuators, explaining their mechanisms and applications.
Rack-and-Pinion, Scotch-Yoke and Vane Designs Do Not Deliver Torque the Same Way
The mechanism inside a pneumatic rotary actuator determines how its torque changes between 0°, 45° and 90°. Two actuators with similar catalogue torque ratings can therefore behave differently when starting a valve, moving it through mid-travel and forcing it into the seat.
Rack-and-Pinion Actuators

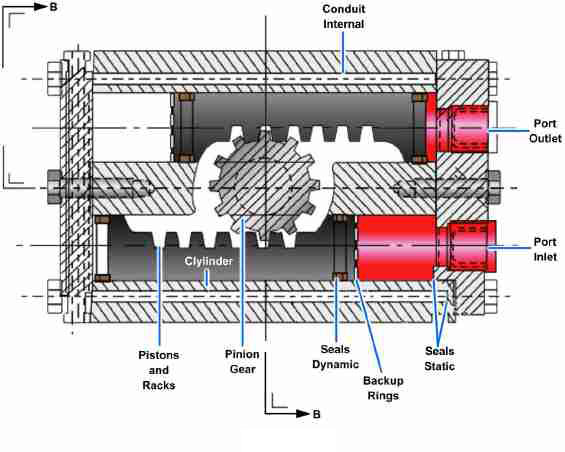

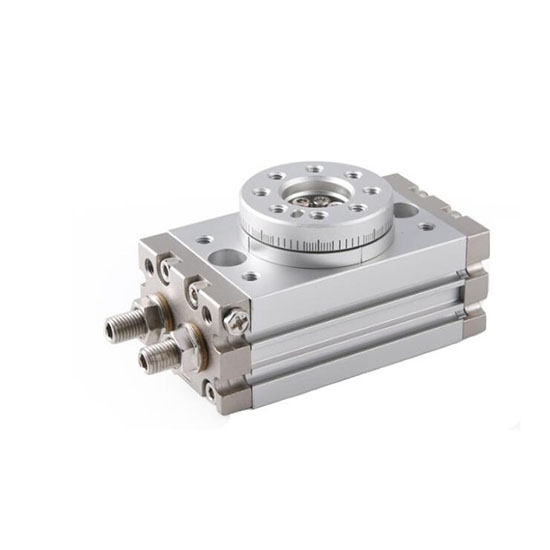

A rack-and-pinion actuator uses one or two pistons fitted with straight gear racks. As air moves the pistons, the racks turn a central pinion connected to the output shaft.
Source:ATO
Double-acting versions commonly produce a relatively even and symmetrical torque profile in both directions. This makes them a practical choice for general quarter-turn valve automation where compact size, standardised mounting and predictable operation matter.
Spring-return models behave differently because the springs are compressed during part of the stroke and release stored energy during the return stroke. The available torque at each position must therefore be checked in both the air stroke and spring stroke.
Gear clearance can also introduce backlash or deadband. This may be acceptable for on-off service but deserves closer attention when the valve must respond accurately to small control signals. Modern rack-and-pinion designs can minimise backlash, so the manufacturer’s data should be reviewed instead of assuming that every model performs the same way.
Scotch-Yoke Actuators

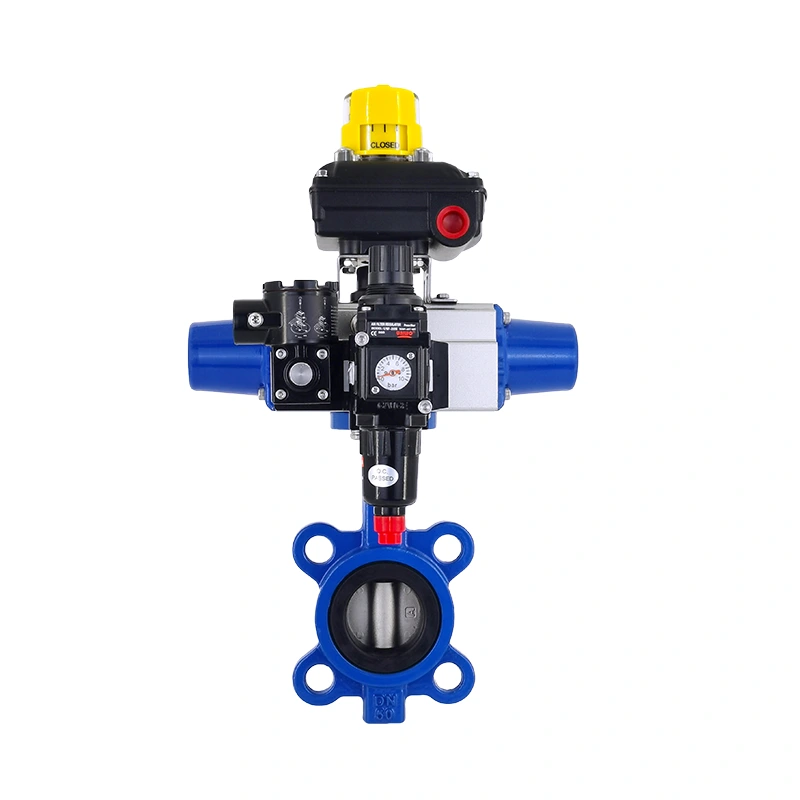

A scotch-yoke actuator converts piston movement through a pin or roller that travels inside a slotted yoke. The effective lever arm changes as the actuator rotates, creating a non-linear torque curve.
Many symmetrical scotch-yoke designs produce higher torque near the ends of travel and lower torque around the middle. This can suit butterfly valves, ball valves and plug valves because their highest torque demand often occurs when breaking away from the seat or completing final shut-off.
The shape of the curve is not universal. Symmetrical and canted yokes, spring arrangements, rotation direction and single-acting or double-acting construction can all change the available output. Buyers should request the actual torque curve for the proposed configuration rather than relying on the general reputation of the mechanism.
Vane Actuators

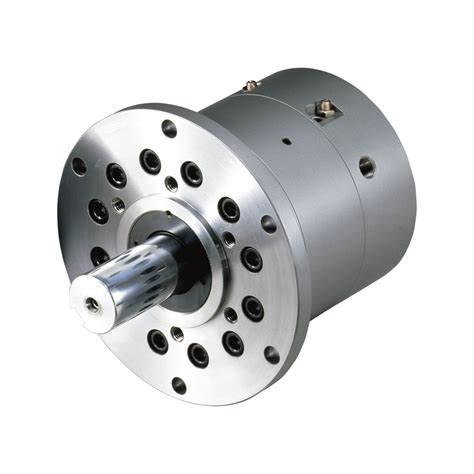

A vane actuator directs compressed air against a vane attached to the output shaft. Its simple construction can provide compact dimensions, smooth rotation and a comparatively uniform theoretical torque when supply pressure remains stable.
Source:PH Parker
Seal condition is especially important because leakage between the pressure chambers reduces usable output and can affect positioning. Many vane actuators are also designed primarily for machine-automation tasks such as indexing, turning and part transfer. Before using one on a process valve, confirm its mounting interface, output shaft, environmental protection and suitability for the required valve duty.
Mechanism type alone does not determine whether an actuator is correctly sized. The reliable method is to compare its complete torque curve at the minimum available air pressure with the valve’s breakaway, running and reseating torque throughout the full stroke.
Size the Actuator Against Valve Torque at the Worst Operating Point
Use the minimum pressure available at the actuator inlet while the valve is moving, not the compressor rating or a static regulator reading. Pressure loss through the filter regulator, solenoid valve, tubing and fittings can leave the actuator with less torque than the catalogue value suggests.
The valve manufacturer should provide torque requirements for the specified differential pressure, temperature, seat design and medium. Match these values against the actuator’s complete output curve in both directions.
| Sizing checkpoint | Evidence to obtain | Risk if omitted |
|---|---|---|
| Break-to-open torque | Valve torque needed to release the ball, disc or plug from the seat | The valve may remain closed even though the actuator moves without load |
| Running torque | Dynamic torque across the intermediate travel positions | The actuator may stall part-way through the stroke |
| End-to-close or reseating torque | Torque required to reach the specified closed position and seat load | The valve may stop short or fail the required shut-off performance |
| Spring-return output | Separate torque curves for the air stroke and spring stroke | One direction may pass the sizing check while the other remains undersized |
| Valve MAST | Maximum allowable stem torque compared with maximum actuator output | An oversized actuator may damage the stem, drive train or internal parts |
Check the actuator at minimum operating pressure against the valve’s maximum expected torque. Then repeat the check at the highest possible air pressure to confirm that the actuator cannot exceed the valve’s maximum allowable stem torque. The Bettis actuator selection procedure follows this minimum-pressure and maximum-valve-torque approach.
Do not apply one universal safety factor to every valve. The required margin should come from the valve manufacturer, actuator manufacturer, project specification and operating uncertainty. Seat ageing, temperature changes, solids in the medium and long idle periods may increase the torque requirement, but the allowance must remain below the valve MAST limit.
Choose Spring-Return or Double-Acting from the Required Fail State
Define what the valve must do after loss of air, electrical power or control signal before choosing the actuator action. A cooling-water valve may need to fail open, while a fuel or hazardous-medium isolation valve may need to fail closed. The required position comes from the process safety assessment, not from actuator price or size.

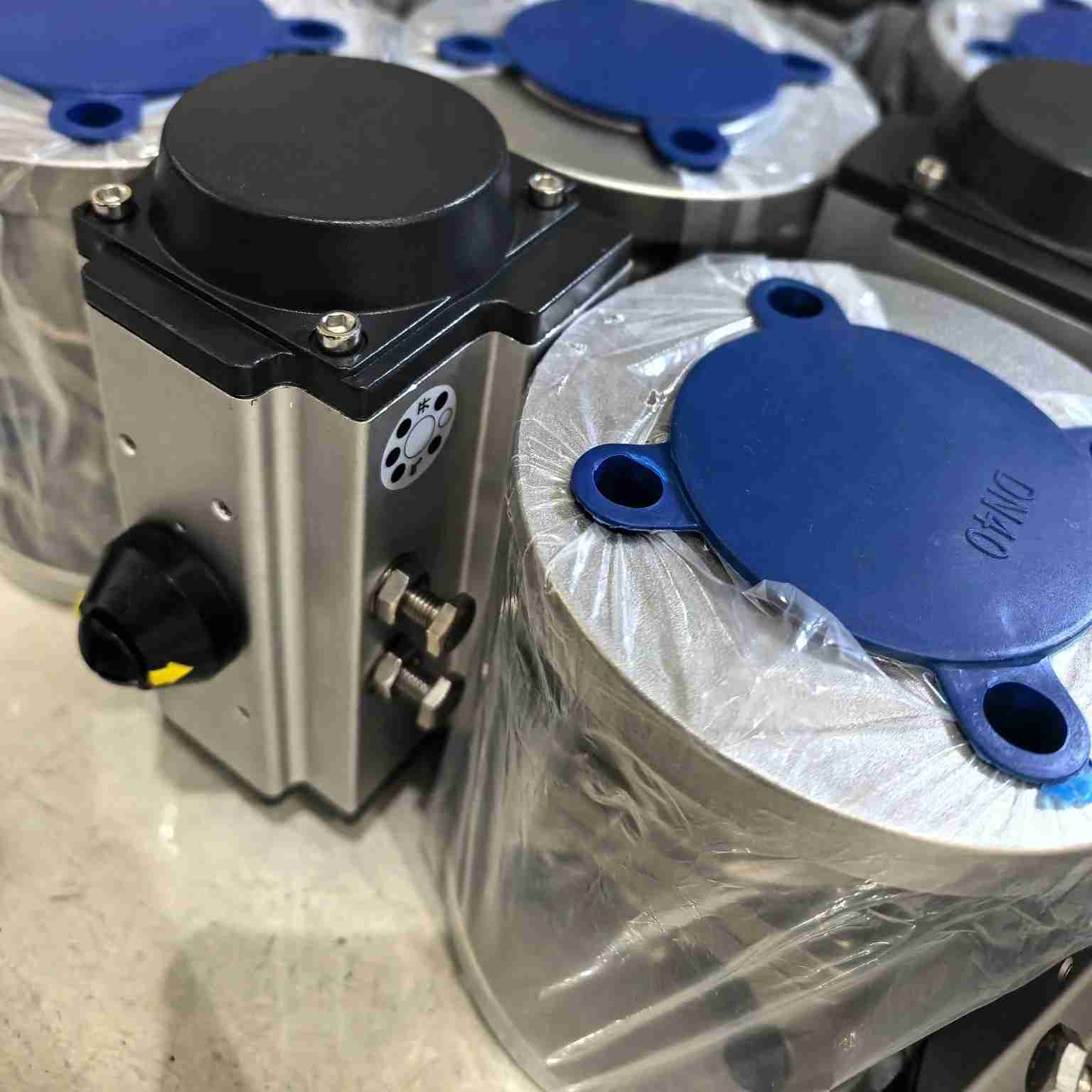

Spring-Return for a Defined Fail Position
A spring-return pneumatic actuator uses compressed air for one direction and stored spring force for the return direction. When the solenoid is de-energised and the actuator chamber exhausts, the springs move the valve towards its specified fail-open or fail-closed position.
The fail direction must be confirmed for the complete assembly. Actuator orientation, valve rotation, stem connection and solenoid arrangement all affect the final result. A spring-return actuator should not be reversed in the field without checking the manufacturer’s instructions and the required valve action.
Size the air stroke and spring stroke separately. Available spring torque changes through the travel, so both the start and end values must exceed the corresponding valve torque requirements. The air stroke must also be checked at the minimum pressure available while the valve is moving.

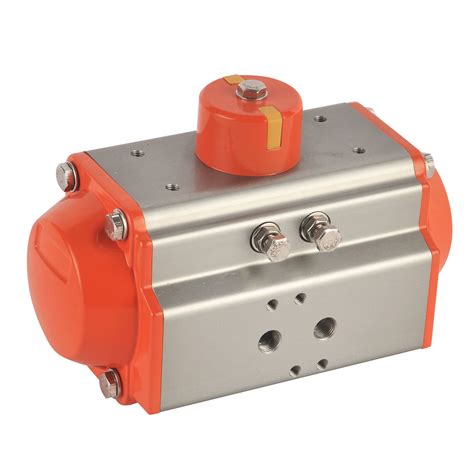

Double-Acting for Powered Movement in Both Directions
A double-acting actuator applies compressed air to alternate chambers to open and close the valve. It normally provides more usable torque from a similar actuator envelope because no internal spring pack occupies part of the housing.
Loss of air does not automatically make the valve fail in place. Trapped air may leak through the solenoid, tubing, seals or fittings, while differential pressure and valve torque can move the closure element. A defined response may require air reservoirs, lock-up valves or another engineered pneumatic circuit.
Spring-return actuators commonly use a 3/2 solenoid valve, while double-acting actuators commonly use a 5/2 arrangement. Port configuration, de-energised flow path and exhaust behaviour must still be verified for the selected equipment. The complete distinction is covered in the single-acting and double-acting pneumatic actuator guide.
Use fail-open, fail-closed or fail-in-place language only after confirming the valve, actuator, solenoid and air circuit as one system. The actuator type alone does not prove the final position after a utility failure.
ISO 5211 Is the Starting Point, Not the Whole Mounting Check
An F05 or F07 flange designation does not prove that a pneumatic rotary actuator will fit the valve without additional checks. ISO 5211:2026 covers the attachment of part-turn actuators to industrial valves, including standardised flange and drive interface requirements. It does not define every bracket, coupling or accessory needed for a complete assembly.
The valve top flange and actuator mounting flange must have compatible bolt patterns and sizes. The drive connection also needs attention. A square, keyed, flat-sided or splined valve stem may require a dedicated coupling, and its dimensions, engagement depth and orientation must match the actuator output drive.
When a bracket and coupling are used, their height and alignment should keep the actuator shaft concentric with the valve stem. Poor alignment can increase operating torque, load the stem or bearings and create uneven coupling wear. The bracket and coupling must also withstand the actuator’s maximum output torque rather than only the normal valve running torque.
Confirm the direction of rotation before assembly. The actuator end stops, valve open and closed positions, position indicator and control signal must all describe the same movement. A 90° actuator installed in the wrong orientation can drive the valve towards the opposite position or prevent the closure element from reaching its seat. The ISO 5211 actuator mounting guide explains the flange and drive checks in more detail.
An on-off package commonly uses a solenoid valve to direct the air and a limit switch box to report the open and closed positions. Modulating duty normally requires a positioner matched to the control signal, actuator action, rotation and required response. Accessory mounting patterns and pneumatic ports should be verified from the selected product data rather than assumed to follow a NAMUR arrangement.
For a hazardous location, check the certification of each electrical component, including the solenoid valve, positioner and limit switches. An actuator package should not be described as explosion-proof solely because one accessory carries the required approval.
Air Pressure, Air Flow and Controls Set the Real Stroking Speed
A normal static pressure reading does not prove that enough air reaches the actuator while it is moving. Pressure can fall across the filter regulator, solenoid valve, tubing and fittings as soon as flow begins. Measure dynamic pressure near the actuator inlet during the stroke when slow or incomplete movement is being investigated.
Stroke time depends on how quickly one chamber fills and the opposite chamber exhausts. Long or narrow tubing, an undersized solenoid valve, blocked exhaust silencer or restrictive speed controller can slow the actuator even when the supply pressure appears adequate. A larger actuator also has more chamber volume to fill, so increasing actuator size may extend stroke time unless the air circuit is sized with it.
Published stroke times apply to the manufacturer’s stated test pressure, load and port conditions. An installed ball or butterfly valve adds breakaway, running and reseating torque, while the plant air network may supply less pressure and flow than the test arrangement. Treat catalogue stroke time as a reference rather than a guaranteed value for the complete valve package.
Opening or closing the valve faster is not always desirable. Rapid movement can produce mechanical impact at the end stops and pressure surge in liquid lines. Adjust the speed controls according to the actuator manufacturer’s pneumatic circuit, and confirm that the valve still develops enough torque to move smoothly and reach its seat. Mechanical end stops set the final travel angle; they should not be used as the main method of absorbing excessive kinetic energy.
Air quality also affects response. Condensate, particles and unsuitable lubrication can restrict small passages or damage seals, solenoid valves and positioners. Follow the selected actuator and accessory specifications for filtration, moisture control and lubrication instead of applying one air-treatment rule to every package. The related pneumatic control system guide explains how regulators, solenoids and air preparation work together.
For modulating duty, the positioner must have enough air capacity for the actuator volume and required response time. Positioner tuning that is too aggressive can produce hunting, while insufficient air delivery creates delayed or uneven movement. Check the control signal, feedback linkage, actuator friction and valve load before treating every response problem as a positioner fault.
What Slow, Weak or Unstable Operation Usually Indicates
Actuator symptoms should be separated into air-supply, control, mechanical and valve-load causes before any component is replaced. Record the pressure at the actuator while it is moving, the point in the stroke where the problem occurs and whether the fault affects one or both directions.
| Symptom | Possible causes | First checks |
|---|---|---|
| Slow in both directions | Low dynamic pressure, restricted filter regulator, undersized solenoid or tubing, blocked exhaust, excessive actuator volume | Measure pressure at the actuator during travel; inspect the regulator, solenoid flow capacity, tubing and exhaust silencers |
| Slow in one direction | One restricted port, uneven speed-control setting, solenoid spool fault, internal leakage or unequal valve load | Compare port pressure and exhaust flow in each direction; inspect the flow controls and solenoid operation |
| Stalls near the seat | Insufficient end-position torque, supply-pressure drop, unsuitable torque curve, stem binding or incorrect end-stop setting | Compare valve reseating torque with actuator output at that angle; check dynamic pressure, coupling alignment and stop position |
| Moves fully but does not shut off | Coupling slip, incorrect travel setting, valve-seat damage, debris or closure element not reaching the required position | Confirm the physical valve position and coupling engagement; inspect the valve internally after safe process isolation |
| Continuous air leakage | Loose fitting, damaged tubing, solenoid leakage or worn actuator seals | Check external joints with an approved leak-detection method; determine whether air escapes from a fitting, solenoid exhaust or actuator port |
| Hunting or unstable movement | Aggressive positioner tuning, unstable supply pressure, valve stiction, actuator backlash or loose feedback linkage | Trend the command signal, position feedback and supply pressure; inspect linkage and friction before changing the tuning |
| Position indication is wrong | Misadjusted limit-switch cams, reversed actuator orientation, loose feedback parts or incorrect wiring logic | Verify the actual valve position first, then check the indicator, switch cams, feedback linkage and control-system logic |
Perform mechanical disconnection or internal valve inspection only after the line is safely isolated and depressurised. The evidence should show whether the restriction follows the air circuit, actuator or valve before repair parts are ordered.
Match the Actuator to the Ball or Butterfly Valve Duty
Valve size alone does not determine the required pneumatic rotary actuator. Seat construction, differential pressure, temperature, flow direction, operating frequency and control duty can produce different torque requirements for valves with the same nominal diameter.
Ball Valve Torque Changes with Seat and Ball Support
A floating ball is pushed towards the downstream seat by line pressure. Its operating torque can rise as differential pressure and seat load increase. A trunnion-mounted ball transfers pressure loads through the trunnion and bearings, but its stem seals, seat design, size and pressure class still affect the required torque.
Soft-seated ball valves commonly require significant breakaway torque after remaining closed for a long period. Seat deformation, temperature, deposits and chemical swelling can increase the torque beyond the clean, new-valve value. Metal-seated valves used for abrasive solids, elevated temperature or severe cycling may require a different torque allowance and should be sized from manufacturer data for the specified service.
The actuator must provide enough breakaway and reseating torque without exceeding the valve MAST at maximum supply pressure. Buyers comparing industrial ball valve options should therefore confirm the ball support, seat material, differential pressure and operating temperature before selecting an actuator size.
Butterfly Valve Torque Depends on Disc Position
A butterfly valve experiences seating torque near the closed position and dynamic torque as the flowing medium acts on the disc. The dynamic load changes with disc angle, flow velocity and installation direction, so an actuator that can unseat the disc may still be inadequate at an intermediate position.
Resilient-seated butterfly valves rely on interference between the disc and seat to achieve shut-off. High-performance double-offset and triple-offset designs use different disc and seat geometries for higher pressure or temperature duties. These designs do not share one torque rule, and their actuator sizing should follow the valve manufacturer’s torque data across the full travel.
For a selected butterfly valve series, also check the permitted flow direction, shut-off differential pressure and maximum stem torque. Rapid closure in a liquid line may create pressure surge even when the actuator and valve are mechanically capable of a short stroke time.
On-Off and Modulating Duty Need Different Checks
On-off service places most attention on breakaway torque, reseating torque, fail position, cycle time and end-position indication. Modulating service also requires stable torque and position control throughout the operating angle. Backlash, valve friction, positioner tuning and changes in dynamic flow torque can otherwise create deadband or hunting.
Specify the valve and actuator as a package when torque data, mounting parts and control accessories must work together. Ordering the actuator separately from the valve increases the risk of mismatched rotation, coupling dimensions, output torque or control response.
Confirm the Complete Valve-Actuator Package
Before ordering, confirm the valve type, size, seat construction, maximum differential pressure, breakaway and reseating torque, MAST, minimum dynamic air pressure, fail position, stroke time, control mode, mounting interface, accessories and installation environment. ISO 5115:2023 treats the valve, actuator and mounting kit as a part-turn actuated valve assembly rather than unrelated components.
Increasing actuator size is not an automatic solution when these inputs conflict. A larger unit may still exceed the valve MAST, use the wrong drive connection or close the valve too quickly. If the valve torque, plant air and fail-state requirements have not yet been reconciled, ask MacoTango to review the valve and actuator package against the actual operating conditions.
