A three-way valve is specified by the job of its third port: combining two streams, diverting one stream, or switching flow between two paths.
That distinction matters because two valves with three pipe connections can behave very differently once the ball, plug, or control-valve trim changes position. The same outside body shape may be used for mixing service, bypass service, tank selection, or flow direction change. If the flow path is guessed from the port count alone, the selected valve can block the wrong line, leave an unwanted path open, or fail to control the process as expected.
This guide explains the working principle of a three-way valve from the flow path first. It covers mixing, diverting, and selecting operation, how to read common three-way valve symbols, what L-port and T-port ball valve diagrams mean, and where a 3-way ball valve is different from a 3-way control valve.
What Is a Three-Way Valve?
A three-way valve uses three flow connections to route, combine, or split media in a piping system. Instead of only opening or closing one straight line, it changes how the connected ports communicate with each other.
In many designs, one port acts as the common connection. The valve then connects that common port to one side, the other side, or both sides depending on the internal passage and valve position. In a ball valve, this passage is usually an L-shaped or T-shaped bore through the ball. In a control valve, the same three-connection idea is handled by the valve body, plug, seat arrangement, and actuator movement.
The term “3 way valve” is therefore a functional description, not a single product design. A three-way ball valve, three-way plug valve, and three-way control valve can all have three ports, but they are selected for different duties. The first check is the flow duty: does the system need to mix two streams, divert one stream, or select between two lines?
How a Three-Way Valve Works
The internal passage decides which ports are open, closed, or connected at each valve position. In a three-way ball valve, the bore through the ball turns with the handle or actuator. When the bore aligns with two ports, flow passes through that path. When the bore moves away from a port, that port is isolated or partly blocked depending on the design.
The same port arrangement can create different flow behaviour. One position may send flow from the common port to the left outlet; another may send it to the right outlet. In a T-port design, some positions can connect all three ports at the same time, which is useful for blending or bypass arrangements but risky if the system needs positive isolation between two lines.
Actuated three-way valves follow the same flow-path logic, but the movement is made by a pneumatic, electric, or hydraulic actuator instead of a manual handle. For on-off ball valves, the actuator normally moves between set positions. For a three-way control valve, the plug and actuator can modulate flow between two paths, so the valve can control temperature, pressure, or flow split instead of only switching direction.
Here is an animation of how a 3-way ball valve works:
Video source: DixonValve on YouTube.
Three-Way Valve Operation: Mixing, Diverting and Selecting
The common port decides whether a three-way valve is mixing, diverting, or selecting flow. The outside valve body may still have three connections, but the process duty changes when the common port is used as an inlet, an outlet, or a switching point.
| Operation | Common port role | Typical flow duty | Practical check |
|---|---|---|---|
| Mixing / converging | Outlet | Two inlet streams combine into one outlet. | Check pressure balance, media compatibility, and temperature difference. |
| Diverting / diverging | Inlet | One inlet stream is sent to one of two outlets. | Confirm which outlet must close and whether bypass flow is allowed. |
| Selecting / switching | Shared connection | The valve selects between two lines, tanks, filters, or utility paths. | Check whether the system needs positive isolation between the two side ports. |
Mixing and diverting are often used in process-control discussions because the valve can change a flow split, blend ratio, or bypass path. Selecting service is closer to routing: the valve chooses one path over another, such as tank A or tank B, filter line 1 or filter line 2, cooling water to process or bypass.
The risk is highest when the drawing says “3-way valve” but does not show the flow direction. A T-port ball valve may leave more than one path open in some handle positions, while an L-port ball valve is usually chosen when the system needs a clearer changeover between two paths.
Three-Way Valve Symbol and Flow Direction
A three-way valve symbol should show more than three pipe connections. It should also show which port is common, which direction the medium can flow, and which ports are connected in each valve position.
On a piping and instrumentation diagram, the arrows or internal lines tell the reader whether the valve is mixing two inlet streams, diverting one inlet stream, or switching between two paths. If the symbol only shows a three-port body without the flow path, the drawing may still be incomplete for purchasing, installation, or actuator setting.
Flow direction also affects installation. Some three-way ball valves can be used in more than one direction, but a three-way control valve normally has a defined flow direction through the body and trim. For actuated valves, the drawing should also confirm the normal position, fail position, and rotation angle, especially where one wrong position could leave a bypass open or close the process line.

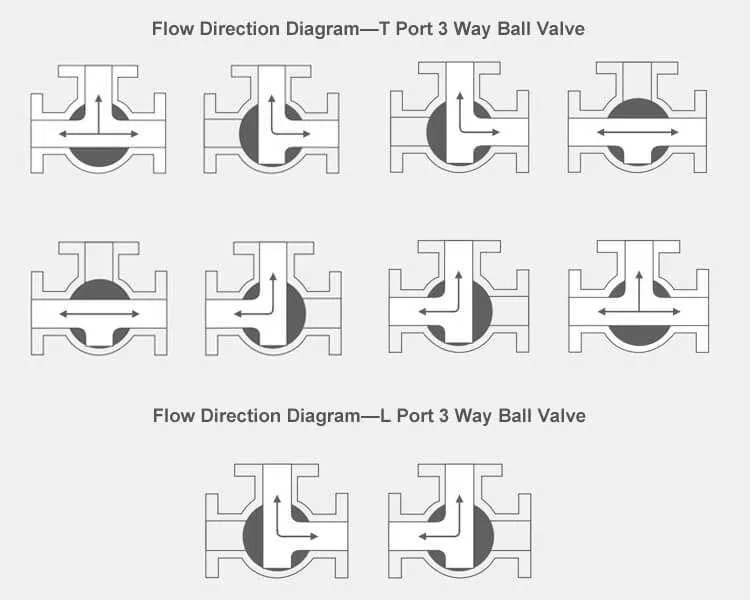

3-Way Ball Valve Flow Diagrams: L-Port vs T-Port
L-port and T-port 3-way ball valves give different flow paths even when the outside body looks similar. The difference is inside the ball: an L-port has an angled passage, while a T-port has a passage that can connect more port combinations.
| Item | L-port 3-way ball valve | T-port 3-way ball valve |
|---|---|---|
| Internal passage | Angled bore, usually connecting two ports at a time. | T-shaped bore, able to connect two or three ports depending on position. |
| Common use | Changeover between two outlets or two inlets. | Mixing, bypass, or more flexible flow distribution. |
| Isolation behaviour | Better when the side ports should stay separated in normal operation. | May leave several ports connected in some handle positions. |
| Selection risk | Wrong handle stop or port marking can send flow to the wrong line. | Wrong pattern can create an unwanted bypass or cross-flow path. |
An L-port valve is usually the safer choice for simple switching service, such as sending one inlet to outlet A or outlet B. A T-port valve is useful when the system needs a shared path, bypass path, or possible mixing position, but the open-port positions must be checked against the piping drawing before ordering.
Two-Way Valve vs Three-Way Valve
A two-way valve is usually better when the line only needs open/closed isolation or simple flow control between one inlet and one outlet. It has fewer flow paths to confirm, fewer installation mistakes to catch, and a clearer shut-off duty.
A three-way valve is used when the piping system needs another flow decision inside the same valve body. That decision may be to send one inlet to either of two outlets, combine two inlet streams into one outlet, or switch between two supply lines. In these duties, using two separate two-way valves can work, but it may need more space, more actuator signals, and more interlock logic to avoid opening the wrong path.
The choice should follow the process duty rather than the number of ports available on a catalogue page. If the drawing only shows one flow path and one shut-off point, a two-way valve is usually the cleaner selection. If the drawing shows a shared port, bypass line, alternative outlet, or two streams meeting at one point, a three-way valve may reduce piping complexity, provided the port pattern and fail position are correct.
3-Way Ball Valve vs 3-Way Control Valve
A 3-way ball valve can route flow, but a 3-way control valve is used when the process needs stable modulation between two paths. The difference is in the internal design, actuator duty, and how precisely the valve must respond to a control signal.
A three-way ball valve is normally selected for switching, selecting, mixing, or diverting where the valve moves between defined positions. It may be manual or actuated, but the main question is still the port pattern: L-port or T-port, which ports are open, and whether the handle or actuator stops match the piping drawing.
A three-way control valve is built for modulating service. The plug, seat, body flow path, actuator, and sometimes positioner work together to vary flow through two connected paths. This is common in temperature-control loops, bypass control, and converging or diverging service where the valve has to hold intermediate positions rather than simply turn from one fixed port connection to another.
A standard 3-way ball valve is usually not the best choice for continuous throttling. Partial opening can create unstable control, seat wear, noise, or erosion depending on velocity, pressure drop, and medium. If the process needs controlled flow split, temperature regulation, or automatic response to an instrument signal, compare the valve duty with what a control valve does before selecting the body style.
For control service, the buyer should check Cv data, flow direction, leakage class, actuator force, fail position, and trim material. MacoTango’s control valve series is the more relevant product path when the valve must modulate rather than only route flow.
Where Three-Way Valves Are Used in Industrial Systems
Three-way valves are common where one pipeline must connect to two possible paths, or where two streams must meet before the next process step. The valve is selected because the flow path has to change inside a compact piping arrangement, not because three ports are automatically better than two.
Bypass and recirculation lines
A three-way valve can send flow through equipment or around it through a bypass. This is used in utility lines, heat-transfer systems, pump protection arrangements, and process loops where the line may need a controlled or manual alternative route.
Mixing and blending service
Mixing service uses two inlet streams and one outlet. The duty may be simple manual blending, or it may be part of a controlled process where temperature, concentration, or flow proportion has to be adjusted. The buyer should check whether the two media are compatible and whether pressure difference between the two inlets will disturb the flow balance.
Diverting to alternative outlets
Diverting service uses one inlet and two possible outlets. It can appear in tank filling, filter switching, drain routing, sampling lines, and process transfer systems. The key check is whether the unused outlet must be fully isolated or whether a short overlap between paths is acceptable during switching.
Sanitary and clean process lines
In food, beverage, pharmaceutical, and clean utility systems, three-way valves may be used for product transfer, CIP routing, or line selection. In these duties, flow path and cleanability matter as much as pressure rating. Dead legs, seat design, drainability, and connection type should be checked before treating a general industrial three-way valve as suitable for sanitary service.
Selection Notes for Industrial Service
The correct three-way valve is usually decided by flow duty before material, pressure class, or actuator type. A valve specified only as “3-way, DN50, stainless steel” still leaves the supplier guessing whether the duty is mixing, diverting, selecting, or modulating.
Check these points before treating two three-way valves as interchangeable:
- Flow duty: confirm whether the valve must mix two streams, divert one stream, select between two lines, or modulate a flow split.
- Port pattern: check L-port or T-port design, common port position, handle rotation, and whether any position connects all three ports.
- Medium and temperature: confirm whether the fluid is water, steam, oil, gas, corrosive liquid, slurry, sanitary product, or another medium that affects seat and seal choice.
- Pressure and pressure drop: check the pressure class, shut-off pressure, and whether partial opening could create noise, erosion, cavitation, or unstable control.
- Body, seat, and seal material: match WCB, CF8, CF8M, PTFE, graphite, metal seat, or soft seat options to the medium and temperature range.
- Actuation and fail position: confirm manual, pneumatic, or electric operation, then define what the valve should do if air pressure or power is lost.
For automated valves, actuator choice should follow the required movement, torque, control signal, speed, and fail position. If the project is comparing actuator types, MacoTango’s guide to pneumatic vs electric actuators can support that part of the selection.
The drawing should show the expected port connections in each valve position. Without that flow-path detail, the valve model may look correct on a quotation sheet and still behave incorrectly after installation.
Check the Flow Path Before You Choose the Valve
Check the flow path before choosing the body material, pressure rating, or actuator. For a three-way valve, the first decision is not the valve size or the connection type; it is which ports must connect, which ports must close, and what should happen in each handle or actuator position.
A simple port sketch can prevent most selection mistakes. Mark the common port, inlet and outlet direction, normal position, fail position, and any bypass or mixed-flow position. After that, material, seat design, pressure class, end connection, actuator torque, and control signal can be checked against the real duty instead of a vague “3-way valve” description.
If the application involves corrosive media, high temperature, frequent actuation, sanitary routing, or automatic control, share the flow diagram and working conditions with MacoTango before ordering. You can contact MacoTango to review the port pattern, material, pressure class, actuator type, and fail position for the intended service.
