Precise speed adjustment in pneumatic actuators is crucial for improving operational efficiency and preventing equipment damage across various industries. Pneumatic actuators convert compressed air into mechanical motion, making them essential in industrial automation for controlling valves and machinery. Improper actuator speed—whether too fast or too slow—can lead to significant issues. Excessive speed can cause impact forces that result in premature wear or failure, contributing to about 30% of valve nonlinearity problems due to stiction, deadbanding, and hysteresis. On the other hand, slow actuator speeds can reduce production efficiency, leading to bottlenecks and throughput limitations. To maintain optimal performance, it’s essential to adjust the speed of pneumatic actuators through proper pressure settings, valve selection, and advanced control systems, which is key to improving system stability and extending equipment lifespan.
Key Adjustment Parameters for the Speed of Pneumatic Actuators
Properly adjusting pneumatic actuators involves understanding and managing several critical performance indicators to ensure optimal functionality and longevity.
Optimal Cycle Time Ranges
The cycle time of a pneumatic actuator—the duration to complete a full stroke (extend and retract)—is pivotal for system efficiency. Standard actuators typically operate within cycle times ranging from 0.5 to 5 seconds. This range is influenced by factors such as:
Cylinder Size: Larger bore sizes may result in slower cycle times due to increased air volume requirements.
Air Supply Pressure: Higher pressures can decrease cycle time but must remain within manufacturer specifications to prevent damage.
Load Characteristics: Heavier loads can extend cycle times; thus, actuators should be selected based on the specific application requirements.
Acceptable Acceleration Forces
Acceleration force—the force required to accelerate a mass—is crucial in actuator performance. Inadequate acceleration can lead to sluggish responses, while excessive forces may cause mechanical stress. For most industrial valves, maintaining acceleration forces below 2g (where g is the acceleration due to gravity, approximately 9.81 m/s²) is advisable to balance performance and equipment longevity. This consideration helps in preventing undue wear and tear on both the actuator and the valve components.
ISO 5211 Standard Requirements for Torque/Speed Ratios

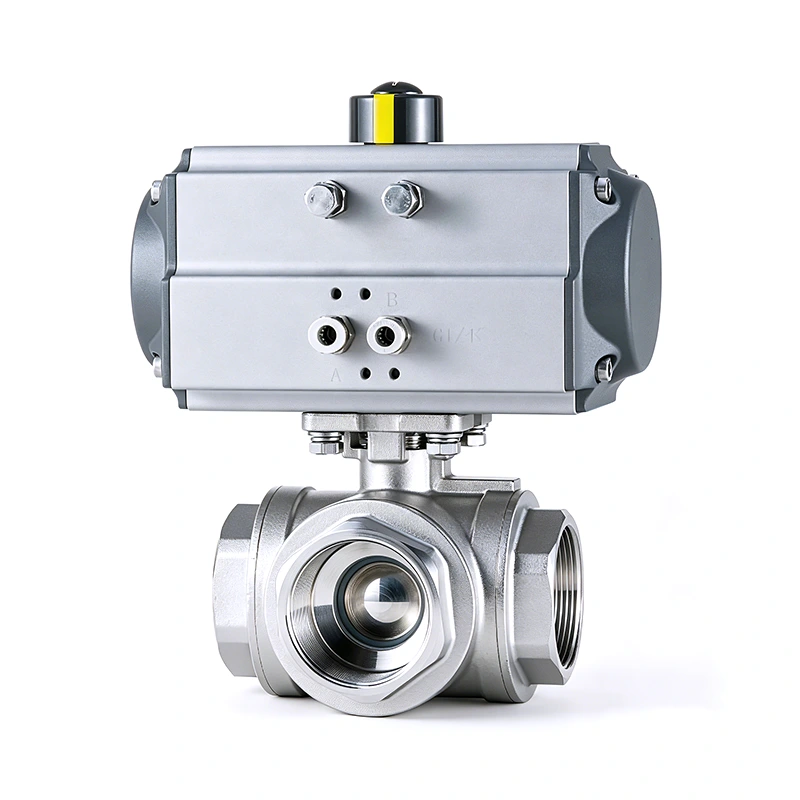

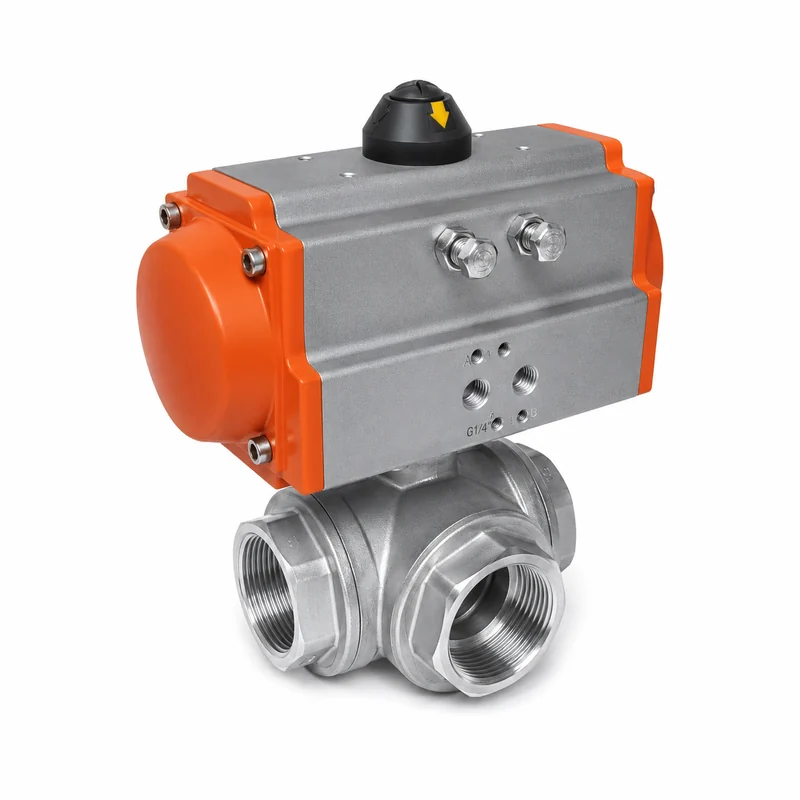

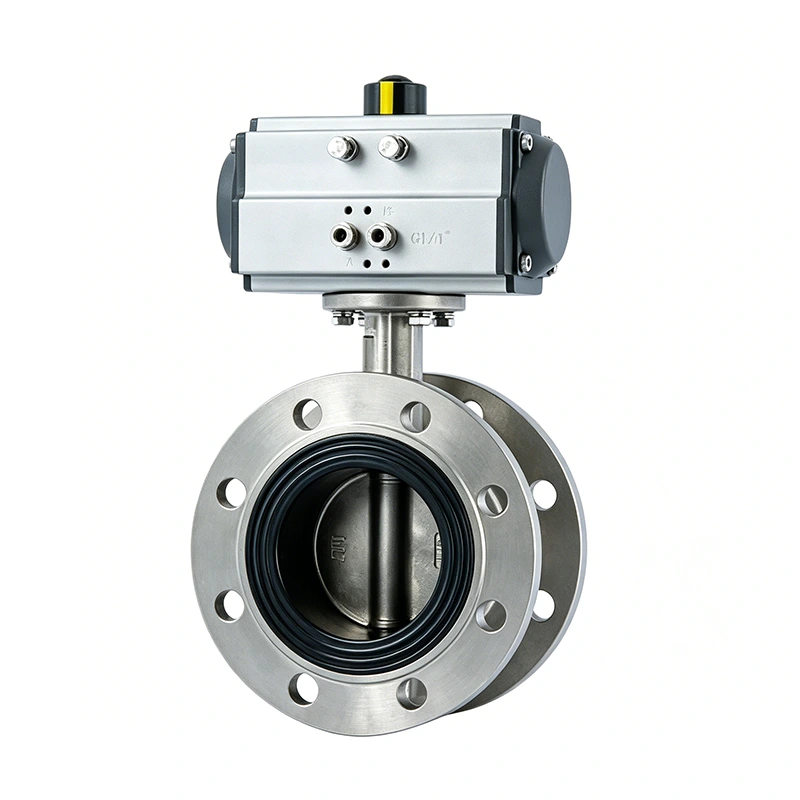

ISO 5211 is an international standard that specifies requirements for the attachment of part-turn actuators to industrial valves. It defines flange dimensions, driving component dimensions, and torque reference values to ensure compatibility and interchangeability between actuators and valves from different manufacturers. Adherence to ISO 5211 ensures that the actuator’s torque and speed are appropriately matched to the valve’s operational requirements, facilitating reliable and efficient performance.
Upstream Speed Control Methods
Effective management of pneumatic actuator speed begins with upstream adjustments, focusing on the regulation of air supply and flow control components.
1.Air Supply Pressure Regulation
Adjusting the air supply pressure directly influences the actuator’s speed. Higher pressures increase force and speed, while lower pressures reduce them. However, it’s crucial to operate within safe limits to prevent equipment damage.
- Pressure-to-Speed Correlation: Operating pneumatic actuators within a pressure range of 0.2 to 0.8 MPa (29 to 116 psi) allows for effective speed control. For instance, increasing the pressure from 0.4 MPa to 0.6 MPa can significantly enhance the actuator’s speed, depending on the specific system configuration. It’s essential to consult manufacturer guidelines for precise correlations between pressure adjustments and speed outcomes.
- Safety Thresholds: Adhering to safety standards is paramount. According to ASME B31.3, the maximum allowable operating pressure should not exceed 110% of the system’s rated pressure. Exceeding this limit can compromise system integrity and safety.
2.Throttle Valve Optimization
Throttle valves, or flow control valves, are instrumental in fine-tuning the airflow rate to pneumatic actuators, thereby adjusting their speed.
Flow Coefficient (Cv) Calculations
The flow coefficient (Cv) quantifies a valve’s capacity to pass fluid; higher Cv values indicate greater flow capacity. Selecting an appropriate Cv is essential for achieving desired actuator speeds. For example, a valve with a Cv of 0.5 allows more airflow than one with a Cv of 0.2, resulting in faster actuator response. Accurate Cv calculations should consider factors such as desired flow rate, pressure drop, and fluid characteristics.
(Learn more about Flow Coefficient (Cv) calculations to optimize your pneumatic actuator’s performance.)
Orifice Diameter Recommendations
Fine Control (<10 l/min): An orifice diameter of approximately 1.5 mm is recommended for precise flow regulation in low-flow applications.
Standard Flow (15-30 l/min): A 3.0 mm orifice diameter suits standard flow requirements, balancing control and flow rate effectively.
Response Time Improvements
Adjusting needle valves can significantly impact actuator response times. Proper optimization can lead to a 40-60% reduction in cycle time, enhancing system efficiency. For example, fine-tuning the needle valve setting can decrease the actuator’s extend and retract times, resulting in faster operation cycles.
3.Solenoid Valve Selection
The choice of solenoid valve directly affects the actuator’s performance, particularly regarding flow capacity and response time.
Flow Capacity Comparisons
NFPA D03 Valves: These valves typically have a flow coefficient (Cv) around 0.35, suitable for applications requiring precision control with moderate flow rates. They conform to NFPA D03 and ISO 4401 mounting standards, ensuring compatibility and reliability.
ISO 15407-1 Valves: Valves adhering to ISO 15407-1 standards offer higher flow capacities, with Cv values up to 2.5, making them ideal for high-speed operations where rapid actuator movement is essential. These valves are designed for applications demanding quick response times and higher flow rates.
Voltage/Response Time Relationships
The operating voltage of solenoid valves influences their response times. Generally, 24VDC solenoids exhibit faster response times compared to 110VAC counterparts, due to quicker coil energization and de-energization. This characteristic is crucial in applications where rapid actuator cycling is required. Selecting the appropriate voltage specification ensures that the actuator meets the desired speed and performance criteria.
Downstream Exhaust Control
Managing the exhaust flow in pneumatic systems is crucial for optimizing actuator speed and ensuring efficient operation. Downstream exhaust control focuses on modifications and components that facilitate rapid and controlled expulsion of air from actuators.
1.Exhaust Port Modifications
Enhancing the exhaust capabilities of pneumatic actuators involves several key considerations:
Effective Exhaust Area (EEA) Calculations
The Effective Exhaust Area (EEA) determines the capacity of an actuator’s exhaust port to expel air, directly influencing the actuator’s speed. Calculating the EEA involves assessing the cross-sectional area of the exhaust pathway, accounting for any restrictions that may impede airflow. A larger EEA facilitates quicker air evacuation, resulting in faster actuator cycling.
Backpressure and Speed Relationship
Backpressure—the residual pressure opposing the exhaust flow—can significantly affect actuator speed. As backpressure increases, it impedes the exhaust process, slowing down the actuator’s operation. Maintaining backpressure below 53% of the supply pressure is essential to prevent speed reduction. For example, with a supply pressure of 0.6 MPa (87 psi), keeping the exhaust pressure below 0.318 MPa (46 psi) is crucial to avoid critical velocity limitations.
Quick Exhaust Valves
Installing quick exhaust valves directly at the actuator’s exhaust port can substantially enhance exhaust flow rates, leading to improved actuator speeds. These valves provide a rapid pathway for air to exit, bypassing the control valve and reducing cycle times. Typical flow rates for quick exhaust valves range from 300 to 500 liters per minute (l/min) at 6 bar (0.6 MPa) pressure. This enhancement allows for faster retraction and extension of pneumatic cylinders, optimizing overall system performance.
2. Silencer Selection
While silencers (mufflers) are essential for reducing noise generated by exhausting air, they can introduce flow restrictions that affect actuator speed. Selecting the appropriate silencer involves balancing noise attenuation with minimal impact on performance:
Noise Reduction vs. Flow Restriction Trade-offs
20 dB(A) Silencers: These silencers typically reduce noise levels by 20 decibels but may cause a flow restriction leading to approximately a 15% reduction in actuator speed. This trade-off is often acceptable in applications where moderate noise reduction is sufficient, and maintaining speed is critical.
35 dB(A) Silencers: Offering more substantial noise reduction of around 35 decibels, these silencers can impose greater flow restrictions, potentially resulting in up to a 30% decrease in actuator speed. They are suitable for environments where noise control is a priority, and some reduction in speed is permissible.
Considerations for Silencer Selection
When choosing a silencer, it’s important to consider the specific requirements of the application:
Application Environment: In noise-sensitive environments, prioritizing higher noise reduction may be necessary, even at the expense of actuator speed.
Performance Requirements: For applications where speed is critical, selecting silencers with lower flow restrictions is advisable, accepting moderate noise levels.
Maintenance and Durability: High-quality silencers designed to minimize clogging and withstand harsh conditions can ensure consistent performance and reduce maintenance needs.
Advanced Speed Control Systems
Implementing advanced control systems enhances the precision and responsiveness of pneumatic actuators. Key components include positioners and proportional valves, which allow for fine-tuned adjustments to meet specific operational requirements.
1. Positioner Configuration
Positioners ensure that an actuator’s position accurately reflects the control signal, enhancing system accuracy and stability.
I/P Converter Accuracy Levels
Current-to-Pressure (I/P) converters transform electrical signals (commonly 4–20 mA) into proportional pneumatic pressures. High-quality I/P converters achieve accuracy levels of ±0.15% of full scale (FS), ensuring precise pressure modulation and, consequently, accurate actuator positioning. This precision is crucial in applications where exact valve positioning affects process outcomes.
PID Tuning Parameters for Stable Motion Profiles
Positioners utilize Proportional-Integral-Derivative (PID) control algorithms to maintain desired actuator positions:
Proportional Gain (P): Determines the immediate reaction to position errors.
Integral Time (I): Addresses accumulated errors over time.
Derivative Time (D): Predicts future errors based on current trends.
Stroke Time Repeatability
Digital positioners enhance stroke time repeatability, achieving consistency within ±2%. This reliability ensures uniform actuator performance across cycles, which is vital for processes requiring high precision and repeatability.
2. Proportional Valve Integration
Proportional valves regulate flow rates in direct proportion to input signals, offering dynamic control over actuator speeds.
4–20 mA Signal Mapping to Speed Ranges
In industrial settings, a 4–20 mA current loop is a standard for transmitting control signals. This range can be mapped to specific actuator speeds, allowing for precise control:
4 mA: Represents the minimum speed or fully closed position.
20 mA: Corresponds to the maximum speed or fully open position.
Intermediate current values adjust the actuator speed proportionally, facilitating accurate and responsive control.
Dynamic Response Specifications
High-performance proportional valves are designed for rapid response, achieving 95% of the desired position within less than 50 milliseconds. This swift reaction is crucial in applications where timely adjustments are necessary to maintain process stability and efficiency.
Integrating advanced speed control systems, such as precise positioners and responsive proportional valves, significantly enhances the performance and reliability of pneumatic actuators. These components enable meticulous control over actuator dynamics, ensuring optimal operation across various industrial applications.
Maintenance Considerations
Proper maintenance of pneumatic actuators is essential for ensuring optimal performance and extending their operational lifespan. Key factors to consider include lubrication viscosity, seal condition, and temperature effects.
Lubrication Viscosity Effects
The viscosity of lubrication oil significantly influences the efficiency and responsiveness of pneumatic actuators.
- ISO VG 32 vs. VG 68: ISO Viscosity Grades (VG) indicate the oil’s thickness; higher numbers denote more viscous oils. ISO VG 32 oil is thinner and flows more readily, suitable for high-speed applications requiring rapid actuator response. Conversely, ISO VG 68 oil is thicker, providing better film strength for heavy-load scenarios but potentially slowing actuator movement due to increased resistance. Selecting the appropriate viscosity grade is crucial for balancing speed and load-bearing requirements.
Friction Loss in Aged Seals
Over time, seals within pneumatic actuators can degrade, leading to increased friction and reduced efficiency.
- Aging Effects: Seal materials may harden, crack, or swell due to environmental exposure and operational stresses. This deterioration elevates the coefficient of friction, causing sluggish actuator performance and increased energy consumption. Regular inspection and timely replacement of seals are vital to maintain optimal functionality.
Temperature Compensation Factors
Temperature variations can affect the performance of pneumatic actuators, necessitating adjustments to maintain consistent operation.
- Speed Variation: Actuator speed can change by approximately 0.2% per degree Celsius variation in temperature. For instance, a 10°C increase could result in a 2% speed increase, potentially impacting process accuracy. Implementing temperature compensation mechanisms or selecting materials with minimal thermal sensitivity can help mitigate these effects.
Industry-Specific Case Studies
Adjusting pneumatic actuator speed is crucial across various industries to ensure optimal performance and compliance with standards. Below are specific case studies highlighting industry practices:
Oil & Gas:
In the oil and gas sector, maintaining appropriate pressure settings is vital for the safe and efficient operation of pipeline valves. API 6D specifies requirements for the design and testing of pipeline valves, including pressure ratings. Ensuring that valves operate within specified pressure ranges, such as 0.4 MPa, is essential to prevent equipment failure and ensure safety.
Food Processing:
In the food processing industry, maintaining hygiene standards is paramount. Clean-in-Place (CIP) systems are employed to clean the interior surfaces of pipes and equipment without disassembly. The selection of appropriate valves, such as throttle valves with specific orifice sizes like 0.8mm, is crucial for controlling flow rates and ensuring thorough cleaning. Valves designed for CIP applications must have smooth, unobstructed flow paths and be free of internal cavities to prevent contamination.
Water Treatment:
In water treatment facilities, rapid and precise control of fluid flow is essential for processes like filtration and chemical dosing. Implementing dual solenoid valve setups can achieve swift actuator responses, enabling cycle times as short as 2 seconds. This configuration allows for quick opening and closing of valves, enhancing process efficiency and responsiveness.
Conclusion
Effective speed adjustment in pneumatic actuators is essential for improving system performance, enhancing operational efficiency, and preventing equipment damage. By carefully managing upstream and downstream factors such as air supply pressure, throttle valve settings, exhaust port modifications, and solenoid valve selection, you can adjust the speed of pneumatic actuators with precision. Advanced systems like positioners and proportional valves provide greater accuracy and responsiveness, while proper maintenance—such as monitoring lubrication viscosity, seal condition, and temperature effects—ensures long-term reliability. Industry-specific configurations, from API 6D valves in oil and gas to CIP-compliant systems in food processing, highlight the importance of tailored solutions. Implementing these best practices will maximize your pneumatic actuator’s lifespan and efficiency.
