Calculating the weight of a ball valve is a crucial aspect of various engineering applications, especially in manufacturing, procurement, and installation processes. Knowing the exact weight helps ensure proper handling, transportation, and compatibility with the rest of the pipeline system. This guide aims to help you understand the key factors that influence the weight of a ball valve and provides a straightforward method for calculating it.
The Importance of Calculating Ball Valve Weight
Ball valves play an important role in fluid control, and their weight can have a direct impact on the installation process, the load-bearing capacity of pipelines, and overall system efficiency. Understanding a ball valve’s weight can assist engineers in planning for structural support, determining shipping costs, and meeting industry safety standards. Additionally, accurate weight calculations are vital when selecting lifting equipment for valve installations.
Factors Affecting Ball Valve Weight
The weight of a ball valve can vary significantly depending on a few key factors:
- Valve Size: The larger the diameter of the valve, the heavier it is. Ball valves come in different nominal sizes, ranging from small valves used in household plumbing to large industrial valves used in oil and gas pipelines.
- Material: The material of construction plays a major role in the overall weight. Common materials include stainless steel, carbon steel, brass, and PVC. Stainless steel valves are generally heavier compared to those made from plastic or brass.
- Pressure Rating: The pressure rating indicates the thickness of the valve body, which affects its weight. Higher pressure ratings require thicker walls, thus increasing the overall weight of the valve.
- Design: The type of ball valve—such as one-piece, two-piece, or three-piece—also influences its weight. Multi-piece valves usually have more components, making them heavier compared to simpler designs.
- End Connection Type: The type of end connection, such as flanged, threaded, or welded, also affects the weight. Flanged valves tend to be heavier due to the added flange components, whereas threaded or welded connections might be lighter.

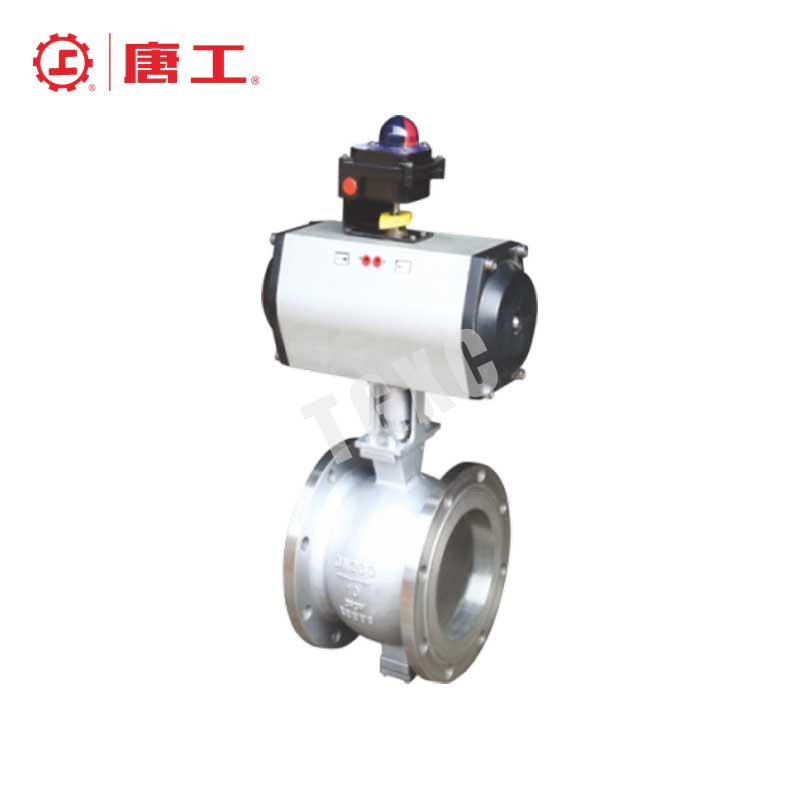

- Actuator: If the valve has an actuator, such as a pneumatic, electric, or hydraulic actuator, this will significantly increase the total weight of the valve assembly. The actuator’s size and type contribute directly to the overall weight.
Step-by-Step Approach to Calculating Ball Valve Weight
Accurately determining the weight of a ball valve is essential for system design, installation planning, and ensuring structural integrity. The weight depends on factors such as valve size, material composition, and design type. The following method provides a systematic approach to estimate the weight of a ball valve.
1.Identify Valve Specifications
- Size: Determine the nominal diameter of the valve, typically measured in inches or millimeters.
- Material: Identify the construction material of the valve, such as carbon steel, stainless steel, brass, or PVC.
- Type: Ascertain the valve design—floating ball valve or trunnion-mounted ball valve—as this influences the weight due to structural differences.
2.Calculate the Volume of the Valve Components
The valve comprises several parts, each contributing to the total volume:
- Body: Estimate the volume based on the external dimensions, subtracting the internal cavity.
- Ball: Calculate the volume using the formula for a sphere:
where r is the radius of the ball.
- Other Components: Include volumes of flanges, stems, and other attachments as applicable.
3.Determine Material Densities
Obtain the density of the valve material, typically expressed in kilograms per cubic meter (kg/m³) or pounds per cubic inch (lb/in³). Common densities are:
- Carbon Steel: Approximately 7,850 kg/m³
- Stainless Steel: Approximately 8,000 kg/m³
- Brass: Approximately 8,500 kg/m³
- PVC: Approximately 1,400 kg/m³
4.Compute the Weight of Each Component
Multiply the volume of each component by its material density to obtain the weight:
Weight = Volume × Density
5.Sum the Component Weights
Add the weights of all individual components to obtain the total valve weight:
Total Weight = ∑(Component Weights)
6.Consider Additional Factors
- Actuators and Accessories: If the valve includes actuators (manual, pneumatic, or electric) or other accessories, include their weights in the total calculation.
- Manufacturer Specifications: Consult manufacturer datasheets or weight charts for specific valve models, as they provide precise weights based on empirical data.
Floating Ball Valve Weight Chart
This comprehensive chart includes approximate weights for carbon steel and stainless steel ball valves. The weight of a ball valve depends on size, material, pressure class, and design. These values provide a baseline for engineers and professionals when designing systems or planning installations.
| Valve Size (NPS) | Material | Pressure Class | Weight (kg) |
|---|---|---|---|
| 1/2″ | Carbon Steel | 150 | 2.5 |
| 1/2″ | Stainless Steel | 150 | 3.0 |
| 1/2″ | Carbon Steel | 300 | 2.5 |
| 1/2″ | Stainless Steel | 300 | 3.2 |
| 1/2″ | Carbon Steel | 600 | 5.5 |
| 1/2″ | Stainless Steel | 600 | 6.5 |
| 3/4″ | Carbon Steel | 150 | 3.0 |
| 3/4″ | Stainless Steel | 150 | 3.6 |
| 1″ | Carbon Steel | 300 | 4.0 |
| 1″ | Stainless Steel | 300 | 4.8 |
| 1″ | Carbon Steel | 600 | 11.0 |
| 1″ | Stainless Steel | 600 | 13.0 |
| 1-1/2″ | Carbon Steel | 150 | 7.0 |
| 1-1/2″ | Stainless Steel | 150 | 8.4 |
| 2″ | Carbon Steel | 300 | 9.0 |
| 2″ | Stainless Steel | 300 | 10.8 |
| 2″ | Carbon Steel | 600 | 19.0 |
| 2″ | Stainless Steel | 600 | 22.8 |
| 3″ | Carbon Steel | 150 | 19.0 |
| 3″ | Stainless Steel | 150 | 22.8 |
| 4″ | Carbon Steel | 300 | 25.0 |
| 4″ | Stainless Steel | 300 | 30.0 |
| 6″ | Carbon Steel | 150 | 40.0 |
| 6″ | Stainless Steel | 150 | 48.0 |
| 8″ | Carbon Steel | 300 | 84.0 |
| 8″ | Stainless Steel | 300 | 100.8 |
Trunnion-Mounted Ball Valve Weight Chart
Trunnion-mounted ball valves are widely used in high-pressure and large-diameter applications due to their robust design. The chart below provides the approximate weights for trunnion-mounted ball valves based on size, material, and pressure class. These values can help professionals plan installations, lifting operations, and system support.
| Valve Size (NPS) | Material | Pressure Class | Weight (kg) | Design Notes |
| 2″ | Carbon Steel | 150 | 28.0 | Compact design for general use |
| 2″ | Stainless Steel | 150 | 33.0 | Corrosion-resistant construction |
| 2″ | Carbon Steel | 300 | 36.0 | Thicker walls for higher pressure |
| 2″ | Stainless Steel | 300 | 43.0 | Suitable for corrosive environments |
| 4″ | Carbon Steel | 150 | 60.0 | Medium flow systems |
| 4″ | Stainless Steel | 150 | 72.0 | Excellent for chemical processes |
| 4″ | Carbon Steel | 300 | 85.0 | High-pressure pipelines |
| 4″ | Stainless Steel | 300 | 102.0 | Longer service life in harsh settings |
| 6″ | Carbon Steel | 150 | 120.0 | Suitable for large pipelines |
| 6″ | Stainless Steel | 150 | 144.0 | Marine or food-grade applications |
| 6″ | Carbon Steel | 300 | 190.0 | Enhanced pressure handling |
| 6″ | Stainless Steel | 300 | 228.0 | Withstands extreme temperatures |
| 8″ | Carbon Steel | 150 | 240.0 | For oil and gas infrastructure |
| 8″ | Stainless Steel | 150 | 288.0 | High-performance material |
| 8″ | Carbon Steel | 300 | 360.0 | Used in power generation systems |
| 8″ | Stainless Steel | 300 | 432.0 | Resistant to wear and tear |
| 10″ | Carbon Steel | 150 | 360.0 | Large-scale fluid control |
| 10″ | Stainless Steel | 150 | 432.0 | Chemical and high-salinity systems |
| 10″ | Carbon Steel | 300 | 600.0 | Industrial-grade durability |
| 10″ | Stainless Steel | 300 | 720.0 | For critical applications |
| 12″ | Carbon Steel | 150 | 480.0 | Bulk transfer pipelines |
| 12″ | Stainless Steel | 150 | 576.0 | High-corrosion resistance |
| 12″ | Carbon Steel | 300 | 760.0 | High-flow, high-pressure systems |
| 12″ | Stainless Steel | 300 | 912.0 | Long-term reliability |
Common Pitfalls and Practical Tips
- Ignoring Material Variations: Different grades of stainless steel or other materials can have slightly different densities, which may affect the weight calculation. Always use the exact material specification when possible.
- Complex Designs: Multi-piece valves have additional components, such as bolts and gaskets, which can add to the weight. Consider these extra parts in your estimation.
- End Connection and Actuator Influence: Be mindful of the additional weight contributed by flanged end connections and actuators. These can add significant weight, especially for larger valves.
- Use Manufacturer Resources: Whenever possible, refer to manufacturer datasheets or catalogs for the most accurate weight data. Many manufacturers offer detailed charts that can save you time and effort.
Quick Weight Estimation Tips
While precise calculations require detailed specifications, the following guidelines offer a practical approach to approximate a ball valve’s weight:
Reference Manufacturer Specifications: Consult manufacturer datasheets or catalogs, which often provide weight information for various valve sizes and materials. This approach offers reliable data without the need for complex calculations.
Utilize Online Calculators: Leverage online tools designed to estimate ball valve weights based on input parameters such as diameter and material. These calculators simplify the estimation process and provide quick results.
Apply Standard Weight Charts: Refer to industry-standard weight charts that list approximate weights for common valve sizes and materials. These charts serve as useful references for preliminary assessments.
Consider Material Density: Recognize that valve weight is influenced by material density. For instance, stainless steel valves are generally heavier than those made from PVC. Understanding material properties aids in making informed estimations.
Account for Additional Components: Include the weight of actuators, flanges, and other accessories in the total estimation, as these components contribute to the overall weight of the valve assembly.
Conclusion
Accurately calculating the weight of a ball valve is essential for efficient design, procurement, and installation processes. By understanding the factors that influence valve weight and using the correct calculation methods, you can ensure that your project remains safe, efficient, and cost-effective. Whether you’re an engineer, technician, or procurement professional, these insights can help you make better decisions when selecting and handling ball valves.
