Pneumatic valve systems are essential in a variety of industries, utilizing compressed air to control fluid flow with speed and precision. The effectiveness of these systems largely depends on the proper selection of accessories, such as solenoid valves, positioners, limit switches, air filters, and regulators, which play a critical role in ensuring optimal performance. Choosing the right accessories enhances system efficiency, improves safety by minimizing operational hazards, and extends the longevity of the system by reducing wear and tear. When selecting accessories, it’s crucial to focus on factors such as energy efficiency, safety standards, and the specific environmental conditions in which the system operates. Proper pneumatic valve accessories selection not only minimizes downtime and maintenance costs but also ensures smooth, reliable operation, contributing to the overall success and durability of the pneumatic valve system.

Essential Pneumatic Valve Accessories Selection Guide

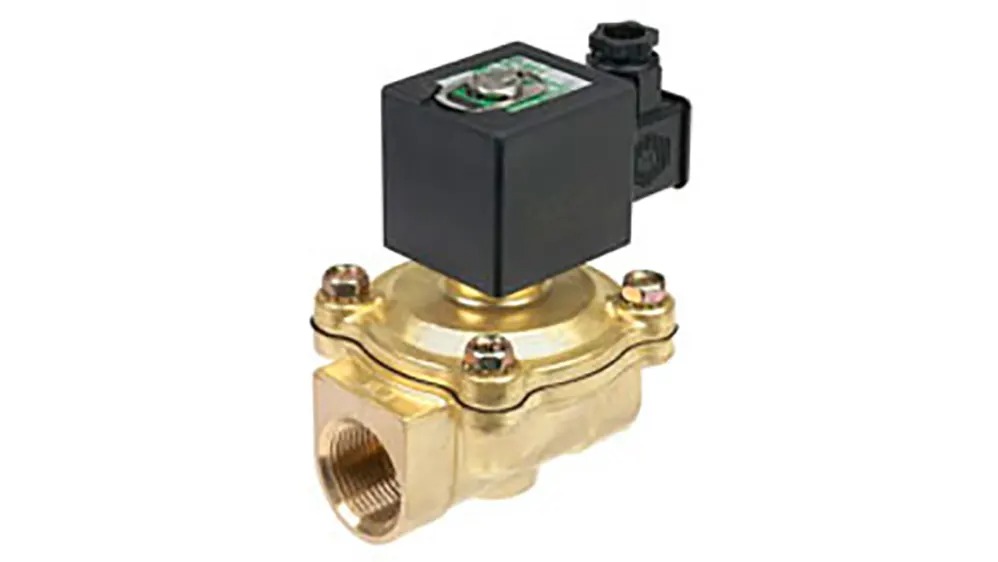

Direction Control: Solenoid Valves

Function:

Solenoid valves are essential components in pneumatic systems used for managing the direction of airflow. These valves utilize an electrically controlled solenoid to open or close the valve, allowing air to flow in a controlled direction. By using solenoid valves, systems can rapidly change the airflow path, providing precise control over the operation of machinery and equipment. This makes them particularly useful in systems that require automated, on-demand switching of airflow direction.

Applications:

Solenoid valves are commonly used in automated systems where rapid and reliable switching of air or gas flow is required. In recording systems, for instance, solenoid valves can be employed to automatically adjust the flow of compressed air, enabling precise control over processes such as data recording or signal processing. Their ability to operate quickly and reliably makes them indispensable in industries like automation, manufacturing, and robotics, where the timely switching of air is critical to the overall function of the system.

Key Features:

Two crucial features to consider when selecting solenoid valves are response speed and voltage compatibility:

• Response Speed: Solenoid valves offer rapid switching capabilities, which are essential for applications where quick changes in airflow are necessary. A fast response ensures minimal delay in system operations, contributing to improved overall efficiency.

• Voltage Compatibility: Solenoid valves are available in different voltage options, making it important to select a valve that is compatible with your system’s power supply. Whether operating on 24V DC or 110V AC, ensuring the correct voltage compatibility is key to reliable operation and avoiding potential electrical issues.

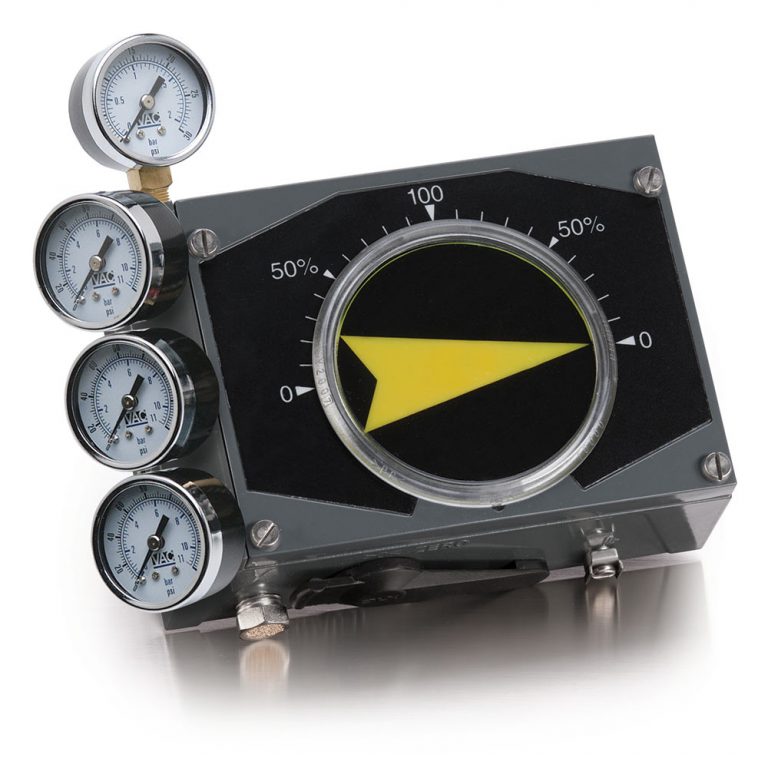

Precision Adjustment: Positioners

Positioners are essential components in pneumatic valve systems designed to improve the accuracy and precision of valve control. They are used to ensure that the valve’s position is accurately adjusted according to the input signal, whether from a manual operator or an automated control system. Positioners continuously monitor the valve’s current position and adjust the actuator to achieve the desired setting. This precise control is crucial in applications where exact flow rates or pressure levels need to be maintained, such as in chemical processing, oil and gas industries, and power plants.

Benefits:

The primary benefit of using a positioner is the improvement in regulation precision. Without a positioner, a pneumatic valve may not respond accurately to the control signals, leading to overshooting or under-regulation of the valve position. Positioners correct this by providing real-time feedback and ensuring that the valve’s response aligns with the required setpoints. This results in smoother operation, more stable processes, and improved efficiency, as the valve can maintain exact flow rates and pressures more effectively. In systems where precise control is critical, positioners help reduce fluctuations and ensure consistent operation, minimizing the risk of errors or failures.

Selection Criteria:

When selecting a positioner, one of the most important criteria to consider is feedback mechanism compatibility. Positioners use various feedback systems, including pneumatic, electric, or digital signals, to monitor the valve’s position. It is crucial to choose a positioner that aligns with your control system’s feedback mechanism to ensure seamless integration and reliable operation. The feedback mechanism should be compatible with the actuator and the system’s overall control architecture to achieve the desired precision. Additionally, factors like the operating environment, actuator type, and system communication protocols (e.g., HART or Fieldbus) must also be taken into account to select the right positioner for your needs.

In short, selecting the right positioner ensures your pneumatic valve system performs at its best, offering superior control and precision.

Air Supply Stability: Filter Regulators

Solving Air Source Contamination Issues

Air supply contamination can cause significant issues in pneumatic systems, leading to malfunctioning components and reduced system efficiency. Particles, moisture, and oil can accumulate in the air supply, damaging sensitive parts such as actuators and valves. Filter regulators are designed to address this issue by cleaning the air supply before it enters the system, removing contaminants like dirt, water, and oil particles. This ensures that the air being fed into the valve and actuator components is clean and dry, which is crucial for maintaining smooth and reliable operation.

Dual Protection:

One of the key advantages of filter regulators is their dual protection capability: they both filter the air and regulate the pressure. The filtration aspect ensures that harmful particles and moisture are removed, protecting the system from damage. At the same time, the regulator adjusts and maintains the air pressure at a stable level, preventing pressure fluctuations that can disrupt the performance of pneumatic components. By combining both functions in a single unit, filter regulators provide a compact and effective solution for ensuring the longevity and efficiency of your pneumatic system.

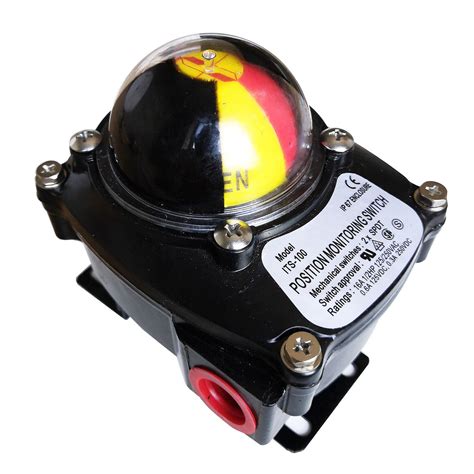

Position Monitoring: Limit Switches

Limit switches play a crucial role in providing real-time feedback on a valve’s position, ensuring that the system operator or automated control system always knows the current status of the valve. These switches are activated when the valve reaches a certain position, sending a signal to the control system to confirm whether the valve is fully open, closed, or in any other position in between. This continuous feedback allows for precise monitoring and control, helping to prevent errors and ensuring that the system operates efficiently and safely.

Safety Applications in Critical Systems

Limit switches are particularly valuable in critical systems, where accurate position monitoring is essential for both safety and operational reliability. In industries such as oil and gas, chemical processing, or power generation, knowing the exact position of a valve can prevent dangerous situations. For example, if a valve unexpectedly fails to close, limit switches can alert the control system, allowing for immediate corrective action to be taken, such as shutting down the system or activating a backup. These switches are essential for preventing accidents, minimizing downtime, and ensuring safe operation in high-risk environments.

Types: Mechanical vs Electronic

When selecting limit switches, it is important to understand the differences between the two main types:

• Mechanical Limit Switches: These traditional switches use a physical mechanism to detect the valve’s position. When the valve reaches the set position, the mechanical arm of the switch is actuated, triggering the feedback signal. Mechanical limit switches are reliable and simple but may have wear and tear over time due to the moving parts.

• Electronic Limit Switches: These advanced switches use sensors (such as inductive or capacitive sensors) to detect the valve position without any moving parts. Electronic limit switches offer higher precision and longer lifespans since they don’t have the wear-related issues of mechanical switches. They are ideal for applications where high accuracy and durability are required, especially in environments with high vibration or harsh conditions.



Hazardous Environments: Explosion-Proof Solutions

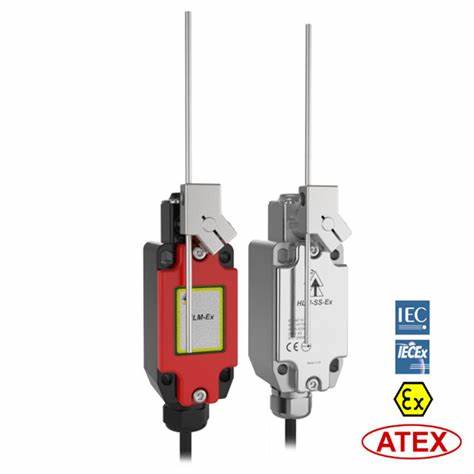

Explosion-Proof Limit Switches

In hazardous environments where flammable gases or dust are present, safety is a top priority. Explosion-proof limit switches are essential for preventing accidents in these volatile conditions. These switches are designed to contain any sparks or electrical arcs within their housing, ensuring that they do not ignite the surrounding environment. They are commonly used in industries such as oil and gas, chemicals, and mining, where the risk of explosion is high.

• Spark Prevention in Flammable Atmospheres: Explosion-proof limit switches are built to meet stringent safety standards to prevent sparks that could trigger an explosion in flammable atmospheres. They use specialized materials and sealed enclosures that contain any electrical faults, preventing them from coming into contact with combustible gases or dust. This added layer of protection ensures the safe operation of valves and other pneumatic components in dangerous environments, reducing the risk of costly and dangerous accidents.
• ATEX/IECEx Certification Requirements: When selecting explosion-proof limit switches, it is important to ensure they meet the necessary safety certifications. ATEX (Atmospheres Explosibles) and IECEx (International Electrotechnical Commission for Explosion Protection) are globally recognized standards for equipment used in explosive atmospheres. These certifications guarantee that the limit switches are tested and approved for use in hazardous environments, ensuring compliance with industry regulations and providing peace of mind regarding their safety and reliability.



Anti-Static Hoses

In addition to explosion-proof limit switches, anti-static hoses are another crucial component for preventing sparks and static discharge in hazardous environments. These hoses are designed to safely convey air or gas while preventing the build-up of static electricity, which can be a significant ignition source in flammable atmospheres.

• High-Pressure Resistant Conduit Solutions: Anti-static hoses are typically high-pressure resistant and provide a durable conduit solution for systems operating under extreme conditions. They are often used in applications that involve high-pressure air or gas transmission, ensuring that the hose can handle demanding environments without compromising performance. By incorporating anti-static properties, these hoses provide added safety, especially when used in conjunction with other explosion-proof components.
• Fire/Explosion Prevention Features: Anti-static hoses are equipped with fire and explosion prevention features, such as flame-retardant materials and grounding properties, which help eliminate the risk of ignition in hazardous atmospheres. These hoses are constructed from materials that are resistant to high temperatures and flame, providing added protection to the overall pneumatic system in environments where the risk of fire or explosion is present.



Specialized Connection: Pneumatic Couplings

Leak-Proof Connection Requirements

Ensuring a leak-proof connection in pneumatic systems is essential for maintaining efficiency and safety. Leaks can lead to energy loss, reduced system performance, and potential hazards. To achieve a secure, leak-free connection, it’s crucial to select high-quality pneumatic couplings that are compatible with your system’s specifications. Regular maintenance and proper installation practices, such as using appropriate sealants and tightening fittings to the manufacturer’s recommended torque, are also vital in preventing leaks.

Material Considerations: Brass vs. Stainless Steel

The choice between brass and stainless steel for pneumatic couplings depends on the application’s specific requirements:

• Brass: Known for its excellent machinability and good corrosion resistance, brass is suitable for general-purpose applications. It’s cost-effective and performs well in environments where exposure to corrosive substances is minimal.

• Stainless Steel: Offering superior corrosion resistance, especially in harsh or marine environments, stainless steel is ideal for applications exposed to chemicals, high temperatures, or saltwater. It provides enhanced durability and longevity, making it suitable for demanding industrial settings.

Selecting the appropriate material ensures the coupling’s longevity and reliability in your specific operating conditions.

Quick-Disconnect vs. Threaded Options

Pneumatic couplings are available in various connection types, each with distinct advantages:

• Quick-Disconnect Couplings: These couplings allow for rapid and tool-free connection and disconnection, enhancing operational efficiency and flexibility. They are particularly beneficial in applications requiring frequent changes of tools or equipment.

• Threaded Couplings: Threaded connections provide a secure and permanent link, suitable for applications where a stable, leak-proof connection is essential. They are less prone to accidental disconnection but require tools for installation and removal.

The choice between quick-disconnect and threaded couplings should be based on factors such as the need for frequent disconnections, the criticality of a secure connection, and the specific operational environment.

For a visual comparison and further insights into the differences between brass and stainless steel quick-connect fittings, you might find the following video helpful:

Source:Keeping it Clean with Veloci



Selection Checklist for Pneumatic Valve Accessories

1. Define Operational Requirements

• Flow rate and pressure range for consistent performance
• Cycle frequency (how often valves actuate)
• Accuracy demands (e.g., precision control for sensitive processes)
• Safety protocols (emergency shutdowns, fail-safe mechanisms)

2. Assess Environmental Conditions

• Hazardous areas: Require explosion-proof accessories (e.g., ATEX-certified limit switches, anti-static hoses)
• Corrosive or humid settings: Opt for stainless steel or IP-rated components
• Temperature extremes: Select materials and seals rated for thermal stability

3. Match Specifications to Valve Type

• Valve actuation method (rotary vs. linear) dictates positioner or coupling choices
• Port sizes and connection types (NPT, BSPP) for leak-free integration
• Compatibility with valve materials (e.g., brass, aluminum, or polymers)

4. Verify Compatibility Between Components

• Check interface standards (e.g., voltage for solenoid valves, signal types for limit switches)
• Confirm air supply compatibility (filter regulators must handle input pressure ranges)
• Validate communication protocols if using automated controls (e.g., 4-20mA, HART)

5. Consider Maintenance Requirements

• Choose modular accessories (e.g., replaceable filter elements in regulators)
• Select durable materials for high-wear parts (e.g., reinforced hoses)
• Plan for routine inspections (e.g., lubrication needs for mechanical limit switches)



FAQ Section

Q1: Can I mix accessories from different brands?

While it’s technically possible to mix pneumatic valve accessories from different manufacturers, it’s generally advisable to use components from the same brand. This approach ensures compatibility, optimal performance, and adherence to safety standards. Using accessories from the same manufacturer helps maintain system integrity and reduces the risk of malfunctions.

Q2: How often should filter elements be replaced?

The replacement frequency of filter elements depends on factors such as operating hours, environmental conditions, and the quality of the compressed air. As a general guideline, for rotary screw compressors, it’s recommended to replace air and oil filters every 2,000 hours of operation, and separators every 8,000 hours. However, in environments with higher levels of contaminants, more frequent replacements may be necessary. Always consult the manufacturer’s guidelines for specific recommendations tailored to your equipment and operating conditions.



Conclusion

In conclusion, selecting the right pneumatic valve accessories—such as solenoid valves, positioners, filter regulators, limit switches, and explosion-proof components—is crucial for optimizing system performance, ensuring safety, and extending equipment lifespan. Proper system integration is essential for these components to work together seamlessly, enhancing efficiency and reducing downtime. To achieve the best results, it’s important to carefully assess your operational requirements, environmental conditions, and maintenance needs. For tailored solutions and expert advice, reach out to professionals who can guide you in choosing the right components for your specific needs.
