A control valve that does not move after a command is not automatically mechanically stuck. The fault may be in the 4-20 mA or pneumatic signal, instrument-air supply, solenoid valve, positioner, actuator, linkage, stem packing or valve trim.
True stiction produces a more specific pattern. The stem or shaft remains stationary while actuator force builds, then moves suddenly after the static friction is overcome. A valve that moves slowly, stops short of full travel or reaches its commanded position without producing the expected process response requires a different diagnosis.
Compare controller output, position feedback, actual travel, supply pressure and process conditions before removing the valve body. This separates external signal and actuation faults from packing friction, mechanical binding, contamination and internal damage, allowing the corrective action to address the actual fault source.

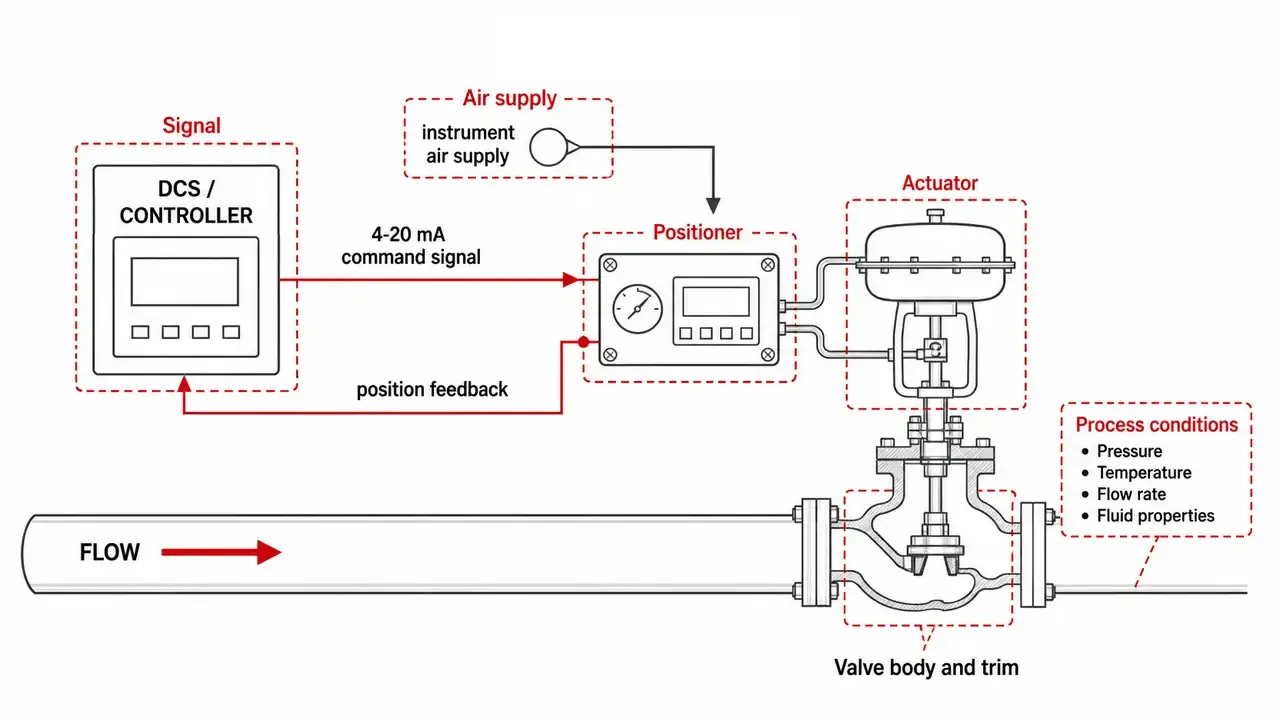

Confirm the symptom before calling the valve stuck
The valve command, position feedback, actual stem or shaft travel and process response should be viewed together. Each pattern points to a different fault zone, so the observed symptom should be recorded before calibration, packing adjustment or valve removal begins.
| Observed symptom | Likely fault zone | First evidence to compare | Diagnostic direction |
|---|---|---|---|
| No stem or shaft movement | Command signal, interlock, SOV, air or power supply, positioner or actuator | Controller output, accessory state, supply pressure and position feedback | Verify the external control and actuation path before opening the valve body |
| Slow but continuous travel | Restricted air path, low supply pressure, actuator volume, positioner setup or process lag | Command timing, travel response and supply-pressure recovery | Treat it as a response-time fault until mechanical resistance is demonstrated |
| Stem remains still, then jumps | Packing friction, poor guidance, linkage wear, trim interference or deadband | Small command changes, position feedback, actuator pressure and process-variable movement | Investigate stiction and mechanical binding rather than increasing controller gain |
| Valve reaches the commanded position but the process does not respond as expected | Trim condition, blocked flow path, process pressure drop, valve sizing or measurement fault | Actual flow, inlet and outlet pressure, medium condition and instrument reading | Check the process and trim before blaming the actuator or positioner |
A full-stroke command can generate enough force to move a sticky valve and hide poor response to normal control corrections. Where the process and site procedure permit testing, use small incremental output changes to check for stiction, while trending controller output, valve position and the process variable on the same time scale.
Follow a safe fault-isolation sequence
Begin at the controller output and work towards the valve body. Before opening instrument tubing, disconnecting linkage, moving the valve manually or removing any component, authorised personnel must follow the site’s energy-control procedure, isolate process pressure and actuator energy, control stored pressure and verify the isolation. OSHA identifies pneumatic, hydraulic, electrical, mechanical, chemical and thermal energy as hazards that require control during servicing; its control of hazardous energy guidance provides the general safety boundary, while the plant procedure and equipment manual govern the actual work.
Command signal, SOV and interlocks
Confirm that the control system is requesting movement and that the signal reaches the field device. For an electro-pneumatic package, compare the controller output with the measured 4-20 mA input at the positioner. A pneumatic controller requires the corresponding pressure signal to be checked at the receiving device.
A solenoid-operated valve, trip interlock, air-lock relay, manual override or local control mode can hold the actuator in one state even when the controller output changes. Record each accessory state and the specified fail action before resetting or bypassing anything. An unexpected fail position may indicate that the protection logic is working as designed rather than that the control valve is stuck.
Instrument air or electrical supply
For a pneumatic actuator, check supply pressure both at rest and while the valve is commanded to move. A regulator may show adequate static pressure yet droop when the actuator demands flow. Blocked filters, restricted fittings, long or damaged tubing and air leakage can leave the actuator without enough pressure or air volume to complete its stroke.
For an electric actuator, verify the available power, local or remote selector position, travel limits, overload status and commanded direction against the actuator documentation. A powered actuator that has stopped on a torque or travel limit needs a different investigation from one receiving no command or supply.
Position feedback and actuator travel
Position feedback must be compared with visible stem or shaft movement. A loose feedback linkage, incorrect calibration or positioner fault can report a position that does not match actual valve travel. The MacoTango valve positioner guide explains the relationship between input signal, feedback and actuator movement.
If the actuator does not move, continue checking the positioner, diaphragm or piston, spring, seals and air path before blaming the valve body. The separate guide to pneumatic actuator failure causes covers those faults in more detail. If the actuator develops force but the stem or shaft remains stationary, packing friction, mechanical binding, trim obstruction or process differential pressure becomes more likely.
Diagnose stiction and mechanical binding
Mechanical stiction is indicated when the valve stem or shaft remains stationary as the input and actuator force change, then moves suddenly after static friction is overcome. Smooth but consistently delayed movement points more strongly to a response-time limitation. Irregular breakaway movement directs the inspection towards the packing, stem, guides, linkage or valve trim.
Packing load and stem condition
Stem packing must contain the process fluid while still allowing the stem to move. Excessive packing compression, incorrect packing selection, poor alignment, deposits or a scratched and corroded stem can increase the force required to initiate travel. This can produce a dead zone followed by a sudden jump when the actuator finally overcomes the static friction.

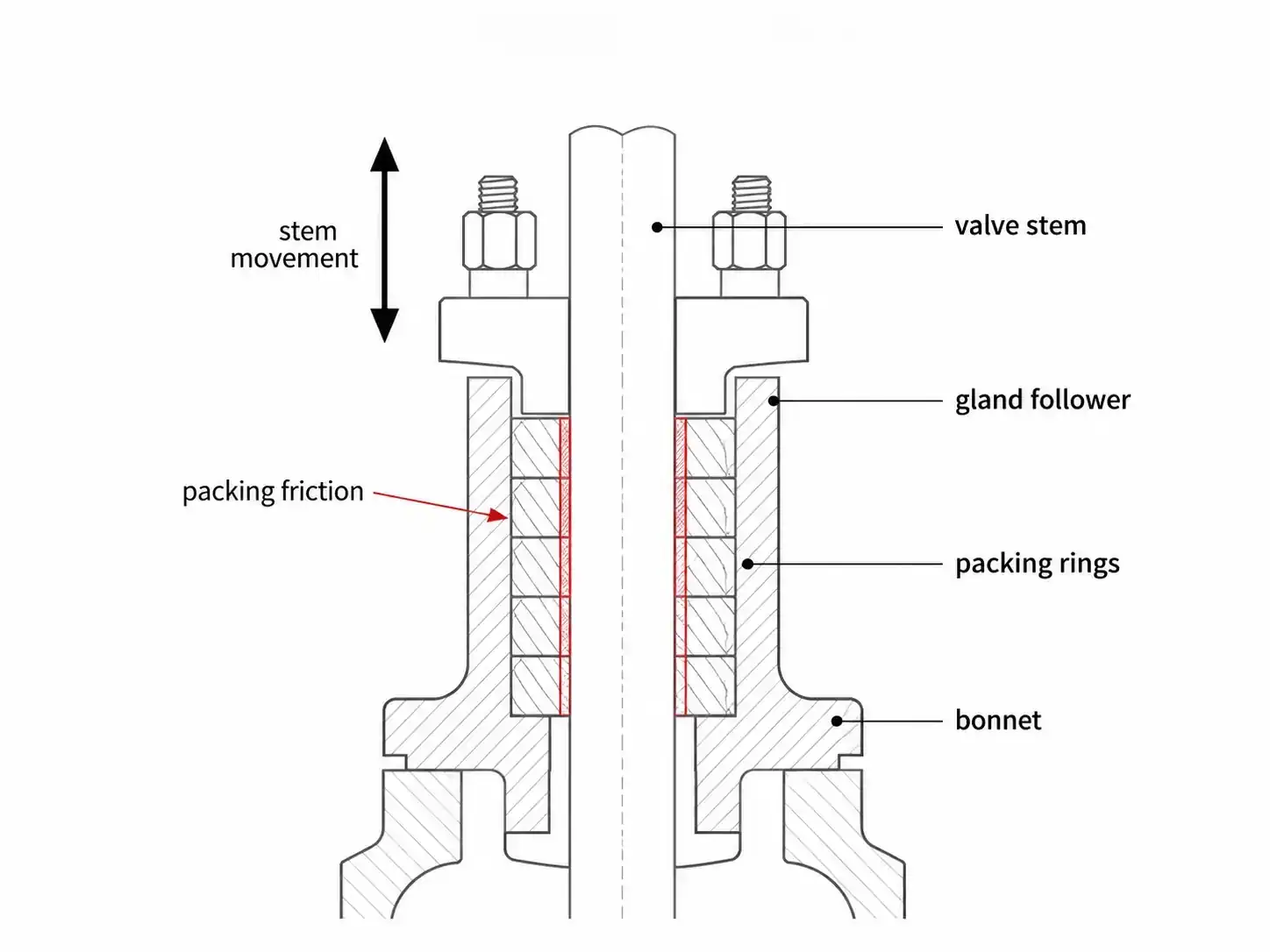

The illustration below shows how packing friction opposes the actuator force applied through a sliding stem. It explains the force relationship but is not a measurement of the actual packing load.
If the resistance appears to originate at the packing box, inspect the gland loading, packing condition, stem finish and alignment according to the valve manufacturer’s maintenance procedure. Do not loosen the packing on a pressurised valve. Correcting excessive friction must not compromise the required pressure containment or emissions performance.
Linkage, guides and actuator force
Inspect accessible linkage pins, joints, stem connectors, feedback arms and actuator mounting for looseness, distortion or misalignment. Backlash normally creates lost motion when the direction reverses. Binding is more likely to create increased resistance at a particular point in the stroke. Worn guides, a bent stem or side loading from poor alignment can produce the same location-dependent symptom.
Available actuator force must also be compared with the forces acting on the valve under operating conditions. Process differential pressure, seat load, spring force and packing friction can prevent full travel even when the valve moves normally during an unloaded workshop test. An actuator that is incorrectly sized, has a weakened spring or receives inadequate supply pressure may therefore appear to be a mechanically stuck valve.
If the valve moves smoothly and follows the command but does so with a repeatable delay, investigate air-delivery restrictions, positioner tuning and actuator volume as control valve response-time faults before dismantling the valve body.
Trim obstruction, corrosion and galling
Debris, welding residue, scale or process solids can lodge between the plug and cage, inside a guide, across a balance passage or near the seat. Corrosion can roughen sliding surfaces, while galling, erosion damage or deformed internal components can create hard spots during travel. The visual below shows one possible blockage route through the trim and guide area.
A valve that repeatedly binds at the same position, fails only under process differential pressure or cannot complete its stroke after the external mechanism has been checked may require an isolated internal inspection. The line must be depressurised, drained and made safe before the valve is opened. Record the location of any deposits or damaged surfaces because this evidence helps distinguish contamination from alignment, material or sizing problems.
Match the corrective action to the fault source
Cleaning is not a universal fix for a stuck control valve. The corrective action should follow the confirmed fault location. A missing command requires a control-system correction, excessive packing friction requires a mechanical review, and damaged trim may justify repair or replacement. Acting before the fault is isolated can conceal the original symptom or introduce a second problem.
Restore the missing signal, utility or calibration
When the valve does not receive the correct command, restore the electrical or pneumatic signal and resolve any active interlock before changing the valve assembly. A blocked air line, failed regulator, closed isolation valve, defective solenoid or inadequate supply pressure must be corrected at its source. Increasing positioner output cannot compensate reliably for an unstable utility supply.
If the command and supply are present but the indicated position does not match the actual travel, inspect the feedback mechanism and calibrate the positioner using the manufacturer’s procedure. Calibration is appropriate when the instrument reference has shifted. It will not correct a bent stem, excessive packing load, internal obstruction or an actuator that cannot generate the required force.
Correct packing, stem, linkage or trim damage
Packing work should address the identified sealing and friction condition rather than simply increasing or decreasing gland load. The packing type, arrangement and compression must suit the valve design, process medium, temperature and leakage requirement. A damaged stem surface, distorted linkage, worn guide or misaligned actuator connection requires inspection against the manufacturer’s dimensional and assembly criteria.
Internal parts with corrosion, galling, erosion, deformation or abnormal contact marks should be assessed for repairability before reuse. Polishing, machining, lapping or substituting trim components can alter clearances, sealing geometry and material performance. These operations therefore belong in a controlled repair procedure with defined inspection and acceptance criteria.
Clean or flush only under an approved isolated procedure
Cleaning is justified when inspection or process evidence confirms deposits, loose debris or solid contamination. The selected method must be compatible with the body, trim, seat, packing and process residue. Penetrating oil, general-purpose solvent or WD-40 should not be treated as an automatic remedy because chemical compatibility, contamination control and ignition risk depend on the service.
External flushing connections may help remove loose material only when the valve and piping design provide an approved flow path. Otherwise, the equipment must be isolated, depressurised, drained and made safe before internal cleaning. Do not pry the stem or plug, force the handwheel, or apply uncontrolled actuator pressure to drive an obstruction through the trim. These actions can bend the stem, score guiding surfaces or damage the seat.
Decide when repair or replacement is justified
Repair is normally reasonable when the valve body remains suitable for the service and the fault can be corrected with inspectable components such as packing, guides, stem, trim, positioner or actuator parts. The repair scope should define replacement materials, critical dimensions, seat condition, actuator setup and the functional tests required before the valve returns to service.
Replacement or re-selection deserves consideration when body or bonnet integrity is uncertain, required parts are unavailable, damage exceeds the repair limit, or the original valve no longer suits the operating conditions. Repeated sticking after pressure, temperature, solids loading or control duty has changed may indicate a sizing, trim, material or actuator-force problem rather than poor maintenance.
Before comparing industrial control valve options, document the process medium, normal and maximum differential pressure, temperature, required flow range, fail action, available utility supply and evidence from the failed valve. These data determine whether the correct outcome is repair, actuator reconfiguration, trim modification or complete valve replacement.
Prevent repeat sticking
Recurrence prevention should address the confirmed cause of sticking. Replacing the packing will not prevent another obstruction caused by dirty piping, and cleaning the trim will not correct inadequate actuator force or contaminated instrument air.
For pneumatic assemblies, maintain the instrument-air quality and supply pressure required by the positioner, actuator and site specification. Inspect filters, regulators, drains and small-bore tubing according to their condition and contamination exposure. Water, oil, rust or loose particles in the air system can restrict pneumatic passages and interfere with positioner or relay operation.
Commissioning controls should keep welding residue, scale, sealing material and construction debris out of the valve. Flush or clean the piping through an approved route before the control valve enters service, using temporary strainers where the project procedure requires them. Remove temporary devices after commissioning if leaving them in place would create an unintended pressure loss or blockage risk.
Correct packing installation helps balance sealing performance against stem friction. Confirm the specified packing material, ring arrangement, stem condition, gland alignment and loading method during assembly. If the process temperature, medium or emissions requirement changes, review packing compatibility and actuator force instead of applying the previous adjustment automatically.
Trim and guiding materials should remain compatible with the process fluid, temperature, pressure drop and solids content. A changed operating condition can increase corrosion, deposition, erosion or unbalanced force even when the original valve operated acceptably. Repeated hard spots at the same travel position justify checking whether the guide clearances, trim design or material combination still suits the service.
Positioner diagnostics and control-system trends can reveal deterioration before the valve becomes immovable. Compare command, actual position, supply pressure, travel deviation and friction-related diagnostic values with a baseline recorded after commissioning or verified repair. A gradual increase in required drive signal or repeated deviation at the same position provides more useful evidence than replacing components at an arbitrary calendar interval.
Inspection frequency should reflect process severity, cycling duty, contamination history and diagnostic evidence. Related checks for actuators, positioners, leakage and abnormal valve behaviour are available in the valve troubleshooting and maintenance resources.
Confirm the evidence before repair or replacement
When the fault source remains uncertain, record the valve tag, datasheet, fail action, process medium, pressure, temperature and normal operating range. Add the command and position-feedback trend, available air or electrical supply, observed stem or shaft travel, and findings from the authorised external or internal inspection.
These data allow packing friction, actuator limitations, calibration error, trim obstruction and changed service conditions to be reviewed separately. To assess whether the valve requires repair, actuator reconfiguration, trim changes or replacement, send control-valve fault data to MacoTango.
