Check valves are an integral component of fluid systems, designed to prevent backflow and ensure the proper direction of flow in a piping network. These valves are commonly used in plumbing, water systems, and various industrial applications to protect pumps and other equipment from damage caused by reverse flow. Proper installation of a check valve is crucial to maintain system integrity and avoid common issues like leaks or pressure drops. This guide will provide clear, step-by-step instructions to help you successfully install a check valve, whether you are a DIY enthusiast or a professional technician.



What Is a Check Valve?

A check valve—also known as a non-return or one-way valve—is a straightforward, automatic device that permits fluid flow in only one direction. It has two ports—an inlet and an outlet—and operates without manual control, relying instead on the pressure difference to open and close a disc or mechanism.

Its design includes a minimum “cracking pressure,” the threshold upstream pressure needed for the valve to open, and in reverse conditions, the mechanism seals off flow to prevent backflow—also known as reverse flow.



Why Proper Installation Matters

When a check valve is installed properly, it safeguards equipment from damaging effects of backflow, helps prevent media contamination, and preserves system pressure and efficiency.

Conversely, incorrect installation opens the door to performance problems and safety risks. Misalignment, wrong orientation, or poor sizing can cause turbulence, chatter, leakage, and premature component wear.



Common Consequences of Incorrect Installation

• Leakage & External Damage
  Damaged valve bodies or seals during improper installation can create external leakage paths.

• Chattering & Premature Wear
  If the valve isn’t dimensioned or oriented correctly, it may open and close repeatedly in unstable cycles, causing internal wear.

• Reverse Flow & Equipment Damage
  A misaligned valve can allow reverse flow—risking contamination or costly damage, such as a pump spinning backward.

• Noise, Vibration & Water Hammer
  Pressure surges or turbulence can lead to rattling, banging, or water hammer effects that stress piping and equipment.

• Reduced Flow Efficiency
  A valve that’s partially blocked or installed incorrectly may create high pressure drop, lowering flow capacity and system efficiency.

• Contamination & System Instability
  Poor installation can trap debris and disrupt proper sealing—leading to contamination, inefficiency, and heightened maintenance.



Types of Check Valves (Overview)

Check valves come in various designs, each tailored to specific applications and flow conditions. Here’s a streamlined overview of the most commonly used types:

Swing Check Valve

A swing check valve uses a hinged disc (or “flapper”) that swings open to permit forward flow and swings back to close when flow stops or reverses. It’s often the go-to choice in large pipelines due to its cost-effectiveness and straightforward operation. However, it is prone to water hammer and is best suited for horizontal pipes or vertical flow upward.

Wafer Check Valve

Wafer check valves are compact and lightweight, fitting snugly between pipe flanges. Their slim design helps save space, and they often use a pivoting or flexible disc that closes quickly—minimizing water hammer. These valves are especially useful where clearance is limited.

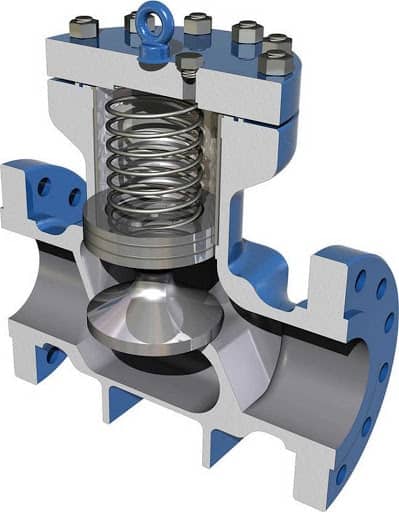

Spring-Loaded (Lift) Check Valve

Also known as silent or poppet check valves, these rely on a spring (instead of gravity) to close the disc or plunger when flow decreases or reverses. This quick, spring-assisted closing dramatically reduces noise and water hammer, and allows use in vertical or restricted-space orientations where gravity-dependent types fail.

Ball Check Valve

Ball check valves operate with a ball that lifts under forward flow (sometimes aided by a spring) and settles onto its seat when flow stops. They’re compact, simple, and adaptable—commonly used in small pumps, dispensers, hydraulic systems, and other applications needing low maintenance and reliable sealing.



Pre-Installation Preparation

Proper preparation sets the foundation for a successful check valve installation. Let’s break this down into essential steps:

Safety Precautions

• Shut-off procedures: Before touching any piping, shut off the fluid supply and relieve system pressure. This reduces the risk of leaks, spills, or hidden pressure releases.

• Personal Protective Equipment (PPE): Always wear safety goggles and gloves when working with pressurized components or fluid systems.

• Handling instructions: Retain any protective end caps or packaging on the valve until it’s ready for installation to avoid contamination or damage.



Selecting the Right Valve for Your System

Choosing the correct type of check valve is vital. Consider pipe size, flow rate, pressure conditions, and media type. Install one that fits your application’s unique demands to avoid excessive wear or premature failure.



Sizing and Material Compatibility

• Correct sizing: Don’t just match the line size—ensure the valve operates within its optimal flow range (“sweet spot”) for stable performance and longevity.

• Material match: Use valve materials compatible with your piping to minimize galvanic corrosion or electrical differences. For example, brass pairs well with copper; stainless steel may require plastic transition fittings.

• Match pressure/temperature ratings: Confirm your valve meets the system’s operating conditions to ensure safety and performance.



Flow Direction and Orientation

• Flow arrow: Always align the valve’s marked flow arrow with the system’s flow direction to prevent malfunction.

• Straight-run requirements: To minimize turbulence, install check valves on straight sections—with at least 5 pipe diameters before the valve and 5–10 (or up to 15) diameters after.

• Orientation considerations: Many check valves work best in horizontal setups. If vertical installation is necessary, ensure upward flow and select a valve designed for that orientation, such as spring-loaded axial designs.



Inspecting Components

Before installation, examine all parts carefully:

• Clean and inspect the valve body and ports. Remove any internal packaging or caps.

• Check sealing surfaces for scratches, debris, or imperfections that could impair sealing.

• Operate moving parts (like swing check flappers) to confirm they move freely and are not jammed.

• Confirm any flow direction markings are intact and legible.



Tools and Materials Needed

Before beginning the installation, gather the following tools and materials:

• Check Valve (ensure it is appropriate for your system’s specifications)
• Pipe Wrench or adjustable wrench

• Pipe Cutter (if cutting pipes is required)

• Thread Sealant Tape



• Pipe Cleaner or rag

• Measuring Tape

• Safety Goggles and Gloves





Site Assessment

Before installing a check valve, a thorough site evaluation ensures smooth operation and longevity. Focus on three key areas: pipe alignment and straight-run requirements, space and access considerations, and upstream/downstream piping layout.

Evaluating Pipe Alignment & Straight-Run Requirements

• Straight-run recommendations: For optimal performance, locate the valve on a straight section of piping. Industry guidance suggests at least 5 pipe diameters upstream and 10–15 diameters downstream to reduce turbulence and allow pressure recovery.

• Minimize disturbances: Avoid placing the valve too close to elbows, pumps, tees, or other fittings that can generate turbulent flow and accelerate wear.

Space & Access Considerations

• Ensure adequate clearance: Allow enough room around the valve for installation, repair, and maintenance. Particularly for larger valves, the ability to remove end caps or access internal components matters.

• Proper valve handling: Never use the valve as an alignment tool, and avoid lifting it using accessories or flange holes. For larger models (typically 8″ and above), use designated lifting eye bolts and suitable tools to prevent damage.

Upstream & Downstream Piping Layout

• Upstream layout: Positioning matters—ensure clean, aligned piping feeding into the valve. Note that “upstream” refers to the pipe approaching the valve and “downstream” the section following it.

• Downstream layout: Downstream, provide sufficient straight-run length so the fluid can settle into laminar flow before encountering the next fitting or component.

• Avoid stressed flange connections: Make sure flanges are aligned properly and pipe weight is supported—misalignment can lead to bolt stress, leakage, and early failure.



Step-by-Step Guide to Install a Check Valve

1. Prepare the System

• Shut Off the Water or Fluid Flow: Turn off the water supply or isolate the section of the piping system where you plan to install the check valve. This prevents leaks and ensures safety during installation.
• Drain the Pipes: Open a nearby faucet or valve to relieve any residual pressure and drain the fluid from the pipes. This step is crucial to avoid spills and ensure a clean working environment.

2. Select the Correct Location

• Identify the Installation Point: Choose a location where the check valve will be easily accessible for maintenance. Ideally, install the valve in a straight section of pipe, away from bends or fittings that may cause turbulence and reduce the valve’s effectiveness.
• Measure and Mark: Use a measuring tape to mark the exact spot where the check valve will be installed. Make sure there is enough space to accommodate the length of the valve.

3. Cut and Prepare the Pipe

• Cut the Pipe: If necessary, use a pipe cutter to cut the pipe at the marked location. Ensure that the cut is straight and clean to prevent improper sealing.
• Clean the Pipe Ends: Use a pipe cleaner or a rag to clean the ends of the pipe. This will help ensure a tight seal when connecting the check valve.

4. Install the Check Valve

• Check Valve Orientation: Check valves have an arrow printed on the body indicating the direction of flow. Make sure the arrow points in the direction of the intended fluid flow to prevent backflow issues.
• Apply Thread Sealant: If the check valve has threaded connections, wrap thread sealant tape (Teflon tape) around the male threads of the pipe to ensure a leak-proof seal.
• Connect the Valve: Attach the check valve to the pipe, ensuring that it is properly aligned. Tighten the connections using a pipe wrench, but avoid over-tightening, as this may damage the threads or valve body.

5. Test the Installation

• Restore Fluid Flow: Slowly turn the water or fluid supply back on and check for any leaks around the valve connections.
• Check for Proper Operation: Observe the check valve to ensure it is functioning correctly. The valve should allow flow in the intended direction and prevent backflow. Listen for any unusual noises that could indicate improper installation or issues with the valve.



👉 Watch this step-by-step video guide on how to install a check valve.

Source: CTi Controltech



Post-Installation Testing

Once the check valve is installed, thorough testing ensures correct function, safety, and leak-free performance. Focus on three key checkpoints: leak testing, functional testing, and diagnosing common issues.

Leak Testing Procedures

Pressure (Hydrostatic) Testing
Fill the system or valve body with water (optionally dyed for visibility), then pressurize it to a level above normal operating pressure to check for leaks or deformation. Hold the pressure and observe if there’s any drop—pressure loss indicates a leak.

Bubble or Submersion Tests
Apply pressure using air, and either immerse the valve in water or apply a soap solution to exterior joints. Watch for escaping bubbles to pinpoint leaks. This simple visual method is excellent for detecting minor leaks quickly.

Pressure Decay Monitoring
Pressurize the valve or piping with air or water, isolate it, and observe whether pressure falls over time—a clear sign of leakage.

Functional Testing

Forward Flow Check
Restore fluid pressure and verify that the valve opens smoothly and allows correct one-way flow. Confirm flow meets expected rates and shows no significant restrictions.

Reverse Flow Prevention
Apply backpressure to ensure the valve seals completely and prevents reverse flow. It should maintain a tight seal without leakage to ensure the valve is functioning properly.



Diagnosing Common Issues

Maintenance Tips

Long-term reliability of your check valve depends on smart, routine care. Here’s how to keep it operating like new:

Routine Inspection Intervals

• General rule: Inspect check valves at least annually. Valves in harsh environments (e.g., high temperature, corrosive fluid, or critical safety systems) may require more frequent checks—biannually or quarterly depending on conditions.

• Pro tip: High-stress valves—those handling fast cycling, high pressure, or abrasive media—benefit from scheduled inspections to catch minor issues before they escalate.



Cleaning and Debris Removal

• Cleanliness first: Keep both valves and surrounding pipelines free from dirt and debris. Using filters upstream can help minimize buildup.

• Flush when needed: If debris enters the system, flush pipelines to clear contaminants and maintain valve operation.

• On-site cleanup steps: When accessible, wipe down the valve body with a cloth or brush. For stubborn buildup, carefully disassemble and clean parts, then reassemble after drying.

• Lubrication (if applicable): Some valves include moving parts that benefit from lubrication. Always use a system-compatible lubricant and apply sparingly to avoid attracting dirt.



When to Replace or Service

• Service (repair) when: Issues are minor—such as worn gaskets, small leaks, or visible debris. Replacing seals or cleaning components can restore performance.

• Replace when: There’s significant corrosion, irreparable damage to body or internals, or if repairs cost as much as a new valve.

• Performance-based triggers: Replace if the valve shows persistent leaks, poor sealing, difficulty operating (stuck open or closed), unusual noise, or reduced flow.



Conclusion:

Installing a check valve correctly is essential for preventing backflow, protecting pumps, and ensuring long-term efficiency in any piping system. By following the right steps—shutting off and depressurizing the system, aligning the valve with the flow direction, securing proper connections, and testing for leaks—you can avoid common issues like water hammer, leaks, and premature wear. Routine maintenance, including inspections and cleaning, further extends valve lifespan and keeps your system reliable. Whether you’re working with swing, wafer, spring-loaded, or ball check valves, proper installation and upkeep guarantee smooth, safe, and efficient operation.
