Water hammer, also known as hydraulic shock, is a phenomenon that occurs when the flow of water in a pipeline is suddenly stopped or changed direction. This abrupt change generates a pressure surge or shockwave that travels through the system, often accompanied by loud banging or knocking noises. The primary causes of water hammer include the rapid closure of valves, sudden pump shutdowns, and the presence of trapped air within the pipeline. In this article, we will explore the primary causes of water hammer, mitigation strategies, and Maintenance and Monitoring. Understanding these is essential for implementing effective solutions to prevent water hammer in pipelines.
Causes of Water Hammer
Sudden Valve Closure
When a valve in a pipeline system closes abruptly, the moving water is suddenly halted. This rapid deceleration causes the water’s momentum to generate a pressure surge, known as water hammer. The shockwave from this pressure surge travels through the pipeline, potentially causing loud banging noises and, over time, leading to damage in the system.
Pump Shutdowns
Similarly, when a pump is suddenly turned off, the flow of water is abruptly stopped. This sudden cessation of flow can cause the water to reverse direction back toward the pump, creating a pressure surge. This phenomenon, often referred to as “water hammer,” can lead to significant damage in the pipeline system if not properly managed.
Air Accumulation in Pipelines
Trapped air within a pipeline can cause unstable flow rates, which in turn can generate water hammer. High drops or long pipelines with air accumulation can lead to pressure fluctuations. Installing air release valves helps to release trapped air and prevent vacuum shock and pipe deformation.
Mitigation Strategies to Prevent Water Hammer in Pipelines
Valve Selection and Operation
Selecting the appropriate valves and ensuring their proper operation are essential steps in effectively mitigating water hammer.

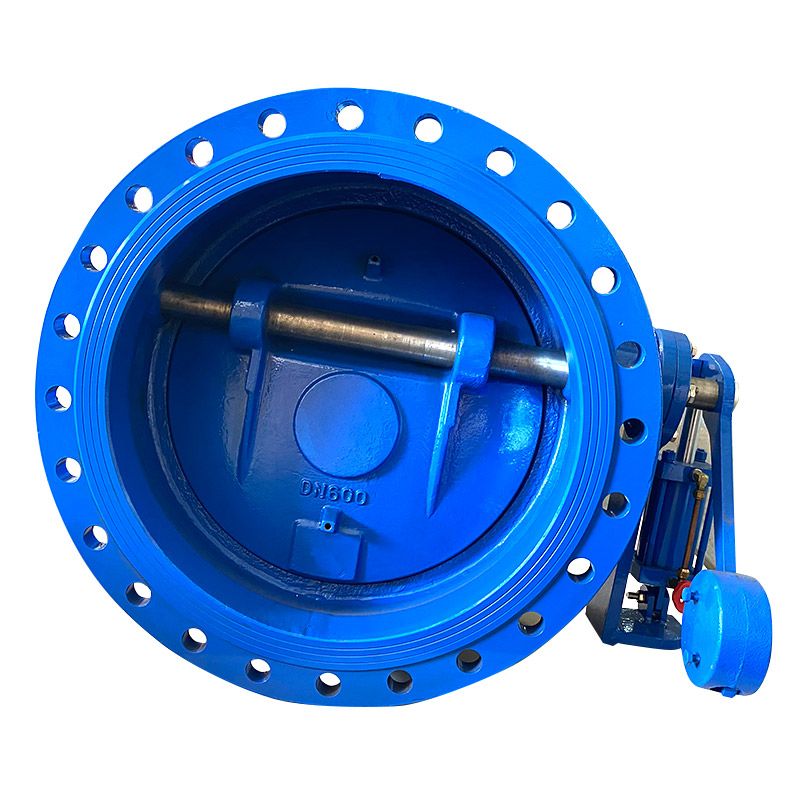

Slow-Closing Check Valves
These valves are designed to close gradually, allowing the flow to decelerate smoothly. This controlled closure significantly reduces the pressure surges that typically occur with rapid valve closures, thereby minimizing the risk of water hammer. Their design ensures that the momentum of the fluid is absorbed, preventing abrupt pressure spikes.
Quick-Opening, Slow-Closing Valves
These valves are engineered to open rapidly, facilitating quick system pressurization, and then close slowly to prevent sudden pressure changes. This combination ensures efficient system operation while effectively minimizing the potential for water hammer. The quick opening allows for immediate flow initiation, and the slow closing ensures that the system pressure stabilizes gradually, preventing shock waves.
Air Management
Proper air management within the pipeline system is crucial for maintaining stable flow and preventing pressure fluctuations.
Air Release Valves
These valves are designed to automatically release accumulated air from the pipeline during operation. By venting trapped air, they prevent the formation of air pockets that can lead to unstable flow and pressure surges. This proactive air removal ensures that the pipeline operates efficiently and safely.
Hydropneumatic Devices
Source:Algo
Hydropneumatic devices utilize a combination of water and gas to absorb pressure surges. These devices act as shock absorbers, effectively dampening pressure fluctuations and preventing water hammer. By maintaining a cushion of gas, they allow for gradual pressure changes, ensuring the integrity of the pipeline system.
System Design Considerations
Thoughtful system design plays a pivotal role in preventing water hammer.
Avoiding High Drops and Sharp Bends
Designing pipelines to minimize high drops and sharp bends reduces the potential for pressure surges. Smooth transitions and gradual changes in elevation allow for a more stable flow, thereby decreasing the likelihood of water hammer. This approach ensures that the fluid’s momentum is maintained, preventing abrupt changes in flow direction and pressure.
Strategic Valve Placement
Installing valves near points of use, such as fixtures or equipment that frequently start and stop water flow, helps control sudden pressure changes and reduces the likelihood of water hammer. Additionally, strategically positioning valves to manage the direction of water flow can prevent reverse flow, a common cause of pressure surges. For example, installing check valves in vertical pipelines can effectively eliminate reverse flow and the associated pressure buildup.
For a more in-depth understanding, you might find the following video helpful:
Maintenance and Monitoring
Regular Inspection
Conducting routine inspections is vital to ensure the optimal performance and longevity of valves within pipeline systems. Regular checks help identify early signs of wear, leaks, or corrosion, allowing for timely interventions that prevent minor issues from escalating into significant problems. By adhering to a consistent maintenance schedule, operators can enhance system reliability and reduce the likelihood of unexpected failures.
Monitoring System Performance
Source:WIKA
Implementing advanced monitoring techniques enables the continuous assessment of pipeline conditions, facilitating proactive management of potential issues. Utilizing pressure-sensing devices, such as pressure gauges, allows for real-time tracking of pressure changes, aiding in the early detection of anomalies like leaks or blockages. By analyzing this data, operators can make informed decisions to maintain system integrity and optimize performance.
Conclusion
To effectively prevent water hammer, it is crucial to implement key strategies such as selecting slow-closing check valves, using quick-opening, slow-closing valves, and installing air release valves to manage trapped air in pipelines. Additionally, careful system design, including avoiding high drops, sharp bends, and strategically placing valves, plays a vital role in minimizing pressure surges. By following these best practices, pipeline systems can be safeguarded against the damaging effects of water hammer. We strongly encourage adopting these proactive measures and consulting with experts to ensure the long-term integrity and efficiency of your pipeline systems.
