Gate valves are fundamental components in many plumbing and industrial systems, functioning to regulate the flow of liquids and gases efficiently. However, as with any mechanical component, they may experience operational issues over time due to wear and tear, corrosion, or improper maintenance. In this guide, we’ll explore how to repair a gate valve, providing you with the technical knowledge needed to troubleshoot and resolve common operational problems effectively. Whether you’re a maintenance professional, a facility manager, or a DIY enthusiast, you’ll find this step-by-step approach both practical and informative.

Understanding Gate Valves

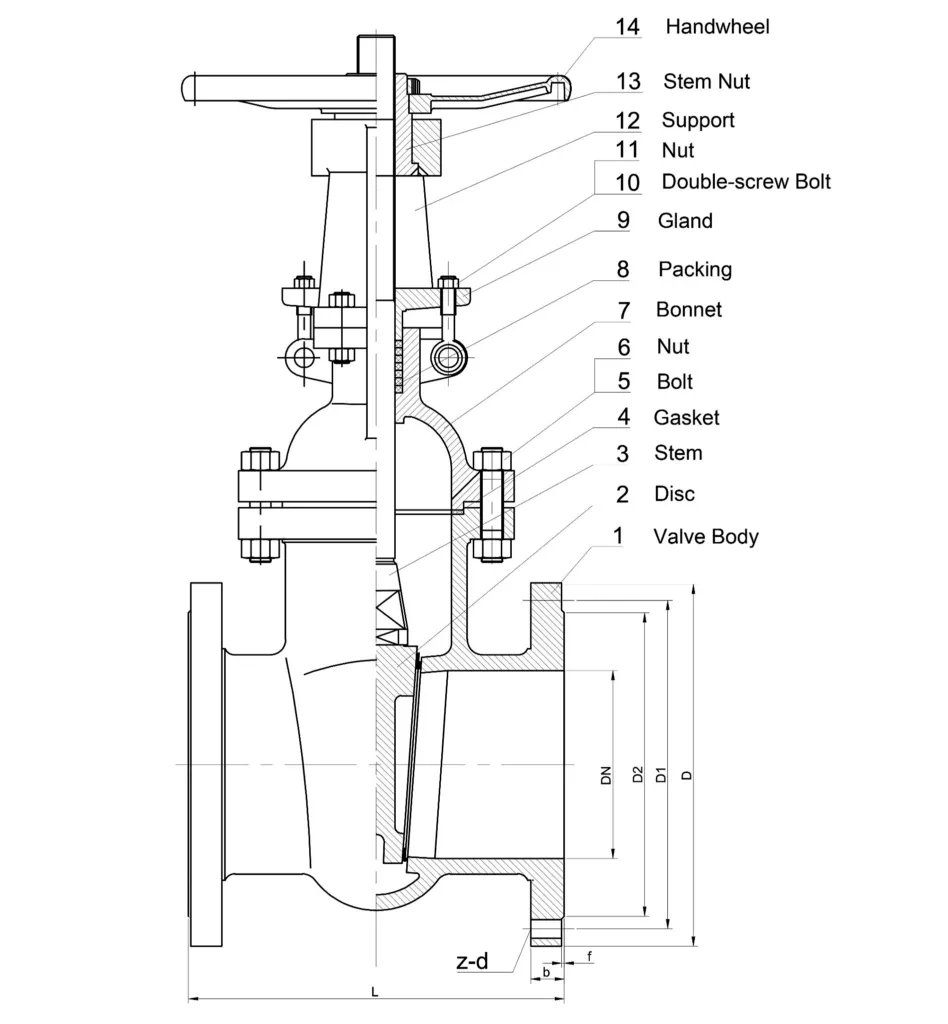

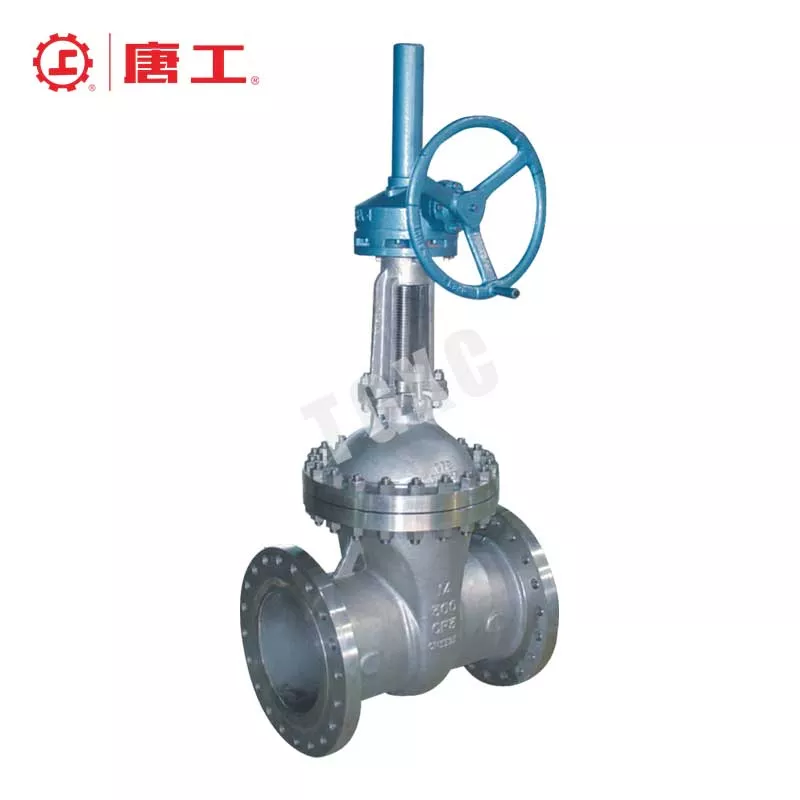

A gate valve is a type of valve used to control the flow of a fluid by raising or lowering a gate inside the valve body. Typically used in plumbing, water management, and HVAC systems, gate valves are particularly valued for their capability to provide minimal flow resistance when fully open, thus ensuring optimal fluid dynamics in the system. They are mostly used for on/off control rather than throttling.

Common Problems with Gate Valves:

1. Stiff Operation: The valve becomes difficult to turn, often due to corrosion or build-up.
2. Leaking: Water or fluid leaks from the valve stem or seat.
3. Valve Won’t Close Fully: Debris or wear prevents a tight seal, causing ongoing flow or leakage.

Safety First

Before attempting any repairs, it’s critical to ensure safety:

• Shut Off the Supply: Turn off the main supply to avoid sudden leaks or flooding.
• Depressurize the System: Open nearby taps to relieve any pressure within the system.
• Wear Protective Gear: Wearing gloves and eye protection is essential to prevent injuries from leaks or contact with corrosive materials.

Tools You’ll Need

• Adjustable wrench
• Screwdrivers
• Pipe wrench
• Penetrating oil
• Plumber’s tape (PTFE tape)
• Emery cloth or sandpaper
• Pipe cutter
• Grease
• Replacement parts (such as valve packing or a new gate)

Step-by-Step Guide to Repairing a Gate Valve

1. Identify the Problem

Start by determining what is wrong with the valve. If it’s stiff, leaking, or won’t close, you will need to take different repair approaches.

• Stiff Valve: Apply penetrating oil to the valve stem and allow it to sit for 15-20 minutes. Try turning the valve again after the oil has soaked in. If the valve remains stiff, consider disassembling and cleaning the internal parts.
• Leaking Valve: If the leak is coming from the stem, you may need to replace the valve packing. Inspect the stem seals for wear and replace them if necessary.
• Incomplete Closure: Check if debris is blocking the gate by partially opening and closing the valve a few times. Flushing the valve may help dislodge any sediment buildup.

2. Disassemble the Valve

• Turn Off Supply: Ensure the fluid flow has been completely shut off, and the system is depressurized to prevent accidental discharge and ensure safety during the disassembly process.
• Remove the Valve Handle: Using a screwdriver or wrench, remove the valve handle to access the bonnet nut.
• Open the Bonnet: Unscrew the bonnet (the top part of the valve) to expose the internal components. Use a pipe wrench if needed for extra leverage.
• Remove Internal Components: Carefully remove the gate, stem, and other parts for inspection. Look for signs of wear, corrosion, or damage.

3. Replace or Repair Components

• Valve Packing: If the valve is leaking around the stem, replace the valve packing. Remove the old packing and wrap the new packing around the stem, tightening the bonnet back down.
• Gate Issues: If the gate itself is damaged or worn, you might need to replace it. Carefully remove the gate, making sure to note its position and orientation.
• Clean Components: Use fine-grit emery cloth or sandpaper to clean rust or scale from the gate, stem, and other parts. Ensure all components are free of debris and corrosion.
• Replace Damaged Parts: If any components are damaged beyond repair, such as the gate, stem, or gaskets, replace them with new parts compatible with the valve model.

4. Reassemble the Valve

• Replace the Bonnet: Once repairs or replacements are complete, reattach the bonnet. Ensure it is screwed on tightly to prevent future leaks.
• Reattach the Valve Handle: Replace the handle and tighten any screws.
• Apply Pipe Sealant or Tape: Before reconnecting the valve to the pipeline, apply pipe sealant or wrap pipe thread tape around the threads to prevent leaks.

5. Test the Valve

• Restore Flow: Gradually turn the fluid supply back on, checking for leaks or other issues.
• Operate the Valve: Turn the handle a few times to ensure that the valve operates smoothly without stiffness. Conduct a pressure test to verify there are no leaks.

Troubleshooting Common Issues

• Valve Still Stiff: If the valve is still hard to operate, it may be time to replace it entirely, especially if corrosion has spread. Applying grease to the stem during reassembly can help prevent future stiffness.
• Persistent Leaks: Ensure all packing is tight and that the bonnet is properly seated. Leaks may also indicate that internal parts are worn beyond repair, and replacement might be necessary.
• Gate Valve Stuck Open/Closed: If the valve is stuck in an open or closed position, inspect the actuator or operator mechanism. Lubricate moving parts and replace damaged components if needed.

Preventative Maintenance Tips

• Operate the Valve Regularly: Turning the valve occasionally prevents it from seizing up over time.
• Inspect Annually: Schedule an annual inspection to check for leaks, stiffness, or corrosion. Pay close attention to the condition of the stem seals and packing.
• Lubricate: Apply a small amount of lubricant to the valve stem to keep it moving freely.
• Clean Debris: Regularly clean out any debris or sediment buildup that could interfere with the valve’s operation. Use suitable cleaning agents as needed.

FAQs

1. What are the common signs that a gate valve needs repair?

• Common signs include difficulty in opening or closing the valve, leaks around the stem or body, unusual noises during operation, or visible damage to components like the gate or seat. It is essential to conduct regular inspections to identify these problems early before they cause significant issues or operational downtime.

2. Can all gate valves be repaired, or is replacement sometimes necessary?

• Not all gate valves can be repaired. If the damage is limited to components such as the gate, stem, or packing, replacement parts can restore functionality. However, if corrosion is extensive, or if there are significant issues like serious pitting or rust, complete valve replacement is more practical.

3. How do you address a gate valve that fails to close?

• This issue is often due to sediment buildup inside the valve. To fix it, try repeatedly opening and closing the valve while flushing it with clean water. If this does not solve the problem, you may need to disassemble and clean the internal components thoroughly to remove any sediment that might be obstructing the gate.

4. How do you fix a gate valve leaking from the stem or seat?

• Leakage from the stem can typically be fixed by tightening the packing nut slightly. If the leakage persists, replace the packing material. If the seat is leaking, it might be due to corrosion or debris buildup, and you may need to either clean the seat thoroughly or replace it altogether. Ensuring all components are properly aligned during reassembly is crucial to prevent further leaks.

5. How often should gate valves undergo maintenance to prevent issues?

• Gate valves should be inspected at least once a year for signs of corrosion, leaks, or any operational stiffness. Lubricate the moving parts regularly, and periodically operate the valve to prevent it from seizing up. Maintenance should include cleaning sediment from the valve body and checking for alignment and sealing issues.

Conclusion

Repairing a gate valve can be straightforward with the right tools and a bit of patience. Understanding common problems and tackling them step-by-step ensures that your gate valves operate smoothly and efficiently. Regular maintenance, such as cleaning, lubrication, and inspections, can extend the lifespan of your valves and minimize downtime.

If you have more extensive issues or need replacement parts, feel free to contact our team at Tanggong Valve Group Company. We’re here to help keep your systems running at peak performance. We’re here to help keep your systems running at peak performance.
