Ball valves are shutoff devices that control the flow of liquid or gas through a pipe. Known for their reliability, they are widely used in residential, commercial, and industrial settings. They operate with a simple quarter-turn handle that rotates a ball with a bore to control flow.

Tools and Materials Needed

Before starting, gather the necessary tools and materials:

• Adjustable wrench or pipe wrench.
• Pipe cutter (if applicable).

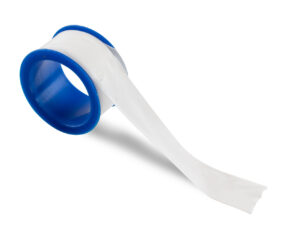

• Thread seal tape (Teflon tape).
• Replacement ball valve (matching size and type).
• Bucket or towel for water collection.
• Safety gloves and goggles.

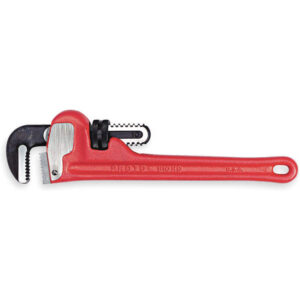

Pipe Wrench

Step-by-Step Guide to Replacing a Ball Valve

1.Shutting Off the Water Supply

• Locate the Main Shutoff Valve: Identify the primary water shutoff valve for your property, typically found near the water meter or where the main water line enters the building.
• Turn Off the Water Supply: Rotate the shutoff valve clockwise until it is fully closed to stop the water flow.
• Verify the Water is Off: Open a faucet at a lower level in your home to ensure that the water supply has been successfully turned off.

2.Draining the System

• Open ball valves: Open the ball valves at the highest and lowest points in your plumbing system to allow air into the system and facilitate drainage.
• Drain Remaining Water: Place a bucket or container under the ball valve to catch any residual water. Open the valve to release any trapped water in the pipes.

3.Removing the Old Ball Valve

• Loosen the Valve Connections: Use an adjustable wrench to loosen the nuts or fittings connecting the ball valve to the pipes. For threaded connections, turn the wrench counterclockwise to unscrew the fittings.
• Cut the Pipes (if necessary): If the valve is soldered or otherwise permanently attached, use a pipe cutter to carefully cut the pipes on either side of the valve. Ensure you have enough pipe length remaining to install the new valve.
• Remove the Old Valve: Once the connections are loosened or the pipes are cut, gently remove the old ball valve from the pipeline.

4.Preparing the Pipe Ends

After removing the old ball valve, it’s essential to prepare the pipe ends to ensure a secure and leak-free installation of the new valve.

• Clean the Pipe Ends: Use a pipe cleaning tool or sandpaper to remove any debris, corrosion, or old sealant from the exposed pipe ends. This ensures a smooth surface for the new connections.
• Deburr the Edges: Employ a deburring tool to eliminate any sharp edges or burrs on the pipe ends, which can prevent proper sealing and may damage the new valve.
• Check for Damage: Inspect the pipe ends for any cracks or deformities. If any damage is found, consider replacing that section of the pipe to ensure the integrity of the system.

5.Installing the New Ball Valve

With the pipe ends prepared, proceed to install the new ball valve:

• Select the Appropriate Valve: Ensure the replacement ball valve matches the size and type of the existing piping system (e.g., PVC, copper, threaded, soldered).
• Apply Sealant: For threaded connections, wrap plumber’s tape (Teflon tape) clockwise around the male threads of the pipe ends to ensure a watertight seal. For soldered connections, apply appropriate flux to the pipe and valve fittings.
• Position the Valve: Align the new ball valve with the pipe ends, ensuring the handle is accessible and the valve is oriented correctly for the desired flow direction.
• Connect the Valve:
  • Threaded Connections: Hand-tighten the valve onto the pipe ends, then use a wrench to secure it firmly, avoiding overtightening, which can damage the threads.
  • Soldered Connections: Insert the valve onto the pipe ends and heat the joint with a propane torch until the flux sizzles. Apply solder to the joint, allowing it to flow evenly around the connection. Remove the heat and let the joint cool naturally.

6.Testing for Leaks

Before fully restoring the water supply, it’s crucial to test the new installation for leaks. Proper ball valve leakage troubleshooting ensures that the system operates without issues:

• Partially Open the Water Supply: Gradually turn on the main water supply to allow the system to pressurize slowly.
• Inspect the Valve: Observe the new ball valve and surrounding connections for any signs of water leakage. Pay close attention to the joints and seams, as these are common areas for leaks during ball valve leakage troubleshooting.
• Operate the Valve: Turn the valve handle to the open and closed positions to ensure smooth operation and verify that there are no leaks during movement.
• Tighten Connections if Necessary: If minor leaks are detected, gently tighten the connections or apply additional sealant as needed. For soldered joints, reheating and applying more solder may be required.

7.Restoring the Water Supply

Once you’ve confirmed that there are no leaks, proceed to restore the water supply:

• Fully Open the Main Valve: Turn the main water supply valve completely open to allow normal water flow throughout the system.
• Check System Functionality: Run water through the affected fixtures to ensure proper flow and that the new ball valve is functioning correctly without any restrictions or issues.
• Monitor for Leaks: Over the next few hours, periodically check the new valve and connections to ensure no leaks develop as the system returns to regular operation.

For a visual demonstration of the replacement process, you may find the following video helpful:

Source:Electrical and plumbing hacks

FAQ

Q1: How can I identify if my ball valve needs replacement?

Signs that a ball valve may need replacement include:

• Leaking around the valve handle or body.
• Difficulty in turning the valve handle.
• Inability to fully open or close the valve.
• Visible corrosion or damage on the valve body.

Q2: Is it necessary to shut off the main water supply before replacing a ball valve?

Yes, it’s crucial to turn off the main water supply to prevent water flow during the replacement process. This ensures safety and prevents potential water damage.

Q3: Can I replace a ball valve myself, or should I hire a professional?

If you have basic plumbing skills and the necessary tools, you can replace a ball valve yourself by following proper safety precautions and step-by-step instructions. However, if you’re unsure or uncomfortable with the process, it’s advisable to hire a licensed plumber to ensure the job is done correctly.

Q4: How do I choose the correct replacement ball valve?

Select a replacement ball valve that matches the size and material of your existing piping system. Consider the type of connections (threaded, soldered, or compression) and ensure the valve is rated for the pressure and temperature requirements of your system.

Q5: What are the common mistakes to avoid when replacing a ball valve?

• Not shutting off the main water supply.
• Failing to drain the system properly before removal.
• Using the wrong type or size of replacement valve.
• Over-tightening or under-tightening connections, leading to leaks.
• Neglecting to check for leaks after installation.

Q6: How can I ensure there are no leaks after installing a new ball valve?

After installation, gradually restore the water supply and inspect the valve and connections for any signs of leakage. Operate the valve by opening and closing it to ensure proper functionality. If leaks are detected, tighten the connections as needed or reapply sealant.
