Valves are essential components in various plumbing, engineering, and industrial systems, controlling the flow of liquids and gases. Whether you are a facility manager, an engineer, a technician, or even a DIY enthusiast, knowing whether a valve is open or closed can be crucial for safety and efficiency. This guide will help you understand how to tell if a valve is open or closed for different types of valves, such as gate valves, ball valves, butterfly valves, globe valves, and check valves, ensuring safe and effective operations.

Understanding Valve Types and Positions

Before diving into the steps for identifying whether a valve is open or closed, it is helpful to understand the basic types of valves we’ll be discussing.

• Ball Valves: These valves have a handle that directly indicates their position. The ball inside the valve has a hole through it that aligns with the flow path when open and blocks the flow when closed.
• Gate Valves: These valves use a wheel that raises or lowers a gate to control flow. Typically used in systems that need full flow or complete shutoff, they are not ideal for flow regulation.
• Butterfly Valves: Butterfly valves use a rotating disc to control flow. The disc turns on an axis and either allows flow when parallel or blocks flow when perpendicular to the pipe.
• Globe Valves: Globe valves are designed for regulating flow. They have a disc that moves up and down inside the valve body, and their flow path is often S-shaped, allowing precise flow control.
• Check Valves: Check valves are one-way valves that prevent backflow. They do not have external indicators, as they operate automatically based on pressure changes.

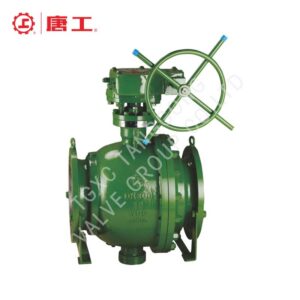

How to Tell if a Ball Valve is Open or Closed

Ball valves are generally easy to read because they use a lever handle to indicate position:

• Open Position: The handle of a ball valve is in line with the pipe when the valve is open. This means that the flow of fluid or gas is unrestricted.
• Closed Position: The handle will be perpendicular (at a 90-degree angle) to the pipe, which means the valve is closed, and flow is blocked.

This simplicity is why ball valves are a popular choice in many industrial applications—a quick glance at the handle’s position tells you all you need to know.

How to Tell if a Gate Valve is Open or Closed

Gate valves require a little more attention to determine their state:

• Open Position: When you turn the handwheel counterclockwise, the gate inside the valve lifts, allowing flow through the pipe. You will often feel the wheel loosen when the gate is fully open.
• Closed Position: Turning the handwheel clockwise lowers the gate to block the flow. When fully closed, the handwheel will resist further turning.

For safety, it is best practice to avoid leaving a gate valve partially open, as this can lead to damage over time due to fluid erosion.

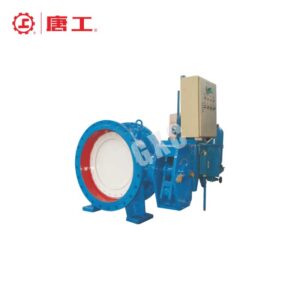

How to Tell if a Butterfly Valve is Open or Closed

Butterfly valves are relatively straightforward to operate and check:

• Open Position: The handle or actuator will be aligned with the pipe direction when the valve is open, allowing full flow.
• Closed Position: The handle or actuator will be perpendicular to the pipe when the valve is closed, indicating that the disc is blocking flow.

Because butterfly valves control flow with a disc, it’s crucial to ensure they are either fully open or fully closed to prevent damage to the valve’s sealing components.

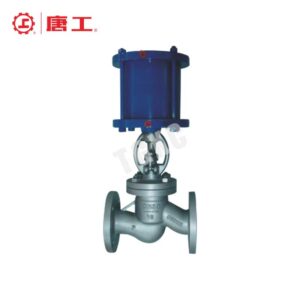

How to Tell if a Globe Valve is Open or Closed

Globe valves are used for regulating flow, and their position can be determined by the handwheel:

• Open Position: Turning the handwheel counterclockwise raises the disc, allowing flow. The more you turn, the more open the valve becomes, offering precise control over the flow rate.
• Closed Position: Turning the handwheel clockwise lowers the disc, blocking the flow. When fully closed, the handwheel will become difficult to turn further.

Unlike gate valves, globe valves can be partially open, making them suitable for flow regulation.

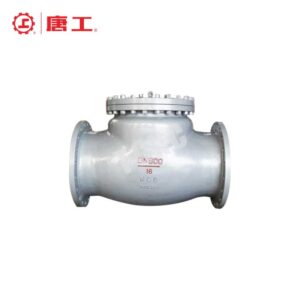

How to Tell if a Check Valve is Open or Closed

Check valves operate automatically and do not have external indicators to show if they are open or closed. They are designed to allow flow in one direction and prevent backflow:

• Open Position: The valve opens automatically when the pressure on the upstream side is greater than the pressure on the downstream side.
• Closed Position: The valve closes when the pressure on the downstream side is greater, preventing backflow.

To determine if a check valve is functioning properly, you may need to monitor the system’s pressure gauges or observe flow rates to ensure there is no backflow.

Safety Tips for Valve Operations

• Double-Check Indicators: Always look for any direction indicators on the valve body itself. Some valves have visual indicators that make it easier to determine if they are open or closed.
• Use Pressure Gauges: In some systems, checking pressure gauges can help confirm if a valve is open or closed. No change in pressure after opening may indicate a blockage or that the valve is still closed.
• Avoid Excessive Force: When closing or opening a valve, avoid using excessive force. If a valve is difficult to turn, there could be underlying issues that need attention.

Adding images or diagrams for these common valve types can make it even easier to visualize the open and closed positions, especially for those new to handling these components.

Conclusion

Knowing how to tell if a valve is open or closed is a critical skill that can enhance safety and efficiency in many plumbing, engineering, and industrial settings. Whether you’re dealing with ball valves, gate valves, butterfly valves, globe valves, or check valves, understanding their specific indicators will help you operate them correctly. Remember to prioritize safety by checking pressure indicators and avoiding excessive force, which can lead to damage or accidents.

If you have any questions or need further clarification, feel free to contact us!
