Ensuring worker safety in industrial environments is paramount, especially when dealing with equipment that can be hazardous if misused. One such device that plays a critical role in maintaining safety is the ball valve lockout device. In this article, we will explore what a ball valve lockout device is, why it is essential in industrial safety protocols, and how to use it effectively. This guide is intended for safety officers, maintenance workers, and facility managers who need to implement lockout/tagout procedures in their workplace.

Introduction to Ball Valve Lockout Devices

A ball valve lockout device is a safety tool designed to prevent the accidental or unauthorized operation of a ball valve. Ball valves are used to control the flow of liquids or gases in industrial systems, and improper handling of these valves can lead to dangerous situations such as chemical spills or gas leaks. The lockout device fits over the handle of the ball valve and prevents it from being turned, ensuring that the valve remains in the desired position. This device is crucial in industrial settings to safeguard workers and prevent accidental activation during maintenance or repairs.

Lockout/tagout procedures are integral to workplace safety, and ball valve lockout devices are an essential part of these procedures. By securing the valve, these devices help prevent unintended operation, reduce accidents, and ensure compliance with safety regulations.

Benefits of Using a Lockout Device

The use of ball valve lockout devices is not just about compliance but also about creating a safer work environment. Here are some key benefits:

• Worker Safety: By locking out ball valves, these devices prevent accidental operation, which could lead to injuries or exposure to hazardous materials.
• Regulatory Compliance: Organizations such as OSHA (Occupational Safety and Health Administration) require lockout/tagout procedures for certain equipment. Using lockout devices helps facilities comply with these safety regulations, avoiding fines and legal issues.
• Minimization of Hazardous Situations: By securing the valve in a specific position, lockout devices help minimize the risk of leaks, spills, and other hazardous events.



Step-by-Step Guide to Using a Ball Valve Lockout Device

To effectively use a ball valve lockout device, follow these steps:

Step 1: Identify the Valve to Be Locked Out

The first step is to identify the correct ball valve that needs to be locked out. This typically involves verifying the system or pipeline that requires maintenance and ensuring that the valve in question is the correct one. Make sure that the system is completely turned off and that any residual pressure is safely released.

Step 2: Verify that the Valve Is in the Correct Position

Ensure that the valve is either fully open or fully closed, as required. The correct position must be verified to ensure that the lockout device can effectively secure the valve and that there is no risk of leakage or unintended flow.

Step 3: Place the Lockout Device Over the Valve Handle

Carefully place the lockout device over the handle of the ball valve. The lockout device should fit snugly over the handle, preventing any movement. Different types of lockout devices are designed to accommodate various handle sizes and configurations, so it is essential to use the right one.

Step 4: Apply the Locking Mechanism

Once the lockout device is properly positioned, apply a padlock or other locking mechanism to secure it in place. The padlock should be chosen based on the security level required, and only authorized personnel should have access to the key.

Step 5: Attach a Tag

Attach a tag to the lockout device. This tag should clearly state who applied the lockout, the date it was applied, and the reason for the lockout. This information is vital for communication among workers and ensures that everyone is aware of the status of the valve.

Step 6: Verify the Lockout

The final step is to verify the lockout. Check the device to make sure it is securely in place and that the valve handle cannot be moved. Additionally, attempt to turn the valve handle gently to ensure that the lockout is effective. This verification step is crucial to prevent accidents and ensure that the valve remains in the desired position.



Applications of Ball Valve Lockout Devices

Ball valve lockout devices are used in various industries to ensure safety and prevent accidental or unauthorized operation of valves. Below are some common applications:

• Chemical Processing Plants: In chemical processing facilities, ball valve lockout devices are used to secure valves controlling hazardous chemicals, preventing accidental spills or releases that could pose risks to workers and the environment.
• Oil and Gas Industry: In the oil and gas sector, these devices are used to secure valves that regulate the flow of flammable or toxic substances, ensuring safe maintenance and operational practices.
• Manufacturing Facilities: In manufacturing settings, ball valve lockout devices help control the flow of steam, water, or compressed air, protecting workers during maintenance activities.
• Food and Beverage Industry: In food processing plants, lockout devices are used to secure valves controlling the flow of liquids or gases involved in production, ensuring compliance with hygiene and safety standards.
• Water Treatment Plants: In water treatment facilities, ball valve lockouts are used to prevent unauthorized adjustments to valves that control water flow, ensuring consistent treatment processes.



Common Ball Valve Lock Device Types

Various locking devices are employed to ensure that ball valves remain in their designated positions. The primary types include:

source:Pipa Jaya

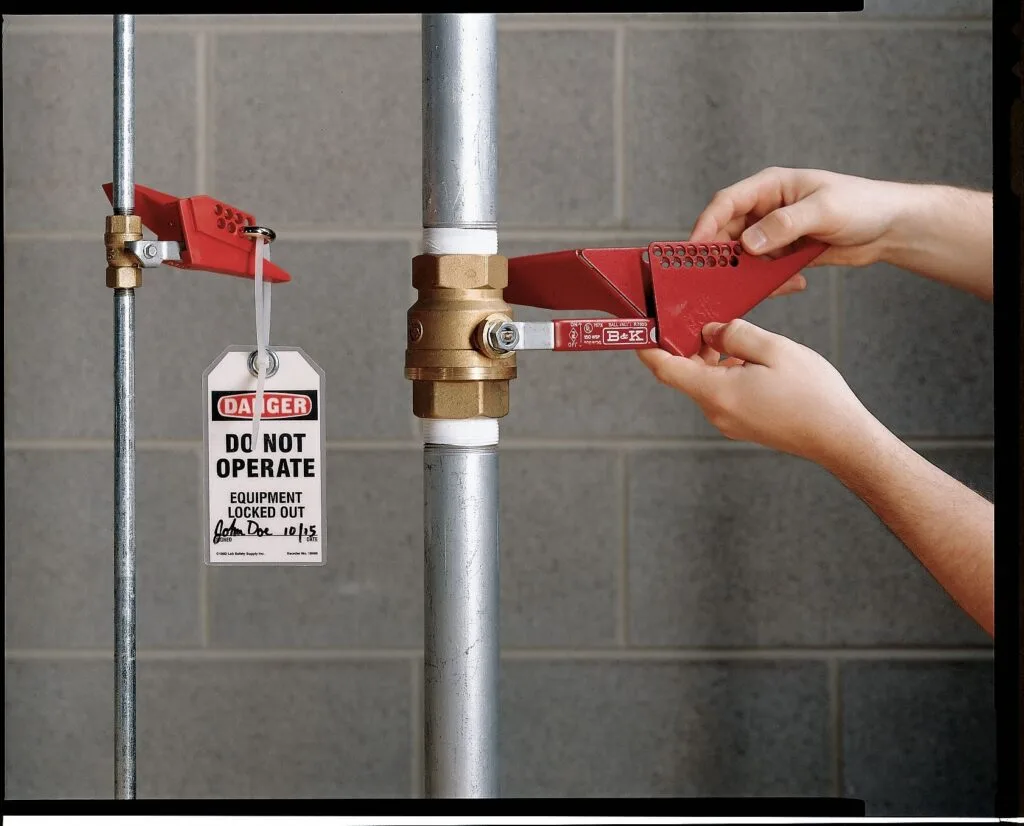

• Clamp-On Ball Valve Lockouts: These devices are designed to fit over the handle of a ball valve, effectively preventing its movement. They are versatile and can accommodate a range of handle sizes and configurations, making them suitable for diverse applications.

source:PPEsafety

• Wedge Ball Valve Lockouts: Utilizing a wedge mechanism, these lockouts immobilize the valve handle by securing it against the pipe or valve body. This design ensures that the handle cannot be turned, thereby maintaining the valve’s position.

source:Padlock Outlet

• Two-Stage Ball Valve Lockouts: These lockouts involve a two-step process where the valve handle is first removed, and then a locking mechanism is applied to prevent operation. This method is particularly effective in situations requiring stringent control over valve access.

source:Grainger

• Cylinder Cover Ball Valve Lockouts: These devices encase the entire valve handle within a cylinder, obstructing access and movement. They are especially useful for valves located in exposed or high-traffic areas where accidental activation is a concern.

source:Brady

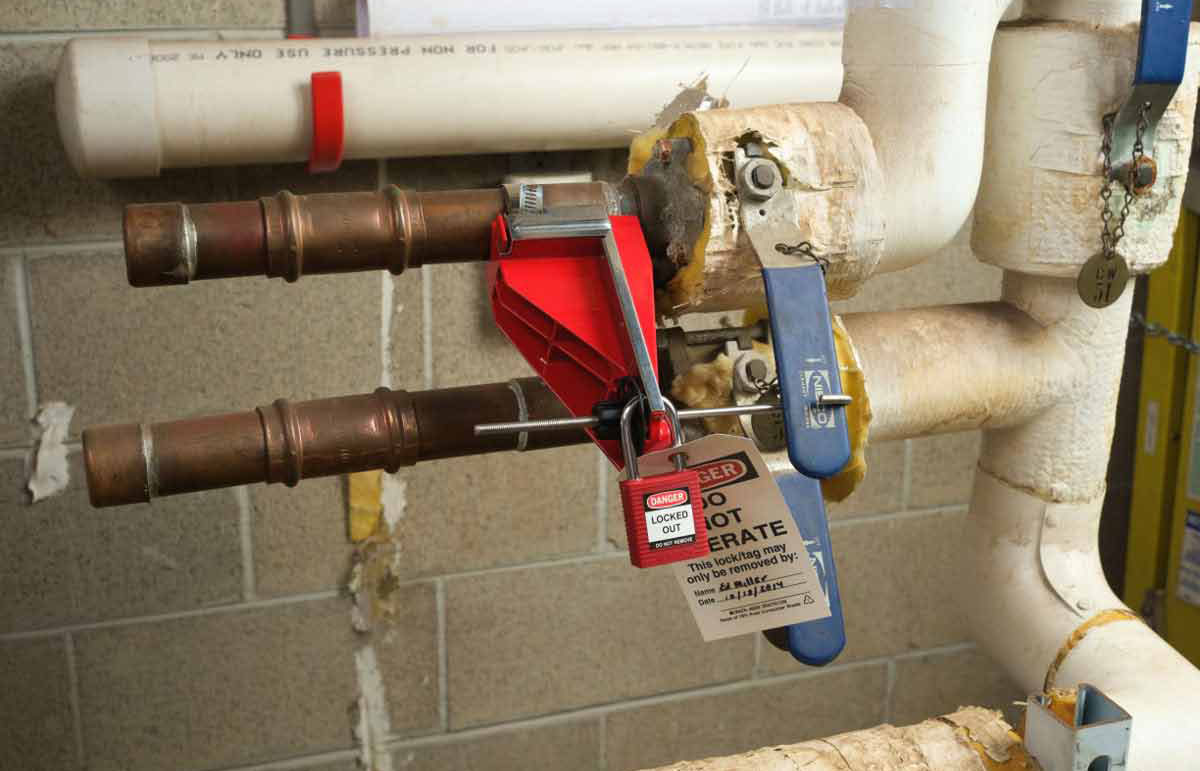

• Permanent-Mount Ball Valve Lockouts: Installed as a fixed component of the valve assembly, these lockouts provide a long-term solution for securing valve positions. They are ideal for critical valves that require consistent and reliable locking mechanisms.



Tips for Effective Lockout/Tagout Procedures

• Training: Ensure that all personnel involved in maintenance and safety operations are trained in lockout/tagout procedures. Only trained individuals should be allowed to apply or remove lockout devices.
• Authorized Personnel Only: Make sure that only authorized personnel have access to the keys or locking mechanisms for lockout devices.
• Regular Inspections: Conduct regular inspections of lockout devices and procedures to ensure they are functioning properly and being followed consistently.
• Communication: Maintain clear communication among all team members to ensure that everyone is aware of which equipment is locked out and why.



Common Mistakes to Avoid

• Failure to Verify Valve Position: Not ensuring that the valve is in the correct position before applying the lockout device can lead to leaks or unintended flow.
• Incomplete Tag Information: Tags without proper information can cause confusion and increase the risk of unauthorized removal.
• Incorrect Device Selection: Using an incorrect lockout device that does not fit securely over the valve handle can render the lockout ineffective.
• Lack of Communication: Failing to inform all team members about the lockout status can lead to accidental removal or misuse of the valve.



Safety Standards and Regulations

Compliance with safety standards such as OSHA regulations is essential for the proper implementation of lockout/tagout procedures. OSHA mandates that all energy-isolating devices must be locked out during maintenance to prevent unexpected energization or release of hazardous energy. Non-compliance with these standards can result in serious consequences, including fines and increased liability. Therefore, it is important to integrate the use of ball valve lockout devices as part of the overall safety strategy in any industrial setting.



Conclusion

Ball valve lockout devices are an essential component of industrial safety protocols. By following the proper steps for using these devices, companies can ensure worker safety, minimize hazardous situations, and comply with industry regulations. Remember, safety is an ongoing process, and integrating lockout/tagout procedures into everyday operations is key to preventing accidents and maintaining a safe working environment. Make sure your team is well-trained, informed, and equipped to use lockout devices effectively.



FAQs

1.Why use a lockout device for ball valves?

Lockout devices are used to prevent unauthorized or accidental operation of ball valves, ensuring worker safety and regulatory compliance.

2.What is OSHA lockout/tagout?

OSHA lockout/tagout refers to the safety standards set by the Occupational Safety and Health Administration that require the use of lockout/tagout procedures to prevent the accidental release of hazardous energy during maintenance.

3.Can anyone remove a ball valve lockout device?

No, only authorized personnel who have applied the lockout device or have the necessary training and permission are allowed to remove it.
