When comparing isolation valves vs gate valves, it’s important to understand their distinct roles and features within fluid control systems. Both types are designed to control the flow of fluids, but their mechanisms and applications differ significantly. Isolation valves are used primarily to prevent the flow of fluid within a system, providing a quick and reliable shutoff. These valves are often essential in processes that require immediate cessation of fluid movement. Gate valves, on the other hand, are typically slower to operate, requiring more time to fully open or close. They are often employed for more gradual control of flow in non-critical applications, especially when complete flow regulation is unnecessary. Understanding these differences is crucial for selecting the appropriate valve for a given application, ensuring both performance and longevity.

What is an Isolation Valve?

An isolation valve is a valve used to completely shut off the flow of fluids or gases within a piping system. Its primary purpose is to isolate a section of a pipeline for maintenance, repairs, or safety purposes. Isolation valves are typically employed when a system requires a reliable and complete stop of flow in order to protect downstream equipment or to safely allow for system servicing without interference from the flow.

Isolation valves are often designed to provide a tight seal when closed, preventing any leakage of fluids or gases. They can come in various types, including ball valves, butterfly valves, and gate valves. These valves are generally used in industries such as oil and gas, water treatment, and power generation, where safety and efficiency are paramount.

Typically, isolation valves are installed in systems that are not frequently operated and are meant to provide a quick and reliable shutoff. They are ideal for applications where a section of the system needs to be completely isolated for maintenance or emergency situations.

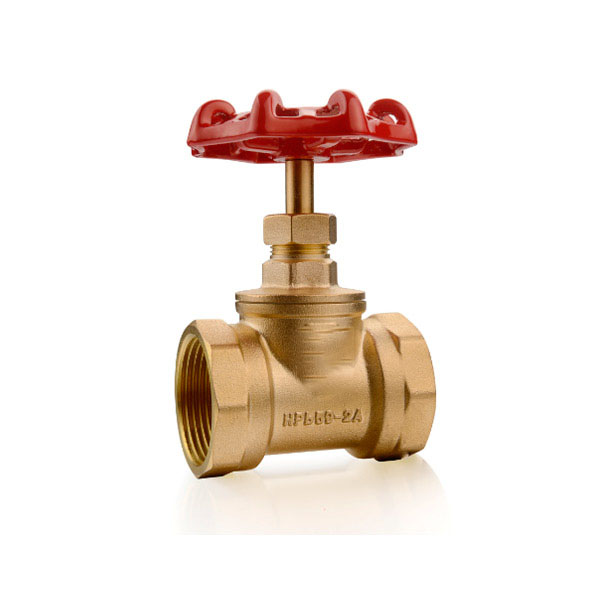

What is a Gate Valve?

A gate valve is a type of valve that uses a gate, typically a wedge-shaped metal disc, to control the flow of fluids through a pipe. The gate can be raised or lowered to either allow or stop the flow, depending on its position. Gate valves are primarily used in applications where the flow needs to be either fully opened or fully closed, rather than regulated or throttled. When open, gate valves provide minimal resistance to flow, as the gate is completely retracted into the valve body.

Gate valves are characterized by their slow operation, as the gate needs to move along a threaded stem to open or close the valve. This movement can be manual or automated, depending on the specific application. Gate valves are generally bi-directional, meaning they can be used to control the flow of fluid in both directions.

Gate valves are commonly used in large pipelines, such as those found in water supply systems, chemical plants, and oil refineries. While they can serve as isolation valves, gate valves are not ideal for applications that require frequent adjustments or where the flow needs to be throttled or regulated. Their primary role is in applications where the goal is to achieve a full shutoff or full flow.

Types of Isolation Valves and Their Functions

Isolation valves are used to stop or regulate the flow of fluids in pipelines or process systems. They serve as vital tools for ensuring safety, controlling flow, and enabling maintenance without disrupting the entire system. Below is a breakdown of the primary types of isolation valves and their respective functions.

1. Rotary Movement Isolation Valves

Rotary movement isolation valves are among the most common and versatile types. They are characterized by a rotational motion that opens or closes the flow path. Two popular types of rotary movement isolation valves include ball valves and butterfly valves:

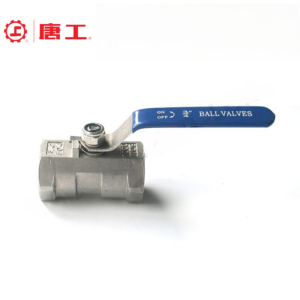

One-Piece Threaded Ball Valve

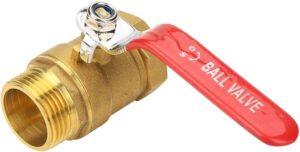

• Ball Valves: These valves use a hollow, perforated ball to control flow. When the valve is open, the hole in the ball aligns with the flow path, allowing fluid to pass through. When the valve is closed, the ball rotates to block the flow. Ball valves are known for their tight shut-off capabilities and are often used in applications requiring reliable sealing.
• Butterfly Valves: Butterfly valves use a rotating disc to control the flow. When open, the disc lies parallel to the flow, and when closed, it rotates to a perpendicular position, stopping the flow. They are generally more compact and are commonly used in systems where space constraints exist or in low-pressure applications.

2. Linear Movement Isolation Valves

Linear movement isolation valves operate by moving a valve element in a straight line, which either allows or blocks the flow. Common types include gate valves, globe valves, and needle valves:

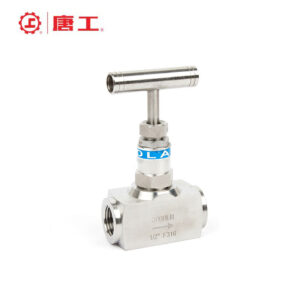

Female Needle Valve

• Gate Valves: These are typically used for fully opening or closing the flow. They use a gate-like disc that moves up or down within the valve body. Gate valves are ideal for isolating flow but are not suitable for throttling because they offer little control over the flow rate once opened.
• Globe Valves: Globe valves are designed for regulating or throttling flow, in addition to isolating it. They use a plug that moves up or down in the valve body to control the flow. The globe valve is particularly effective in controlling the rate of flow, making it a versatile option for various applications.
• Needle Valves: These valves have a needle-like stem that gradually reduces the flow, making them ideal for precise control in low-flow applications. Needle valves are commonly used in instrumentation and applications where fine adjustments to the flow rate are necessary.

3. Diaphragm Isolation Valves

Diaphragm isolation valves use a flexible diaphragm that moves to seal or unseal the flow path. The diaphragm is typically made of elastomeric materials and moves up or down to control the flow of fluids. These valves are particularly effective in applications where tight shutoff and chemical compatibility are crucial. Diaphragm isolation valves are often used in industries that handle corrosive materials because the diaphragm can be made from non-reactive materials such as PTFE.

4. Pinch Valves

Pinch valves are unique in that they use a flexible tube, which is pinched to block the flow and released to allow it. The tube is typically made of rubber or other flexible materials. Pinch valves are advantageous because they can easily isolate media without contact between the valve mechanism and the flow medium. This makes them ideal for handling abrasive, viscous, or particulate-laden fluids, as well as for applications where hygiene and contamination control are paramount.

5. Rocker Style Isolation Valves

Rocker style isolation valves are similar to diaphragm valves but operate with a rocker arm mechanism that moves to seal or unseal the valve. These valves are typically used in smaller applications where space is limited, and they can be more affordable than diaphragm isolation valves. Rocker style valves are common in fluid dispensing systems, although they may not offer the same longevity or chemical compatibility as diaphragm valves.

Key Differences Between Isolation Valves vs Gate Valves

Here is the comparison between Isolation Valves and Gate Valves in table format:

Applications in Isolation Valves

Industrial Pipelines and Process Plants: Isolation valves are widely used in industries such as oil and gas, chemical plants, power plants, and water treatment facilities. They are strategically placed in pipeline systems to isolate sections for repairs, modifications, or testing without interrupting the overall system. These valves ensure safety and minimize downtime during maintenance operations​.

Safety and Emergency Systems: In high-risk industries, isolation valves are critical for maintaining system integrity during emergency shutdowns or safety operations. They are employed in firewater control systems, flare systems, and pressure relief systems, where they help to manage hazardous substances and control emergency situations by preventing fluid leaks​.

Residential and Commercial Plumbing: Isolation valves are also essential in residential and commercial plumbing systems. They are installed to control the flow of water and gas, enabling easy access for repairs or maintenance. In these systems, isolation valves help to isolate certain areas, such as appliances or fixtures, without affecting the entire plumbing network​.

Oil and Gas Industry: Isolation valves are used extensively in the oil and gas industry to shut off the flow of hydrocarbons from pipelines, allowing for safe maintenance, repairs, or inspections. In these applications, the integrity of the isolation valve is critical due to the potential hazards associated with the materials being transported​.

Nuclear and Power Plants: In nuclear reactors and power plants, isolation valves are part of complex safety and shutdown systems. They are used to control the flow of coolant, steam, and other critical fluids, ensuring that any malfunction can be contained safely. Their application in these environments is vital for preventing catastrophic failures and maintaining operational safety​.

When to Choose an Isolation Valve Over a Gate Valve

Both isolation and gate valves are crucial components in industrial fluid handling systems, yet they serve distinct purposes. Understanding when to choose one over the other depends on the specific needs of your application, including the type of flow control required, space constraints, and maintenance needs.

1. Quick Shutoff vs. Slow Shutoff

Isolation valves are designed to provide a quick shutoff of the flow, ensuring that a section of the piping can be isolated swiftly for maintenance or safety purposes. This makes them particularly useful in systems where immediate action is required to stop the flow. In contrast, gate valves are known for their slow shutoff, as the gate gradually lowers or raises to either block or allow the flow. While gate valves can be used for isolation purposes, they are not as efficient in emergency situations where rapid shutoff is needed.

2. Durability and Longevity

Isolation valves tend to last longer and are less prone to damage compared to gate valves. Gate valves are more susceptible to corrosion, especially at the valve stem, which can lead to a decrease in their operational lifespan. Isolation valves, particularly those designed with tight seals, generally have a longer service life and require less frequent maintenance.

3. Leakage Resistance

One of the key differences between isolation and gate valves lies in their sealing capabilities. Isolation valves are engineered to offer tight sealing, minimizing leakage even under high-pressure conditions. Gate valves, on the other hand, are more prone to leaks, especially when the valve is not fully closed. This makes isolation valves the better choice for systems where preventing any leakage is critical.

4. Space Requirements

In terms of installation space, isolation valves often require more room, particularly those with a quarter-turn handle mechanism, which needs space for operation. Gate valves, however, are more compact and require less room for installation, making them ideal for systems where space is limited, such as in smaller pipelines or confined spaces.

5. Flow Control and Applications

Isolation valves are primarily used for applications where the flow must be completely shut off or redirected for maintenance. They are suited for systems where isolation is a key function, such as during system repairs or when sections of the piping need to be taken offline without affecting the entire system. Gate valves, on the other hand, are generally used in systems where continuous flow is essential, and the need to control or adjust the flow rate is minimal.

Conclusion

Isolation valves and gate valves both serve critical roles in controlling fluid flow but differ in their applications. Gate valves are slower in operation, offer full flow control, and are more susceptible to wear and corrosion, especially at the stem. In contrast, isolation valves provide quicker shutoffs, tighter seals, and better durability, making them ideal for applications requiring precise flow control and reduced leakage. While gate valves can function as isolation valves, they are generally less reliable for critical isolation needs compared to other valve types. Choosing the right valve depends on factors like shutoff speed, durability, and sealing requirements.
