In sewage treatment plants, selecting the appropriate valve is crucial for efficient and reliable operations. Knife Gate Valve Selection is particularly important as knife gate valves are specifically designed to handle the unique challenges of wastewater systems, effectively managing slurries, abrasives, and corrosive substances. Their sharp-edged gate and full-bore design ensure smooth flow and prevent clogging, making them indispensable in such environments.

What is a Knife Gate Valve?

A knife gate valve is a specialized valve designed for on-off and isolation services in systems handling fluids with high solid content, such as sewage treatment plants. Its primary function is to control the flow of slurry, viscous, abrasive, and corrosive media.

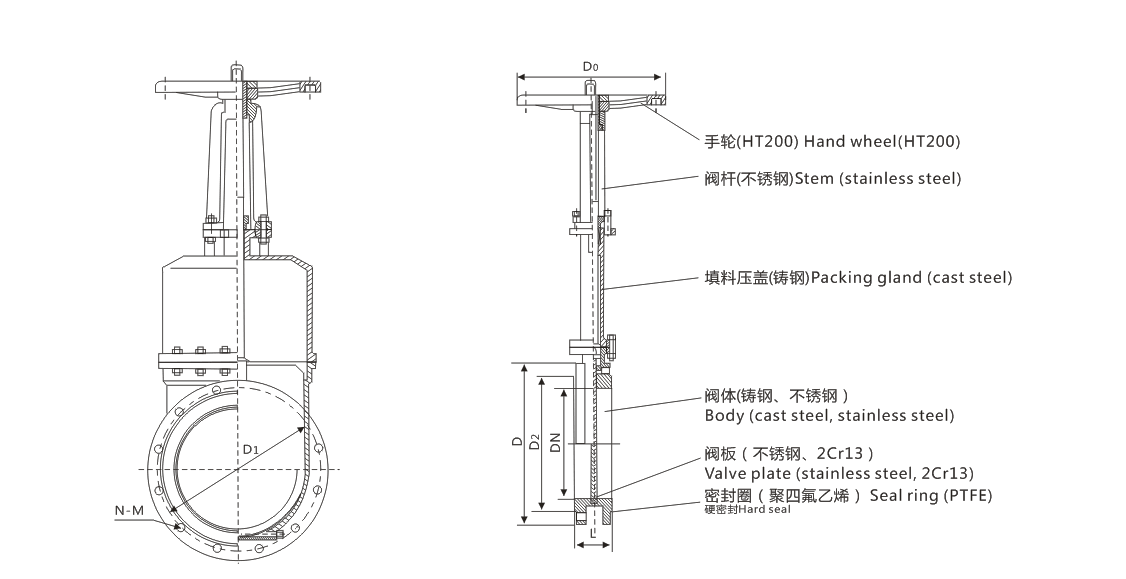

Core Design Features:

• Knife-Edge Gate: The valve features a sharp-edged gate that can cut through thick, slurry-like substances, ensuring a tight seal when closed.

• Full-Flow Bore: The internal bore is smooth and unobstructed, allowing for the passage of large particles without causing blockages.

• Rugged Construction: Constructed from durable materials, knife gate valves are built to withstand the abrasive and corrosive nature of the media they control.

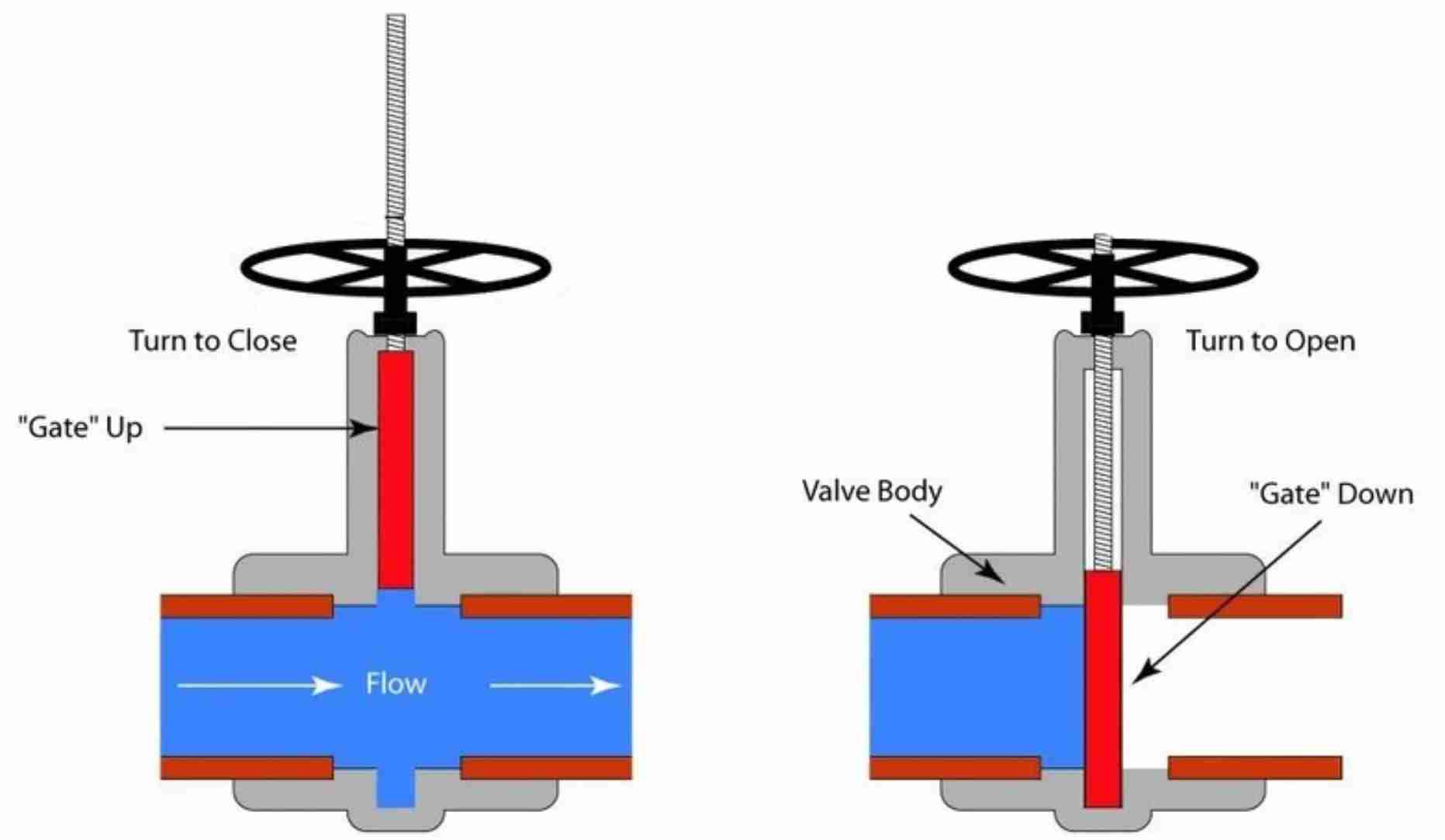

How It Works: The “Knife-Edge” Mechanism for Cutting Solids

The knife gate valve operates by lowering a sharp-edged gate into the flow path. As the gate descends, it slices through the media, effectively cutting through solids and creating a tight seal. This mechanism is particularly effective in applications where other valve types might struggle due to the presence of large particles or viscous substances.

The design ensures that when the valve is closed, it provides a reliable seal, preventing leakage and maintaining system integrity. This functionality is essential in sewage treatment plants, where the media can be highly abrasive and corrosive.

By utilizing the knife-edge mechanism, these valves offer a reliable solution for isolating sections of the system, facilitating maintenance, and ensuring the continuous operation of the treatment process.

For a visual demonstration of the knife gate valve’s functionality, you might find the following video helpful:

Source:AVK

Key Features of Knife Gate Valves

Knife gate valves are engineered to effectively manage challenging media, such as slurries, viscous fluids, and abrasive substances. Their design incorporates several key features that enhance their performance in demanding applications:

Sharp Blade for Cutting Through Solids

A distinctive feature of knife gate valves is their sharp-edged gate, which functions like a knife to cut through thick, solid-laden media. This design ensures that the valve can handle materials like mud, slurry, and other viscous substances without clogging or compromising the seal. The cutting action of the blade allows for a tight shut-off, preventing leakage and maintaining system integrity.

Full-Bore Design for Unrestricted Flow and Pigging Compatibility

Knife gate valves typically feature a full-bore design, meaning the internal diameter of the valve matches that of the pipeline. This configuration allows for unrestricted flow of the medium, minimizing pressure drops and enhancing system efficiency. Additionally, the smooth, unobstructed bore facilitates the use of pigging devices for cleaning and maintenance, ensuring the pipeline remains free of debris and operationally efficient.

Materials: Corrosion and Abrasion-Resistant Construction

To withstand the harsh conditions of handling abrasive and corrosive media, knife gate valves are constructed from durable materials. Common materials include stainless steel, ductile iron, and carbon steel for the body, with elastomers or metal seats for sealing. These materials are selected based on media compatibility and environmental conditions, ensuring the valve’s longevity and reliable performance in demanding applications.

Why Knife Gate Valves Excel in Sewage Treatment Applications

Knife gate valves are specifically engineered to meet the unique challenges of sewage treatment plants, offering several advantages that make them indispensable in such environments:

1. Efficient Handling of Slurries and Solids

Sewage treatment involves processing wastewater containing high concentrations of suspended solids. Knife gate valves are designed with a sharp-edged gate that effectively cuts through thick, slurry-like substances, ensuring a tight seal when closed. This capability prevents clogging and maintains uninterrupted flow, which is crucial for the continuous operation of treatment processes.

2. Resistance to Corrosion and Abrasion

The harsh chemicals and abrasive particles present in sewage can cause significant wear and tear on valve components. Knife gate valves are constructed from durable materials such as stainless steel, which enhances their resistance to corrosion and abrasion. This durability reduces maintenance requirements and extends the lifespan of the valves, ensuring reliable performance over time.

3. Space-Saving and Cost-Effective Design

Sewage treatment facilities often operate in space-constrained environments. Knife gate valves feature a compact design with a short face-to-face length, making them ideal for installations where space is limited. Additionally, their lightweight construction simplifies handling and installation, contributing to overall cost savings.

4. Minimal Maintenance Requirements

The straightforward design of knife gate valves results in low maintenance needs. Their ability to handle viscous and solid-laden media without frequent clogging or wear reduces downtime and operational costs. This efficiency is particularly beneficial in sewage treatment plants, where consistent operation is essential.

Common Mistakes to Avoid

Selecting the appropriate valve for sewage treatment applications is crucial to ensure system efficiency and longevity. Avoiding common mistakes can lead to better performance and reduced maintenance costs.

Overlooking Material Compatibility with Corrosive Media

Sewage treatment involves handling media that can be highly corrosive. Choosing valve materials incompatible with these substances can lead to premature failure and increased maintenance. For instance, carbon steel may not withstand certain corrosive environments, leading to rapid degradation. It’s essential to consult material compatibility guides to select valves made from materials like stainless steel or other corrosion-resistant alloys suitable for the specific media.

Using Standard Valves Instead of Specialized Knife Gate Designs

Standard valves are often not designed to handle the unique challenges presented by sewage treatment processes, such as the presence of solids, abrasives, and corrosive substances. Using standard valves in these applications can result in blockages, leaks, and frequent maintenance. Knife gate valves, with their sharp-edged gate and full-bore design, are specifically engineered to cut through thick, solid-laden media, ensuring a tight seal and preventing clogging. Their specialized design makes them more suitable for handling the demanding conditions of sewage treatment systems.

FAQs

1. Can knife gate valves handle both abrasive and corrosive fluids?

Yes, knife gate valves are specifically designed to manage fluids containing high concentrations of suspended solids, abrasives, and corrosive substances. Their sharp-edged gate effectively cuts through thick, slurry-like materials, ensuring a tight seal and preventing clogging. Constructed from durable materials such as stainless steel, they offer enhanced resistance to corrosion and abrasion, making them suitable for demanding environments like sewage treatment plants.

2. How often should maintenance be performed?

The maintenance frequency of knife gate valves depends on factors such as the nature of the media handled, operating conditions, and manufacturer recommendations. Regular inspections are essential to identify signs of wear, corrosion, or blockages. Routine maintenance, including cleaning and lubrication of moving parts, can extend the valve’s lifespan and ensure optimal performance. It’s advisable to consult the manufacturer’s guidelines and establish a maintenance schedule tailored to your specific application.

3. Are they suitable for high-pressure systems?

Knife gate valves are primarily designed for low-pressure applications. Their soft sealing surfaces are not intended to withstand high-pressure conditions. For systems operating under high pressure, alternative valve types with appropriate sealing mechanisms and pressure ratings should be considered. It’s crucial to assess the specific requirements of your system and consult with valve experts to select the most suitable valve type for high-pressure applications.

Conclusion

In summary, knife gate valves offer significant advantages for sewage treatment applications, including efficient handling of slurries and solids, resistance to corrosion and abrasion, space-saving design, and minimal maintenance requirements. These features make them indispensable in managing the unique challenges of wastewater systems. Plant operators and engineers should prioritize selecting knife gate valves that align with their specific operational needs, ensuring compatibility with the media handled and adherence to system pressure requirements. Regular maintenance and proper installation are essential to maximize the performance and longevity of these valves, thereby enhancing the overall efficiency and reliability of sewage treatment processes.
