Knife gate valves play a crucial role in enhancing efficiency, reliability, and safety across demanding industries such as mining, wastewater treatment, pulp & paper, chemical processing, and power generation. Designed to handle viscous, abrasive, and corrosive media, these valves provide effective flow control, minimal maintenance, and long service life in challenging environments. In this comprehensive guide, readers will gain a clear understanding of knife gate valves, including their working principles, key types, industrial applications, advantages over traditional valves, selection criteria, and installation best practices. Whether you are an engineer, procurement manager, or industry professional, this article will equip you with valuable insights on optimizing valve performance, reducing operational costs, and ensuring seamless system integration.



What are Knife Gate Valves?

knife gate valves are specialized valves designed to effectively handle fluids laden with suspended solids, viscous materials, or abrasive substances. Their distinctive feature is a sharp-edged gate that can slice through challenging media, ensuring reliable isolation and minimal flow resistance. ​

Definition and Core Design

Knife gate valves are primarily utilized for on-off isolation in systems where traditional valves might clog or fail due to the presence of solids. The core design involves a thin, rectangular or circular gate that moves perpendicular to the flow direction, cutting through media to provide a tight shut-off. This design minimizes pressure drop when the valve is fully open, offering an unobstructed flow path. ​

Historical Development and Industry Adoption

The knife gate valve was first developed in 1927 in Sweden, specifically for the pulp and paper industry, which required an economical solution for handling pulp stock applications. Over time, the design evolved to address the needs of other industries dealing with challenging media. For instance, the Push-Through Knife Gate was developed in the United States, while the Guided Shear Gate emerged in Switzerland. These adaptations have made knife gate valves indispensable in sectors such as mining, wastewater treatment, and chemical processing, where reliable isolation of abrasive or viscous fluids is crucial.



How Do Knife Gate Valves Work?

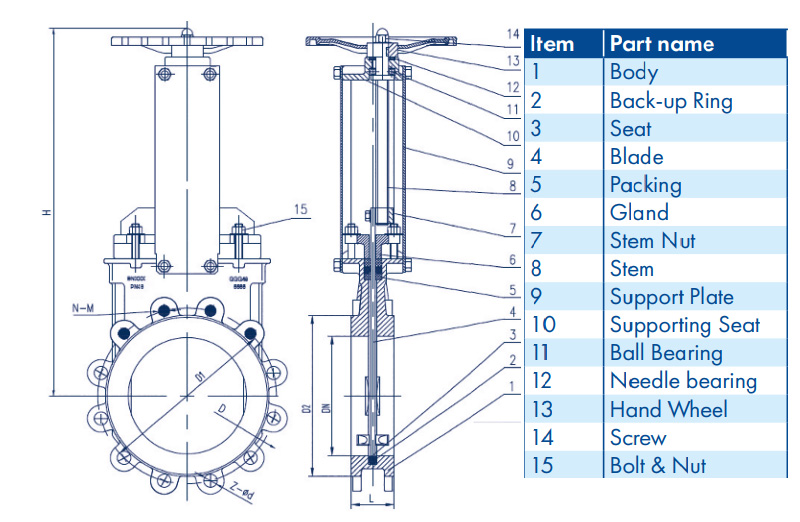

knife gate valve diagram

A knife gate valve operates by utilizing a sharp-edged gate to slice through media containing solids, ensuring effective isolation and minimal flow resistance. Understanding its operation, components, and sealing mechanisms is crucial for optimal performance in various industrial applications.​

Operating Mechanism: From Manual to Automated Actuation

Knife gate valves can be operated manually or through automated systems:​

• Manual Operation: In manual knife gate valves, a handwheel or lever is connected to the gate via a threaded stem. Rotating the handwheel moves the gate vertically, opening or closing the flow passage. This simple design is cost-effective and suitable for applications where automation isn’t necessary. ​

• Automated Actuation: For processes requiring precise control or remote operation, knife gate valves can be equipped with actuators:​

  • Pneumatic Actuators: Use compressed air to move the gate, offering rapid response times suitable for high-cycle operations. ​

  • Hydraulic Actuators: Employ pressurized fluid, providing high force, ideal for large valves or high-pressure systems. ​

  • Electric Actuators: Utilize electric motors for precise positioning and integration into automated control systems, allowing for remote operation and monitoring. ​

Visual Breakdown: Key Parts and Their Functions

Understanding the main components of a knife gate valve clarifies its functionality:​

• Gate (Blade): The flat, sharp-edged component that moves perpendicular to the flow, cutting through media to open or close the valve. ​

• Seat: The surface against which the gate seals when closed, preventing flow. Seats can be made from metal or resilient materials, depending on the application’s sealing requirements. ​

• Stem: Connects the actuator or handwheel to the gate, transmitting motion to open or close the valve.​

• Actuator: The mechanism that moves the stem and gate, which can be manual (handwheel) or automated (pneumatic, hydraulic, electric). ​

• Body: The main structure housing the internal components, designed to withstand system pressures and protect internal parts.

Sealing Technology: Ensuring Leak-Free Performance

Achieving a reliable seal in knife gate valves is essential to prevent leaks:​

• Sealing Mechanisms: Knife gate valves often employ metal or resilient material gaskets to enhance sealing performance, effectively preventing media leakage and improving operational efficiency. ​

• Bi-Directional Sealing: Some designs feature bi-directional sealing, allowing the valve to prevent flow in both directions, enhancing versatility and safety.



Following animated video demonstrates the working procedures and features of knife gate valves, offering a visual understanding of their operation.

Source: Arise3D



Types of Knife Gate Valves

Knife gate valves are specialized flow control devices that are designed to manage fluids with high concentrations of suspended solids, making them particularly suitable for industries such as mining, pulp and paper, wastewater treatment, and chemical processing. These valves are available in various types, each tailored to accommodate different operational conditions, pressure ratings, and media types. Below is a comprehensive overview of the most prominent types:

Resilient-Seated Valves:

Resilient-seated knife gate valves feature a soft elastomer seat that ensures a tight seal, making them particularly suitable for handling slurries and wastewater. The flexible seat material allows the valve to effectively seal against the gate, even when dealing with media containing suspended solids. This design minimizes leakage and is ideal for low-pressure applications where a bubble-tight shutoff is essential.​

Metal-Seated Valves:

Metal-seated knife gate valves are designed with metal-to-metal sealing surfaces, providing enhanced durability in abrasive environments. These valves are capable of withstanding higher temperatures and pressures compared to their resilient-seated counterparts. The robust construction makes them suitable for applications involving abrasive slurries, mining operations, and other demanding industrial processes where long service life and resistance to wear are critical.​

Bi-Directional Valves:

Bi-directional knife gate valves are engineered to provide sealing in both flow directions, offering versatility in flow control. This feature is particularly beneficial in systems where the flow direction may vary or where installation orientation flexibility is required. The ability to seal effectively from either direction enhances operational reliability and simplifies system design, making bi-directional valves a versatile choice for various industrial applications.​

Lined Valves:

Lined knife gate valves are equipped with corrosion-resistant linings, such as polyurethane or PTFE, to protect the valve body and internal components from corrosive media. This design is particularly advantageous in chemical processing applications where aggressive chemicals are present. The lining material acts as a barrier, preventing chemical attack on the valve structure and extending the valve’s service life in corrosive environments.​

Severe Service Valves:

Severe service knife gate valves are specifically designed to withstand high-pressure and extreme conditions. These valves are constructed with reinforced components and advanced sealing technologies to handle demanding applications, such as those found in power generation and heavy industrial processes. Their robust design ensures reliable performance and safety under severe operating conditions, making them indispensable in critical service applications.



Key Applications of Knife Gate Valves

​Knife gate valves are essential components in various industries, designed to handle challenging media such as slurries, viscous fluids, and abrasive materials. Their unique design allows for effective isolation and control in demanding environments. Below are key applications across major industries:​

Mining:

In the mining industry, knife gate valves are utilized to control the flow of abrasive and corrosive slurries, including the transportation of minerals, ores, and tailings. Their robust construction ensures reliable performance in harsh conditions. ​

Wastewater Treatment:

Knife gate valves are extensively used in wastewater treatment plants to regulate the flow of sludge, sewage, and other waste materials containing solids and debris. They effectively handle the presence of solids, preventing clogging and blockages in the system.

Pulp & Paper:

In the pulp and paper industry, these valves manage the flow of pulp, paper stock, and other fluids with suspended fibers. They are designed to handle high-consistency slurries, providing effective shutoff even with fibrous media.

Chemical Processing:

Knife gate valves are employed in chemical and petrochemical industries to manage corrosive chemicals, acids, and aggressive fluids that may contain solid particles. Their design ensures durability and resistance to harsh chemical environments. ​

Power Generation:

In power plants, knife gate valves handle fly ash, bottom ash, and other materials in ash disposal systems. They are suitable for managing abrasive materials, ensuring reliable operation in demanding conditions. ​



Advantages of Knife Gate Valves

​Knife gate valves offer several advantages over traditional gate valves, particularly in handling challenging media and operational scenarios.

Superior Handling of Viscous and Abrasive Media

Designed with a sharp-edged gate, knife gate valves can effectively cut through thick fluids containing suspended solids, such as slurries, pulp, and wastewater. This capability minimizes the risk of clogging and ensures reliable operation in demanding environments. ​

Lightweight Design and Cost-Effectiveness

Knife gate valves typically feature a more compact and lightweight design compared to traditional gate valves. This streamlined structure simplifies installation and reduces material costs, making them a cost-effective choice for many industrial applications. ​

Minimal Maintenance and Long Service Life

The straightforward design of knife gate valves, with fewer components and a self-cleaning action during operation, leads to reduced maintenance requirements. Their ability to handle abrasive and corrosive media without significant wear contributes to an extended service life. ​

Quick Shut-Off Capabilities for Emergency Scenarios

Knife gate valves are designed for efficient shut-off, providing quick isolation of flow in emergency situations. Their operational efficiency ensures rapid response times, enhancing safety and control within industrial systems.



How to Select the Right Knife Gate Valve

Media Compatibility:

Knife gate valves must be selected based on the properties of the media they handle. In industries like mining, wastewater treatment, and chemical processing, materials such as hardened stainless steel or urethane-lined valves are used to resist wear from abrasive slurries.

• Abrasive Media: Hardened seats and gates are recommended for applications where suspended solids, such as sand or mineral tailings, can cause erosion. Urethane-lined valves, such as those rated for 265°F (130°C), provide excellent abrasion resistance while maintaining a tight shutoff.

• Corrosive Environments: Materials like 316 stainless steel, Hastelloy, and Titanium offer superior resistance to aggressive chemicals. Some knife gate valves are specifically lined with PTFE to enhance their corrosion resistance, especially in chemical plants where pH levels range from 0-2 or strong acids are involved.

• Temperature Considerations: The ability of a knife gate valve to operate at high or low temperatures depends on the gasket and lining materials. Some industrial-grade valves can handle temperatures exceeding 1000°F (538°C), while elastomer-seated models have limits around -20°F to 250°F (-29°C to 121°C) depending on the rubber compound used.

Valve Sizing:

Selecting the correct valve size ensures efficient system performance and prevents pressure drops or turbulence. Oversized valves can lead to sluggish operation, while undersized valves can create excessive pressure losses.

• Pipeline Diameter Matching: Knife gate valves are typically sized to match existing pipe diameters, with standard sizes ranging from 2 inches (50mm) to 48 inches (1200mm). For large-scale applications, reinforced structures may be required to support heavier valve bodies.

• Flow Rate Considerations: High-flow systems require full-bore knife gate valves, ensuring unrestricted media movement without clogging. For instance, in slurry applications with solids concentration exceeding 30%, a wide-bore valve is preferable to reduce internal wear.

• Pressure Rating and System Design: Industrial knife gate valves typically fall within Class 150 to Class 300 ASME pressure ratings, meaning they can handle pressures up to 740 psi (51 bar). High-pressure applications may require double-seated or severe-service valves to maintain a reliable shutoff.

Material Selection:

The choice of valve material significantly impacts its durability and suitability for specific applications:​

• Stainless Steel: Offers excellent corrosion resistance, making it suitable for applications involving corrosive media or environments.​

• Cast Iron: Provides a cost-effective solution for non-corrosive applications, offering good mechanical properties.​

• Specialty Alloys: Materials like Hastelloy or Duplex stainless steels are ideal for highly corrosive or high-temperature applications, providing superior strength and resistance.​

Actuation Options:

The method of valve operation should align with system requirements and operational considerations:​

• Manual Actuation: Suitable for applications where valves are operated infrequently or where automation is not feasible.​

• Automated Systems: Pneumatic, electric, or hydraulic actuators enable remote operation and integration into automated process control systems, enhancing efficiency and safety.​

Industry Standards and Certifications to Consider

Ensuring that the selected knife gate valve complies with relevant industry standards and certifications is vital for safety, reliability, and regulatory compliance. Standards such as MSS-SP81 for stainless steel, boneless, flanged knife gate valves, or other applicable regional standards, provide guidelines on design, materials, and performance criteria.



Installation Best Practices

Pre-Installation Checks:

• Valve and Flange Alignment: Ensure that the valve’s centerline aligns precisely with the pipeline’s centerline. Misalignment can lead to uneven wear and potential leakage. Both the valve and pipeline flanges must be parallel to avoid mechanical stresses that could deform the valve body. ​

• Seal Inspection: Before installation, inspect the valve’s sealing surfaces and gaskets for any damage or debris. Cleanliness is essential to maintain a proper seal and prevent leakage. ​

Step-by-Step Installation Guide

1. Preparation:

   • Verify that the pipeline is depressurized and drained.​
   • Clean the pipeline flanges to remove any debris or corrosion.​

2. Valve Positioning:

   • Position the valve between the pipeline flanges, ensuring correct orientation. For unidirectional valves, align according to the flow direction indicated on the valve body. ​

3. Gasket Placement:

   • Insert appropriate gaskets between the valve and pipeline flanges. Ensure gaskets are centered and suitable for the operating conditions. ​

4. Bolt Installation:

   • Insert bolts through the flanges and hand-tighten them to hold the valve in place.​

5. Bolt Tightening:

   • Using a cross-over tightening pattern, gradually tighten the bolts to the manufacturer’s recommended torque specifications. This ensures even pressure distribution and prevents flange distortion. ​

6. Final Checks:

   • Verify that the valve operates smoothly by cycling it open and closed.​
   • Inspect all connections for signs of leakage.​

Common Installation Mistakes to Avoid

• Over-Tightening Bolts: Excessive torque can damage the valve body or deform flanges, leading to leaks. Always adhere to the manufacturer’s torque recommendations. ​

• Misalignment: Improper alignment between the valve and pipeline can cause operational issues and premature wear. Ensure precise alignment during installation. ​

• Incorrect Orientation: Installing unidirectional valves against the intended flow direction can compromise sealing and functionality. Always check the flow direction markings on the valve. ​

• Insufficient Support: Failing to support large valves or actuators can result in undue stress on the pipeline and valve components. Provide adequate support to prevent sagging or misalignment.



FAQs

Q1: Can knife gate valves be used for regulating flow?
A: No, knife gate valves are generally not recommended for flow regulation. They are designed primarily for isolation and should be either fully open or fully closed.

Q2: What kind of media is best suited for knife gate valves?
A: Knife gate valves are particularly well-suited for slurry, pulp, wastewater, and other viscous fluids that contain solids or debris.

Q3: How do I maintain a knife gate valve?
A: Regular inspection for build-up, checking the tightness of the sealing surfaces, and ensuring that actuators (if applicable) are functioning properly will help prolong the valve’s lifespan.



Conclusion

​Knife gate valves are essential components in industries that handle challenging media, such as slurries, viscous fluids, and abrasive substances. Their unique design allows for effective isolation and control, enhancing operational efficiency and safety. By understanding the various types of knife gate valves, their applications, and selection criteria, industry professionals can make informed decisions to optimize system performance. For comprehensive information on knife gate valves and to explore our range of high-quality products, please visit our product pages of knife gate valves or contact our technical support team.
