Choosing between a Linear Control Valve and a Rotary Control Valve is not only a question of valve shape. The wrong choice can make the control loop unstable, add too much pressure drop, reduce shut-off performance, or make maintenance harder than it should be.
A linear control valve moves the stem and plug in a straight line. A rotary control valve turns a ball, disc, or plug through part of a circle. This motion affects control accuracy, Cv, flow capacity, actuator force, installed space, pressure recovery, and service life.
This guide compares the two designs from a practical engineering and buying view. It will help you decide when to choose a globe or cage-guided linear valve, when a V-port ball or butterfly rotary valve may fit better, and what process data to prepare before selecting from an industrial control valve range.
What Is the Main Difference Between Linear and Rotary Control Valves?
The main difference is how the valve closure part moves. A linear control valve uses straight travel. The actuator pushes or pulls the stem, and the plug moves up or down against the seat.
A rotary control valve uses angular travel. The actuator turns a shaft, and a ball, disc, or plug rotates to change the flow area. Many rotary control valves work with quarter-turn movement, although the exact travel depends on the valve design.
- Linear motion is often linked with globe, cage-guided, angle, diaphragm, and pinch control valves.
- Rotary motion is often linked with V-port ball, butterfly, eccentric plug, and segmented ball control valves.
- Linear valves are often chosen when precise throttling, high pressure drop, or severe service trim is important.
- Rotary valves are often chosen when high flow capacity, compact installation, lower weight, or larger line size is important.
The motion type does not decide everything by itself. The final choice still depends on Cv, pressure drop, media, temperature, leakage class, actuator type, positioner, pipe size, and the control target.
What Is a Linear Control Valve?
A Linear Control Valve uses straight-line travel to regulate flow. The actuator moves the stem up or down, and the plug changes the opening between the plug and seat.
This design is common when the process needs stable throttling, accurate travel control, or special trim for high pressure drop, noise, flashing, or cavitation risk. It is often used in steam, chemical, power, oil and gas, and process water systems.
Common Linear Control Valve Types
Common linear designs include globe control valves, angle control valves, cage-guided control valves, diaphragm control valves, and pinch control valves. In many industrial plants, a globe or cage-guided valve is the first option to review when the service needs fine modulation and stable control.
For example, a top-guide single-seated control valve is a typical straight-stroke design for flow, pressure, and temperature control duties. For higher pressure differential or noise-sensitive service, a porous cage control valve may be reviewed when the process conditions require a more controlled pressure drop inside the trim.
Where Linear Control Valves Fit Best
- Precise throttling where small stem movements must give stable flow changes.
- High pressure drop service where trim design is important.
- Steam, gas, or liquid service where noise, flashing, or cavitation must be checked.
- Applications that need tight shut-off with the right seat and plug design.
- Control loops where accuracy is more important than the lowest valve weight or smallest body size.
A linear valve is not always the smallest or lowest-cost option. It can be heavier and may need a larger actuator force than a rotary valve. The benefit is that it gives engineers more trim options for difficult control duties.
What Is a Rotary Control Valve?
A Rotary Control Valve uses turning motion to regulate flow. The actuator rotates a shaft, and the ball, disc, or plug changes the flow area as it turns.
This design is often used when the process needs high flow capacity, compact installation, lower valve weight, or good handling of larger pipe sizes. Rotary valves can also be a practical choice for some dirty, fibrous, or corrosive media, as long as the seat, trim, body material, and actuator are selected correctly.
Common Rotary Control Valve Types
Common rotary designs include V-port ball control valves, butterfly control valves, eccentric plug valves, and segmented ball valves. A V-port control ball valve is often used where a rotary valve needs better flow regulation than a standard on-off ball valve.

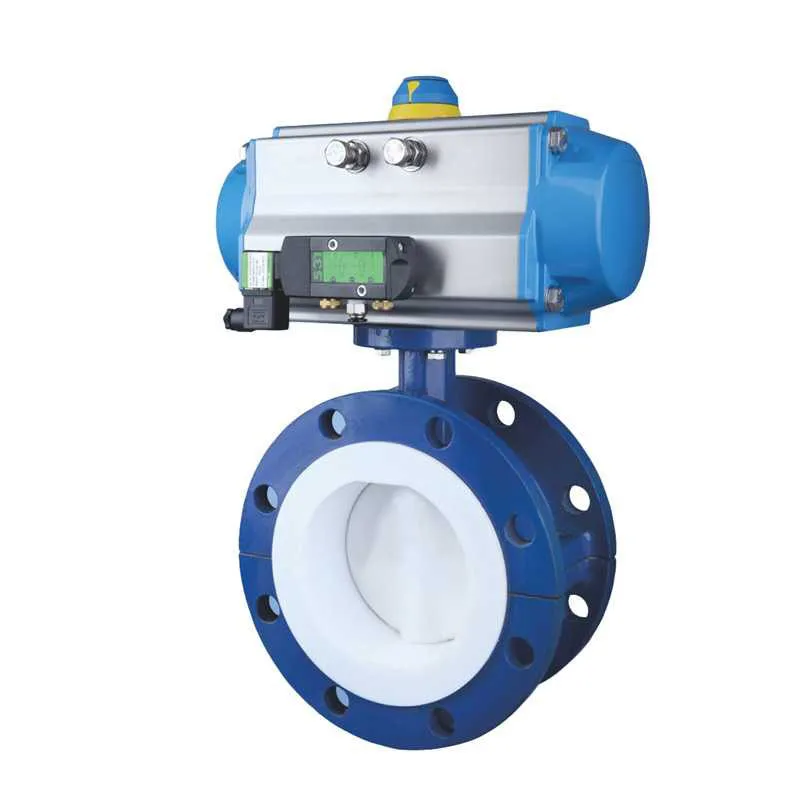

For larger line sizes or corrosive media, a butterfly-type rotary valve may also be reviewed. For example, a fluorine lining control butterfly valve uses a lined body and disc design for services where media compatibility is a key part of valve selection.
Where Rotary Control Valves Fit Best
- High flow service where the valve needs a larger flow path.
- Large pipe sizes where weight and face-to-face length matter.
- Installations with limited space around the pipeline.
- Some dirty, fibrous, slurry, or viscous media duties.
- Applications where lower pressure drop is more important than very fine low-flow control.
A rotary valve is not automatically better for every service. If the duty has high pressure drop, severe cavitation risk, very low flow control, or strict throttling accuracy, a linear valve may still be the safer first option to review.
Linear Control Valve vs Rotary Control Valve Comparison Table
The table below gives a practical first comparison. It should not replace sizing, but it helps engineers and buyers decide which valve motion to review first.
| Factor | Linear Control Valve | Rotary Control Valve |
|---|---|---|
| Movement | Stem moves up and down | Shaft turns a ball, disc, or plug |
| Common types | Globe, angle, cage-guided, diaphragm | V-port ball, butterfly, plug, segmented ball |
| Control accuracy | Strong for precise throttling | Good when trim and positioner are selected well |
| Flow capacity | Often lower for the same size | Often higher for the same size |
| Pressure drop | Can handle higher pressure drop with suitable trim | Often lower pressure loss, but limits must be checked |
| Cavitation and noise | More trim options for severe service | Needs careful review in high-delta-P service |
| Dirty or fibrous media | May clog if the trim is too narrow | Often better with a more open flow path |
| Installation space | Usually taller and heavier | Usually more compact |
| Maintenance | Trim can be serviced, but access may take longer | Fewer moving parts in many designs |
| Typical fit | Steam, gas, high pressure drop, fine control | Water, slurry, large lines, high flow |
Use this table as a screening tool. The final decision should still be checked against real process data, including flow rate, inlet pressure, outlet pressure, temperature, media, line size, leakage class, actuator signal, and fail position.
How to Choose Between Linear and Rotary Control Valves
The best choice depends on the control problem, not only on the valve name. Start with the process data, then compare the required control accuracy, flow capacity, pressure drop, media condition, space limit, actuator type, and maintenance access.
A Linear Control Valve and a Rotary Control Valve can both regulate flow. The better option is the one that gives stable control at the real installed condition, not only at the catalogue rating.
Choose a Linear Control Valve When
- The process needs precise throttling over a wide control range.
- The service has high pressure drop or a risk of noise, flashing, or cavitation.
- The medium is steam, gas, or a clean liquid that needs stable modulation.
- The control loop is sensitive, and small travel changes must be predictable.
- The valve may need special trim, such as cage-guided, low-noise, or anti-cavitation trim.
Choose a Rotary Control Valve When
- The process needs high flow capacity with a more open flow path.
- The pipeline size is large, and weight or face-to-face length matters.
- The installation has limited space around the valve and actuator.
- The medium is dirty, fibrous, viscous, or contains soft solids that may block narrow trim.
- The system benefits from lower pressure loss across the valve body.
Check Cv, Pressure Drop and Installed Conditions
Do not select the valve only by pipe size. A valve that matches the line size may still be too large or too small for control. Check the required Cv, normal flow, minimum flow, maximum flow, inlet pressure, outlet pressure, temperature, and media state before choosing the body style.
For early flow reference, the MacoTango Control Valve Cv calculator can help buyers understand the relation between flow and valve coefficient. For formal industrial-process control valve sizing, standards such as IEC 60534-2-1 are commonly used for flow-capacity equations.
If the pressure drop is high, the final selection should also check noise, cavitation, flashing, actuator force or torque, shut-off class, and trim material. This is where a simple linear-versus-rotary answer becomes a full valve sizing decision.
Common Selection Mistakes to Avoid
Many control valve problems start before the valve is installed. The valve may be a good product, but it can still perform poorly if the motion type, trim, actuator, or sizing data does not match the real process.
When comparing a Linear Control Valve and a Rotary Control Valve, avoid these common mistakes.
- Choosing by valve name only. A globe valve, V-port ball valve, or butterfly valve can each be correct in different duties. The service condition decides the fit.
- Ignoring minimum and normal flow. A valve sized only for maximum flow may be too large for stable control at normal operation.
- Confusing valve motion with flow characteristic. Linear motion is not the same as a linear flow characteristic. If this point affects your loop, review the difference between linear vs equal percentage control valves.
- Forgetting the actuator and positioner. The valve body cannot control well if the actuator, positioner, air supply, torque, or fail position is wrong. It also helps to separate valve motion from pneumatic rotary and linear actuators.
- Assuming rotary is always less accurate. A well-selected V-port ball valve can give good throttling in the right service.
- Assuming linear is always safer. A linear valve can be too heavy, too expensive, or too restrictive for high-flow and large-line applications.
- Ignoring media condition. Dirty, fibrous, viscous, corrosive, or flashing media may change the best valve choice.
The safer method is to compare both valve motions against the process data, then check the exact body design, trim, material, seat, actuator, and control signal before ordering.
What Data Should You Send Before Requesting a Quote?
A good RFQ helps the supplier compare a Linear Control Valve and a Rotary Control Valve with less guesswork. It also reduces the risk of oversizing, wrong trim selection, poor actuator sizing, or missing material requirements.
Before asking for a quotation, prepare the key process and valve data below.
| Data to Send | Why It Matters |
|---|---|
| Medium and state | Shows whether the service is liquid, gas, steam, slurry, corrosive, or viscous |
| Flow rate | Minimum, normal, and maximum flow help avoid poor control at low opening |
| Inlet and outlet pressure | Needed to check pressure drop, cavitation, flashing, and actuator sizing |
| Temperature | Affects body material, seat material, packing, actuator, and leakage class |
| Pipe size and connection | Helps check valve size, flange standard, face-to-face length, and installation fit |
| Pressure class and standard | Confirms PN/Class rating and required design or test standard |
| Required material | Body, trim, seat, lining, and packing materials must match the medium |
| Leakage class | Shows how tight the valve must close when shut-off is required |
| Actuator and signal | Confirms pneumatic, electric, or hydraulic actuation and control signal |
| Fail position | Defines whether the valve should fail open, fail closed, or fail in place |
If some data is not available, send the operating target and line information you already have. MacoTango can then review the service and help narrow the choice before final sizing.
For a control valve RFQ, you can contact our engineers with your process data, preferred valve type, and required documents.
Need Help Selecting a Control Valve?
A Linear Control Valve is often the better first option for precise throttling, high pressure drop, severe service, and stable control loops. A Rotary Control Valve is often the better first option for high flow, compact installation, large pipe sizes, and some dirty or fibrous media.
Neither design is always better. The right control valve depends on the real flow rate, pressure drop, medium, temperature, pipe size, leakage class, actuator, positioner, and fail position.
If you are comparing linear and rotary control valves for a project, you can contact MacoTango engineers with your process data. We can help review the service conditions and suggest a suitable valve type for quotation.
