When it comes to optimizing process control systems, selecting the right control valve is a crucial decision that can significantly impact performance, efficiency, and reliability. Among the many options available, the choice between Linear vs Equal Percentage Control Valves plays a pivotal role in determining how fluid flow is regulated in various applications. Each type of valve offers distinct characteristics suited to different process requirements. In this article, we’ll dive into the key differences, advantages, and disadvantages of linear and equal percentage control valves, providing you with a clear understanding of when to use each type. Additionally, we’ll cover essential performance metrics and the critical factors to consider when selecting the best control valve for your needs. Whether you’re working with stable pressure systems, high-pressure differential systems, or precision flow control applications, this article will help ensure optimal valve selection for your process control systems.
What Is a Linear Control Valve Characteristic?
A linear control valve is a type of valve whose design ensures that flow capacity increases proportionally with valve travel — under conditions of constant differential pressure. In other words, as the valve opens (or closes), each equal increment of valve “lift” or travel corresponds to an equal increment in flow. That means if the valve is 40 % open you get ~ 40 % of the maximum flow; if it moves to 50 %, you get ~ 50 %, and so on. The term “linear” refers to this direct, proportional relationship between valve travel (or stem position) and flow rate or flow capacity (often expressed as Cv or Kv).
This behaviour is typically considered the “inherent flow characteristic” of the valve — measured with a constant pressure drop across the valve (i.e. constant differential pressure).
Typical applications for linear characteristics
Linear valves tend to perform best in systems where pressure drop across the valve stays fairly constant (or nearly so). In those cases the installed behaviour remains close to the ideal linear characteristic defined by the manufacturer.
Some of the common use-cases include:
Liquid systems with stable pressure conditions, such as water distribution loops or heating/cooling water circuits.
Level control loops (e.g. maintaining a fluid level in a tank) — where small changes in valve opening need to translate into proportional flow adjustments to avoid overshoot.
Flow control loops with near-constant differential pressure — for example flow regulation in recirculation loops or bypass circuits where upstream/downstream resistances are stable.
In short, where the process is relatively stable and the valve is expected to operate over a narrow to moderate flow range, linear control valves often deliver predictable, easy-to-manage performance.
Advantages and limitations of linear valves
Using a linear-characteristic valve brings several clear benefits:
Advantages
Predictable, proportional response across the stroke which simplifies control logic and tuning.
Intuitive mapping between valve position and flow — useful in systems where operators monitor or manually adjust flow.
Reliable performance when pressure drop remains stable, which reduces the risk of unexpected non-linear behaviour in otherwise simple systems.
Limitations
If pressure drop across the valve changes (for example because of system pressure fluctuations, pump curves, or changing load), the installed flow characteristic can deviate from the ideal linear behaviour.
At very low flows or near shut-off, linear plugs may offer less fine control resolution compared with other characteristics — potentially making precise control or modulation difficult.
In systems that require wide flow turndown or where flow rates vary dramatically, a strictly linear characteristic may become less ideal compared to alternatives that adapt flow response better across the full range.

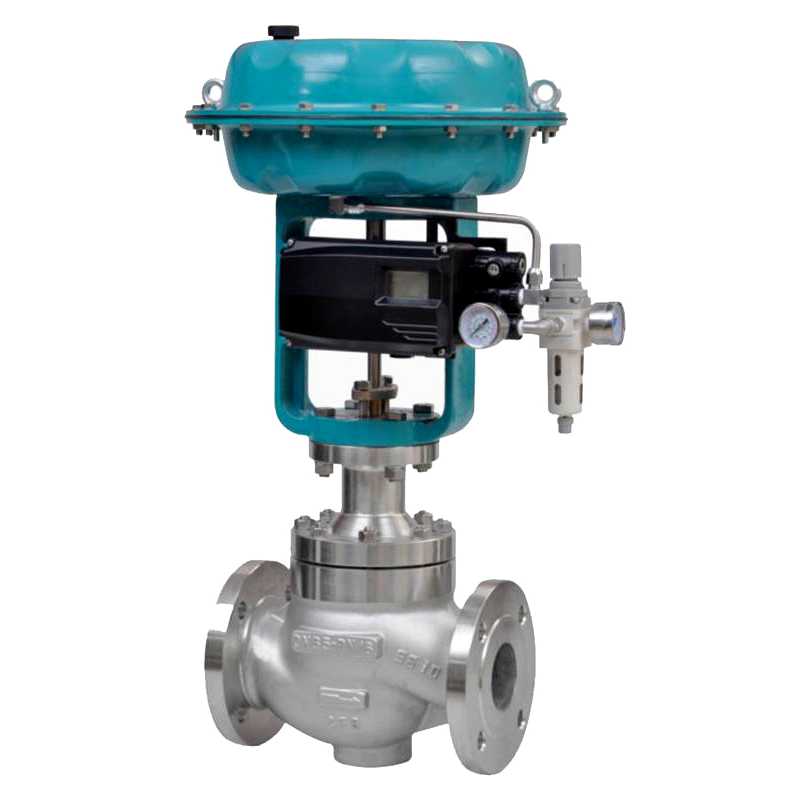

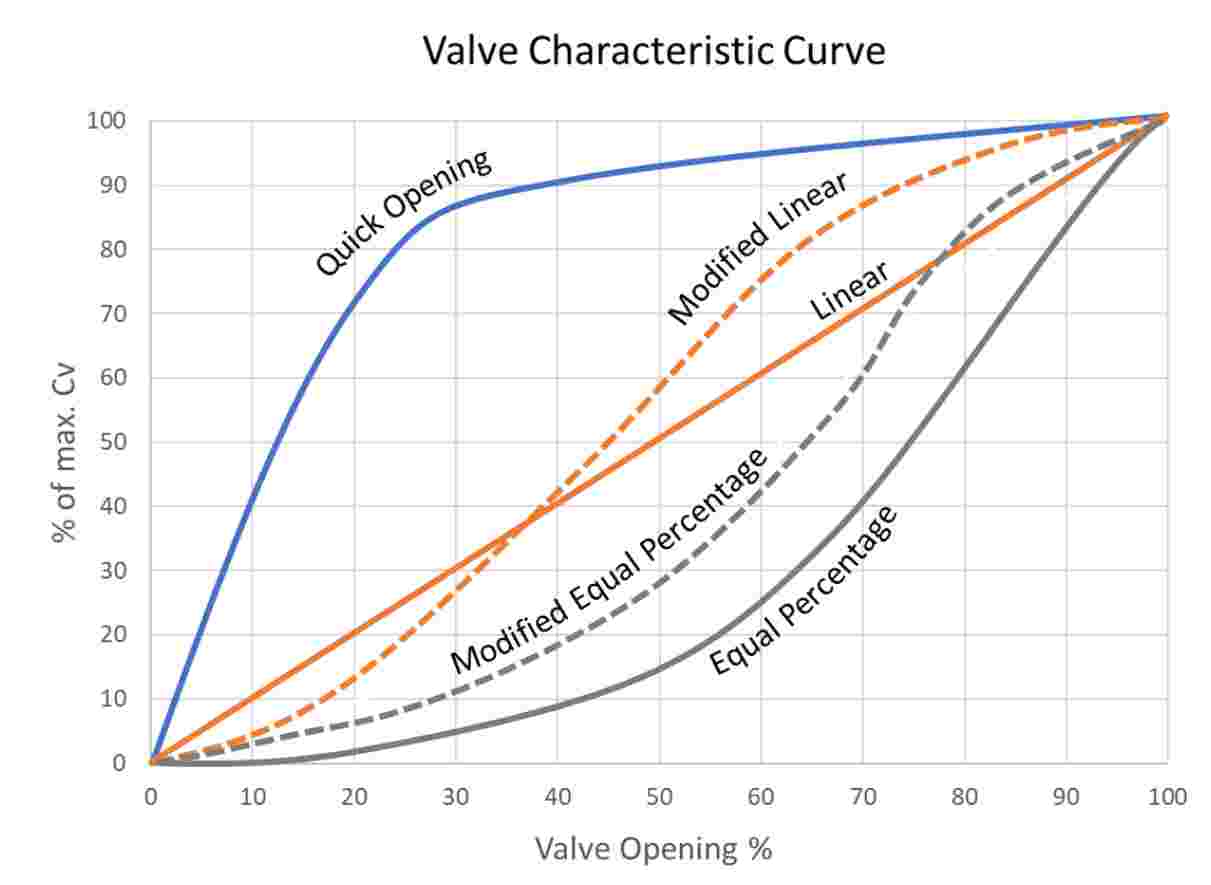

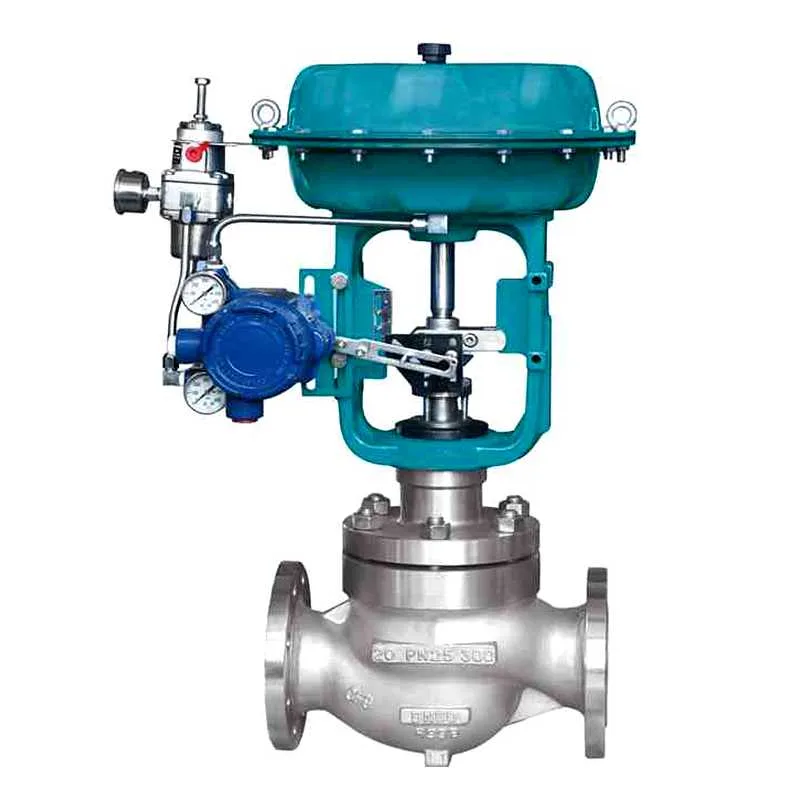

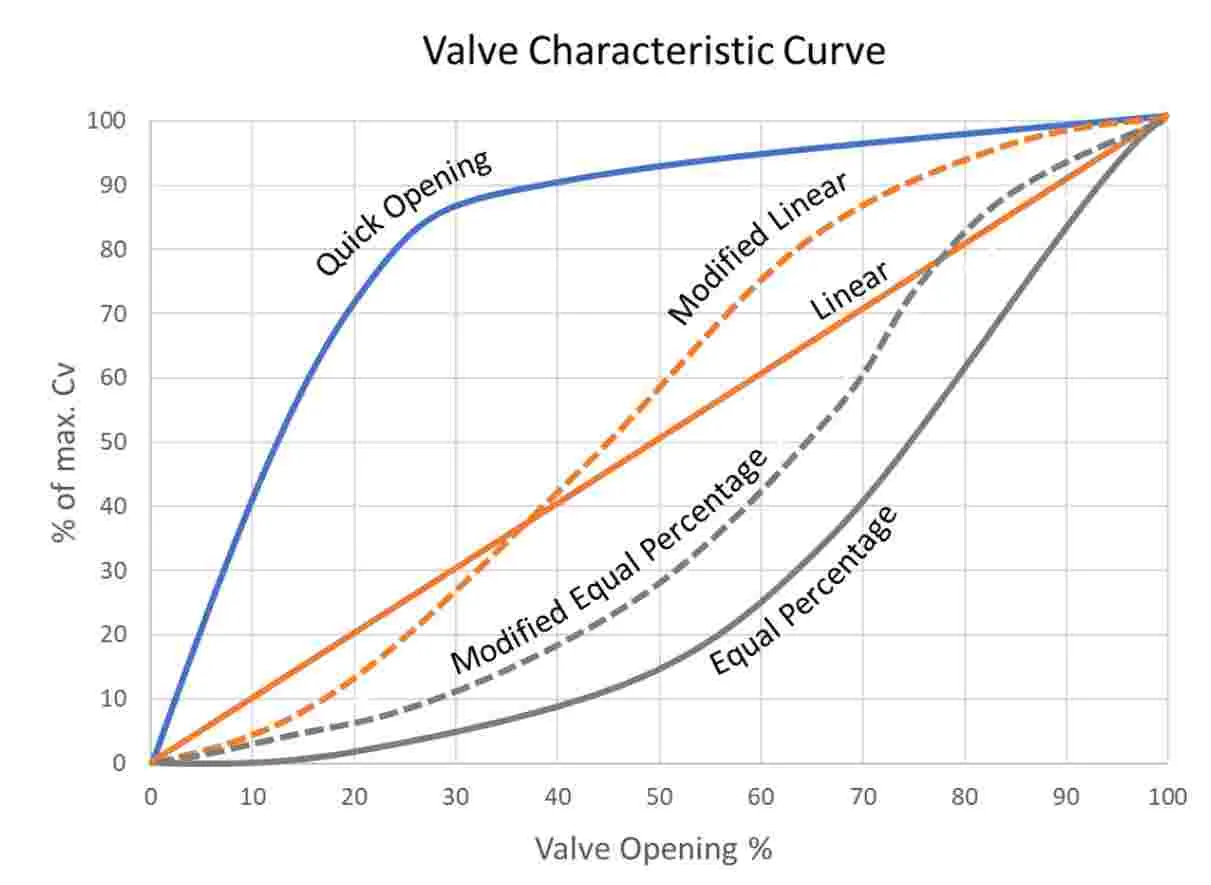

Basic Curve Description: What the Linear Characteristic Looks Like
When you plot flow (or valve capacity like Cv) against valve travel (or stem lift) for a linear control valve — assuming constant pressure drop — the graph is (almost) a straight line.
On the x-axis, you have valve travel (often given as a percentage: 0 % = fully closed, 100 % = fully open).
On the y-axis, you have flow rate or valve capacity (Cv, Kv, or percent of full flow).
For a perfect linear valve, the curve rises uniformly from 0 at “fully closed” to 100 % flow at “fully open”. That means each incremental step in stroke results in a constant incremental step in flow.
In mathematical terms, if you define a function f(x) to describe the valve opening as a fraction of full travel (x = 0 … 1), for a linear valve f(x) = x. Then flow (or Cv) ∝ f(x), so Cv varies linearly with valve travel.
Because of this linear relationship:
At 50% travel → ~50% of full flow (under constant differential pressure).
At 75% travel → ~75% of full flow, and so on.
That makes control straightforward and predictable where flow requirements scale roughly linearly with valve position.
What Is an Equal Percentage Control Valve Characteristic?
An equal percentage control valve is a valve whose flow-capacity increases not linearly, but exponentially as the valve trim opens. In other words, each equal increment of valve travel yields an equal percentage increase in flow capacity — rather than an equal absolute increase.
Because of this characteristic, when the valve is nearly closed, small movements produce only small changes in flow. As the valve opens further, the same incremental movement produces a progressively larger increase in flow.
This design is especially useful in systems where the pressure drop across the valve changes with flow (for example, when piping losses or pump behavior alter the pressure differential), because the increasing sensitivity of the valve at higher openings helps offset those process nonlinearities.
How Equal Percentage Characteristics Work (Flow-to-Stroke Relationship)
With equal percentage trim, the relationship between valve stroke (or lift) and flow is inherently nonlinear. A small change in lift when the valve is near closed causes only a modest flow change; but the same change later in the stroke causes larger flow changes.
Put another way: the incremental change in flow per increment of valve stroke (called Δq/Δx) is not constant, but proportional to the current flow at that moment. Equivalently, the percentage change in flow (Δq / q) for a given stroke increment (Δx) tends to remain roughly constant across the operating range.
This behaviour gives the “equal-percentage” characteristic its name: equal increments of stem travel lead to roughly equal percentage changes in flow capacity — regardless of whether the valve is nearly closed or nearly fully open.
Typical applications
Because equal percentage valves adapt naturally to changing system conditions, they are often chosen for applications where flow requirements or pressure conditions vary widely. Common scenarios include:
Steam systems and other high ΔP (differential pressure) applications, where pressure drop across the valve changes significantly with load. Equal percentage characteristics help keep control predictable despite changing pressure
Systems with wide flow range demands, e.g. plants that cycle between near-zero flow and full flow. The exponential flow curve supports good control across that full range.
Temperature control in heat exchangers or steam-to-fluid heaters, where small flow changes at low end affect temperature significantly, while large flow is needed at high load. Equal percentage valves help manage both precisely.
Processes with fluctuating pressure or demand, such as boilers, condensate systems, or variable-flow chemical processes. The adaptability of equal percentage valves mitigates the effects of varying system conditions.
Advantages and limitations of equal percentage valves
Using an equal percentage characteristic brings notable benefits, though it is not without trade-offs.
Advantages
Offers excellent rangeability and turndown — fine control at low flow and capacity for high flow in the same valve.
Allows stable control under changing pressure drop conditions, because the valve’s inherent characteristic helps compensate when system ΔP varies.
Provides smooth behaviour across a wide operating range, making it suitable for dynamic processes (e.g. heating, steam, variable loads).
Limitations / Challenges
Because the response is non-linear, controller tuning may be more demanding, especially if the process or downstream conditions shift. Achieving stable loops may require careful tuning or tuning re-validation.
At very low flow demands, although resolution is finer than many alternatives, the valve may still suffer from hysteresis or control “dead zones” depending on actuator/positioner performance, especially in poorly maintained or oversized valves.
For systems where pressure drop remains nearly constant and flow variation is small, the benefits of equal percentage may not justify the added complexity. In such cases, a simpler linear valve may perform just as well or better.

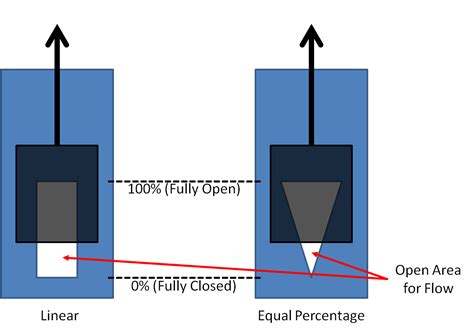

Linear vs Equal Percentage: Key Technical Differences
Here’s a straightforward comparison between linear and equal percentage control valves — showing how they differ across aspects that engineers and end-users typically care about:
| Aspect | Linear control valve | Equal percentage valve |
|---|---|---|
| Basic relationship | Flow increases in direct proportion to valve travel at constant differential pressure (ΔP). | Each equal increment of valve travel produces an equal percentage change in flow (or Cv), yielding a nonlinear (exponential-type) curve. |
| Low-flow behaviour | At very low openings, small movements can cause relatively large changes in flow — meaning the valve can be somewhat “sensitive.” | The flow increases slowly at small openings: small stem movements result in only slight flow changes, giving finer control when flow is low. |
| High-flow behaviour | As the valve nears full open, the increase in flow per increment of travel becomes less significant (control range may compress). | As the valve opens more, each travel increment causes progressively larger flow changes — helpful when flow demand grows. |
| Typical installed characteristic | When the valve accounts for most of the system pressure drop (i.e. ΔP remains fairly constant), the installed characteristic remains close to linear. That gives predictable control. | In real systems, pressure drop across the valve often decreases with increasing flow (due to pipe friction, pump curves, etc.). In that case, an equal percentage valve often yields a near-linear installed response — making flow control smoother and more predictable. |
| Typical applications | Systems with relatively constant pressure drop, short piping runs, or where flow demand changes little — for example, level control or pressure control in stable water circuits. | Systems with variable pressure drop, long piping runs, wide-ranging flow demand — such as heating/cooling loops, steam systems, heat exchangers, or applications needing broad “rangeability”. |
Here is a informative video that delves into distinctions between linear vs equal percentage control valves:
Source:B-SPICE
How to Choose Between Linear and Equal Percentage in Practice
When selecting a valve characteristic for a real process, the “right” choice depends heavily on the details of your system. The following guidelines and decision criteria help engineers match the valve to the application — not just in theory, but in how the valve will perform once installed.
Key questions to ask about your process (fluid, ΔP profile, control objective, operating range)
Before you choose between linear and equal percentage, it is worth clarifying several process parameters. Ask:
What type of fluid is flowing — liquid, steam, gas, or a mixture — and does its density or compressibility change with operating conditions?
How much does the differential pressure (ΔP) across the valve vary during operation? Is ΔP roughly constant, or does it change significantly with flow rate or other process variables (pump curves, pipe resistance, temperature, phase changes)?
What is the main control objective — is it stable flow, fine low-flow control, wide turndown range, precise temperature or level control, or rapid response?
What is the operating flow range — does the process need to handle small trickles up to full flow, or is the flow always within a narrow band?
Answering these questions first gives you a solid foundation for valve selection, reducing the risk of poor performance or control instability.
Simple rules of thumb (constant ΔP → linear; large ΔP changes or wide flow range → equal percentage)
Over years of process-control practice, engineers often rely on simple heuristics when sizing valves. Two of the most common are:
If your system maintains a roughly constant pressure drop across the valve (for example a stable liquid flow loop with little change in upstream/downstream resistance), then a linear valve characteristic is usually a safe, predictable choice.
If your system experiences wide variations in pressure drop, or requires a wide flow range — from very low flow to high demand — then an equal percentage valve is often the better option. This characteristic helps maintain stable control across changing conditions.
These rules are not absolute, but they offer a good starting point. Once you have identified how your system behaves, you can proceed to match valve characteristics more precisely.
Selection by control loop type (flow, level, pressure, temperature)
Different types of control loops place different demands on a valve. Here’s how loop type can guide your choice:
Flow control loops — where flow rate needs to vary widely depending on demand. In such cases, equal percentage valves often perform better, especially if flow ranges from low to high or if demand fluctuates considerably.
Level control loops — for example in tanks or reservoirs. If the level changes slowly and the flow demand is relatively stable, a linear valve may suffice. If level changes are frequent and flow requirements swing widely, equal percentage may be preferred.
Pressure control loops — often involve varying loads, changing system resistance, or fluctuating supply conditions. Equal percentage valves usually provide more stable control under such variability.
Temperature / heat-exchange control loops — these often involve variable flow and variable pressure drop (especially with steam, hot water, or condensate). Equal percentage valves typically handle such dynamics well, giving stable modulation across the load range.
Selection by media and service: water circuits, steam distribution, condensate, gas, chemicals
Finally, the type of fluid and service conditions strongly influence which valve characteristic will perform best:
Water circuits / clean liquid systems with stable pressure — often well-suited for linear valves. Their predictable proportional response makes control simpler and avoids unnecessary complexity.

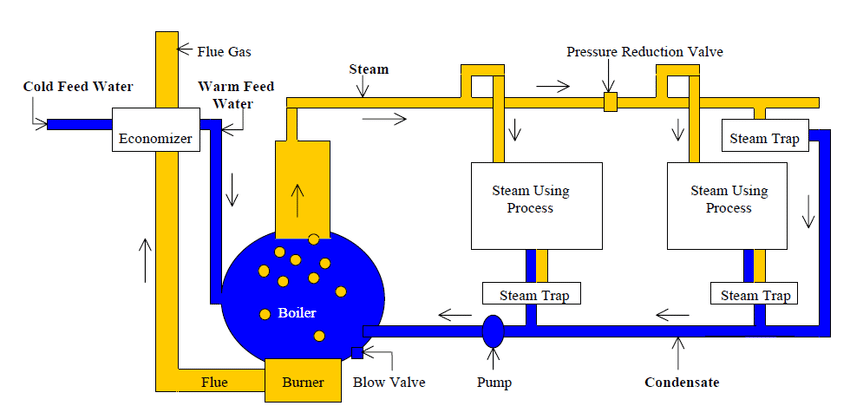

Steam distribution, condensate return, heating/cooling systems — these frequently involve large fluctuations in pressure drop and flow demand. Equal percentage valves are typically favoured because they maintain stable, predictable control despite changing conditions.
Gas or compressible media, chemical processes — where flow dynamics, pressure changes, or viscosity may vary substantially, equal percentage valves tend to offer more robust control.
Simple recirculation loops, bypass circuits, or small-scale dosing systems — if flow conditions and pressure remain steady and flow range is narrow, a linear valve can provide cost-effective, reliable control.
Common Mistakes When Specifying Linear or Equal Percentage Valves
Selecting the wrong valve or characteristic may seem like a minor detail — but in practice, it can seriously undermine control performance, reliability and long-term maintenance costs. Here are some of the most frequent mistakes engineers make, and how to avoid them.
Oversizing the valve and losing low-flow control range
One of the most common errors is picking a valve that is too large for the system’s actual flow demand. Oversized valves often seem like a “safe” or future-proof choice, but they come with drawbacks. When a valve is oversized, its minimum controllable flow rate becomes relatively high. This causes the valve to operate near seat or fully closed for much of the lower flow range. Small adjustments in stem travel can then produce large jumps in flow, making fine regulation difficult or even impossible.
In practice, controls loops with oversized valves often suffer from “hunting” or oscillation — constant fluctuations around the setpoint — because the actuator must make tiny movements to handle small flow variations, and any friction, stiction or backlash is magnified.
Furthermore, oversizing tends to increase wear, noise and even the risk of cavitation or erosion when the valve persistently throttles at the low end.
Ignoring installed characteristics and piping losses during selection
Another frequent mistake is to rely solely on the manufacturer’s inherent flow characteristic (for example “equal percentage” or “linear”), without accounting for how the valve will behave once installed in the real piping system. The inherent characteristic assumes a constant pressure drop across the valve — a condition rarely met in real systems.
In reality, system losses from upstream/downstream piping, fittings, pumps and other equipment change with flow, altering how much of the total pressure drop the valve itself sees. That changes the “installed flow characteristic” — the real relationship between valve travel and flow.
Failing to consider this can lead to poor control performance: even a valve with an ideal characteristic may behave unpredictably if system pressure-loss distribution (valve vs line) shifts significantly. Without proper evaluation, what was expected to be stable “equal percentage” response might distort into something more erratic.
Using quick-opening or on/off trims where modulating control is required
Some applications call for modulating control — smooth, gradual changes in flow as the process setpoint shifts. Yet a mistake engineers sometimes make is using a trim designed for quick-opening or on/off service in a modulating context.
Quick-opening (or “fast-opening”) valve trims are intended for scenarios where you want a rapid large flow increase with a small stem movement — for example in safety, bypass, or emergency flow situations.
However, in a modulating control loop, that fast response becomes a disadvantage: the initial stem movement may open the valve too much too fast, producing a large flow jump. That undermines fine control, makes tuning difficult, and increases risk of overshoot, oscillation or instability. For precision flow or level control, quick-opening trims are usually the wrong choice unless the application explicitly demands rapid, on/off changes.
Conclusion
Choosing between linear and equal percentage control valves comes down to understanding how the valve will behave in the real system, not just on a catalogue curve. When engineers size correctly, account for pressure-drop changes, match the trim to the control strategy, and consider the full operating window, they achieve stable, accurate and efficient process control. Avoiding common mistakes such as oversizing, ignoring installed characteristics or using the wrong trim type helps protect reliability and reduces long-term operating costs. By taking a practical, application-focused approach, you ensure the valve delivers the performance the process truly needs and avoid problems that often surface only after start-up.
