Choosing between lug vs wafer butterfly valves is a common challenge for engineers, buyers and project managers working with industrial piping systems. While both valve types share the same basic butterfly valve operating principle, their mounting design, pressure capability, maintenance flexibility and cost implications can be very different in real-world applications. Understanding these differences early helps avoid installation issues, unexpected downtime and unnecessary lifecycle costs. In this guide, we break down lug and wafer butterfly valves in clear, practical terms, comparing how they perform across installation, operation and long-term use so you can select the right valve with confidence.

What is a butterfly valve?

Butterfly valves are one of the most widely used types of flow-control valves in industrial systems. They are part of the quarter-turn valve family, meaning they open and close with a simple 90-degree rotation of the internal disc. At the heart of a butterfly valve’s operation is this rotating disc, which either allows fluid to pass or stops it, depending on its position in the pipe.

When the disc is parallel to the flow, the valve is fully open and media can pass with minimal restriction. Turn the disc a quarter turn so it becomes perpendicular to the flow, and the valve closes, effectively blocking the passage. Part-open positions between these extremes allow the valve to control or throttle flow as well as isolate it.

Butterfly valves are appreciated for their quick action and compact size relative to other valves such as gate or globe valves, making them especially suited to systems that require fast on-off control with minimal footprint.

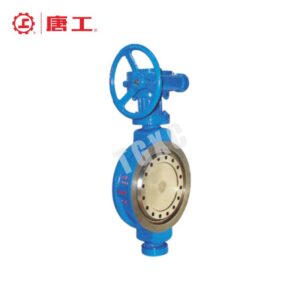

Lug-Style Butterfly Valves: Design, Function, and Applications

When you’re choosing a butterfly valve for an industrial system, the lug-style butterfly valve stands out for its combination of strength, flexibility, and reliability. This type isn’t simply another butterfly valve variant — its design gives it distinct operational advantages in demanding environments.

What Defines a Lug Butterfly Valve?

At its core, a lug butterfly valve is a quarter-turn rotational valve similar to other butterfly valves, but with a key difference: it features threaded inserts, commonly called “lugs,” distributed around the valve body. These lugs allow the valve to be bolted directly to each flange independently, rather than being clamped between them like a wafer-style valve.

This threaded design isn’t just a minor detail — it dictates how the valve interfaces with piping and how it behaves under pressure. It also opens up options for different materials, including ductile iron, stainless steel and other alloys suitable for corrosive or high-temperature services.

Transitions from design to functionality happen smoothly because each of these elements works together to deliver both structural integrity and operational flexibility.

Key Advantages of Lug Butterfly Valves

Lug-style butterfly valves are widely chosen in industrial settings because they offer a range of practical benefits:

Dead-end service capability:
Thanks to the independent bolting on each flange, a lug valve can be used as an end-of-line isolation valve. This means you can shut off and remove downstream equipment without depressurising the entire system — a significant advantage for maintenance efficiency and safety.

Independent flange disconnection:
Each side of a lug valve can be removed separately. For systems where downtime is costly or regular servicing is necessary, this maintenance flexibility can save both time and money.

Robust, secure mounting:
The lug design provides a solid mechanical connection between the valve and flanges, which is especially beneficial in systems that experience vibration, pressure fluctuations or frequent actuations.

High-pressure and harsh conditions:
These valves are typically constructed to handle higher pressures and aggressive media compared with wafer-style counterparts, making them suitable for more demanding applications.

Broader fluid and temperature compatibility:
Depending on the material selection — from ductile iron to stainless steel with appropriate seats — lug butterfly valves can perform well across a wide range of fluids and temperatures.

Design Considerations and Limitations

Despite the benefits, lug butterfly valves are not without trade-offs:

Higher initial cost:
Because they use more material and involve more complex casting and machining (especially with robust lugs), lug valves tend to be more expensive to purchase than wafer styles.

Increased weight:
The added lugs and stronger construction increase the overall valve weight, which might be a consideration in systems where weight is a constraint.

More complex installation:
With more bolts to tighten and align properly, installation can be slightly more involved, requiring careful torque control to maintain sealing integrity.

Slightly higher pressure drop:
Because lug valves tend to be more rigid and may involve more substantial bodies, there can be a modest increase in pressure drop relative to some wafer designs, although this is often acceptable within their operational envelopes.

Longer lead times:
Manufacturing complexity and material choices may lead to longer delivery times compared with simpler valve types.

Typical Industries and Use Cases

Lug butterfly valves are a common choice across a range of heavy-duty industrial sectors:

Oil & gas:
High-pressure pipelines and processing stations benefit from the secure isolation and robust connections provided by lug valves.

Chemical processing:
Systems that require reliable shut-off and frequent maintenance benefit from the independent flange disconnection and versatile material options.

Power generation:
Steam lines and critical process loops demand valves that can handle temperature and pressure while offering dependable isolation when needed.

Water treatment and distribution:
Whether in municipal or industrial water systems, the dead-end service capability and durability make lug valves a logical choice.

Pharmaceutical and specialty processing:
Strict isolation protocols and frequent cleaning cycles make maintenance flexibility a priority — another natural fit for this valve type.

Wafer-Style Butterfly Valves: Compact, Cost-Effective Flow Control

In industrial piping systems where space, cost and simplicity matter, wafer-style butterfly valves are often the go-to choice. They offer many of the core benefits of butterfly valves — such as quarter-turn operation and reliable flow control — but in a more space-efficient and economical package.

What Defines a Wafer Butterfly Valve?

A wafer butterfly valve is a quarter-turn valve that fits between two flanges in a pipeline and is held in place by flange bolts passing around the valve body. Unlike lug valves, it has no threaded inserts on the body itself.

• Clamped between flanges: The valve relies on the surrounding pipe flanges and bolts for mechanical support rather than its own flanged or lugged connections.

• No threaded lugs: This reduction in specialised hardware means wafer valves use minimal material and have a compact, lightweight design.

• Standard materials: Most wafer butterfly valves are made from common industrial materials such as cast iron, ductile iron or stainless steel, often with an elastomeric seat to provide a tight seal against the mating flanges.

This design philosophy keeps wafer butterfly valves simple and adaptable, but also shapes where and how they can be most effectively used.

Key Advantages of Wafer Butterfly Valves

Wafer butterfly valves have several clear advantages that make them appealing for many fluid handling systems:

• Significantly lower purchase cost: Their simple construction and lower material usage make them more affordable than lug-style or flanged alternatives.

• Lightweight and space-saving: The slim body and absence of bulky shoulders mean wafer valves occupy less space in a pipeline and are easier to handle during installation.

• Faster installation: With fewer bolts to install and align, they can often be fitted more quickly than heavier valve types.

• Lower pressure drop: Because of their streamlined design, wafer valves typically introduce less resistance to flow in moderate-pressure systems.

• Energy efficiency: Reduced flow resistance can translate into lower pumping energy requirements in suitable systems.

• Easy alignment: The valve’s position is naturally centred between mating flanges, reducing alignment challenges during assembly.

Together, these benefits make wafer butterfly valves a cost-effective and practical choice for many everyday pipeline applications where extreme conditions are not a primary concern.

Design Limitations and Constraints

Every valve type has its limitations, and wafer butterfly valves are no exception. Their design influences where they perform best and where they might fall short:

• Requires both upstream and downstream flanges to remain connected: Because they rely on the surrounding flanges for support, the whole pipeline usually needs to stay assembled for maintenance.

• Not suitable for dead-end (end-of-line) service: Without independent flange attachment points, wafer valves cannot serve as true end-of-line isolation valves.

• Full system shutdown required for maintenance: To remove or service the valve, the flow must be stopped and the piping typically disassembled.

• Limited to moderate pressure and temperature: Wafer valves are generally used in low- to mid-pressure systems; high pressures or extreme temperatures can compromise sealing and valve integrity.

• Sensitive to flange alignment: Misaligned flanges can stress the valve body or seat, affecting sealing performance.

• Not ideal for abrasive or particulate fluids: Continuous exposure to abrasive media can accelerate wear on the disc and seat due to the design of the flow path.

Typical Industries and Use Cases

Despite these limitations, wafer butterfly valves are widely used in a range of sectors where their advantages align with system needs:

• HVAC systems: In heating, ventilation and air conditioning setups, wafer valves control fluid flow with minimal space and cost.

• Water distribution networks: Municipal and commercial water lines commonly use wafer valves for isolation and flow control.

• Food and beverage processing: Their simplicity and clean operation make them suitable for fluid control in processing lines.

• General industrial water handling: Many factories and plants use wafer valves in cooling water, plant water systems and other moderate-pressure fluid circuits.

• Irrigation and municipal water supply: In large-scale water delivery systems, wafer valves often serve where rugged isolation isn’t the priority.

In these environments, the combination of compact design and cost-effectiveness usually outweighs the operational limitations — making wafer butterfly valves a practical staple for moderate-duty industrial flow control.

Lug vs Wafer Butterfly Valves: Detailed Technical Comparison

When deciding between lug and wafer butterfly valves for your system, it helps to compare them side by side across key technical and practical aspects. This not only supports engineers in making informed choices but also helps readers understand how subtle design differences translate into performance outcomes.

Installation Method & Mounting Design

Lug approach:
Lug butterfly valves are equipped with threaded inserts (lugs) cast into the valve body. These lugs accept bolts that thread directly into the pipeline flanges — one set for each side — allowing secure, independent connections. This means you can install or remove the valve on one side of a system without disturbing the other, a benefit for maintenance and end-of-line applications.

Wafer approach:
Wafer valves do not have threaded inserts. Instead, they are sandwiched between two flanges, with bolts passing through both flanges and the valve body. The flange bolts provide all the clamping force needed to hold the valve in place.

Installation differences:
Because lug valves bolt directly into each flange independently, their installation requires more careful alignment and a greater number of bolts overall. In contrast, wafer valves are quicker to install since the valve is simply positioned between flanges and clamped as part of the flange bolting sequence.

Pressure Rating & Performance Capabilities

Typical pressure ranges:
Lug butterfly valves typically handle higher pressure applications more comfortably because the direct lug mounting reduces body distortion under load. Wafer valves are better suited to moderate or low-pressure systems where distribution of clamping force via the flanges is sufficient.

Design impact:
The more robust mounting in lug valves also tends to improve stability and sealing performance, particularly under variable pressure conditions. Wafer valves, by relying on flange compression, may exhibit slightly higher pressure drop and are more sensitive to flange misalignment.

Sealing mechanisms:
Both styles achieve sealing via body and seat design (often rubber or elastomeric), but the lug design’s more secure bolting can support tighter seals in high differential pressures when designed appropriately.

Temperature Range & Material Compatibility

Operating temperature windows:
Temperature handling largely depends on material and seat choice. Wafer valves often operate effectively in moderate temperature ranges (for example −10°C to around 120°C with typical elastomer seats). Lug valves can be built with materials and seats that allow higher service temperatures, sometimes above 250°C, depending on the application.

Material implications:
Wafer valves are commonly made from lightweight materials such as cast iron, stainless steel or even plastics in some cases, which suits general-purpose systems. Lug valves are frequently found in more robust metals like ductile iron and stainless steel with a broader range of seal materials, increasing compatibility with corrosive fluids and harsher service conditions.

End-of-Line Service & System Isolation

Dead-end service:
One of the standout differences is that lug valves can support dead-end service — that is, isolation of part of a system while leaving the other side intact — because each flange bolt set is independent. Wafer valves cannot reliably do this without additional support, as they depend on both flanges remaining in place to hold the valve.

Maintenance implications:
With lug valves, maintenance can sometimes be performed on one side while the rest of the pipeline stays pressurised, significantly reducing downtime. Wafer valves usually require full system shutdown for removal or service.

Impact on system design:
Choosing lug valves can simplify maintenance planning in critical systems where downtime carries a high cost, whereas wafer valves often suit systems designed for full shutdowns with simpler isolation needs.

Cost Analysis: Purchase Price vs Total Cost of Ownership

Initial acquisition cost:
Wafer butterfly valves are generally less expensive upfront because of their simpler design, fewer components and reduced material usage. Lug valves, with threaded inserts and a more complex body, typically cost more initially.

Installation labour:
Fewer bolts and easier positioning can make wafer valves quicker and cheaper to install. Lug valves often require more time and precision, which can increase labour costs.

Maintenance and downtime:
Although lug valves are more costly to buy and install, their maintenance flexibility can reduce total ownership costs in systems where uptime matters. Wafer valves may seem cheaper initially but can incur higher costs if systems must be shut down completely for servicing.

Energy efficiency and life expectancy:
Streamlined wafer designs often cause lower pressure drops, which can contribute to marginal energy efficiency in moderate-pressure systems. Lug valves, being sturdier, may have longer operational lifetimes in demanding environments, favouring long-term reliability.

Weight, Size, and Space Considerations

Footprint requirements:
Wafer valves have a compact, lightweight profile, which makes them ideal in systems where space and weight are constraints. Lug valves, with their additional materials, are heavier and require slightly more clearance.

Effects on piping design:
Heavier valves like lug types can impose greater loads on pipe supports, especially in horizontal runs. Lightweight wafer valves ease these concerns and can be more suitable for systems sensitive to added mass.

Orientation factors:
Both valve types can be used in horizontal or vertical orientations, but careful support consideration is more important for lug valves due to their increased mass. Wafer valves fit more easily where tight spaces are a priority.

Choosing the Right Valve: Lug vs Wafer Butterfly Valves

When selecting between lug and wafer butterfly valves, turning technical differences into a clear decision-making framework helps readers make confident choices. The table below summarises the most relevant factors engineers and procurement teams consider:

Installation Considerations: Lug vs Wafer Butterfly Valves

Installing butterfly valves correctly makes a big difference to performance, longevity and safety. Whether you’re working with wafer or lug style valves, careful preparation and attention to detail are essential. Below is a practical guide based on common industry practices and manufacturer instructions.

Wafer Butterfly Valve Installation Steps

Preparation and safety measures
Begin by inspecting both the valve and pipeline. Remove debris, rust or welding slag from the pipe ends before installation to avoid damaging the seat or disc. Confirm the flow direction marking on the valve matches your system design. Always follow basic safety procedures, including isolating the line and relieving pressure before starting work.

Flange alignment and centering
A wafer valve is installed between two flanges and relies on those flanges for support and sealing. Ensure the flanges are parallel and correctly sized, so the valve sits centred and the disc can rotate freely without contacting the internal pipe wall.

Bolt insertion and torque procedures
With the valve partly open (typically around 10 % open to protect the disc), insert bolts through the flange holes and finger-tighten first. Tighten the bolts evenly in a criss-cross (alternating) pattern, gradually increasing torque to the manufacturer’s specification to avoid distortion of the valve or flanges.

Testing and commissioning
Once installed, cycle the valve fully open and close to confirm smooth movement and verify there is no interference or tight spots. Apply system pressure and inspect for leaks at the flange connections.

Common installation errors to avoid
Typical issues include misaligned flanges, excessive torque on bolts, and insufficient clearance for the disc — all of which can lead to seal damage or early failure. Always match gasket types and torque settings to the valve and pipe specifications.

Lug Butterfly Valve Installation Steps

Independent flange bolting procedure
Unlike wafer valves, lug butterfly valves have threaded inserts in the body that accept bolts directly from each flange. Start by placing the valve between the flanges, ensuring the body’s lugs align with the flange bolt holes. Hand-thread bolts first to avoid cross-threading.

Sequential torqueing requirements
Once bolts are in place, tighten them in a diagonal sequence and increase torque gradually until you reach the manufacturer’s recommended value. This prevents uneven stress that could deform the valve body or compromise the seat.

Disc movement verification
Before fully torquing all bolts, make sure the disc is at a slight open angle so that it won’t contact the pipe bore during tightening. After torquing, cycle the valve to confirm the disc moves smoothly from fully open to fully closed without binding.

System isolation testing
With pressure restored to the system, check for leaks around both flange faces and through the valve when closed. Proper installation should provide a tight seal and allow the valve to act effectively as an isolation device if needed.

Critical steps unique to lug design
For end-of-line installations, consider using a blind flange on the disconnected side to prevent unintended flow or pressure build-up. Also, avoid over-tightening mounting bolts — overtightening is a common error that can crack the valve body or damage seats.

Maintenance Access & Replacement Scenarios

System impact of valve removal
Removing a wafer valve generally requires breaking the entire flange joint, which means fully isolating and depressurising that section of the system. In contrast, a lug valve can often be removed from one side while the other flange (and associated pipeline) remains intact — reducing required downtime.

Maintenance isolation procedures
For wafer valves, plan maintenance during scheduled shutdowns to minimise disruption, as both flanges must be disconnected. For lug valves, use the modular mounting to isolate just the valve body by removing bolts from the side you need to work on.

Impact on production schedules
Lug valves can significantly reduce maintenance windows in high-use facilities, while wafer valves might be more cost-effective where full shutdowns are already part of routine operations.

Blind flange considerations for lug valves
When a lug valve is installed at the end of a pipeline or line spur, a blind flange or blank may be fitted opposite the valve. This ensures safe isolation and prevents accidental pressurisation during service.
