Electric valve actuators do not share one manual override mechanism. Some use a Hand/Auto clutch that disengages automatically when the motor runs, while others require a manual gearbox or selector to be returned to Auto or neutral. Applying the wrong sequence can leave the manual drive engaged, produce incorrect position feedback or damage the gearing.
This guide covers manual operation during a power failure, fault isolation or planned maintenance. It explains the pre-operation checks, manual-drive engagement, handwheel precautions, stop conditions and return-to-service verification. The manufacturer’s instructions and site operating procedure must determine the exact lever movement, handwheel direction and electrical isolation sequence.

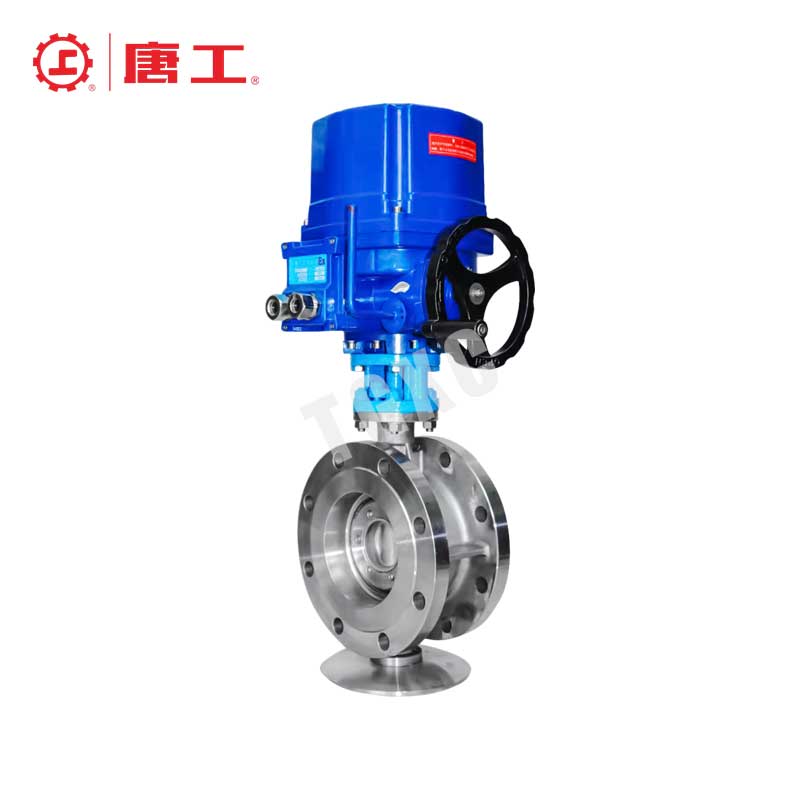

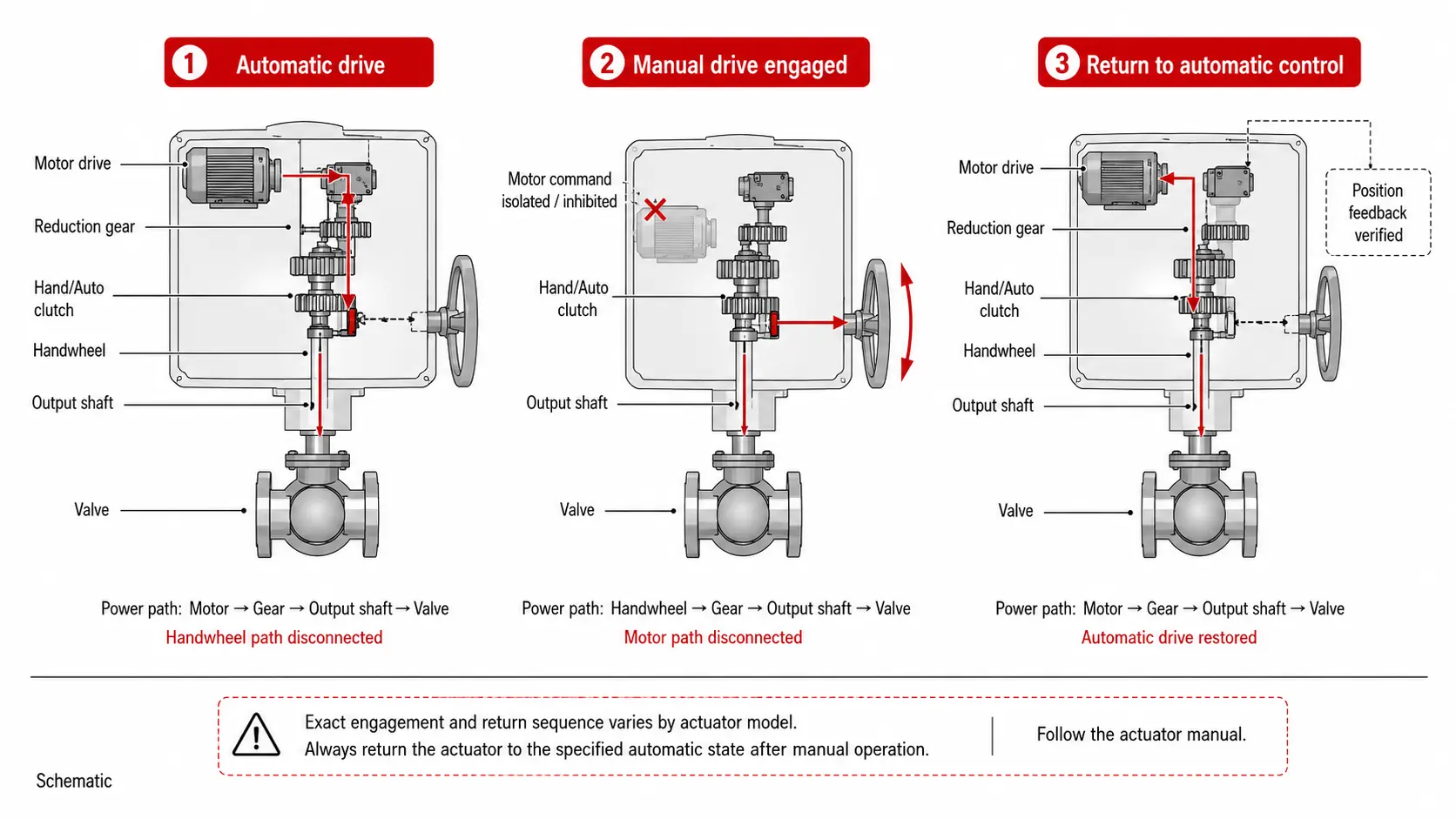

What manual override changes inside an electric valve actuator
During electrical operation, the motor transfers torque through the reduction gearing to the actuator output. Manual override connects the handwheel to that output so the operator can move the valve without relying on the normal motor command.
The handwheel, clutch and control selector have different functions
The handwheel supplies the manual input, while the clutch or manual gearbox determines whether that input reaches the actuator output. A Local/Stop/Remote selector controls where electrical commands are accepted. Moving the selector to Stop does not necessarily engage the handwheel, and engaging the handwheel does not by itself prove that every electrical energy source has been isolated.
The operator therefore needs to identify both the electrical control state and the mechanical drive state. Confusing these functions can allow an unexpected command, prevent the handwheel from transmitting torque or leave the actuator unavailable for remote operation after the work is complete.
Manual-drive behaviour depends on the actuator design
Some electric actuators use a Hand/Auto lever that engages the handwheel and automatically returns to motor drive when electrical operation begins. Other assemblies use a declutchable gearbox that must be shifted into manual mode and then returned mechanically to automatic mode. A direct handwheel, slipping clutch or separate override gearbox may require a different sequence.

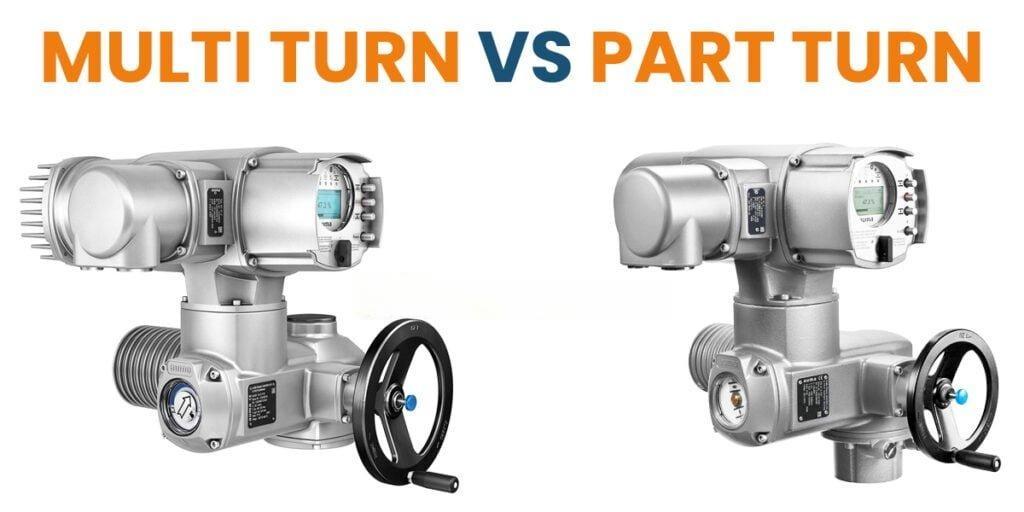

Part-turn and multi-turn classifications describe the required output movement, but they do not define one universal clutch arrangement. The actuator model, gearbox configuration and manufacturer’s operating instructions must be checked before manual operation. Readers comparing the wider control valve actuator types should treat the manual override as a specified design feature rather than an assumed function.
Before operating the actuator by hand
Manual movement changes the process even when the actuator has lost electrical power. Opening or closing the valve may release pressure, interrupt cooling or feed flow, start equipment movement or defeat the position expected by the control system. The operating team must approve the intended valve movement before the manual drive is engaged.
Use the site permit and lockout procedure to establish the required isolation boundary. Selecting Local or Stop may block a control command, but it is not a substitute for electrical isolation when isolation is required by the actuator manual, maintenance scope or site procedure.
- Confirm authorisation: notify the control room and identify the valve by its tag, service and location.
- Check the actuator instructions: verify the model, manual override design, permitted operating condition and correct engagement sequence.
- Assess the process consequence: confirm where the fluid will flow and how upstream and downstream equipment will respond when the valve moves.
- Prevent unintended operation: apply the approved electrical, control-signal and process isolations before touching the Hand/Auto mechanism.
- Verify position and direction: compare the local position indicator with the control-room indication, then check the actuator markings for the required opening or closing direction.
- Inspect the manual drive: do not proceed if the handwheel, selector, clutch lever, gearbox or mounting connection is loose, damaged, corroded or obstructed.
Position indicators can remain energised from an auxiliary supply or retain a stored value after the main motor supply is lost. Confirm the physical valve position locally instead of relying on one electrical indication. Extension shafts and loaded valve stems may also retain torsional energy, so personnel should remain clear of the handwheel’s possible rotation path during engagement.
If the required isolation or actual valve position cannot be confirmed, stop the operation and resolve the discrepancy through the site’s valve troubleshooting and maintenance procedure.
How to operate an electric valve actuator manually
Begin only after the intended valve movement has been authorised and the required isolations are in place. Keep the actuator identification and operating instructions available because the selector sequence, clutch movement and handwheel direction can differ between models.
Engage the manual drive without forcing the mechanism
- Confirm the handover: verify with the control room that remote movement is inhibited and record the local valve position before operating it.
- Set the electrical control state: move the Local/Stop/Remote selector to the position required by the manufacturer and site procedure. This step controls electrical commands but may not engage the manual drive.
- Select manual operation: operate the Hand/Auto lever, clutch selector or declutchable gearbox exactly as shown on the actuator label or in its manual.
- Align the gearing if permitted: if the selector does not seat fully, apply a small handwheel movement while maintaining the specified selector pressure. Stop if the mechanism still will not engage. Do not strike or force the lever.
- Check engagement: apply light, controlled handwheel input and confirm that the local position indicator or valve stem begins moving in the intended direction.
- Move the valve steadily: turn the handwheel in the direction marked on the actuator or specified in its manual. Monitor position, process response, handwheel effort and any unusual noise throughout the movement.
- Stop at the required position: stop when the authorised position or specified travel limit is reached. Do not apply additional force merely because the handwheel has stopped moving.
Control handwheel force and valve travel
Use the installed handwheel without a wheel key, wrench, extension bar or other device that increases leverage. The Rotork IQ electric actuator operating instructions, for example, prohibit added leverage because it can damage the actuator or valve and can wedge the valve into its seated or back-seated position.
Clockwise-to-close is common, but it is not a safe assumption for every actuator, gearbox orientation or valve assembly. Follow the direction plate and verify movement from the local indicator. If the position indication moves opposite to the expected direction, stop and resolve the discrepancy before continuing.
A sudden increase in effort is a stop condition, not a reason to apply more torque. The valve may be at an end position, mechanically obstructed, exposed to an abnormal differential pressure or affected by internal actuator, gearbox or valve damage.
If the valve will not move or the clutch will not engage
More handwheel force is not a diagnostic method. Resistance may come from gear alignment, the selector state, process load, a valve obstruction or damaged drive components. Continuing without identifying the cause can transfer the overload to the gears, coupling, stem or seating surfaces.
| Observed condition | Possible explanation | Safe next action |
|---|---|---|
| Hand/Auto selector will not seat | Gear teeth are not aligned, or the selector is obstructed or damaged | Turn the handwheel slightly only when the actuator manual permits it. Do not force or strike the selector. |
| Handwheel turns but the valve position does not change | Manual drive is not fully engaged, or the coupling or internal drive is damaged | Stop and recheck the engagement indication. Isolate and inspect the drive if engagement cannot be confirmed. |
| High resistance occurs as soon as movement starts | Wrong direction, an existing end position, high differential pressure or a seized valve may be involved | Stop, confirm direction and position, then review the process condition before attempting further movement. |
| Valve moves but stops before the required position | A mechanical stop, deposit, stem damage, internal valve damage or abnormal process load may limit travel | Do not change torque switches or end-stop settings. Investigate the restriction under the approved maintenance procedure. |
| Handwheel moves unexpectedly during engagement | Retained torsion, valve load or movement transmitted through an extension shaft may be releasing | Keep clear of the rotation path, stop the operation and reassess stored mechanical and process energy. |
These observations narrow the inspection path but do not identify the fault by themselves. If normal handwheel effort and full travel cannot be restored without additional leverage or setting changes, keep the actuator out of automatic service until the valve, coupling, gearbox and actuator have been checked.
How to return the valve to automatic or remote control
A motorised valve should not normally remain in manual operation after the authorised intervention is complete. Leaving the manual drive engaged can prevent remote movement, restrict valve travel or create a mismatch between the field position and the position expected by the control system. An exception requires an approved operating condition and a clearly recorded handover.
Manual-to-auto behaviour varies by design
Some actuators disengage the handwheel automatically when the motor is operated. In these designs, the Hand/Auto lever may return to its normal position before the manual drive has actually disengaged. A controlled electrical movement is then required to return the actuator to motor drive.
A declutchable manual gearbox may require the selector to be moved mechanically back to Auto before electrical operation is permitted. Other actuators use a neutral handwheel or locking arrangement. Follow the model-specific sequence and confirm the final selector or clutch indication instead of assuming that restoring power will correct the drive state.
Do not restore an electrical command merely to test automatic disengagement unless the control room has approved the resulting valve movement. The valve may move immediately towards its remote demand position when power or control authority returns.
Confirm position and control-room feedback before handback
- Record the final field position: check the mechanical indicator, stem or shaft position against the required operating state.
- Restore the specified drive state: return the clutch, selector or manual gearbox to Auto, neutral or motor drive as required by the actuator manual.
- Clear the operating area: remove tools and keep personnel away from the handwheel, linkage and valve movement path.
- Restore power and control authority: follow the site sequence for removing isolations and returning Local/Stop/Remote selection to the required mode.
- Compare all indications: verify that the local indicator, actuator display and DCS or PLC feedback represent the same valve position.
- Perform an authorised functional movement: confirm motor-drive engagement, direction, travel response, limit indication and alarms without disturbing the process.
A position discrepancy does not automatically require recalibration. First check whether the manual drive has disengaged, whether the valve completed the expected movement and whether the feedback device has power. Recalibration or limit-switch adjustment should proceed only under the applicable commissioning or maintenance procedure.
The control room should receive the final valve position, control mode, functional-test result and any abnormal resistance or incomplete travel observed during manual operation. Remote control should remain unavailable if the field position or actuator status cannot be verified.
What to specify when manual override is a project requirement
Manual override should be specified as part of the actuator package rather than assumed from the presence of a handwheel. The required mechanism depends on valve motion, operating torque or thrust, installation access and the way local operation must interact with the control system.
When manual override is required for a control valve actuator or motor-operated isolation valve, confirm the following data with the actuator and valve supplier:
- Valve and motion type: identify the valve design and whether the actuator output is part-turn, multi-turn or linear.
- Operating load: provide the maximum differential pressure and the required seating, unseating and running torque or thrust.
- Manual override purpose: state whether it is intended for power failure, emergency positioning, commissioning, maintenance or an adjustable travel stop.
- Handwheel operation: confirm the number of turns, expected rim effort, opening and closing direction, accessibility and available operating clearance.
- Hand/Auto arrangement: define the clutch or gearbox type, locking requirement, electrical interlock and method for returning to motor drive.
- Position information: specify whether local position indication is required without main power and how manual movement will be reflected in remote feedback.
- Installation environment: state the temperature, moisture, corrosion, ingress-protection and hazardous-area requirements that apply to the actuator and manual mechanism.
- Operating documents: require model-specific instructions covering engagement, permissible handwheel force, manual travel, isolation and return-to-service checks.
A handwheel that is difficult to reach, requires excessive turns or cannot be locked against unauthorised use may be unsuitable even when the actuator meets the motor torque requirement. Mounting orientation, platform access and clearance around the handwheel should therefore be reviewed on the assembly drawing before approval.
For a new package, send the valve duty, process conditions, electrical supply, control signal, fail requirement and manual override expectations together. These inputs allow the supplier to specify an actuated valve package with a compatible valve body, actuator, manual drive and feedback arrangement.
Conclusion
Safe manual operation depends on the electric actuator’s actual handwheel, clutch, selector and gearbox arrangement. The model instructions and site procedure must define the isolation boundary, engagement sequence, permitted handwheel force and method for returning the actuator to motor drive.
Manual movement is complete only after the final valve position, local indication, remote feedback and automatic operating mode have been verified. If the clutch will not engage, handwheel effort changes unexpectedly or full travel cannot be achieved, keep the actuator out of automatic service until the cause has been identified.
