In the world of fluid control, motorized ball valves and solenoid valves are two common options. While both play key roles in managing fluid and gas flows, they have distinct operational characteristics that make them more suitable for different applications. This article will provide a detailed comparison: motorized ball valve vs solenoid valve, helping you make an informed choice based on your system’s requirements.
What Is A Motorized Ball Valve?

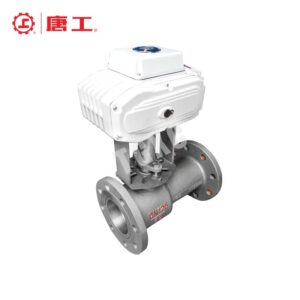

A motorized ball valve is a type of valve that uses an electric motor to operate the valve mechanism, typically a ball with a hole in it, to control the flow of liquids or gases. The motor rotates the ball to either open or close the valve, or sometimes to modulate the flow by positioning the ball in intermediate positions. This type of valve offers precise control over fluid dynamics, and it can be used for both on/off control as well as proportional control. Motorized ball valves are preferred for high flow rates and applications where accurate flow regulation is needed. The key advantages of motorized ball valves include reliability, tight sealing, and low maintenance requirements, making them suitable for a wide range of industrial applications such as HVAC systems, irrigation, water treatment, and automation processes.
What Is A Solenoid Valve?
Source:Automation Distribution
A solenoid valve is an electromechanically operated valve, which is controlled by an electromagnetic solenoid to switch the valve’s state (open or closed). When electricity is applied to the solenoid coil, it generates a magnetic field that moves a plunger, opening or closing the valve. Solenoid valves are primarily used for on/off control of fluid or gas flow, providing a fast, efficient way to control the flow without needing mechanical parts to be manually operated. These valves are ideal for rapid switching and are commonly found in systems where speed and precision are critical, such as in pneumatic systems, water systems, and process automation. They are known for their compact size, quick actuation times, and cost-effectiveness. However, they are more sensitive to dirty media and may require more frequent maintenance when dealing with contaminated fluids.
How They Operate
Motorized Ball Valve:
A motorized ball valve uses an electric motor to rotate a ball with a hole through its center. When the valve is open, the hole in the ball aligns with the pipe’s inlet and outlet, allowing fluid to flow freely. When the valve is closed, the ball rotates 90 degrees, blocking the flow by positioning the hole perpendicular to the fluid path. This mechanism is ideal for applications where precise control of the flow is necessary, as the electric motor can be adjusted to vary the valve’s position with high accuracy. Motorized ball valves are especially useful in larger systems where flow regulation, rather than simple on/off control, is required. They are typically powered by either AC or DC electricity and can be controlled remotely using various types of electrical signals.
Solenoid Valve:
Solenoid valves are electromechanical devices that use a solenoid coil to move a plunger inside the valve body. When electrical current is applied to the coil, it creates a magnetic field that pulls the plunger upward, either opening or closing the valve to regulate fluid flow. The operation is rapid and typically limited to on/off control, making solenoid valves perfect for situations where fast response time is critical. These valves are commonly used in smaller applications, such as those found in appliances, automated machinery, or smaller pipelines. Solenoid valves operate efficiently in both direct and indirect action modes and can control gases, liquids, and steam. Their compact design allows for easy integration into tight spaces.
Types of Solenoid Valves and Motorized Ball Valves
Solenoid valves and motorized ball valves serve distinct roles but with certain overlapping functionalities. Both types of valves are used to regulate the flow of fluids in various applications, from industrial automation to water management and HVAC systems. Understanding their types and mechanisms helps to choose the most suitable option for specific operational needs.
Solenoid Valves
A solenoid valve is an electrically operated valve used to control the flow of liquids, gases, or slurries. It works by using an electric current to generate a magnetic field, which moves a plunger or diaphragm that opens or closes the valve. There are several types of solenoid valves, each designed for different applications:
2-Way Solenoid Valve (Source: Twins Chip)
- 2-Way Solenoid Valve: The simplest form, this valve has two ports—one for the inlet and one for the outlet. It either fully opens or fully closes, making it ideal for simple on/off control of fluid or gas flow.
Source: IQS Directory

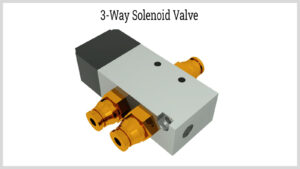

- 3-Way Solenoid Valve: Featuring three ports, this valve can direct flow through different channels, making it suitable for diverting or mixing applications. It can also be used in systems requiring flow control between multiple pathways.
- 4-Way Solenoid Valve: These valves have four ports and are often used to control double-acting cylinders. They can direct flow to multiple outlets or in and out of different channels, making them ideal for more complex automation systems.
Motorized Ball Valves
A motorized ball valve is a type of ball valve that uses an electric motor to operate the valve instead of manual or pneumatic mechanisms. This motorized actuation allows for automated flow control, providing precise, reliable operation with the ability to remotely control the valve. Motorized ball valves are typically used in larger systems where remote operation or automated control is essential.
- Standard Motorized Ball Valve: This valve operates by rotating a ball with a hole through it to either allow or restrict flow. The electric motor provides accurate control of the valve’s position, making it ideal for on/off applications or modulating flow control when integrated with a control system.
- Modulating Motorized Ball Valve: In this type, the motor allows for continuous, variable control of the flow, often used in more complex systems requiring precise adjustments to the fluid or gas flow.
Durability and Maintenance: Motorized Ball Valve vs Solenoid Valve
Motorized ball valves are typically more durable due to their robust design. These valves are capable of handling a wide range of fluids, including dirty or contaminated media. Their solid construction allows them to manage high-pressure environments and maintain longevity even under harsh operating conditions. The ball valve mechanism, devoid of intricate moving parts like diaphragms, is less susceptible to wear and tear from particulate matter in the fluid. Additionally, motorized ball valves often feature fail-safe mechanisms, such as spring-return systems, which ensure that they default to a safe position in case of power loss.
In terms of maintenance, motorized ball valves are designed for longevity, reducing the frequency of repairs. They are generally more reliable over time, requiring less upkeep compared to solenoid valves. However, the need for regular checks on the electric motor and actuator may arise, especially in cases of frequent operation or high-stress environments. While some models offer manual overrides, ensuring proper operation during power failures, the motorized nature of these valves may increase maintenance costs over time due to potential motor wear.
On the other hand, solenoid valves, known for their compact size and simple design, often require less maintenance overall. However, they are more sensitive to dirt and debris in the media. Solenoid valves rely on an electromagnetic coil to operate a plunger mechanism, which can become obstructed or corroded by particles in the flow. This makes solenoid valves more prone to malfunction when handling dirty or viscous fluids, requiring more frequent maintenance or even replacement of internal components like coils and plungers. Although solenoid valves are often easier to maintain due to their simpler design, their durability may be compromised when subjected to harsh conditions or contaminants in the fluid.
Applications and Use Cases: Motorized Ball Valve vs Solenoid Valve
Ideal Applications for Solenoid Valves
Pilot-Operated Solenoid Valve(Source:Uflow Valves)
Solenoid valves are primarily used in applications requiring quick on/off control, often in environments with limited space. Their fast response times make them perfect for high-speed automation systems. Some ideal uses include:
- Automotive Systems: Solenoid valves regulate fuel systems, emission controls, and air conditioning circuits, where rapid switching is essential for efficiency and precision.
- Water Treatment Systems: They control the flow of water or chemicals, ensuring accurate dosing and precise flow control in filtration systems and treatment plants.
- HVAC Systems: Solenoids are used in controlling heating, ventilation, and air conditioning systems, especially for regulating air dampers or fluid control.
- Medical Equipment: Solenoid valves in devices such as dialysis machines and ventilators manage fluid flow quickly and safely.
- Industrial Automation: These valves are used in automated systems where quick and reliable switching is necessary for controlling fluid, gas, or steam flow.
Ideal Applications for Motorized Ball Valves
Motorized ball valves, designed for more precise and controlled flow regulation, are ideal for applications that involve large volumes of flow or where high pressure needs to be maintained consistently. Key applications include:
- Oil and Gas Industry: Electric ball valves are used for controlling flow in pipelines that transport oil, gas, and other fluids under high pressure. Their durability and ability to handle large volumes of flow make them indispensable in this field.
- HVAC Systems: Electric ball valves are used in larger HVAC applications for regulating airflow in systems with significant pressure and flow demands, offering reliable performance over extended periods.
- Water Distribution Systems: These valves are used in municipal water systems for controlling the flow of water over long distances, especially in situations requiring bidirectional flow control.
- Fire Suppression Systems: In industrial and commercial settings, electric ball valves help control water flow to sprinkler systems, ensuring effective fire suppression.
- Agriculture and Irrigation: Electric ball valves are increasingly used in large-scale irrigation systems to manage water flow efficiently, minimizing waste and maximizing crop yield.
Size, Weight, and Space Considerations
Typically larger and heavier than solenoid valves, motorized ball valves utilize an electric motor to control fluid flow by rotating a ball inside the valve body. These valves are well-suited for applications requiring high flow rates and precise control over fluid passage. However, their size and weight can be a limiting factor when dealing with compact or space-constrained systems. Due to their robust design and mechanical components, motorized ball valves tend to require more space for installation and maintenance. They are often chosen for larger-scale industrial systems such as HVAC, water treatment, and agricultural irrigation, where their ability to handle higher flow rates is essential.
In contrast, solenoid valves are compact and lightweight, making them ideal for installations where space is limited. These valves operate through electromagnetic force to open or close the valve, which means they do not require large mechanical components like those in motorized ball valves. This makes solenoid valves particularly useful in applications where a small footprint is critical, such as in automotive systems, small-scale industrial applications, or in devices like washing machines or HVAC systems. Furthermore, solenoid valves are generally easier to integrate into tight spaces due to their smaller form factor.
Noise Levels and Operational Comfort
When comparing motorized ball valve vs solenoid valve, noise levels and operational comfort are important factors that affect the overall efficiency and usability of a system. These two valve types operate under different mechanisms, leading to variations in their sound profiles and user experience.
Motorized ball valves are typically quieter in operation. The motor-driven mechanism of these valves allows for smooth, gradual opening and closing of the valve, minimizing the noise produced. This makes them ideal for environments where noise is a concern, such as residential or office settings, or in industrial applications where minimizing sound is important for employee comfort. Moreover, motorized ball valves are less prone to generating disruptive sounds like clicking or buzzing, which are common in solenoid valves.
On the other hand, solenoid valves, especially those with rapid opening and closing actions, can create noticeable noise. This is often a result of the quick switching of the electromagnetic coil, which can cause a clicking or buzzing sound when the valve opens and closes. While this sound is generally harmless, it can be undesirable in applications where a quieter operation is required, such as in laboratories or medical environments.
Furthermore, the operational comfort of these valves extends beyond noise. Motorized ball valves are generally more stable and reliable in the long term, as they do not suffer from the same wear and tear issues associated with solenoid valves. They are also less likely to fail due to power loss, as they maintain their position without the need for continuous power, further contributing to a more comfortable, worry-free operation.
Comparison Table: Motorized Ball Valve Vs Solenoid Valve
| Feature | Solenoid Valve | Electric Ball Valve |
| Operation | Electromagnetic actuation, on/off control | Motorized actuator, continuous flow control |
| Flow Capacity | Lower flow capacity | Higher flow capacity |
| Pressure Rating | Limited, often needs pilot designs | Handles higher pressures |
| Power Consumption | Continuous power to maintain position | Power only during actuation, no continuous draw |
| Durability | Moderate, can wear out due to frequent switching | High, longer service life, less frequent maintenance |
| Response Time | Fast response, ideal for quick on/off | Slower response, ideal for flow regulation |
| Maintenance | Low, easy to replace parts | Moderate, more complex servicing |
| Clogging Risk | Prone to clogging in dirty environments | Less prone to clogging due to larger flow passage |
| Size and Weight | Compact and lightweight | Larger and heavier |
| Noise | Can generate clicking sounds | Quiet operation |
| Best For | Simple on/off, fast-acting applications | Complex flow regulation, industrial systems |
| Bidirectional Flow Control | No | Yes |
| Power Outage Resilience | Loses position without power | Maintains position without power |
| Cost | More affordable | Higher upfront cost, but lower total operating cost |
Motorized Ball Valve vs Solenoid Valve: A Detailed Analysis
When comparing motorized ball valves and solenoid valves, it is essential to understand their core operational mechanisms, applications, and benefits. Both are used to regulate fluid flow, but their design and functionality make them suitable for different scenarios.
Motorized Ball Valves operate with an electric actuator that rotates a ball within the valve. This ball has a hole in the center, and when the hole aligns with the flow direction, the valve is open. Conversely, when the ball rotates 90 degrees, the valve is closed. This operation allows for precise control over the flow of liquids and gases. Motorized ball valves are preferred when the application requires higher flow rates, precision, and durability, making them suitable for industrial applications like HVAC, water treatment, and oil and gas operations.
Solenoid Valves, on the other hand, rely on an electromagnetic coil to control a plunger that opens or closes the valve. When electrical current flows through the coil, it creates a magnetic field that moves the plunger, either opening or closing the valve. This type of valve is best suited for quick, on/off applications where rapid switching is needed, such as in irrigation systems, small-scale fluid dispensing, or pneumatic controls.
One of the main advantages of motorized ball valves is their ability to handle higher pressures and larger volumes of flow, making them ideal for applications that demand robust performance over extended periods. Their integration into automated systems also allows for sophisticated flow regulation, such as varying flow rates based on external control signals, making them a crucial component in industrial automation systems. Additionally, motorized ball valves are more durable and require less frequent maintenance compared to solenoid valves, particularly in demanding environments.
In contrast, solenoid valves excel in simplicity and fast operation, making them an attractive option for systems where only on/off control is required. They are energy efficient in short-term applications where the valve’s state does not need to be held for long periods. However, solenoid valves often require continuous power to maintain their position, which can lead to higher energy consumption, especially in applications where the valve remains open or closed for extended times. Furthermore, solenoid valves may suffer from coil burnout and require more frequent maintenance, especially in environments with high particle contamination.
In terms of energy consumption, motorized ball valves are more efficient in the long run because they only draw power during the actuation process. Solenoid valves, however, can consume more energy due to their need for constant power to remain in an energized state, which can result in higher operational costs over time.
Both valve types are highly functional but are tailored to different needs. Motorized ball valves are best for applications that demand precise control over larger volumes and pressures, while solenoid valves are better suited for fast switching and simpler on/off applications.
Conclusion
In summary, both motorized ball valves and solenoid valves are essential components in fluid control systems, each offering unique advantages tailored to specific applications. Motorized ball valves provide precise flow control, handle higher pressures and flow rates, and maintain their position without continuous power, making them ideal for applications requiring durability and energy efficiency. Conversely, solenoid valves excel in rapid on/off operations with swift response times, suitable for low-pressure systems and scenarios where quick actuation is crucial. Understanding these distinctions enables informed decision-making, ensuring optimal performance and efficiency in various industrial and commercial settings.
