When it comes to managing fluid and gas flow in piping systems, the choice of valve plays a crucial role in ensuring efficiency, safety, and accuracy. Among the wide range of valves available, Needle Valves and Ball Valves are two of the most commonly used. But how do they differ, and which one is best suited for your application? In this article, we’ll break down the fundamental differences between Needle Valve vs Ball Valve.
What is a Needle Valve?
A Needle Valve is a type of flow control valve designed for precise regulation of fluid flow. It features a tapered, needle-like plunger that gradually tightens or loosens, enabling fine adjustments to the flow rate. The key benefit of a Needle Valve is its ability to provide highly accurate flow control, making it ideal for applications where precision is essential. Common uses include laboratory experiments, gas flow regulation, and fine-tuning hydraulic systems.
Key Features of Needle Valves:
- Precise Flow Control: The tapered needle allows for gradual and fine flow adjustments.
- Applications: Best suited for low-flow and low-pressure environments.
- Design: Often features a threaded plunger or screw mechanism to regulate flow with minimal turbulence.
What is a Ball Valve?
In contrast, a Ball Valve uses a spherical ball with a hole in the middle to control the flow of liquids or gases. When the valve is opened, the ball rotates to allow fluid to flow through the hole; when it’s closed, the ball blocks the flow completely. Ball valves are ideal for on/off control and are known for their durability and reliability, making them a popular choice for high-flow, high-pressure applications in industries like oil and gas, water treatment, and chemical processing.
Key Features of Ball Valves:
- Quick Shutoff: Ball valves provide fast and efficient opening and closing with a simple 90-degree rotation.
- Applications: Suited for high-pressure and high-flow environments.
- Design: Features a spherical ball with a hole in the center that rotates to control flow.
Flow Control Mechanism: Needle Valve vs Ball Valve
The mechanisms behind needle and ball valves differ significantly, making each type suited for specific applications based on the required flow control precision and operational speed.
Needle Valve Flow Control Mechanism

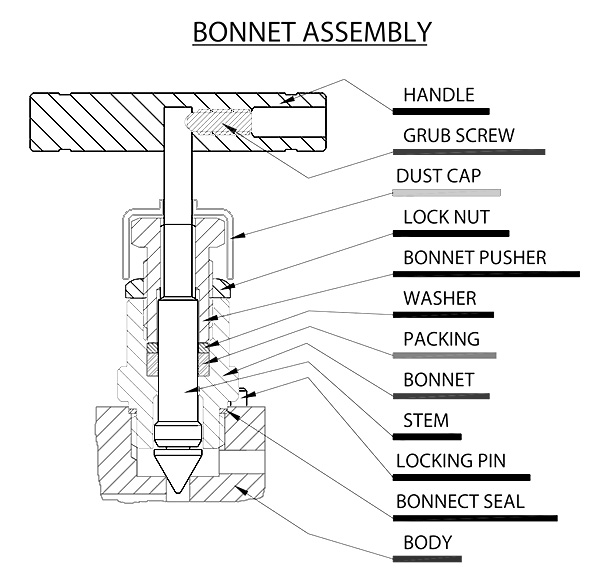

Needle Valve Diagram
A needle valve employs a tapered needle-shaped plunger that regulates flow through a small opening. The plunger can be finely adjusted by rotating a threaded stem, allowing for gradual and precise control over the flow rate. This design is especially beneficial in systems that require detailed flow adjustments, such as in laboratory or instrumentation setups. The slow actuation, however, can be a drawback, as it requires multiple turns to fully open or close the valve, making it unsuitable for applications that need rapid flow adjustments.
Needle valves excel in scenarios where low-flow precision is crucial, such as gas sampling, chemical dosing, and calibration processes. They are preferred in systems with low to moderate pressure, where fine-tuning of the flow rate is necessary for accurate measurements and consistent performance.
Ball Valve Flow Control Mechanism
Diagram of Ball Valve
Ball valves, on the other hand, operate through a spherical ball with a central hole that aligns with the flow path when open. The ball rotates 90 degrees to either allow or block flow, making them ideal for quick on/off operation. This design facilitates rapid flow control, which is crucial in systems where the immediate start or stop of fluid flow is required, such as in industrial pipelines or emergency shutoff scenarios.
The simplicity of the ball valve’s mechanism makes it highly durable and maintenance-friendly, capable of handling high pressures and large volumes of fluid with minimal leakage. However, ball valves are not suitable for fine adjustments of the flow rate, as their design is optimized for open or closed states rather than variable control.
Precision and Control: Needle Valve vs Ball Valve
When it comes to fluid control in industrial systems, two of the most common types of valves are needle valves and ball valves. While both serve the purpose of regulating fluid flow, they do so in different ways, offering distinct advantages and limitations depending on the application.
Needle Valves: Precision at Low Flow Rates
Needle valves are designed for precise flow control, making them the preferred choice for applications where accuracy is critical. The valve’s long, tapered needle allows for incremental adjustments to the flow, enabling operators to fine-tune the system with remarkable precision. This makes needle valves ideal for low-flow applications, such as in laboratories, chemical processing, and instrumentation, where even slight fluctuations in flow rate can significantly affect the outcome of a process.
Because of their unique design, needle valves are highly effective in environments where delicate tasks must be handled with great care. For example, in systems used for fluid sampling, pressure monitoring, or chemical mixing, the ability to make small adjustments can ensure that the correct proportions are maintained or that accurate readings are taken.
However, this high degree of control comes at a cost—needle valves are generally slower to operate compared to ball valves. Their gradual adjustments mean that needle valves are not suited for high-flow or rapid shutoff applications. In scenarios where speed is crucial, such as emergency shutoffs or where large volumes of fluid need to be quickly managed, needle valves fall short due to their slower operational mechanism.
Ball Valves: Quick and Efficient Flow Control
In contrast, ball valves are optimized for fast, on-off flow control. Their spherical design features a ball with a hole in the center that rotates 90 degrees to either allow or block the flow of fluid. This makes ball valves ideal for systems where a rapid response is needed, such as in emergency situations, or in processes that require large volumes of fluid to be moved quickly and efficiently.
Ball valves operate with a simple quarter-turn, making them quick and easy to open or close. This ability to swiftly alter the flow allows them to excel in applications where time is of the essence. Additionally, ball valves are known for their durability and low maintenance, with fewer internal components that can wear down. They are particularly well-suited for high-flow and high-pressure applications, where large volumes of fluid need to be controlled.
Despite their advantages in speed and simplicity, ball valves are less suitable for fine flow regulation. Unlike needle valves, which offer detailed control, ball valves provide a less precise adjustment of flow. They are primarily used for either fully open or fully closed positions, rather than for the nuanced regulation of fluid flow over time.
Application Suitability
Needle valves and ball valves serve distinct roles based on their design, functionality, and application requirements, making them suitable for different operational contexts.
Needle Valves:
These valves excel in applications that demand precise flow control. Their design, characterized by a thin, tapered needle stem, enables gradual and fine adjustments to the flow rate. This precision makes needle valves particularly suited for low-flow systems and environments where maintaining exact flow parameters is crucial. Common applications include gas flow regulation, such as in HVAC systems, gas metering, and chemical processing. In these contexts, the valve’s ability to finely control small volumes of fluid under moderate pressures is indispensable. Needle valves also find frequent use in laboratory equipment and hydraulic systems, where precision in fluid delivery can impact experimental results or machinery performance.
Ball Valves:
In contrast, ball valves are more suitable for applications that demand a rapid on/off control of the flow. Their quarter-turn operation and durable design make them ideal for high-pressure and high-volume scenarios. Ball valves are widely used in oil and gas pipelines, water treatment systems, and industrial plants. They are the go-to choice when fast shutoff is needed, providing an efficient, reliable means of controlling large volumes of fluid or gas. Although they are not designed for fine flow regulation, their ability to manage high flow rates and withstand tough operational conditions makes them indispensable in industries where full-flow control is essential.
Advantages of Needle Valves
Needle valves excel in applications requiring precise flow control. Unlike ball valves, which are primarily used for on/off control, needle valves are designed for fine adjustments. These valves use a tapered needle-like plunger that moves up and down inside the valve to regulate flow. This design allows needle valves to offer very fine control, making them ideal for applications where small, incremental changes in flow rate are necessary.
One of the primary advantages of needle valves is their precision. This makes them particularly useful in systems where accurate flow control is critical, such as in laboratories, hydraulic systems, and gas metering applications. The ability to gradually adjust the flow allows needle valves to perform well in situations where even small variations in pressure or flow can have significant impacts.
Needle valves also provide high reliability in low-flow applications. They are often employed in situations that require minimal flow with high accuracy, making them invaluable for tasks such as calibration or the regulation of gas or liquid flows in specialized processes. Additionally, the precise control they offer helps improve system efficiency, reducing the risk of overpressure and enabling systems to function more optimally.
Advantages of Ball Valves
Ball valves offer several key advantages that make them widely used in industrial applications, especially where reliable, quick shutoff is essential. One of the primary advantages of ball valves is their simplicity and effectiveness in managing high-flow applications. The design consists of a spherical ball with a hole in the middle, which controls the flow of liquid or gas. When the ball aligns with the pipeline, the fluid can pass; when rotated 90 degrees, the flow is shut off entirely.
Ball valves are particularly advantageous in systems that require a fast and reliable on/off action. This is due to their design, which allows for immediate shutoff with minimal effort. Their handle position easily indicates whether the valve is open or closed, making operation straightforward and user-friendly. These valves are also highly durable, making them suitable for use in demanding environments such as the oil, gas, and chemical industries, where high-pressure and high-volume flow control are common.
Another advantage of ball valves is their ability to withstand high temperatures and pressures, which makes them a good fit for harsh industrial conditions. Furthermore, ball valves provide excellent sealing capabilities, ensuring that leaks are minimized even when the valve is in the closed position. Their ability to handle high flow rates with minimal pressure loss and their simple design make ball valves a cost-effective solution for many applications.
Key Differences Between Needle Valves and Ball Valves
| Aspect | Needle Valve | Ball Valve |
| Flow Control Precision | Provides fine, incremental adjustments for precise flow regulation. | Primarily for on/off flow control with limited precision for gradual flow regulation. |
| Flow Rate and Capacity | Best for low to moderate flow rates, with a higher pressure drop, reducing flow capacity. | Suited for high flow rates with minimal resistance and pressure drop. |
| Applications | Used in vacuum systems, instrumentation, metering systems, and hydraulic/pneumatic systems. | Ideal for industrial pipelines, gas/chemical handling, water treatment, HVAC, and isolation systems. |
| Design and Operation | Operates by rotating the handle to adjust the needle’s position, requiring multiple turns for small changes in flow. | Operates with a quick quarter-turn mechanism for fast open/close action, ideal for on/off control. |
| Durability and Maintenance | Prone to wear due to fine-threaded design, especially in abrasive or corrosive environments. Regular maintenance may be needed. | More durable with simple design, requires less maintenance. However, surface wear can cause leakage in high-pressure systems. |
| Pressure Drop and Sealing | Typically has a higher pressure drop due to the fine control mechanism, which restricts flow. | Offers minimal pressure drop when open, with good sealing properties to prevent leakage. |
How to Choose Between a Needle Valve and a Ball Valve
When selecting between a needle valve and a ball valve, it is important to consider factors such as:
- Flow Control Needs: If precise flow regulation is required, a needle valve is the best option. However, if the application requires on/off control or high-flow handling, a ball valve is more appropriate.
- Pressure and Flow Requirements: Needle valves excel in low-pressure, low-flow scenarios, whereas ball valves are better suited for high-pressure, high-flow applications.
- Ease of Operation: Ball valves are generally easier to operate and provide quick response times, making them suitable for situations where fast action is required. Needle valves, on the other hand, are slower and better for fine-tuning flow rates.
- Maintenance and Durability: If you require a durable, low-maintenance valve, a ball valve is the better choice. Needle valves, due to their precise design, may need more frequent maintenance, particularly in harsher environments.
Conclusion
In summary, Needle Valves and Ball Valves each have their unique advantages depending on the application. Needle Valves are your go-to solution for precise flow control in low-flow environments, while Ball Valves are better suited for quick shutoff and high-pressure systems. Understanding the differences between these two types of valves will help you make an informed decision on which one is best for your specific application.
