Needle valves and gate valves are essential components in industrial flow control, each serving distinct purposes based on their design and operational characteristics. Needle valves are typically used for precise flow regulation, where a fine adjustment of flow is necessary. Their design features a tapered needle-like stem that allows for incremental flow control, making them ideal for low-flow and high-pressure applications, such as in instrumentation systems, laboratories, or hydraulic circuits. Gate valves, on the other hand, are used primarily for on/off control of larger flow volumes. They consist of a flat or wedge-shaped gate that moves perpendicular to the flow, providing a clear passage when fully open or a complete seal when closed. Gate valves are more suitable for applications where full flow shutoff is needed, such as in water treatment plants or oil pipelines. Both valves play a critical role in different sectors, and understanding their functionality helps in selecting the right valve for specific industrial needs. In this article, we’ll explore the essential differences between Needle Valve vs Gate Valve, their ideal uses, and offer guidance on selecting the right valve for your project needs.

What Are Needle Valves?

Needle valves are designed for precise flow control. They have a slender, needle-like plunger that fits into a seat with a small orifice, which can be adjusted incrementally to regulate the flow of fluid with great accuracy. Needle valves are typically used in applications where a fine adjustment of the fluid flow is necessary, such as in laboratory settings or when regulating pressure in high-precision systems. These valves are generally smaller than gate valves and are often made from materials like stainless steel or brass. The primary advantage of needle valves is their ability to control very low flow rates precisely, making them invaluable in situations requiring fine adjustments.

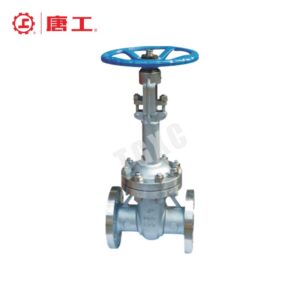

What Are Gate Valves?

Gate valves, on the other hand, are designed primarily for on/off control of fluid flow. They are distinguished by a wedge-shaped metal gate that moves vertically within the valve body to either block or allow the passage of fluid. This vertical motion is accomplished by turning the valve stem, which moves the gate up or down. Gate valves are most effective in applications where a full flow path is required, such as in pipelines transporting water, oil, or gas. However, they are not ideal for regulating flow, as their design can cause wear over time when used to throttle flow. Gate valves are typically used for larger pipeline systems, where a quick shutoff of flow is more critical than the need for precise control.

Design and Construction Differences: Needle Valve vs Gate Valve

Needle valves and gate valves have distinct design features that make them suited for different applications. A needle valve consists of a tapered, needle-like plunger that moves vertically within a conical seat to regulate flow. The fine threading of the needle valve allows for highly precise adjustments, making it ideal for controlling low-flow applications where accuracy is critical. In contrast, a gate valve operates with a flat or wedge-shaped gate that moves perpendicularly to the flow direction. This design is simple and efficient for on/off flow control, where the valve is either fully open or fully closed, allowing for full flow when open. While needle valves excel in applications requiring fine-tuned flow control and minimal pressure drop, gate valves are preferred for larger systems where swift, complete shutoff is needed and flow regulation is not a primary concern.

Advantages and Disadvantages of Needle Valves

Precision and Control

Needle valves offer a distinct advantage when it comes to precision and control. Their design, which incorporates a long, tapered needle that seats into a matching orifice, enables very fine adjustments to the flow rate. This makes needle valves ideal for applications requiring precise flow regulation, such as in laboratory equipment, instrumentation, or any system where minute control over fluid or gas flow is necessary. The ability to make small, incremental changes ensures high accuracy, which is essential in processes where even a slight fluctuation in flow could have significant consequences.

Suitability for Low Flow Rates

Needle valves are particularly well-suited for low-flow rate applications. Their construction allows them to regulate small volumes of fluids or gases, something that gate valves cannot do as effectively. This makes them invaluable in systems where very low flows are needed for safe and efficient operation. Whether in hydraulic control systems or delicate scientific instruments, needle valves excel at controlling low flow rates, where other valve types may fail to provide adequate performance.

Maintenance Challenges

While needle valves are highly effective in many precise applications, they come with some maintenance challenges. Their fine-threaded mechanism and the small, delicate needle inside can be susceptible to wear, especially in systems where there is particulate matter in the fluid. These particles can damage the needle and seat, leading to leakage or malfunction. Moreover, the precision required to adjust the valve means that any failure to operate it smoothly can cause problems in the system. As a result, needle valves often require more careful handling and maintenance compared to other types of valves like gate valves. They are also more prone to pressure loss due to the high restriction on fluid flow, which can affect their efficiency over time.

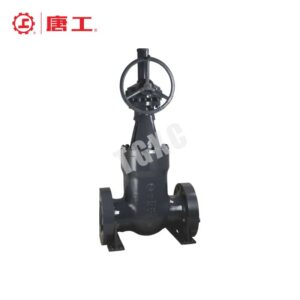

Advantages and Disadvantages of Gate Valves

Cost, Installation, and Durability

One of the key advantages of gate valves is their low initial cost and straightforward installation process. They have a relatively simple design, consisting of a gate (or disc) that moves up and down to open or close the valve. This simplicity not only reduces manufacturing costs but also facilitates easier maintenance and repair. In terms of durability, gate valves are designed for long-term use, especially in isolation service where they are operated infrequently. However, due to the wear on the sealing surfaces over time, gate valves may require more maintenance compared to other types of valves, particularly if they are exposed to high temperatures or abrasive media​.

Performance in High-Pressure Applications

Gate valves are well-suited for high-pressure applications, particularly when fully open. Their full-bore design provides minimal resistance to the flow of fluids, which is crucial in systems where pressure loss needs to be minimized. However, their performance can be compromised in certain high-pressure scenarios, particularly in cases where frequent operation is required. The multiturn mechanism of gate valves, while ideal for avoiding water hammer in isolation applications, makes them slow to operate and inefficient for quick adjustments in pressure. For high-pressure systems that require frequent or precise control, gate valves may not be the best option, as they are not designed for throttling or flow regulation.

Sealing and Leakage Considerations: Needle Valve vs Gate Valve

Needle Valves:

Needle valves are designed for precise control of fluid flow, particularly at low flow rates. Their sealing mechanism is based on a tapered needle-shaped plunger that fits into a matching seat, regulating the flow rate by adjusting the size of the orifice. When properly adjusted, needle valves provide a leak-tight seal, minimizing the risk of leakage during operation. However, the small orifice in a needle valve can be prone to clogging by debris or particles in the fluid, potentially compromising the seal. These valves are generally more effective in preventing leakage at low flow rates and in systems where fine control is essential.

The design of needle valves allows them to handle varying pressure and temperature conditions, but improper maintenance or contamination of the fluid can lead to degradation of the sealing surfaces. The precise nature of the valve’s function means that any corrosion or wear on the needle or seat can result in minor leaks, which could eventually lead to failure if not addressed in time. Additionally, needle valves, although providing high precision, are more susceptible to clogging in systems with particulate matter or highly viscous fluids.

Gate Valves:

Gate valves, on the other hand, are primarily designed for on/off flow control and typically provide less precision in modulating flow compared to needle valves. The sealing mechanism in gate valves relies on a gate, which is lifted and lowered between two seats to control fluid flow. The gate itself typically does not offer the same degree of precision as the tapered needle of a needle valve, which means that achieving a perfectly leak-tight seal can sometimes be more challenging.

Gate valves are susceptible to leakage due to the wear and tear of the sealing surfaces over time, especially under high-pressure or high-temperature conditions. As gate valves undergo frequent operation, particularly in systems with fluctuating pressures or corrosive materials, the seals can degrade, leading to leaks. Corrosion, mechanical stress, and improper sealing during installation can further exacerbate the leakage problem. In particular, when a gate valve is not fully closed, there may be a residual gap in the sealing surfaces, leading to leakage. Furthermore, if the valve is subject to continuous vibration or external pressure fluctuations, it may lose its ability to provide a reliable seal.

Common Applications of Needle and Gate Valves

Industrial Use Cases for Gate Valves

Common industrial applications for gate valves include water treatment plants, oil and gas pipelines, power generation, and chemical processing. These valves are particularly favored in large-scale operations where frequent operation is not necessary but a reliable, leak-free shut-off is paramount. Their robust design and ability to handle high pressures and temperatures make them ideal for such applications.

Specific Applications of Needle Valves

Needle valves, on the other hand, are predominantly used in applications that demand precise flow control. Their tapered, needle-like design allows for fine adjustments, making them ideal for systems where small, regulated fluid flows need to be maintained. Needle valves are widely used in industries such as oil and gas, aerospace, and chemical processing. In the oil and gas sector, they control the flow of fluids in high-pressure environments like wellheads or pipelines. In aerospace, they are critical in managing fuel and hydraulic fluids under high-pressure conditions. Their ability to control very low flow rates makes them invaluable in laboratory applications and systems that require accurate dosing or fine adjustments. However, due to their design, needle valves are typically not suited for high-flow applications due to the potential for high pressure drops.

Conclusion

The choice between needle valve vs gate valve ultimately depends on the specific needs of your project. If precise flow regulation is essential, a needle valve is the best option. However, if you require a valve for large flow applications or need a reliable shutoff valve, a gate valve will serve you best. Understanding the differences in design, functionality, and applications can help you make an informed decision that best fits your system’s requirements.
