Needle valves are precision-engineered fittings designed for applications where even the slightest adjustment in fluid or gas flow matters. Their name comes from the needle-shaped, tapered plunger that gradually enters the valve seat, enabling exceptional control over low-flow systems. With fine adjustment capability, durable materials and compact size, needle valves deliver reliable performance across instrumentation, hydraulic and processing industries—but only when selected properly for your conditions.

How Does a Needle Valve Work?

When you turn the handle of the valve, that motion is converted into axial movement via a threaded stem. In simpler terms: the handle screws the stem up or down.

At the end of the stem is the “needle” or plunger-point — a slender, tapered tip designed to fit inside a matching valve seat.

• As you raise the stem (turning the handle in one direction), the needle moves out of the valve seat-orifice, increasing the size of the opening. More flow is allowed.

• Conversely, as you lower the stem (turn the handle the other way), the tapered needle plunges into the seat-orifice, narrowing the gap and reducing flow — ultimately shutting off entirely if fully seated.

Because the stem is finely threaded, each turn of the handle adjusts the needle by a very small amount. That gives you very fine, gradual control over how much fluid or gas passes. The ratio between the long travel of the stem and the small radial change in orifice diameter produces this precision.

In effect, the valve works by changing the effective orifice size step by step — rather than simply open or closed. This makes it ideal for situations where you need to meter flow slowly, protect instrumentation, or regulate low-flow streams.

So in summary: you turn the handle → the threaded stem moves the tapered “needle” up or down → the gap between needle and seat changes → flow rate is accurately regulated.



Key Parts of a Needle Valve

Let’s break down the main components of a standard needle valve — it helps your readers visualise how this precision device is built and functions. Each part plays a specific role, and understanding them makes it easier to appreciate why this valve type is chosen for fine flow control.

Valve Body (or Housing)

This is the main pressure-containing structure of the valve that holds all the internal parts together. It’s the shell through which the fluid or gas flows and into which the other components are fitted. A solid, well-constructed body is essential because it must withstand the system pressure and environmental conditions without distortion or leaks.

Stem and Plunger (Needle)

The stem is the threaded rod you turn via a handle, and on the end of that stem is the plunger, often called the “needle”. The plunger has the tapered point which travels into or out of the valve seat. As you rotate the stem, it moves the needle up or down, thereby opening or closing the orifice gradually. This finely-threaded action gives the valve its characteristic precision control.

Seat

The seat is the part of the valve inside the body against which the needle tip seals. It determines the final closure point and contributes to the precision of flow regulation. Because the needle tip is tapered and the seat is shaped to match, you get a very small and controlled gap for flows — perfect for low-flow, fine-adjustment applications.

Bonnet

The bonnet can be thought of as the “cover” that seals the top of the valve body and through which the stem passes. It supports the stem, provides a mounting point for the packing (seals around the stem), and ensures the internals are held together securely. The bonnet is essential for maintaining structural integrity and preventing leaks around the stem region.

Handle (or Handwheel)

This is the manual operator part: when the handle is turned, it rotates the stem. In smaller valves it’s often a handwheel; in larger or actuated versions it can be powered or have an extended lever. The handle gives the user control over the needle’s movement and thus the flow. The thread ratio between handle turns and stem movement allows for fine fine-tuning of flow.

Packing

Packing refers to the sealing materials around the stem that prevent leakage of the fluid or gas from the valve body to the outside. Because the stem moves, special materials (like PTFE, graphite, or other packing media) are used so that the seal remains effective despite motion and pressure changes. Good packing is key for reliable, safe operation.



Types of Needle Valves

When you look at the range of needle valves available, you’ll find that despite their common principle, they come in a few distinct styles. Each type serves a particular need in terms of operation, space or automation. Here are three important categories worth noting:

Manually Operated Needle Valves

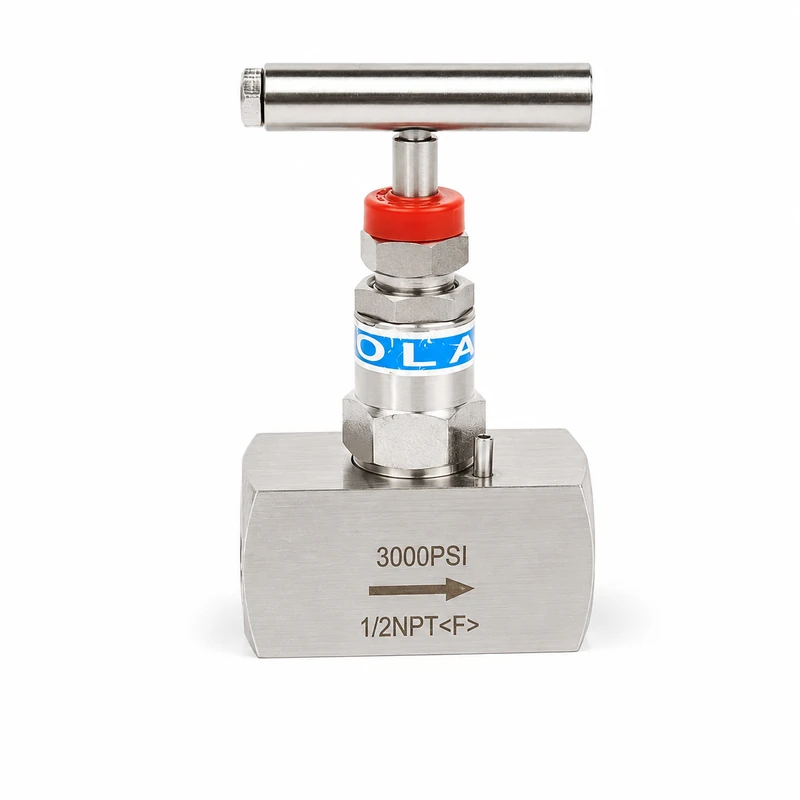

This is the most common type of needle valve. You operate it by turning a handwheel or a T-handle, which in turn raises or lowers the stem and needle plunger. Because of the fine threading and tapered tip, these valves enable gradual, very precise adjustment of flow. They are ideal for applications where flow adjustments are relatively infrequent, or where manual control is acceptable and cost needs to be kept down.



Motorised Needle Valves

For systems where manual operation is impractical—maybe because the valve is in a remote location, part of an automated process, or requires very frequent adjustment—a motorised (or actuated) needle valve is a good option. These use an electric, pneumatic or even hydraulic actuator to drive the stem instead of a handwheel. This type allows for remote control, integration into control systems, and even timed or feedback-controlled operation. It’s particularly useful in instrumentation, process control or automated metering applications.



Angle Needle Valves

Here the design shifts the outlet port so that it makes a 90° angle relative to the inlet. In other words, instead of the flow entering and exiting in a straight line, the valve changes the direction of the flow path. Why might you use this? Well, an angle needle valve is great where piping space is limited, or where you want to avoid adding separate 90° bends in the pipework. The internal configuration often reduces pressure loss compared to adding an elbow and a straight valve separately.





Common Applications and Industries

The versatility of a needle valve means it turns up in quite a few different sectors — essentially anywhere precise flow regulation of fluids or gases is needed. Let’s examine some of the key application areas.

Fluid Power and Hydraulics

In hydraulic and fluid-power systems, controlling the speed of actuators, cylinders or motors often relies on fine adjustment of flow rather than simply switching it on and off. Needle valves are ideally suited for this task because their design allows for gradual throttling of fluid movement.
For instance, by restricting flow with a carefully adjusted needle valve, you can slow down a hydraulic cylinder’s extension or retraction, improving smoothness and avoiding shock loads. The ability to use low-flow, high-precision control is a major reason these valves find a home in fluid-power installations.

Instrumentation and Laboratories

Precision measurement and small-scale experiments require exact control of fluid or gas flows, and that’s precisely where needle valves shine. They are used in systems that feed sensors, sampling lines, vacuum chambers or analytical devices — in short, wherever fine metering is essential.
For example, in a laboratory gas supply line you might need to deliver a slow, steady stream of carrier gas or purge gas; a needle valve makes that feasible because you can dial in the flow gently instead of simply opening a valve to some arbitrary point.

Petrochemical and Processing Plants

In the large-scale process industries such as petrochemical, oil & gas and chemical processing, needle valves are used in sampling lines, gas regulation for instrumentation or gauges, and controlling flows into smaller sub-streams.
For example, when you need to take a small sample from a high-pressure line for analysis, a needle valve allows you to reduce the flow and pressure in a controlled way. It can also protect sensitive instrumentation by throttling off pressure spikes or flow surges.

Water Treatment and Distribution

Even in water treatment and distribution systems — where flows can be large — there are cases where very small‐diameter lines or dosing lines require a precise valve. Needle valves are used for throttling or regulating water or chemical additives in such lines.
For instance, in a water-treatment plant the dosing of a chemical (e.g., chlorine or a polymer) may be done via a small line; a needle valve ensures the flow is just right. Similarly, they are used in smaller branch lines where flow needs to be carefully controlled rather than simply turned on or off.



Advantages of Using a Needle Valve

When precision flow control is critical, a needle valve offers several compelling benefits. Below are the key advantages — presented in an accessible, conversational tone — that underline why it’s a smart choice for many applications.

Precision

One of the standout features of a needle valve is its exceptional accuracy in regulating flow. Thanks to the finely threaded stem and the tapered “needle” plunger that enters the seat gradually, even small turns of the handle result in subtle changes in flow. This allows operators to dial in exactly the flow rate they need rather than settling for “mostly open” or “mostly closed”.

Compact Size

Another benefit is the typically small footprint of many needle valves. Because they are designed for low-flow or fine-control applications, their bodies are often more compact than larger isolation or throttle valves. That means in systems where space is limited — for example instrumentation panels, tight piping racks or laboratory setups — a needle valve can often fit where larger valves cannot.

Effective Throttling

Needle valves excel at throttling flow and controlling speed with minimal wear. The narrow orifice and the gradual movement of the needle create a controlled pressure drop and allow for steady, incremental regulation of flow rate. Because the fluid goes through a small, well-defined gap, the valve can modulate speed or flow changes smoothly rather than in large jumps. That makes it well suited for delicate operations — for instance in hydraulic systems or gas metering.

Secure Shut-off

Although on-off is often not their primary role, needle valves do offer reliable shut-off capability when properly chosen and operated. Because the tapered needle tip seats precisely into the matching valve seat, a very tight seal can be achieved. This shut-off reliability, combined with fine control, means the valve can do both jobs: regulate flow and stop it securely when required.



How to Select the Right Needle Valve

Choosing the right needle valve for your system is more than simply picking one off the shelf. It’s about matching the valve’s characteristics to your application’s demands—so you get reliable performance, longevity, and safety. Below are key factors to guide potential customers.

Material Selection

The valve body, stem, seat and sealing materials must be compatible with your fluid (or gas), environment and operating conditions. Common materials include brass, stainless steel and various alloys.

• Brass is often used for moderate pressure, non-corrosive environments (e.g., water, air) because it’s cost-effective and machinable.

• Stainless steel (for example 316) offers excellent corrosion resistance, suitable for higher pressures, aggressive fluids, or harsh environments (chemical processing, marine).

• Special alloys may be required if your system involves extreme temperatures or corrosive media (e.g., nickel alloys, Hastelloy).
  You should also check sealing materials (e.g., PTFE, PEEK) if you expect extreme temperatures or chemical exposure.



Pressure and Temperature Ratings

Ensure that the needle valve specification matches or exceeds your system’s maximum operating pressure and temperature (and allows for margin). Underrating can lead to premature failure or leakage.

• For example, some instrumentation-style needle valves are rated up to 5,000 psi (345 bar) and temperature ranges from -65°C to 232°C depending on body and seal materials.

• Also note that as temperature rises, the maximum allowable working pressure often decreases, so the rating must be verified for the actual operating temperature.
  A practical step: always check the manufacturer’s pressure-temperature (P-T) chart for the specific model.



Connection Type

The end-connections (threaded, flanged, welded, tube fittings) determine how the valve integrates into your piping or instrumentation system—and affect installation cost and ease.

• Threaded connections (e.g., NPT, BSP) are common for smaller sizes and simpler installations.

• Welded or socket-weld ends may be required for high-purity, high-temperature or high-pressure systems to minimise leak paths.

• Flanged connections apply for larger nominal sizes or when pipeline-standards (e.g., ANSI / ASME) apply.
  When selecting, ensure the connection type matches your piping standard and that installation space, torque requirements and maintenance access are considered.



Conclusion

Needle valves are essential components for achieving precise control over the flow of liquids and gases across various industrial systems. Their fine-threaded design and tapered needle stem allow for accurate regulation, smooth throttling, and reliable shut-off, making them ideal for instrumentation, hydraulic, petrochemical, and water treatment applications. Choosing the right needle valve—based on material, pressure, temperature, and connection type—ensures safe, efficient, and long-lasting performance. As a trusted international valve manufacturer, we provide high-quality needle valves built for precision and durability. Contact our expert team today to learn more about our full range of needle valves and find the perfect solution for your flow-control needs.
