In industrial automation, three primary control systems—Programmable Logic Controllers (PLC), Distributed Control Systems (DCS), and Safety Instrumented Systems (SIS)—serve as the foundation for managing and safeguarding complex processes. Each system plays a distinct role: PLCs handle individual machine or process control, DCSs oversee centralized control of multiple processes within a plant, and SISs focus on ensuring safety by mitigating risks and bringing processes to a safe state during abnormal conditions. Understanding the functions and interplay of these systems is crucial for optimizing operations, enhancing safety, and ensuring compliance with industry standards.
PLC Systems: The Precision Operators
Source:instrumentationtools
Programmable Logic Controllers (PLCs) are integral to industrial automation, offering precise control over machinery and processes. In valve operations, PLC systems excel in single-valve command capabilities, real-time response, and adaptability across various applications.

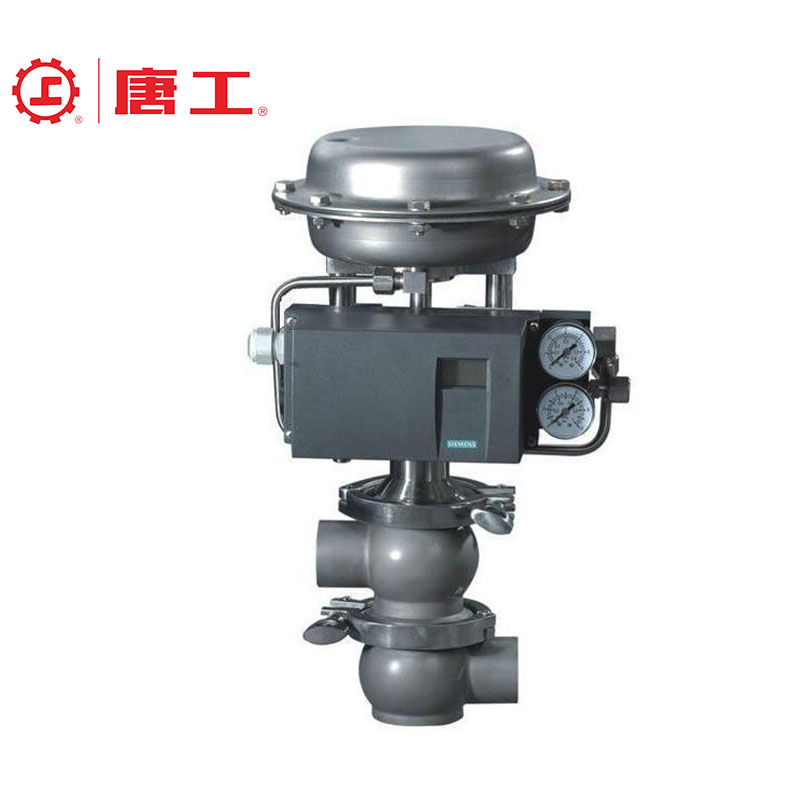

Single-Valve Command Capabilities
PLCs are adept at managing individual valves, processing inputs from sensors to execute specific commands such as opening, closing, or modulating valve positions. This precise control ensures optimal performance in fluid management systems.
Real-Time Response in Valve Actuation
Designed for real-time operations, PLCs can respond to input changes within milliseconds, facilitating immediate adjustments in valve positions. This rapid response is crucial in processes requiring high precision and timely interventions.
Typical PLC Applications in Valve Control
PLCs are employed in various industries for valve control, including:
-
Water Treatment Plants: Regulating flow through pumps and valves to ensure proper water processing.
-
Manufacturing Facilities: Coordinating machinery operations by controlling actuators and valves for material handling and processing.
-
Oil and Gas Industry: Managing high-pressure control valves to regulate the flow of liquids and gases during extraction and refining processes.

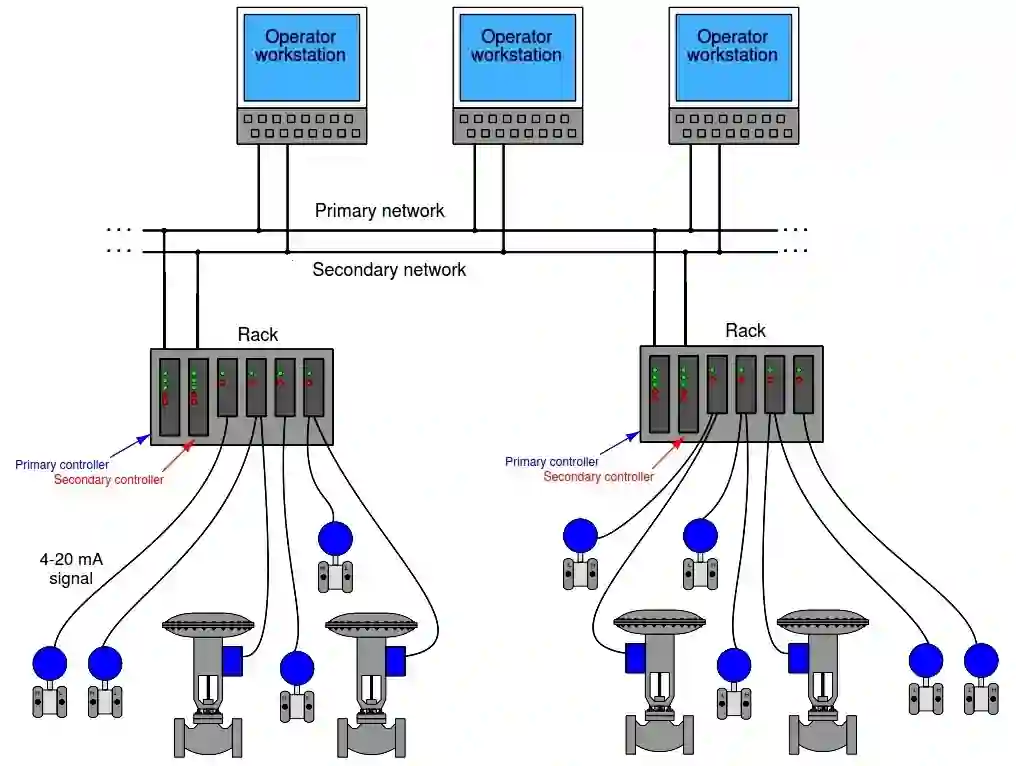

DCS: The Plant-Wide Conductor
Source:instrumentationtools
In industrial automation, Distributed Control Systems (DCS) act as the central orchestrators, harmonizing various control elements to ensure seamless plant operations. Unlike Programmable Logic Controllers (PLCs) that manage individual components, DCS systems oversee multiple integrated processes, providing centralized monitoring and control.
Coordinating Multiple Valve Operations
A DCS excels in managing numerous valves simultaneously, ensuring they operate in unison to maintain process stability. By distributing control functions across the system, a DCS can implement strategies like split-range control, where multiple valves are adjusted in a coordinated manner to regulate process variables effectively.
Process Optimization Through Valve Synchronization
Synchronizing valve operations is vital for optimizing industrial processes. A DCS utilizes precise control algorithms to adjust valve positions based on real-time data, enhancing efficiency and reducing wear on equipment. Techniques such as signal characterization are employed within the DCS to linearize valve responses, ensuring consistent and predictable control actions.
DCS in Complex Fluid Handling Systems
In intricate fluid handling scenarios, a DCS provides the necessary framework for managing complex interactions between various control elements. For instance, in mining operations, a modern DCS integrates control across extraction sites, material transportation, and processing facilities, facilitating a cohesive and efficient workflow.

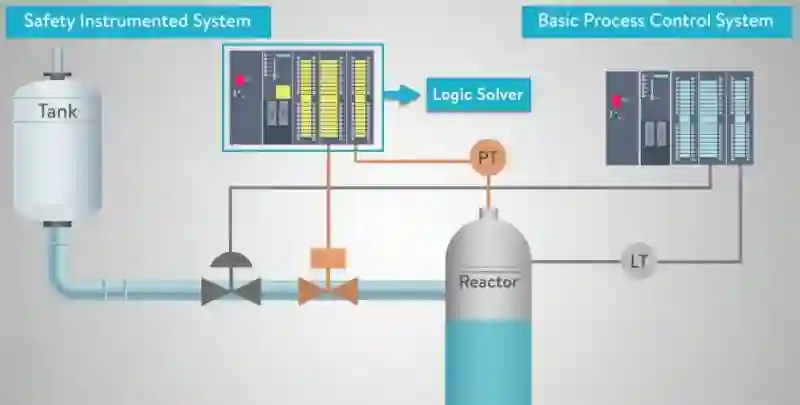

SIS: The Safety Sentinel
Source:electrovolt
In industrial automation, the Safety Instrumented System (SIS) serves as a critical safeguard, ensuring that processes operate within safe parameters and mitigating risks when deviations occur. This system is designed to detect abnormal conditions and initiate corrective actions to prevent accidents.
Emergency Shutdown (ESD) Valve Mechanisms
Emergency Shutdown (ESD) valves are integral components of an SIS, designed to rapidly isolate process flow in response to hazardous conditions. Upon detection of parameters exceeding safe limits—such as high pressure or temperature—the SIS triggers the ESD valves to shut down operations, thereby preventing potential accidents and protecting both personnel and equipment.
Risk Mitigation in Critical Applications
In high-risk industries like oil and gas, chemical processing, and power generation, SIS plays a pivotal role in risk mitigation. By continuously monitoring process variables and executing predefined safety functions when necessary, the SIS helps maintain operations within safe boundaries. This proactive approach minimizes the likelihood of incidents that could lead to equipment damage, environmental harm, or loss of life.
SIL Ratings and Valve Safety Compliance
Safety Integrity Level (SIL) ratings are used to quantify the performance and reliability of safety systems, including SIS. These ratings range from SIL 1 to SIL 4, with higher levels indicating greater risk reduction capabilities. Achieving appropriate SIL ratings requires rigorous assessment of the SIS’s components, including valves, to ensure they meet the necessary safety performance standards. Compliance with these ratings is essential for adhering to industry regulations and ensuring the overall safety of industrial operations.
Key Differences: PLC vs DCS vs SIS
Understanding the distinctions between Programmable Logic Controllers (PLC), Distributed Control Systems (DCS), and Safety Instrumented Systems (SIS) is crucial for selecting the appropriate control system for industrial applications. Each system serves unique functions—control, coordination, and protection—tailored to specific operational needs.
Functional Priorities Table (PLC/DCS/SIS)
The following table outlines the primary focus of each system:
| System | Primary Function | Application Focus |
|---|---|---|
| PLC | Control | Manages individual machines or processes with high-speed, discrete control. |
| DCS | Coordination | Oversees multiple integrated processes within a plant, emphasizing centralized monitoring and control. |
| SIS | Protection | Ensures safety by detecting abnormal conditions and initiating emergency actions to prevent accidents. |
Response Time Comparison
-
PLC Systems: Designed for rapid response, PLCs can process inputs and outputs swiftly, making them ideal for applications requiring immediate action.
-
DCS Systems: While DCSs offer comprehensive process control, their response times are generally slower compared to PLCs, as they handle complex, integrated operations.
-
SIS Systems: Prioritizing safety, SISs are engineered to respond promptly to hazardous conditions, ensuring timely intervention to mitigate risks.
System Integration Complexity
-
PLC Integration: Integrating PLCs into existing systems is relatively straightforward, especially for standalone or small-scale applications.
-
DCS Integration: Implementing a DCS involves a more complex integration process due to its plant-wide scope and the need for harmonizing various subsystems.
-
SIS Integration: Integrating an SIS requires meticulous planning to ensure it operates independently from other control systems, maintaining its integrity and reliability for safety functions.
Choosing the Right System: Application-Specific Considerations
Selecting the appropriate control system—Programmable Logic Controller (PLC), Distributed Control System (DCS), or Safety Instrumented System (SIS)—is crucial for optimizing industrial operations. Each system offers distinct advantages tailored to specific applications.
When to Prioritize PLC Implementation
PLCs are ideal for controlling individual machines or processes requiring high-speed, discrete control. They are cost-effective and offer flexibility for applications such as assembly lines, packaging systems, and standalone equipment. When the process complexity is low and requires rapid response times, PLCs provide an efficient solution.
DCS for Large-Scale Valve Networks
For extensive processes involving multiple interconnected systems, DCSs offer centralized control and monitoring. They are designed to handle complex operations across large facilities, providing coordinated control of numerous valves and instruments. Industries such as chemical processing, power generation, and oil refining benefit from DCSs due to their scalability and ability to manage sophisticated processes.
SIS Requirements in Hazardous Environments
In environments where safety is paramount, SISs are implemented to prevent hazardous events by bringing processes to a safe state when predetermined conditions are exceeded. They operate independently from other control systems to ensure reliability in critical situations. Applications in chemical plants, oil and gas facilities, and nuclear power stations often require SISs to mitigate risks associated with dangerous processes.
Conclusion
In industrial automation, valve performance improves when PLC, DCS, and SIS systems work together. PLCs offer fast, precise control for individual devices. DCS systems coordinate operations across the plant, while SIS protects the process by acting immediately during emergencies. Each system has a distinct role—control, coordination, or protection. However, they work best as a team. When integrated properly, they ensure smooth operations, enhance safety, and reduce downtime. Therefore, selecting the right mix based on your process size, complexity, and risk level leads to better performance, improved compliance, and greater long-term reliability.
