In industrial applications, selecting the correct valve for controlling fluid flow is crucial to ensure efficiency, safety, and optimal performance. Plug valves and ball valves are two widely used types of valves, each with its unique characteristics and advantages. In this article, we will provide a detailed comparison of plug valves versus ball valves, exploring their design, operation, advantages, limitations, and applications, particularly in the chemical industry and other fluid control systems.
Overview of Plug Valve vs Ball Valve
Plug Valves
Plug valves are a type of quarter-turn valve that uses a cylindrical or conical plug to control the flow of fluid through the valve. The plug has a through-hole, known as a port, which aligns with the flow path when the valve is open, allowing fluid to pass through. By rotating the plug 90 degrees, the flow path is blocked, effectively shutting off the valve.

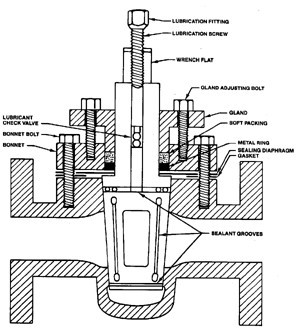

Plug Valve Diagram
- Design and Mechanism: The plug valve’s design is simple, consisting of a plug inside the valve body that rotates to control flow. The plug is usually tapered and fits snugly into the valve seat, providing a reliable seal. Some plug valves also have multiple ports, making them suitable for applications where fluid direction changes are required.
- Functionality: Plug valves are commonly used for on-off control, and they can also handle slurry or viscous fluids due to their smooth flow path. The simple design makes them durable and capable of handling harsh service conditions.
- Applications: Plug valves are often used in the chemical industry, oil and gas applications, and in systems where frequent operation and tight shut-off are required. They are particularly favored in situations where rapid shut-off is needed and where space is a constraint.
Ball Valves
Ball valves, like plug valves, are quarter-turn valves used to control the flow of fluids. However, instead of a plug, they use a spherical ball with a hole through its center. The ball rotates within the valve body to either allow fluid to pass or to block the flow.

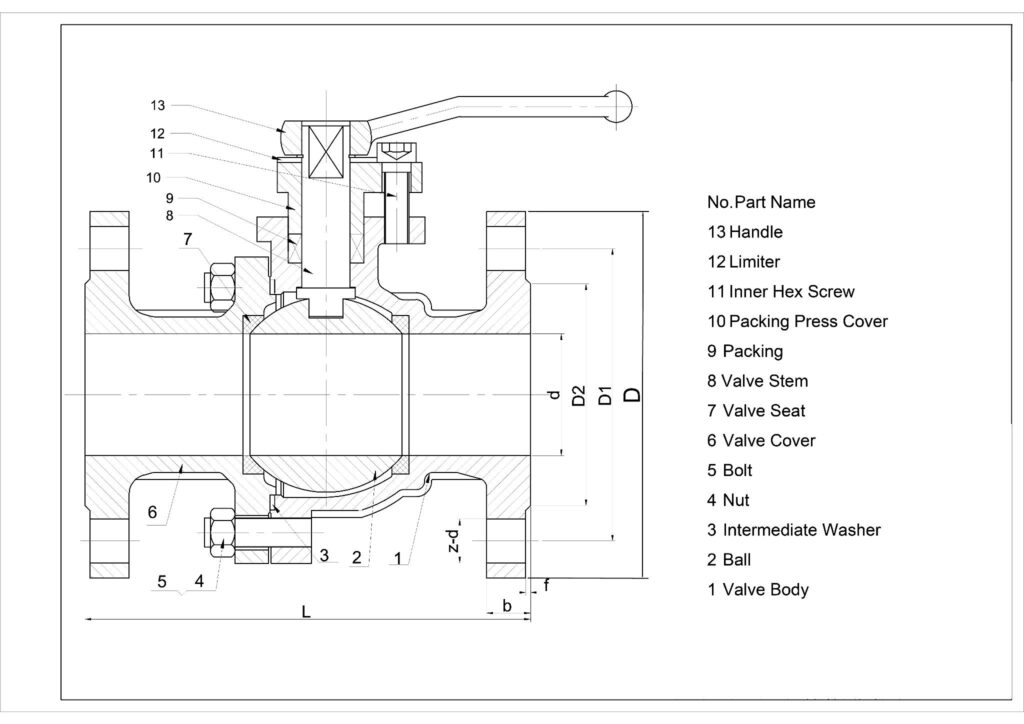

Ball Valve Diagram
- Design and Mechanism: The ball valve consists of a ball with a central bore that, when aligned with the pipeline, allows fluid to flow through. A quarter turn of the ball moves it perpendicular to the pipeline, effectively shutting off the flow. The ball is held in place by seats that ensure a tight seal.
- Functionality: Ball valves are known for their excellent sealing capabilities and ease of operation. They provide reliable shut-off with minimal torque and are suitable for applications where tight sealing is critical.
- Applications: Ball valves are widely used in the chemical, oil and gas, and water industries. Their quick operation, minimal flow resistance, and effective sealing make them ideal for both high-pressure and high-temperature applications.
Key Differences Between Plug Valve vs Ball Valve
1. Sealing Performance
- Plug Valves: Plug valves provide a tight seal due to the tapered plug fitting tightly against the valve seat. However, sealing can degrade over time, especially in applications involving abrasive or corrosive fluids, necessitating regular maintenance.
- Ball Valves: Ball valves offer excellent sealing due to the use of soft seats (such as PTFE) that conform to the ball’s surface, ensuring a leak-tight shut-off. This makes them more reliable for applications requiring a high degree of sealing integrity, such as in chemical processes involving hazardous fluids.
2. Flow Control and Pressure Drop
- Plug Valves: Plug valves are primarily used for on-off control but can be used for throttling in certain conditions. The flow path is relatively unrestricted, but the design can lead to a higher pressure drop compared to ball valves.
- Ball Valves: Ball valves are highly efficient for on-off control, with minimal pressure drop when fully open due to their straight-through flow path. They are less suited for throttling as the partially open ball can create turbulence, potentially causing wear and reducing accuracy.
3. Ease of Maintenance
- Plug Valves: Plug valves have a simple construction, but they require periodic lubrication to prevent sticking, especially in high-temperature applications. Maintenance can be more challenging due to the need for disassembly to access internal components.
- Ball Valves: Ball valves are generally easier to maintain, with fewer moving parts and easily replaceable seats. Their design allows for quick disassembly, making them a popular choice in systems where maintenance downtime must be minimized.
4. Material Compatibility
- Plug Valves: Plug valves are often constructed from materials like cast iron, stainless steel, or other alloys to withstand harsh chemicals. They are suitable for handling slurries, viscous fluids, and applications involving corrosive media.
- Ball Valves: Ball valves are available in a wide range of materials, including stainless steel, brass, and plastic. The choice of material depends on the chemical properties of the fluid, making ball valves versatile for various applications, including highly corrosive environments.
Advantages and Limitations of Plug Valve vs Ball Valve
| Valve Type | Advantages | Limitations |
|---|---|---|
| Plug Valve | – Simple Design: Features a straightforward construction with fewer parts, facilitating easy maintenance. – Quick Operation: Allows for rapid opening and closing, enhancing operational efficiency. – Minimal Flow Resistance: Offers low resistance to flow, ensuring efficient fluid movement. – Multi-Port Options: Available in multi-port designs, reducing the need for multiple valves and simplifying piping systems. |
– High Operating Torque: Requires significant force to operate due to friction between the plug and body, especially in larger sizes. – Potential for Seizing: Without proper lubrication, the plug may seize, leading to operational challenges. – Cost Considerations: Generally more expensive than ball valves with similar specifications. – Pressure Drop: May experience higher pressure drops compared to ball valves, affecting efficiency. |
| Ball Valve | – High Efficiency: Exhibits low-pressure drop and high flow capacity, ensuring efficient fluid control. – Ease of Operation: Simple to operate with a quarter-turn mechanism, providing quick shut-off capabilities. – Durability: Offers a long service life with reliable sealing, reducing maintenance needs. – Cost-Effective: Often more affordable than plug valves for similar applications. |
– Limited Throttling Ability: Not ideal for precise flow regulation due to their design. – Seat Wear: Frequent operation can cause wear on the seats, potentially leading to leakage over time. – Size and Weight: In larger sizes, ball valves can be bulky and heavy, posing installation challenges. – Temperature Sensitivity: May not be suitable for extreme temperature applications without specialized materials. |
Practical Use Cases
Plug valves are widely used in applications where quick, reliable shutoff is essential, especially in systems handling viscous or slurry materials. Their straight-through design reduces turbulence and allows easy passage of thick or abrasive fluids, making them ideal for wastewater treatment, chemical processing, and slurry transport. Additionally, plug valves are often used in corrosive environments, where lining materials like PTFE provide extra protection against aggressive chemicals. This makes them a suitable choice for the chemical industry, where durability and resistance to clogging are critical.
Ball valves are preferred in applications requiring a robust, tight seal and rapid shut-off, making them valuable in sectors like oil and gas, water treatment, and industrial pipelines. Their design can handle high-pressure environments and provides reliable, leak-proof shutoff, especially in emergency scenarios. Ball valves are also versatile in handling various media, including gases and liquids, which makes them suitable for controlling hydrocarbon flow in petroleum pipelines and in processes that demand minimal maintenance and dependable performance under pressure. Their durability and ease of use make ball valves an essential component in both upstream and downstream oil and gas operations.
Conclusion
In summary, both plug valves and ball valves serve important roles in industrial fluid control, but their suitability depends on specific process requirements. Plug valves are favored for their simplicity, durability, and ability to handle challenging fluids, while ball valves are appreciated for their excellent sealing, ease of maintenance, and versatility. Understanding these differences allows industry professionals to make informed decisions, ensuring the safe, efficient, and cost-effective operation of fluid control systems. If you need expert advice on selecting the right valve for your specific application, reach out to our team for tailored guidance.
