Plug valves and butterfly valves are commonly used types of valves in fluid control systems. While both serve similar purposes of regulating and controlling the flow of fluids through pipes, they differ significantly in design, operation, and application suitability. In this article, we will explore the key differences between plug valve vs butterfly valve. We will discuss their unique designs, operational characteristics, and applications, highlighting how each valve type suits different industrial needs. By comparing their performance, advantages, and considerations, this article will help you understand which valve may be more appropriate for specific systems, focusing on factors like efficiency, cost, and reliability.



Design and Construction

Plug Valve Design

Plug valves utilize a cylindrical or conical-shaped plug that rotates to control fluid flow. The plug, located centrally in the valve body, aligns with the inlet and outlet ports to allow or block flow. This design offers superior shutoff capability, making plug valves particularly effective in high-pressure, high-temperature, and viscous fluid applications. Their construction is more complex than that of butterfly valves, with additional components like the stem, actuator, and plug, leading to higher maintenance requirements. Although they offer tight seals, plug valves are slower in operation, requiring multiple turns to open or close completely.



Butterfly Valve Design

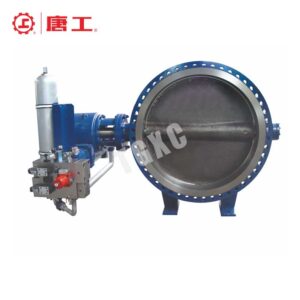

Butterfly valves, in contrast, feature a disc-shaped closure element that rotates on an axis perpendicular to the flow of fluid. This disc, when fully open, is parallel to the flow path, minimizing resistance. Butterfly valves are typically characterized by their lightweight, wafer-like design, making them suitable for applications requiring minimal space. Their simple design allows for quick, quarter-turn operation, which makes them ideal for low-pressure systems where high flow rates are common. However, their sealing integrity can sometimes be compromised, which may lead to minor leakage in certain conditions.



Operation: Plug Valve vs Butterfly Valve

Plug Valve Operation

Plug valves operate through a multi-turn mechanism, where the cylindrical or conical plug rotates to control the flow of fluid. Unlike butterfly valves, plug valves are slower to operate, requiring several turns to fully open or close. This characteristic makes them more suitable for infrequent adjustments rather than continuous cycling. Plug valves are often used in high-pressure systems where precise control and tight sealing are crucial, especially with viscous fluids or slurry. Their more complex design, involving components like the plug, stem, and actuator, increases maintenance requirements but ensures better performance in high-pressure and high-viscosity applications.

Butterfly Valve Operation

Butterfly valves feature a simple, quarter-turn operation where the valve’s disc rotates 90 degrees to regulate fluid flow. This design allows for fast and efficient control, making butterfly valves ideal for applications requiring frequent cycling and quick adjustments. They offer a rapid response time, which is crucial in systems where speed is essential. The simple construction of butterfly valves reduces maintenance needs, making them a cost-effective option for systems with low-pressure and high flow rates. However, their sealing is less tight compared to other valve types, which may result in minor leakage.



Performance Characteristics

Flow Control and Efficiency

Plug and butterfly valves differ significantly in their flow control and efficiency. Plug valves offer excellent flow control, particularly in applications requiring tight shutoff and precise regulation, such as in oil, gas, and chemical industries. Their cylindrical or conical plugs provide a positive seal, minimizing leaks and offering a full range of flow adjustment, making them ideal for on/off and throttling applications. Butterfly valves, on the other hand, are better suited for controlling large volumes of fluid. Their disc-shaped design allows for quick opening and closing, making them efficient for applications involving frequent operation or large flow rates, such as in water treatment or HVAC systems. However, butterfly valves may experience slightly less precision in flow control compared to plug valves.

Pressure Ratings:

• Plug Valves:
  • Pressure Rating Range: Typically from 150 psi to 3,000 psi (depending on size and design).
  • Some high-performance plug valves can handle pressures up to 5,000 psi or even higher in specific applications, such as oil and gas or chemical processing.
• Butterfly Valves:
  • Pressure Rating Range: Typically from 150 psi to 2,500 psi (depending on design and materials).
  • For general service butterfly valves, pressure ratings are usually lower than plug valves. Some models can exceed 2,500 psi, but they are less common and typically used in industrial-grade, heavy-duty applications.

Temperature Ratings:

• Plug Valves:
  • Temperature Range: Typically from -20°F (-29°C) to +450°F (232°C).
  • With specific materials such as stainless steel or Alloy 20, some plug valves can handle higher temperatures, reaching +1,000°F (538°C) or even higher in extreme cases.
• Butterfly Valves:
  • Temperature Range: Typically from -20°F (-29°C) to +350°F (177°C).
  • Butterfly valves made from high-temperature resistant materials (like metal-seated butterfly valves) can withstand higher temperatures, typically up to +850°F (454°C), but these are less common.

Key Differences in Pressure and Temperature Ratings:

• Plug Valves generally have higher pressure and temperature ratings compared to butterfly valves, making them more suitable for high-pressure, high-temperature applications like chemical processing, oil and gas pipelines, and other heavy-duty industrial uses.
• Butterfly Valves are more suited for low to medium-pressure applications with less demanding temperature conditions. They excel in systems where space is limited and high flow rates are required, such as water treatment, HVAC, and some chemical applications.



Advantages of Plug Valves

Durability and Tight Seal

Plug valves are renowned for their durability and exceptional sealing capabilities. The unique design of the plug, often cylindrical or conical, ensures that these valves can withstand harsh operating conditions, such as high pressures and extreme temperatures. The sealing mechanism in plug valves is highly effective, preventing leakage and offering a tight shut-off when the valve is closed. In some models, the plug and valve body are engineered with special seating materials that enhance the sealing performance, ensuring no fluid escapes even under challenging conditions. This makes plug valves ideal for industries such as oil and gas, chemical processing, and wastewater treatment, where leak prevention and robust performance are essential.

Suitable for High-Pressure Applications

Plug valves are particularly well-suited for high-pressure applications. Their construction allows them to handle elevated pressures with ease, making them a preferred choice for industries such as power generation, oil transportation, and petrochemical processing. The solid construction of the plug valve ensures that it can perform under high pressure without compromising the valve’s ability to shut off the flow of fluids. This characteristic is especially important in systems that require tight control of fluid movement, as even a slight leak in high-pressure environments could lead to catastrophic failures. Furthermore, plug valves often require minimal maintenance, which is a significant advantage in high-pressure systems where reliability and continuous operation are critical.



Advantages of Butterfly Valves

Cost Efficiency

Butterfly valves are renowned for their cost-effectiveness, offering a substantial reduction in both initial purchase price and installation costs compared to many other valve types, such as ball valves or gate valves. Their simple design, which consists of fewer components, contributes to lower manufacturing costs. Additionally, the lightweight body of butterfly valves requires less structural support, which further reduces the expenses related to installation. The compact size and wafer-style body allow for easy integration into existing pipelines without the need for specialized support structures, making them ideal for applications where budget constraints are a priority.

In addition to the reduced initial costs, butterfly valves are highly economical in terms of long-term operation. Their design minimizes wear and tear, extending their lifespan and reducing the frequency of replacements and repairs. These factors collectively make butterfly valves a highly cost-efficient solution for many industrial applications, including water treatment, HVAC, and process control systems​.

Easy Maintenance

One of the standout benefits of butterfly valves is their ease of maintenance. Their simple construction—typically comprising only a few moving parts—makes them less prone to mechanical failure compared to more complex valve types. With fewer components to wear out, these valves require less frequent servicing, which translates to lower maintenance costs over time.

The design of butterfly valves also allows for quick and easy disassembly. This simplifies the repair or replacement of parts, especially in critical applications where downtime can be costly. Furthermore, butterfly valves are often designed with features that facilitate cleaning and inspection, enhancing their reliability and performance in environments where hygiene and system integrity are essential, such as in the food and pharmaceutical industries​.



Key Differences Between Plug Valve vs Butterfly Valve

Criteria	Plug Valve	Butterfly Valve
Design and Operation	Uses a cylindrical or tapered plug that rotates to control the flow of fluid. Provides on/off control and can be used for throttling.	Uses a rotating disc mounted on a central shaft that moves 90 degrees to control the flow. Can be used for both on/off control and throttling.
Size and Flow Control	Typically used in smaller to medium-sized pipelines (up to 6–8 inches). Primarily for on/off control but can also throttle.	Commonly used for larger pipelines (6 inches and above). Offers precise throttling capabilities and on/off control.
Sealing and Pressure Rating	Provides a tight seal, suitable for low to medium-pressure applications. Known for minimal leakage during shutoff.	Generally offers reasonable sealing but is less tight compared to plug valves, especially at high pressures. Suitable for low to medium-pressure systems.
Size, Weight, and Installation	Bulky and heavier, requiring more space for installation, especially in larger sizes.	Compact, lightweight design, making installation easier and cost-effective, particularly in large-diameter pipelines.
Applications and Industries	Often used in industries like petrochemical, chemical processing, and gas, where reliable shutoff is needed.	Common in water treatment, HVAC, oil & gas, and power generation, especially for flow regulation and throttling.
Maintenance and Durability	May require more frequent maintenance due to wear on the plug, leading to potential leakage.	Requires less maintenance, but the seals can degrade over time, especially in throttling or high-temperature environments.



Applications and Use Cases

Plug Valve Applications

Plug valves are primarily used in applications where quick on/off control of fluid flow is necessary, particularly in smaller to medium-sized pipelines. They are highly suitable for low to medium-pressure systems and environments where reliability in sealing is crucial. Some of the key industries that benefit from plug valves include:

• Petrochemical and Chemical Industries: Plug valves are commonly employed in chemical and petrochemical processes where fluids need to be isolated effectively. The tight seal they provide makes them ideal for handling corrosive, viscous, or slurry-based fluids, ensuring safety and efficiency.
• Natural Gas and Oil Refineries: These industries often rely on plug valves for shutoff applications due to their excellent sealing properties and their ability to withstand varying pressures.
• Water Treatment Plants: In municipal or industrial water systems, plug valves can be used for controlling the flow of water in pipelines and ensuring precise shutoff when required.

Butterfly Valve Applications

Butterfly valves, with their lightweight and compact design, are widely used in industries requiring flow control in larger pipelines. The ability of butterfly valves to manage both on/off control and throttling makes them ideal for applications that require flow regulation with varying degrees of precision. Key industries that utilize butterfly valves include:

• Water and Wastewater Treatment: Butterfly valves are often employed in water distribution networks and wastewater treatment plants due to their ability to manage large flow rates efficiently. Their ability to throttle flow without the risk of leakage makes them suitable for these systems.
• HVAC Systems: In heating, ventilation, and air conditioning (HVAC) systems, butterfly valves are used for controlling the flow of air or water, providing a precise method of regulation for temperature control and energy efficiency.
• Oil and Gas: Butterfly valves are frequently found in pipelines within the oil and gas industry, where they handle large volumes of liquid or gas. The ability to modulate flow and the ease of operation makes them valuable for both transportation and refining processes.
• Power Generation: In power plants, butterfly valves are crucial for controlling the flow of steam, water, and other fluids in various systems. Their space-saving design is particularly beneficial in systems that require frequent operation.



When to Choose Plug Valve vs Butterfly Valve

Choosing between a plug valve and a butterfly valve depends on a variety of factors, including application needs, system specifications, and the fluid characteristics. Each valve type offers distinct advantages in different situations. Here’s a breakdown of when each valve is the better choice:

1. Application Requirements

• Plug Valves: These valves are ideal for applications that require precise control over high-pressure systems, particularly those handling viscous fluids, slurries, or gases. They provide a tight seal and are designed for infrequent adjustments.
• Butterfly Valves: Butterfly valves excel in low-pressure applications with high flow rates, offering fast-acting control with minimal space requirements. They are often preferred in large-diameter pipelines and for frequent cycling of flow.

2. Flow Control

• Plug Valves: The multi-turn operation of plug valves allows for more precise flow control. This makes them suitable for situations where the flow needs to be tightly regulated, such as in throttling operations.
• Butterfly Valves: Butterfly valves, with their quick quarter-turn operation, are better suited for on/off control or applications that require fast flow adjustments but with less precision.

3. Maintenance and Longevity

• Plug Valves: Although more complex and costly, plug valves are known for their durability, particularly in tough environments with high pressures and aggressive fluids. However, their intricate design may require more maintenance.
• Butterfly Valves: These valves are typically easier to maintain due to their simple design. They are less expensive and provide reliable service in systems where high precision and sealing are not critical.

4. Cost Considerations

• Plug Valves: While more expensive than butterfly valves, plug valves are a cost-effective choice when handling high pressures or slurry. Their longevity and tight sealing capabilities justify the higher initial investment.
• Butterfly Valves: Butterfly valves are generally more affordable due to their simpler construction and are a good option for large-scale systems where cost savings are a priority.



Conclusion

In conclusion, both plug valves and butterfly valves are essential components in fluid control systems, each offering distinct advantages depending on the application. Butterfly valves, with their simple design and quick quarter-turn operation, are cost-effective solutions for low-pressure, high-flow systems, making them ideal for applications requiring frequent cycling. However, they may not offer the tightest seal. On the other hand, plug valves provide a more complex but superior sealing capability, making them better suited for high-pressure, high-temperature, or viscous fluid applications. While they are slower to operate and require more maintenance, plug valves ensure reliable performance in critical environments. The choice between the two depends on factors such as pressure, temperature, fluid type, and system requirements, where each valve type offers its unique strengths.

Tanggong Valve Group offers high-quality plug valves and butterfly valves tailored to your specific needs—contact us today to find the perfect solution for your system requirements.
