Plug valves and gate valves are two widely used types of flow control devices in various industrial processes. Both are designed to regulate the flow of fluids, but they operate based on distinct principles and offer different advantages depending on the application. A plug valve uses a cylindrical or tapered plug to control the flow. This plug is rotated to align with or block the valve ports, making it effective for both on/off and throttling operations. In contrast, a gate valve uses a wedge-shaped disc that moves perpendicular to the flow of fluid, effectively blocking or allowing full flow when raised or lowered. Gate valves are primarily used for on/off applications where minimal flow resistance is required when the valve is open. These valves are crucial in industries such as oil and gas, water treatment, and chemical processing, where precise flow control and reliable sealing are essential.  In this article, we’ll explore the key differences between plug valve vs gate valve, and guide you in choosing the right one for your specific industrial needs.



Valve Design and Structure: Plug Valve vs Gate Valve

Plug Valves:

A plug valve features a central plug that is tapered or cylindrical, which is rotated within the valve body to control the flow of fluid. The plug is designed with one or more flow ports, which can be rotated to align with the inlet and outlet ports of the valve body, thereby regulating fluid flow. This design allows for smooth control over the direction and volume of the fluid passing through the valve. Plug valves are known for their simple, durable design, and ability to handle high-pressure systems effectively. The valve body and plug are often precision-cast to provide a tight seal, which is critical for preventing leaks under high-pressure or corrosive conditions​.

The plug in a plug valve is fully surrounded by the valve body, which protects it from wear and corrosion, especially when used in high-temperature or chemically aggressive applications. Some variations of plug valves, such as lubricated and sleeved types, are designed to improve sealing performance and ease of operation. These valves are suitable for use in a variety of applications, from chemical processing to high-pressure flow control​.

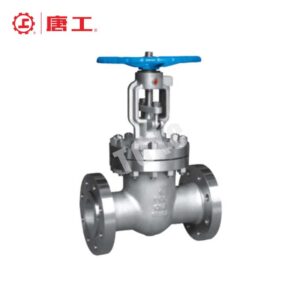

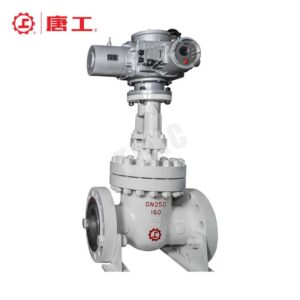

Gate Valves:

A gate valve operates by lifting a gate or wedge out of the flow path. The gate, which is typically rectangular or wedge-shaped, moves vertically to allow or block the flow of fluid. The motion of the gate is slow, requiring a considerable amount of time to fully open or close. This slower operation can be a disadvantage in applications where quick actuation is needed, such as in emergency shutoff situations. Gate valves are ideal for applications where a tight seal is necessary, and the flow of fluid needs to be fully isolated when the valve is closed.

The structure of a gate valve consists of a valve body, a gate (usually made of metal), and a sealing mechanism. The valve typically uses a threaded stem or actuator to control the movement of the gate. Due to the nature of the gate’s motion, gate valves often experience wear and tear on the sealing surfaces, especially when frequently operated. This can lead to leakage or performance degradation over time. While gate valves are versatile and can handle a wide range of fluids, including water, gas, and slurries, they are less suited for applications requiring frequent cycling or quick closure.



Key Differences Between Plug Valve vs Gate Valve

Criteria	Plug Valve	Gate Valve
Structure and Design	Cylindrical or conical plug with one or more holes; rotates within the valve body to control flow.	Wedge-shaped gate that moves up and down to control flow.
Operating Mechanism	Quarter-turn operation for fast opening and closing. Ideal for high-frequency cycling.	Multi-turn operation; slower, providing finer control over the flow rate.
Applications	Best for high-pressure, high-temperature systems, handling viscous fluids, and high-cycle applications.	Best for low-pressure systems requiring full-bore flow, such as water distribution, sewage, and pipelines.
Flow Characteristics	Lower flow capacity when open, but excellent for high-cycle operations in challenging conditions.	Full-bore flow when open, providing minimal pressure drop and high flow efficiency.
Pressure and Temperature Suitability	Suitable for high-pressure and high-temperature systems like oil and gas, chemical processing.	Best for moderate pressure and temperature systems like water treatment and sewage.
Speed and Ease of Operation	Fast operation with quarter-turn design; compact size, ideal for rapid actuation in space-constrained systems.	Slower, multi-turn design; better for systems that remain open or closed for long periods.



Advantages and Disadvantages of Plug Valves

Advantages of Plug Valves:

• Simple and Reliable Design: Plug valves feature a straightforward mechanical design, with few moving parts. This simplicity makes them less prone to failure and easier to maintain over time. The plug inside the valve rotates to control fluid flow, ensuring dependable operation in both low- and high-pressure systems.
• Ease of Operation: Plug valves are often operated with a quarter-turn motion, making them simple to control. This easy operation is particularly advantageous in smaller pipelines, where manual operation is common. The mechanism allows for efficient and quick shut-off.
• Versatility: These valves are capable of handling a variety of fluids, including high-pressure and high-temperature substances. Their versatility makes them suitable for industries such as oil and gas, chemical processing, and water treatment.
• Tight Shut-off: The tapered design of the plug creates a tight seal when the valve is closed, offering reliable shut-off capabilities. This is especially crucial in systems where leakage must be minimized or avoided entirely, such as in sensitive applications where contamination can be a concern.
• Low Maintenance: Plug valves require minimal maintenance, especially the non-lubricated variants. Their simple design and robust construction mean they have fewer parts that wear out compared to more complex valve types, leading to lower operational costs in the long term.

Disadvantages of Plug Valves:

• Limited Throttling Ability: While plug valves are excellent for on/off flow control, they are not ideal for throttling applications. They cannot precisely regulate fluid flow as effectively as valves designed specifically for throttling, such as globe valves. This limitation arises because partial opening can cause fluid turbulence and wear.
• High Torque Requirements: Due to the tight fit of the plug within the valve body, plug valves require significant torque to operate, especially when partially open. This can increase the complexity and cost of valve automation systems and the need for robust actuators.
• Sensitivity to Abrasive Fluids: Plug valves may not perform well with abrasive fluids like slurries or fluids containing solid particles. The abrasiveness can damage the sealing surfaces of the valve, leading to leakage and failure. This makes plug valves less suited for certain heavy-duty industrial applications that involve such substances.
• Reduced Flow Capacity: Compared to other valve types such as ball valves, plug valves have a smaller flow capacity. This can lead to higher pressure drops across the valve and may result in decreased system efficiency in applications requiring high flow rates.
• Temperature Sensitivity: In situations with fluctuating temperatures, plug valves may experience issues such as loss of tightness or excessive operational stiffness due to differential expansion between the plug and body. This can compromise their sealing ability, especially in systems subject to extreme thermal variations.



Advantages and Disadvantages of Gate Valves

Advantages of Gate Valves

• Low Fluid Resistance: When fully open, gate valves offer minimal resistance to fluid flow, resulting in less pressure drop. This makes them an energy-efficient choice for pipeline systems, especially where flow regulation is not necessary.
• Bidirectional Flow: Gate valves are versatile and can be installed in systems that require bidirectional flow. This allows them to be used in looped networks or systems where the direction of flow may vary.
• Low Operating Torque: Compared to other valve types, gate valves require relatively low torque to open or close, making them easier to operate and reducing the mechanical effort required. This can lead to lower operational costs.
• Simple Structural Design: Gate valves have a relatively simple design, which makes them easier to manufacture and maintain. This simplicity contributes to their cost-effectiveness in many applications.
• Durability and Erosion Resistance: When fully open, the gate valve’s sealing surfaces are less exposed to erosion by the fluid, making them more durable than some other valve types, such as globe valves, under similar conditions.
• Compact Design: Gate valves typically have a short structural length, making them suitable for installations in pipelines where space is limited. Their compact design is advantageous when dealing with confined spaces in complex systems.

Disadvantages of Gate Valves

• Large Size and Height: Gate valves require significant vertical space due to their design, which includes a rising stem in many models. This large size may not be suitable for installations where space is restricted.
• Slow Operation: One of the primary disadvantages of gate valves is their relatively slow operation. The opening and closing process can take time, which makes them less suitable for applications that require quick adjustments or rapid flow changes.
• Sealing Surface Wear: The sealing surfaces of gate valves are subjected to wear due to friction during opening and closing. This wear is more pronounced at higher temperatures and can eventually lead to leakage if not properly maintained.
• Dual Sealing Surfaces: Many gate valves feature two sealing surfaces, which can complicate maintenance and machining. The additional sealing surfaces can increase the complexity of valve repairs and may result in higher costs for replacement parts or maintenance.
• Limited Flow Control: Gate valves are primarily designed for on/off applications, meaning they are not ideal for throttling or precise flow control. They are not recommended for systems that require frequent adjustments to flow rates.



Maintenance Requirements for Plug Valves

Plug valves are widely used for their fast, efficient operation and robust design. However, like any mechanical component, they require regular maintenance to ensure optimal performance and longevity. One of the main components that need attention is the plug itself. Over time, the sealing surfaces can wear down due to the abrasive nature of the media or the repeated cycling of the valve. Regular inspection and lubrication (if applicable) are essential to prevent the plug from becoming sticky or seizing, which could impair the valve’s function.

The lubrication in a plug valve ensures smooth operation and reduces wear on the sealing surfaces. Depending on the type of plug valve (lubricated or non-lubricated), maintenance requirements may differ. Lubricated plug valves should have their lubrication replenished periodically, particularly in systems that deal with abrasive or viscous fluids. For non-lubricated plug valves, the maintenance focus should be on cleaning the valve to prevent buildup and maintaining the sealing performance.

Routine inspections for any signs of corrosion, cracking, or other forms of wear are crucial. Regular cleaning, proper storage, and ensuring the valve is free of debris will enhance its performance and extend its life cycle. In high-pressure, high-temperature environments, it is especially important to check for thermal expansion or contraction issues, as these can impact the sealing and overall functionality of the valve.



Maintenance Requirements for Gate Valves

Gate valves, typically used for applications requiring full, unobstructed flow, also require periodic maintenance to maintain their reliable operation. The key maintenance activities for gate valves revolve around the stem, the sealing surfaces, and the gate itself. Because gate valves are multi-turn valves, their operation is slower and involves more moving parts compared to plug valves. Therefore, the stem and packing gland must be regularly lubricated and inspected to avoid friction, which could lead to a hard operation or leakage.

Gate valves often operate in situations where they remain fully open or fully closed for extended periods, meaning their wear is generally more gradual. However, their slower opening and closing mechanisms can accumulate debris or suffer from corrosion, particularly if the media being transported is chemically reactive or contains suspended solids. This necessitates regular cleaning of the valve and inspection for any signs of wear or damage, especially around the gate’s sealing surfaces.

Since gate valves are prone to internal damage from prolonged exposure to high pressure or temperature fluctuations, inspecting the valve for signs of warping, corrosion, or failure in its seating mechanism is essential. In systems where valves are frequently opened and closed, operators should monitor the stem for any signs of stress or misalignment, as these can compromise the integrity of the valve. Additionally, the valve should be checked for proper sealing to prevent leaks, especially in applications involving hazardous or high-pressure media.



Cost and Budget Considerations: Plug Valve vs Gate Valve

When comparing the costs and budget considerations of plug valves and gate valves, it’s important to evaluate both the upfront cost and the long-term expenses associated with each type. Both valves are essential for controlling fluid flow in industrial applications, but their designs, materials, and maintenance requirements can impact total costs.

Upfront Purchase Price

In general, plug valves are more cost-effective than gate valves, especially when the latter is designed for heavy-duty industrial applications requiring robust materials. The simpler design of plug valves often translates into lower manufacturing costs, which results in a more affordable initial investment. However, when specialized materials or advanced features like lubricated or multi-port plug valves are required, the cost can rise.

Gate valves, on the other hand, especially those built for high-pressure or high-temperature applications, tend to be more expensive due to their more complex construction. Their multi-turn mechanism, as well as the variety of materials needed for certain applications, contribute to higher costs. Additionally, the presence of sealing mechanisms in gate valves for ensuring tight shutoff may add to the price.

Maintenance and Lifespan

Plug valves are generally easier and cheaper to maintain, given their simpler design and fewer moving parts. Their main maintenance concern is the wear of the plug due to fluid flow and potential leakage. Lubricated plug valves, while offering more protection, may require regular lubrication and maintenance, which can increase operational costs.

Gate valves, due to their multi-turn mechanism and the presence of a gate that can suffer from corrosion, wear, and sediment buildup, typically have higher maintenance costs. Gate valves are more susceptible to damage from prolonged exposure to high-pressure or high-temperature conditions, leading to the need for more frequent repairs or replacements. The slower operation of gate valves, while ideal for some applications, can also cause stress on the valve components, contributing to increased wear over time.

Operational Costs

The operational costs associated with gate valves can also be higher due to their slower operating mechanism, which may require more energy to actuate, particularly in large systems. This could be an important consideration in large-scale operations where efficiency and energy consumption are critical factors.

Plug valves, being quarter-turn valves, tend to have lower operational energy requirements. The quick action of the plug valve, which typically only requires 90 degrees of rotation, helps reduce energy consumption, making them more economical in systems that need frequent cycling or quick operation.

Application-Specific Costs

The choice between plug and gate valves can depend heavily on the specific application. For instance, in applications where a tight shutoff and frequent cycling are necessary, the plug valve’s cost-effectiveness may prove beneficial. Conversely, in situations where large flow volumes are involved and the valve will not need to be operated frequently, the gate valve’s higher initial cost may be justified by its longer lifespan and ability to handle higher pressures without degradation.



Making the Right Choice: When to Use a Plug Valve vs Gate Valve

The decision to use a plug valve or a gate valve largely depends on your specific application requirements. Consider the following factors:

• Pressure and temperature: If your system operates under high pressure and temperature, both valve types can work, but gate valves might be more suited for sustained high-pressure applications.
• Flow control needs: For systems requiring regular throttling or quick on/off control, plug valves are often the better choice. For systems requiring full, uninterrupted flow, gate valves may be more appropriate.
• Maintenance requirements: If minimizing maintenance is a priority, gate valves may be the better choice for low-frequency operations, while plug valves are more suited for systems with frequent cycling.



Applications in Various Industries: Plug Valve vs Gate Valve

Plug valves and gate valves, while both designed for controlling the flow of fluids, have distinct applications depending on the demands of the industry. Their specific characteristics such as sealing mechanisms, flow control, and ease of operation make them suited to different operational requirements.

Plug Valve Applications

Plug valves are known for their ability to provide quick and efficient on/off control, which makes them ideal for applications where fluid isolation is necessary. They are commonly used in industries that require a simple, reliable shut-off mechanism. Below are some key industries and applications where plug valves are essential:

1. Oil and Gas Industry: Plug valves are widely used in the oil and gas industry due to their ability to withstand high pressures and aggressive environments. They are frequently deployed in pipelines and systems where isolation and flow diversion are crucial, such as in gathering systems, compressor stations, and offshore rigs.
2. Chemical and Petrochemical Processing: Chemical industries often rely on plug valves for their resistance to corrosive substances. With designs such as elastomer-sleeved plug valves and fully lined plug valves, these valves are perfect for handling aggressive chemicals, providing a tight seal and preventing leaks during the flow of hazardous materials.
3. Water and Wastewater Treatment: Plug valves, especially non-lubricated types, are used in water and wastewater treatment plants for flow control and isolation purposes. Their ability to handle both clean and dirty water, slurries, and sewage makes them integral in municipal water management systems.
4. Power Generation: In power plants, plug valves are employed in systems dealing with steam, water, and gases, where efficient sealing and the ability to control flow in high-temperature environments are required. Their quick-opening and quick-closing mechanisms make them well-suited for high-demand, time-sensitive applications in energy production.
5. Mining and Industrial Applications: The mining industry makes extensive use of plug valves for slurry flow control. Their rugged construction allows them to withstand the abrasive materials often encountered in mining processes, ensuring minimal wear and reliable performance in harsh environments.

Gate Valve Applications

Gate valves are typically used in applications where full flow or complete shutoff is required. They are not ideal for throttling or flow regulation but excel in providing clear, unobstructed pathways for fluid transport. Some notable industries and applications include:

1. Oil and Gas Pipelines: Gate valves are a staple in the oil and gas industry, where they are used to regulate the flow of crude oil, natural gas, and refined products. Due to their full-bore design, gate valves are ideal for pipelines, allowing for minimal resistance and maximum flow efficiency.
2. Water Supply and Sewage Systems: Municipal water systems and sewage treatment plants rely on gate valves to control the flow of water and wastewater. Their ability to provide a strong seal when closed ensures that water and sewage are contained within the pipelines, preventing leaks and contamination.
3. Power Generation: Gate valves are frequently used in power generation facilities, especially in cooling systems and steam control systems. These valves are essential in controlling the flow of steam and water, managing pressure, and ensuring efficient system operation.
4. Marine Industry: In the marine industry, gate valves are used for water and fuel control in ships and offshore platforms. They offer a reliable sealing mechanism to prevent leaks and ensure the safe transport of liquids within a vessel’s systems.
5. Chemical and Pharmaceutical Industries: Gate valves are used in various chemical processing systems, particularly when high-pressure isolation is needed. Their simple operation and ability to provide a full, unobstructed flow path make them useful for controlling the flow of gases and liquids in reactors and other sensitive equipment.



Conclusion

In summary, plug valve and gate valve each offer unique advantages and are designed for different operational needs. By understanding their key differences in functionality, design, and application, you can make an informed decision that ensures your system operates safely, efficiently, and cost-effectively. Whether you’re designing a new system or maintaining an existing one, evaluating the specific needs of your application—such as flow control, pressure handling, and space constraints—will help you determine which valve is best suited for the job.
