Pneumatic Actuators Explained: Types and Working Principle

Pneumatic actuators are essential components in industrial automation, using compressed air to generate linear or rotary motion for tasks such as valve control, damper adjustment, and high-speed machine operations. Their appeal lies in their simplicity, reliability, cost-effectiveness, and safety in demanding or hazardous environments. This article explores how pneumatic actuators work, the different types available—from piston cylinders to rotary rack-and-pinion designs and innovative soft actuators—their key applications across industries like manufacturing, automotive, and robotics, as well as their advantages and limitations compared with electric and hydraulic alternatives. It also covers practical guidance on selection criteria, maintenance, and troubleshooting, helping decision-makers choose the right actuator to maximize efficiency, safety, and performance in their operations.

Pneumatic-Ball-valve

How Pneumatic Actuators Work

Basic Operating Principles

Pneumatic actuators rely on compressed air to generate motion. When pressurized air enters the actuator’s chamber, it creates a force that moves an internal element—typically a piston or diaphragm. This motion can be linear (straight-line) or rotary, depending on the design and mechanical conversion mechanism.

In linear actuators, compressed air pushes the piston within a cylinder, creating a mechanical push or pull.

  • In single-acting cylinders, a return spring (or sometimes gravity) retracts the piston once pressure is released.

  • In double-acting cylinders, air pressure alternates on both sides of the piston to extend and retract it, giving bidirectional control.

When rotary motion is required, some actuators use mechanisms like a rack-and-pinion setup or vane assemblies. These convert the linear force of the piston into rotational movement—ideal for tasks such as turning valves or actuating rotary elements.



Key Components

A typical pneumatic actuator comprises several essential parts:

  • Cylinder (Housing): The airtight chamber that receives compressed air and houses the piston or diaphragm.

  • Piston (or Diaphragm/Vane): The moving element that converts air pressure into mechanical force. A piston travels linearly; a diaphragm flexes; a vane rotates.

  • Piston Rod (or Shaft): Transfers the motion of the piston or diaphragm to the external load or mechanism.

  • Valves & Ports: These regulate air flow into and out of the cylinder. Common configurations include 2-way, 3-way, and 4-way (or 5-port) valves, enabling precise control over direction and speed of movement.

Valves control which port receives pressurized air and which ports allow exhaust—critical for managing single- or double-acting operations.

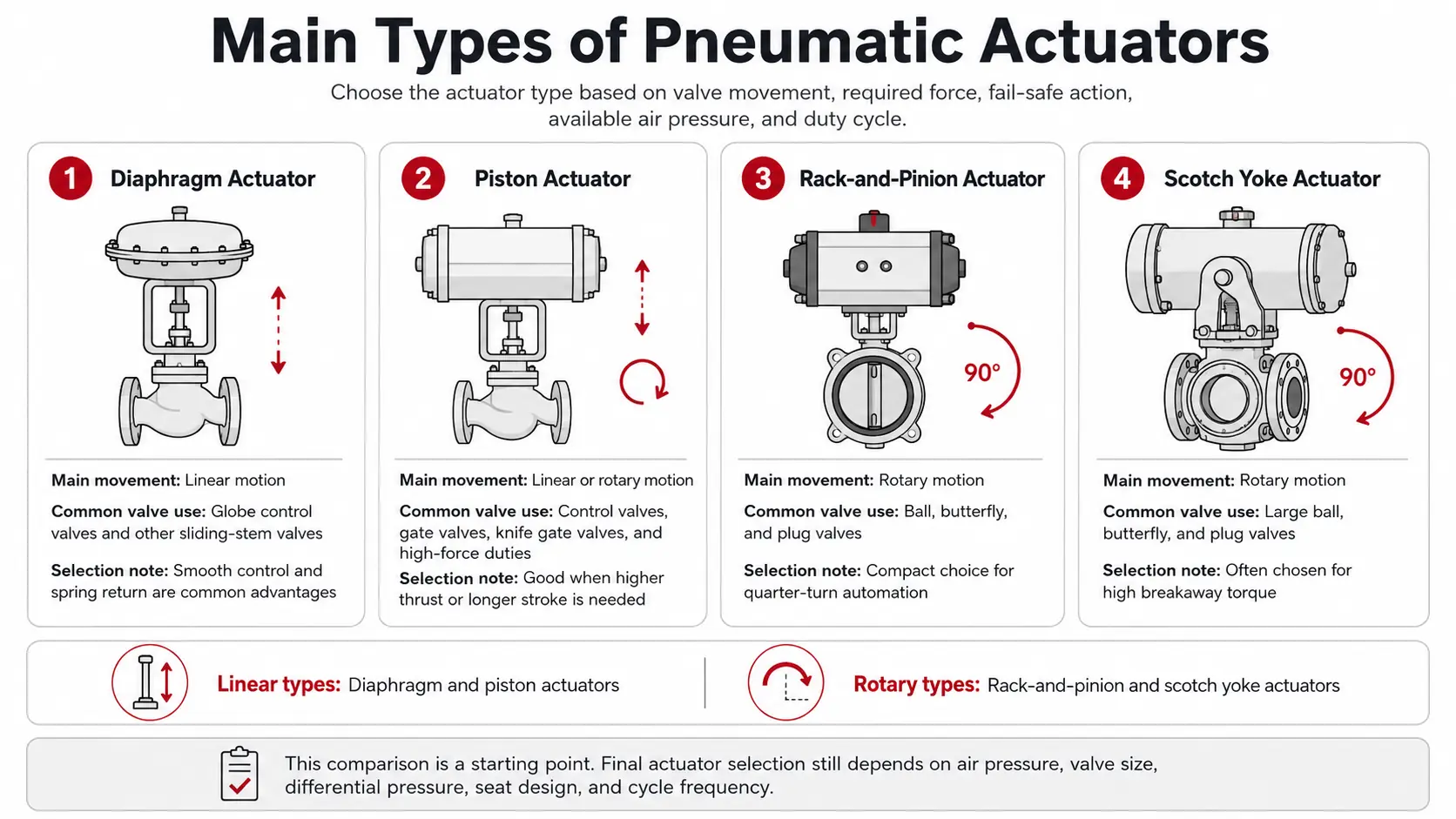

Types of Pneumatic Actuators

1. Linear Actuators

linear-actuator

Piston-style

  • These use a piston within a cylinder.

  • When compressed air pushes the piston, it moves in a straight line—either to extend or retract the rod.

  • Single-acting versions rely on a spring to return the piston; double-acting types employ air pressure on both sides for complete control of movement.

Spring/Diaphragm-style

  • These actuators feature a flexible diaphragm exposed to air pressure and opposed by a return spring.

  • As pressure builds, the diaphragm pushes against the spring, causing motion.

  • Adjusting the spring and air input allows fail-open or fail-closed behavior.



2. Rotary Actuators

pneumatic-rotary-actuator-rack-and-pinion-double-acting

Vane Type

  • Inside a cylindrical chamber, a vane is mounted on a shaft.

  • Pressurized air applied to one side causes the vane—and thus the shaft—to rotate through its stroke.

Rack-and-Pinion Type

  • Air pressure moves a piston that drives a rack gear linearly.

  • This rack engages a pinion gear, converting the movement into rotational motion—great for higher torque and precise angular control.

Scotch-Yoke

  • In this design, a piston pushes a block within a groove (the yoke).

  • The yoke then induces rotation through a coupling mechanism.



💡 Learn more about the key differences between pneumatic rotary and linear actuators and choose the right one for your valve systems and applications.



Applications of Pneumatic Actuators

Usage Across Industries

Pneumatic actuators are foundational to numerous sectors, valued for their speed, reliability, and safety:

  • Manufacturing & Process Control: Widely used across assembly lines, material handling systems, conveyor operations, and process control environments thanks to their adaptability and fast action.

  • Automotive: Employed in engine control, transmission systems, and braking components where responsiveness and compactness matter.

  • Robotics & Automation: Integral to robotic arms, grippers, and end-effector systems, offering rapid, repetitive motion essential for pick-and-place and handling tasks.

  • Packaging & Food Processing: Ideal for high-speed packaging, filling, labeling, and pick-and-place operations, particularly in hygienic settings thanks to their clean, non-contaminating nature.



Real-World Examples

  • Valve Control: Pneumatic actuators power both linear and quarter-turn valves—like butterfly and ball valves—within industries like chemical processing, wastewater treatment, energy, and pipelines. They handle opening, closing, and precise positioning as part of automated control loops.

  • Damper Manipulation: In HVAC and building systems, pneumatic actuators adjust dampers to regulate airflow, often driven by thermostats or building automation systems for climate control.

  • Automation Systems: From clamping and stamping machinery to pick-and-place modules, pneumatic actuators power repetitive, high-speed movements across manufacturing lines.

  • Material Handling: In both factory and logistics settings, pneumatic cylinders support pushing, lifting, pulling, and positioning of parts or products with efficiency and precision.



Advantages and Limitations

PNEUMATIC-DIAPHRAGM-CUT-OFF-VALVE

Key Benefits

  • High Speed & Force
    Pneumatic actuators deliver rapid response and strong actuation by harnessing compressed air, making them ideal for high-cycle, fast-motion applications.

  • Reliability & Simple Design
    Their straightforward construction—few moving parts and gas-based operation—ensures durability, low maintenance needs, and robust performance, even in tough environments.

  • Cost-Effectiveness
    Generally more affordable than electric or hydraulic alternatives, pneumatic systems incur lower initial and operational costs thanks to simpler components and the use of atmospheric air.

  • Safety in Hazardous Environments
    Since they don’t rely on electricity or flammable fluids, pneumatic actuators are safer for explosive or dust-prone zones. Their compressible medium also inherently cushions shock.



Common Drawbacks

  • Limited Precision & Load Capacity
    The compressibility of air reduces positional accuracy, especially for fine modulation or tight tolerances. They’re also less capable of handling extremely heavy loads compared to hydraulics.

  • Dependence on Compressed Air Systems
    These actuators require a well-maintained air supply infrastructure—including compressors, filters, and dryers—which adds complexity and cost.

  • Noise, Vibrations & Energy Inefficiency
    Operation often generates noticeable noise and vibration from airflow and exhaust. Plus, energy losses during air compression and leaks can reduce overall system efficiency.

  • Maintenance & Leakage
    Seals and valves are prone to wear, leading to potential air leaks. Routine maintenance is needed to ensure consistent performance and prevent efficiency loss.



Selection Criteria for Pneumatic Actuators

PNEUMATIC-FLUORINE-LINING-O-TYPE-CUT-OFF-BALL-VALVE

When choosing the right pneumatic actuator, several critical factors determine whether an actuator will work effectively and reliably in your application:

1. Load Requirements

  • Force or Torque Needed: Calculate the required force (for linear motion) or torque (for rotary motion). A simple formula:
    Actuator force = piston area × air pressure — minus any spring return force for single-acting designs.

  • Safety Margin: In valve applications, always include a safety factor—commonly an extra 25% above operational torque—to ensure idling or reversal doesn’t impact performance.

2. Stroke Length & Speed

  • Travel Distance: Match the actuator’s stroke length or rotational range to your operational requirements. Rodless actuators are more compact and can handle longer strokes within tighter spaces.

  • Cycle Speed & Frequency: Ensure the actuator can deliver quick and frequent motion cycles without sacrificing performance or life span.

3. Precision and Control Requirements

  • Positional Accuracy: For applications needing fine control or repeatability, rodless actuators or models with built-in feedback mechanisms are preferable.

  • Modulation Capability: If you require variable motion or throttling (as opposed to simple on/off), ensure the actuator supports modulating control or integrates with positioners.

4. Environmental and Application Conditions

  • Space Constraints: Consider actuator dimensions—rodless cylinders offer compact form factors for tight installations.

  • Operating Conditions: Account for temperature extremes, corrosion, moisture, explosive atmospheres, and applicable standards (e.g., IP rating, ATEX certification).

  • Durability Requirements: Evaluate expected lifespan and maintenance access—repairable designs might be a better fit for critical, long-term use.



Maintenance and Troubleshooting

Routine Checks & Leak Prevention

  • Visual Inspections
    Regularly check for air leaks by listening for hissing sounds or using soapy water at connections and seals. These can significantly impact performance and pressure consistency.

  • Examine hoses, fittings, and seals for wear, cracks, misalignment, or corrosion. Replace or tighten as necessary to maintain system integrity.

Air Supply Maintenance

  • Monitor pressure regulators and ensure they’re correctly set.

  • Clean or replace filters regularly to prevent blockages and pressure drops.

  • Flush airlines as needed to sustain airflow.

Lubrication & Contamination Control

  • Keep moving parts properly lubricated to minimize friction.

  • Ensure dry, clean air supply—install moisture separators or air dryers if contamination or excessive humidity is detected.



Common Issues & Solutions

IssueCauseSolution
Slow or Erratic MotionLow air pressure, sticking valves, worn seals, poor lubricationCheck pressure, clean or adjust valves, lubricate, inspect seals and replace if worn
Air LeakageDamaged seals or fittings, loose connectionsUse leak detection, tighten fittings, replace seals or worn parts
Sticking or JammingDebris, corrosion, seal deterioration, poor alignmentThoroughly clean components, replace seals, use corrosion-resistant materials, realign actuator
Noisy OperationLoose parts, turbulence from improper airflowTighten components, adjust flow settings, secure mounting and align actuator
Pressure Drops / Insufficient ForceLeaks, clogged filters, regulator mis-settingsFix leaks, clean/replace filters, correctly set pressure regulators



Troubleshooting Approach

  • Symptom Identification
    Ask: What’s wrong? (e.g., sluggish motion, hissing sound)
    When did it begin? (sudden failure or gradual decline)
    Where is it occurring? (actuator cylinder, valve, pipeline)

  • Reference System Documentation
    Study schematics or manufacturer manuals for pressure ratings, flow paths, stroke length, regulator settings—these are helpful for narrowing down the issue.

  • Component Inspection & Testing
    Disassemble if needed to inspect seals, bushings, pistons, and valve internals.
    Listen for abnormal sounds, manually test movement, and use visual cues to detect wear.

Corrective Actions Based on Diagnosis

  • Leaking? Repair or replace seals and tighten connections.

  • Slow or stuck? Clean, lubricate, and replace worn parts.

  • Insufficient movement? Confirm pressure, airflow, and sizing.

  • Noise or jitter? Secure mounting, align components, and adjust airflow.



Comparison: Pneumatic vs. Electric and Hydraulic Actuators

Pneumatic Actuators

PNEUMATIC-PISTON-CUT-OFF-VALVE

Pros:

  • Fast and economical: Offer rapid cycle speeds with a low initial cost, making them a strong choice for light to medium-duty tasks

  • Simple, reliable design: Fewer moving parts and straightforward mechanisms reduce downtime and maintenance needs

  • Good for hazardous environments: Since they use clean air rather than electricity or fluid, they’re safer in potentially explosive or wet settings

Cons:

  • Limited force and precision: Compressed air inherently limits power output and fine control—steady modulation or heavy loads often exceed their capability

  • Lower total efficiency: Losses in air compression and system plumbing reduce operating efficiency

  • Susceptible to environmental effects: Air moisture and extreme temperature swings can affect actuator performance and longevity



Electric Actuators

Electric-Flange-Ball-Valve

Pros:

  • High precision and repeatability: Ideal for applications where exact positioning, speed control, and complex motion profiles matter

  • Efficient and clean: With overall efficiency around 80% and no risk of fluid leaks, they’re energy-friendly and low-maintenance

  • Highly programmable: Easily integrated into networked control systems for diagnostics, feedback, and multi-axis coordination

Cons:

  • Higher upfront cost and complexity: More expensive due to embedded electronics and sophisticated control systems

  • Less suitable for hazardous areas: Electric components can be unsafe or require special certification in explosive or wet environments

  • Size and environmental limits: Electric actuators may be bulkier and have tighter operating temperature ranges



Hydraulic Actuators

Electro Hydraulic Linkage Butterfly Valve

Pros:

  • Extreme force capabilities: Can produce significantly higher torque or thrust relative to size—often outperforming pneumatics by up to 25×

  • Highly responsive and stable: Incompressible fluids allow precise, strong, and smooth control, even with minimal external feedback

  • Built-in safety features: Often include rod locks, dump valves, and bypass circuitry for safer operation in emergencies

Cons:

  • Potential for leaks and contamination: Hydraulic fluid leaks can be hazardous, messy, and environmentally problematic

  • Complex and costly infrastructure: Requires pumps, reservoirs, heat exchangers, and extensive maintenance

  • Less ideal in clean or food-safe environments: Fluid spills can be problematic in sensitive settings



Quick Comparison Table

Actuator TypeStrengthsLimitationsBest Use Cases
PneumaticFast, inexpensive, simple, safeLess precise, lower force, compressibleLightweight automation, harsh or explosive environments
ElectricPrecise, programmable, efficient, cleanHigher cost, complexity, less ruggedRobotics, valve modulation, multi-axis positioning
HydraulicHigh force, powerful, responsiveLeakage, complex infrastructureHeavy-duty lifting, construction, mobile machinery



Conclusion

Pneumatic actuators remain a cornerstone of industrial automation, offering a powerful combination of speed, reliability, and safety for applications ranging from valve control and material handling to robotics and process control. While they provide clear advantages in cost-effectiveness and suitability for harsh environments, they also come with limitations such as lower precision and dependency on compressed air systems compared to electric and hydraulic actuators. Selecting the right actuator depends on balancing key factors like load, speed, accuracy, and environmental conditions, as well as considering long-term maintenance needs. By understanding how pneumatic actuators work, the types available, their benefits and drawbacks, and how they compare with other technologies, industries can make smarter choices that improve efficiency, reduce downtime, and ensure optimal performance across diverse automation systems.



Frequently Asked Questions

What is a pneumatic actuator, and how does it operate?
A pneumatic actuator converts compressed air into mechanical motion—either linear or rotary—using a piston or diaphragm to drive valves or automation components.
How do I choose the right pneumatic actuator for my application?
Consider factors like load (force or torque), stroke length or angle, speed, precision needs, air supply pressure, environmental conditions, and maintenance access.
What are the main differences between single‑acting and double‑acting pneumatic cylinders?
Single‑acting cylinders use air pressure in one direction and a spring to return, ideal for simple, cost-effective tasks. Double‑acting cylinders use air pressure on both sides for bidirectional control, better for precision and high-cycle operations.
In which industries are pneumatic actuators most commonly used?
Pneumatic actuators are widely used in industries such as manufacturing, automotive, pharmaceuticals, food processing, robotics, and process control—valued for their cleanliness, speed, and safety.
What are common maintenance issues with pneumatic actuators, and how can I troubleshoot them?
Frequent problems include air leaks, slow or erratic motion, worn seals, clogged filters, and pressure drops. Regular checks, cleaning, leak testing, lubrication, and component inspection help identify and resolve issues efficiently.
