Actuated ball valves are essential components in fluid control systems, used across various industries to manage the flow of liquids or gases. These valves can be automated using different types of actuators, with pneumatic and electric being the most common. Choosing between these two types can significantly impact system performance, efficiency, and reliability. In this article, we provide a detailed comparison of pneumatic vs electric actuated ball valves to help you determine which is best suited for your application.

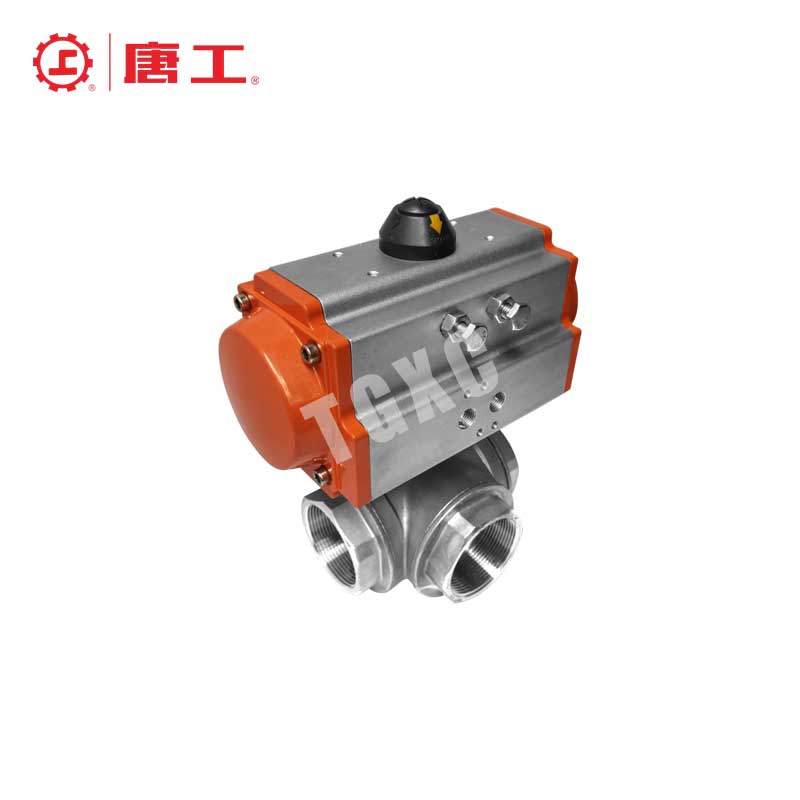

Overview of Pneumatic Actuated Ball Valves
Pneumatic actuated ball valves use compressed air to operate the valve mechanism. These valves are known for their rapid response times, reliability, and suitability for hazardous environments where an electric spark could pose a safety risk. Pneumatic actuators are often chosen for applications that require high-speed operation and robust performance in harsh conditions.
Advantages of Pneumatic Actuated Ball Valves:
- Fast actuation speed
- Suitable for hazardous or explosive environments
- Simple design with fewer electronic components
Disadvantages:
- Requires a compressed air supply
- May need regular maintenance of air lines and filters
Overview of Electric Actuated Ball Valves
Electric actuated ball valves use an electric motor to control the valve’s movement. These valves are ideal for applications that require precise control over valve positioning and are often used in automated systems where integration with electrical control systems is essential. Electric actuators are typically slower than pneumatic actuators but offer superior accuracy and control.
Advantages of Electric Actuated Ball Valves:
- Precise control over valve positioning
- Easier integration with electrical control systems
- Minimal maintenance requirements
Disadvantages:
- Higher initial cost
- Slower actuation compared to pneumatic systems
Comparative Analysis: Pneumatic vs Electric Actuated Ball Valves
Performance Metrics
Pneumatic actuators are known for their rapid response times and ability to generate high torque, making them suitable for applications where speed is critical. Electric actuators, on the other hand, provide more controlled and consistent torque, which can be advantageous in applications that require precise modulation of flow.
| Metric | Pneumatic Actuated Ball Valves | Electric Actuated Ball Valves |
|---|---|---|
| Speed | 1–3 seconds (smaller valves) | 5–10 seconds (depending on motor power) |
| 3–6 seconds (medium valves) | 10–15 seconds (larger valves) | |
| Torque | 10–8,000 Nm (dependent on air supply) | 5–5,000 Nm (motor and gearing dependent) |
| Response Time | 0.2–1 second | 2–5 seconds |
Costs
Initial Investment: Pneumatic actuators generally have a lower upfront cost compared to electric actuators. This cost advantage is attributed to their simpler design and fewer components. However, the necessity for an air supply system, including compressors and air preparation units, can offset these savings. In contrast, electric actuators, while more expensive initially, do not require additional infrastructure beyond electrical wiring, potentially reducing installation complexity and associated costs.
Operational Expenses: Over time, pneumatic systems may incur higher operational costs due to the continuous energy consumption of air compressors and the maintenance of air lines to prevent leaks. Electric actuators, being more energy-efficient, often result in lower energy costs during operation. Additionally, electric actuators typically demand less maintenance, as they lack the wear-prone seals and moving parts found in pneumatic systems.
Safety Considerations
Pneumatic actuators are often favored in hazardous environments due to their inherent safety features. They utilize compressed air as a power source, eliminating the risk of electrical sparks, which is crucial in explosive atmospheres. Additionally, pneumatic systems can be designed with fail-safe mechanisms, such as spring-return actuators, ensuring valves return to a predetermined position during power loss or system failure.
Electric actuators, while offering precise control, require careful consideration in hazardous settings. They must comply with stringent explosion-proof standards to prevent ignition sources. Advancements in electric actuator design have led to models with enhanced safety features, including explosion-proof enclosures and fail-safe options.
Reliability Factors
Pneumatic actuators are renowned for their robustness and simplicity, contributing to high reliability. Their straightforward design results in fewer moving parts, reducing the likelihood of mechanical failure. Moreover, pneumatic systems are less susceptible to environmental factors such as electromagnetic interference, which can affect electronic components.
Electric actuators offer reliability through precise control and programmability, beneficial in applications requiring accurate positioning. However, they are more complex, with electronic components that may be vulnerable to environmental conditions like moisture and temperature fluctuations. Regular maintenance and protective measures are essential to ensure their long-term reliability.
Integration with Control Systems and Automation
Pneumatic actuators are renowned for their rapid response times and high force output, making them suitable for applications requiring swift and robust actuation. They are commonly integrated into control systems using electro-pneumatic positioners, which convert electrical control signals into pneumatic outputs to modulate valve positions. This setup facilitates compatibility with standard process control signals, such as 4-20 mA or digital protocols. However, the necessity for a compressed air infrastructure can introduce complexity and maintenance considerations.
Electric actuators provide precise control and are easily interfaced with modern automation systems. They can be directly connected to digital control systems via various communication protocols, including Modbus, Profibus, and Ethernet/IP. This direct integration enables advanced diagnostics, remote monitoring, and seamless incorporation into distributed control systems (DCS) or programmable logic controllers (PLC). The absence of a compressed air requirement simplifies installation and reduces maintenance associated with pneumatic systems.
Application Suitability
Pneumatic actuators are particularly advantageous in environments where intrinsic safety is a concern, as they do not generate sparks, reducing the risk of ignition in explosive atmospheres. Industries such as oil and gas, chemical processing, and mining often prefer pneumatic actuators for their robustness and ability to operate in harsh conditions.
Electric actuators are well-suited for applications where accurate positioning and modulation are required, such as in HVAC systems, water treatment facilities, and food and beverage processing. Electric actuators are advantageous in environments where compressed air is unavailable or where noise reduction is desired, as they operate more quietly than pneumatic actuators. However, they may not be suitable for explosive atmospheres unless specifically designed for such conditions, and their performance can be affected by power supply stability and environmental factors like temperature and humidity.
Comparison Table For Pneumatic vs Electric Ball Valves
| Dimension | Pneumatic Actuated Ball Valves | Electric Actuated Ball Valves |
|---|---|---|
| Design | Simpler, fewer electronic components | More compact, integrates easily into control systems |
| Installation | Requires air compressors and tubing | Easier to install with only electrical wiring |
| Force and Speed | High force and speed, ideal for fast operations | Slower speed, more precise force control |
| Stalling | Better at handling stalling without damage | May overheat or fail if stalled for prolonged periods |
| Resistance to Moisture | Generally more resistant to moisture | Requires proper sealing and enclosures |
| Temperature Range | Operates effectively in extreme temperatures | Limited temperature tolerance, may need thermal protection |
| Component Cost | Lower initial cost, requires additional equipment | Higher initial cost, fewer auxiliary components needed |
| Operating Cost | Ongoing costs for air generation and maintenance | Lower operating costs, minimal maintenance |
| Heating | Less prone to overheating | Can generate heat, may require cooling mechanisms |
| Spring-Return Options | Commonly features spring-return for fail-safe operation | May require additional mechanisms for fail-safe |
| Maintenance Requirements | Requires frequent maintenance for compressors and seals | Minimal maintenance, complex repairs if electronics fail |
| Precision | Less precise due to air pressure fluctuations | Better precision in positioning and control |
| Fail-Safe Capability | Naturally fail-safe with spring-return options | Requires additional mechanisms for fail-safe |
Conclusion
Choosing between pneumatic and electric actuated ball valves comes down to the unique requirements of your application. Pneumatic actuators are ideal for operations that require high speed, robust performance in extreme conditions, and fail-safe capabilities in hazardous environments. They are cost-effective initially but come with higher ongoing operational costs due to air compression and maintenance.
Electric actuators, on the other hand, offer precise control, energy efficiency, and ease of integration with advanced automation systems. They are well-suited for applications where precision, lower energy consumption, and quieter operation are critical. While electric actuators involve a higher upfront cost, they provide long-term savings through minimal maintenance and direct power efficiency.
By understanding the specific differences in speed, torque, installation requirements, maintenance, energy efficiency, and safety, you can make an informed choice that aligns with your operational goals. Whether you need the rapid response and resilience of pneumatic systems or the precision and easy automation integration of electric actuators, both options provide valuable solutions for different industrial needs.
