For industrial valves, the choice between pneumatic vs electric actuators is rarely about which technology is better in every situation. A pneumatic actuator may give faster action and a compact force package when clean plant air is already available. An electric actuator may be easier where compressed air is not available, where positioning feedback matters, or where a plant wants simpler remote electrical integration.
The practical question is not only how the actuator moves. Engineers and procurement teams also need to consider valve type, torque or thrust, cycle frequency, fail position, control accuracy, site utilities, hazardous-area requirements, maintenance skill, and total installed cost. A ball valve, butterfly valve, globe control valve, or gate valve may point to a different actuator choice even when the process medium is similar.
This guide compares pneumatic and electric actuators from an industrial valve selection point of view. It focuses on actuator choice, valve duty, and application fit, while leaving separate control-circuit accessories outside the scope. For more valve comparison topics, you can also review MacoTango’s valve comparison guides.
What Pneumatic and Electric Actuators Do in Valve Automation
A valve actuator converts an energy source into mechanical movement, so the valve can open, close, or modulate without manual operation. In industrial valve packages, that movement is usually rotary for ball valves, butterfly valves, and plug valves, or linear for globe valves, gate valves, and many control valve designs.

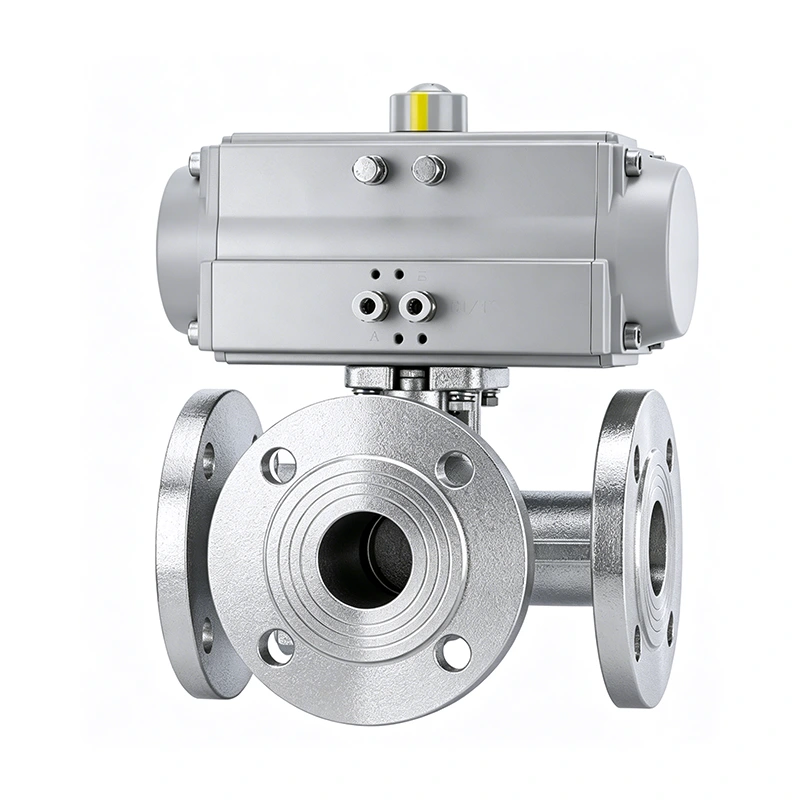

A pneumatic valve actuator uses compressed air to move a piston, rack-and-pinion mechanism, Scotch yoke, diaphragm, or similar drive element. It is commonly selected where the plant already has stable instrument air, where fast cycling matters, or where a spring-return fail action is required for a defined fail-open or fail-closed position.
An electric valve actuator uses an electric motor, gearbox, limit system, and feedback elements to produce rotary or linear movement. It is often preferred where compressed air is not available, where remote electrical integration is easier, or where the valve needs controlled positioning with less dependence on an air distribution system.
The key point for this comparison is simple: pneumatic and electric actuators can both automate industrial valves, but they solve different site, control, speed, and maintenance problems.
Pneumatic vs Electric Actuators: Key Differences at a Glance
The fastest way to compare pneumatic vs electric actuators is to look at the whole valve package, not only the actuator label. Power source, movement speed, torque or thrust margin, fail position, site utilities, and maintenance access all change the final choice.
Use this table as a first screening tool before checking detailed actuator sizing and valve data.
| Comparison Point | Pneumatic Actuator | Electric Actuator | What It Means for Valve Selection |
|---|---|---|---|
| Power source | Compressed air | Electric power | Choose based on what the site can supply reliably near the valve. |
| Speed | Usually faster for on-off duty | Often slower, depending on motor and gearbox | Fast shutdown or frequent cycling often favors pneumatic actuation. |
| Torque or thrust | High output in a compact actuator | Strong output is possible, but size and cost rise | Check breakaway torque, differential pressure, valve size, and safety margin. |
| Control accuracy | Good when specified for modulating service | Often easier to integrate with position feedback | Control valves need closer attention than simple on-off valves. |
| Fail position | Spring-return fail-open or fail-closed is common | May hold position unless fail-safe options are added | Process safety often decides the actuator style before cost does. |
| Installation | Needs air line, air quality, and pressure stability | Needs power supply, cable routing, and suitable enclosure | The easier choice depends on existing plant infrastructure. |
| Maintenance | Air leaks, seals, springs, and air quality need attention | Motor, gearbox, switches, enclosure, and electronics need attention | Select the actuator your maintenance team can support consistently. |
| Hazardous or wet areas | Often attractive where electrical equipment at the valve is limited | Requires the correct enclosure and certification for the area | Area classification and environmental exposure must be checked early. |
In short, pneumatic actuators usually win when speed, compact output, plant air, and spring-return behavior are the main priorities. Electric actuators often win when the site lacks compressed air, wants easier electrical integration, or needs more direct position feedback. The right answer still depends on the valve body, service conditions, and required fail position.
When to Choose Pneumatic Actuators
Choose a pneumatic actuator when the plant already has reliable compressed air and the valve needs fast, strong, repeatable movement. Pneumatic valve actuators are especially common on on-off ball valves, butterfly valves, emergency isolation valves, and many control valve packages where compact output and defined fail action matter.
They are often the practical choice when a valve must cycle frequently, close quickly, or move a larger valve without installing a large electric motor at the valve location.
- Fast on-off operation: Pneumatic actuators are usually well suited to valves that must open or close quickly, especially in isolation and shutdown duties.
- Compact force output: Compressed air can provide high torque or thrust in a relatively compact actuator body, which helps on larger rotary valves or higher-friction valve services.
- Spring-return fail action: If the valve must move to fail-open or fail-closed when air pressure is lost, a spring-return pneumatic actuator is often a straightforward option.
- Plant air already available: In refineries, chemical plants, power plants, and process units with stable instrument air, pneumatic actuation can be easier to standardize across many valves.
- Harsh or hazardous locations: Pneumatic actuation can reduce the amount of electrical equipment mounted directly at the valve, although the complete package still needs to match the site classification and control requirements.
The main caution is that a pneumatic actuator is only as reliable as its air supply, sizing margin, seals, and maintenance routine. Air pressure, air quality, breakaway torque, valve friction, and required fail position should be checked before treating pneumatic actuation as the default choice.
When to Choose Electric Actuators
Choose an electric actuator when compressed air is not available, when running an air line would be expensive, or when the valve package needs easier electrical integration. Electric valve actuators are common on remote valves, utility systems, water treatment lines, storage tanks, and automated process valves where opening speed is important but not the only priority.
Electric actuation can also be attractive when the plant wants position feedback, local manual override, digital indication, or more direct connection to an electrical control system without depending on a plant-wide compressed air network.
- No compressed air required: Electric actuators can simplify valve automation where only electrical power is available near the valve.
- Useful position feedback: Electric actuators often make open, closed, and intermediate position feedback easier to integrate into remote monitoring systems.
- Good for slower or less frequent operation: Many electric actuators are suitable for isolation valves, tank valves, and utility valves that do not need very rapid cycling.
- Lower dependence on air-system maintenance: The actuator does not rely on air pressure stability, air dryers, or air distribution piping.
- Convenient for remote sites: Electric operation can be easier for unmanned stations, water systems, and distributed valve locations where compressed air would add complexity.
The main caution is that electric actuators must be selected carefully for torque, duty cycle, enclosure protection, ambient temperature, power supply, and fail-position requirements. In some services, an electric actuator may hold its last position during power loss unless the package includes a suitable fail-safe design.
Match the Actuator to Valve Body, Duty and Fail Position
The actuator should be selected around the valve body and duty, not as a separate afterthought. A quarter-turn ball valve, a butterfly valve, a rising-stem gate valve, and a globe control valve place very different demands on motion type, torque or thrust, travel time, and positioning accuracy.
For part-turn valve assemblies, mounting dimensions and torque references should also be checked against recognized requirements such as part-turn actuated valve assembly requirements. This helps avoid a common mistake: choosing an actuator that looks suitable by power source but does not properly match the valve interface, torque demand, or fail-position need.
| Valve or Duty | Typical Motion Need | Pneumatic Fit | Electric Fit | Selection Note |
|---|---|---|---|---|
| Ball valve | Quarter-turn rotary | Strong for fast on-off and spring-return shutoff | Useful for remote operation and position feedback | Check breakaway torque and required closing speed. |
| Butterfly valve | Quarter-turn rotary | Good for compact automation on larger sizes | Good where slower, powered movement is acceptable | Disc torque changes with pressure, seat type, and flow condition. |
| Globe control valve | Linear travel and modulation | Common for throttling service and fail-safe action | Useful where electric positioning and feedback are preferred | Match thrust, stroke, control accuracy, and fail position. |
| Gate valve | Multi-turn or linear travel | Possible, but actuator type must suit long stroke or high thrust | Often practical for multi-turn operation | Check stem movement, thrust, travel time, and manual override needs. |
| Emergency isolation | Fast, defined final position | Often preferred for fast spring-return action | May need a dedicated fail-safe design | Fail-open or fail-closed behavior should be decided before actuator sizing. |
| Remote utility valve | On-off, usually moderate speed | Good only if clean air is already available nearby | Often convenient when power is easier than air supply | Installed utility cost may matter more than actuator purchase price. |
For quarter-turn valves, pneumatic and electric actuators can both be valid choices. The better option depends on how quickly the valve must move, how often it cycles, what happens during air or power loss, and how much feedback the control system needs. If your main concern is a ball valve package, MacoTango also has a dedicated comparison of pneumatic vs electric actuated ball valves.
Lifecycle Cost, Energy and Maintenance Trade-Offs
The lower purchase price is not always the lower lifecycle cost. For pneumatic vs electric actuators, the real cost depends on what the site already has: compressed air capacity, electrical power, cable routing, maintenance skill, spare parts, cycle frequency, and the number of automated valves in the plant.
A pneumatic actuator can be economical when the plant already has reliable instrument air and many valves share the same air infrastructure. However, compressed air is not free energy. Air generation, drying, distribution, pressure stability, and leakage control all affect operating cost. For plants reviewing air-system efficiency, the U.S. Department of Energy provides guidance on compressed air system performance.
An electric actuator may cost more upfront in some sizes or duty classes, but it can reduce the need for air piping near remote valves. It may also simplify position feedback and local indication. The trade-off is that electric actuators bring their own maintenance points, including motor condition, gearbox wear, enclosure protection, moisture ingress, thermal limits, and power-supply compatibility.
For high-cycle on-off valves, pneumatic actuation often remains attractive because of fast movement and simple mechanical response. For low-cycle remote valves, electric actuation may be easier to justify because the site can avoid a dedicated air supply. For modulating service, the comparison should include positioning stability, duty cycle, heat generation, feedback requirements, and how easy the maintenance team can diagnose faults over time.
A useful rule is to compare the complete installed package, not only the actuator price. Include the actuator, mounting kit, power or air supply, commissioning time, expected cycling, spare parts, and the cost of downtime if the valve fails to reach its required position.
Safety, Environment and Site Conditions
Safety and site conditions can outweigh speed, cost, and convenience. Before choosing a pneumatic or electric actuator, confirm the valve’s required fail position, the area’s classification, the ambient temperature, the risk of water or dust ingress, and whether the actuator will be exposed to vibration, corrosion, outdoor weather, or washdown conditions.
Pneumatic actuators are often attractive in hazardous or harsh areas because the actuator movement is powered by compressed air. A spring-return pneumatic actuator can also give a clear fail-open or fail-closed action when air pressure is lost. Still, the complete valve package must be checked carefully, because accessories, feedback devices, tubing, air quality, and installation practice can affect reliability.
Electric actuators need the correct enclosure, temperature rating, ingress protection, and hazardous-area certification when installed in classified locations. For explosive atmospheres, equipment selection should follow the project’s applicable standards and certification requirements. The IECEx certified equipment scheme gives a useful reference point for certified equipment for hazardous areas.
- Fail-closed service: Often used when stopping flow is safer during utility loss, leakage risk, or shutdown events.
- Fail-open service: Often used when flow must continue for cooling, relief, purge, or process protection.
- Fail-last service: Sometimes acceptable for non-critical isolation or controlled positioning, but it must be intentional.
- Outdoor service: Check rain, dust, UV exposure, corrosion, enclosure sealing, and temperature range.
- Wet or corrosive service: Check actuator housing material, coatings, fasteners, cable entries, tubing, and maintenance access.
The safest actuator choice is the one that reaches the required valve position under the expected failure condition. That failure condition may be loss of air, loss of power, loss of signal, mechanical sticking, high differential pressure, or a site event that limits operator access.
Common Selection Mistakes to Avoid
Many actuator problems start before installation. The actuator may be a good product, but it can still perform poorly if it is matched to the wrong valve duty, undersized for breakaway torque, or selected without checking how the site will supply air or power.
Before choosing between pneumatic and electric actuation, avoid these common mistakes:
- Choosing by actuator type only: A pneumatic actuator is not automatically better for every fast valve, and an electric actuator is not automatically better for every remote valve.
- Ignoring breakaway torque or thrust: Valve size, seat design, pressure differential, packing friction, temperature, and media condition can all increase the force needed to move the valve.
- Missing the required fail position: Fail-open, fail-closed, and fail-last behavior should be decided before actuator style and size are finalized.
- Forgetting cycle frequency: A valve that moves once a week has different actuator demands from a valve that cycles many times per hour.
- Assuming plant utilities are stable: Pneumatic actuators need suitable air pressure and air quality; electric actuators need suitable power supply and environmental protection.
- Using the wrong motion type: Quarter-turn, multi-turn, and linear valves require different actuator output styles and mounting arrangements.
- Overlooking manual operation: Some services need handwheel, manual override, or safe local operation when automation is unavailable.
A better approach is to start with the valve duty: medium, pressure, temperature, valve type, movement type, travel time, control accuracy, and required safety position. Once those conditions are clear, the pneumatic vs electric actuator decision becomes much easier and more defensible.
Need Help Choosing an Actuator for an Industrial Valve?
Pneumatic actuators are often the better choice when speed, compact output, plant air, and spring-return fail action are the main priorities. Electric actuators are often the better choice when compressed air is not available, when remote electrical integration is simpler, or when the valve needs convenient position feedback and slower controlled movement.
For industrial valves, the final decision should come from the valve body, torque or thrust requirement, pressure differential, medium, cycle frequency, control duty, site utilities, and required fail position. MacoTango Valve can help review these conditions and recommend a suitable pneumatic or electric actuator package for control valves, ball valves, butterfly valves, globe valves, and other process valve applications.
