Understanding 3-Way Ball Valves

3-Way Ball Valves are essential components in fluid control systems, offering versatility in directing or mixing fluid flows. Their unique design allows for efficient management of multiple flow paths, making them indispensable in various industrial applications.

What Are 3-Way Ball Valves?

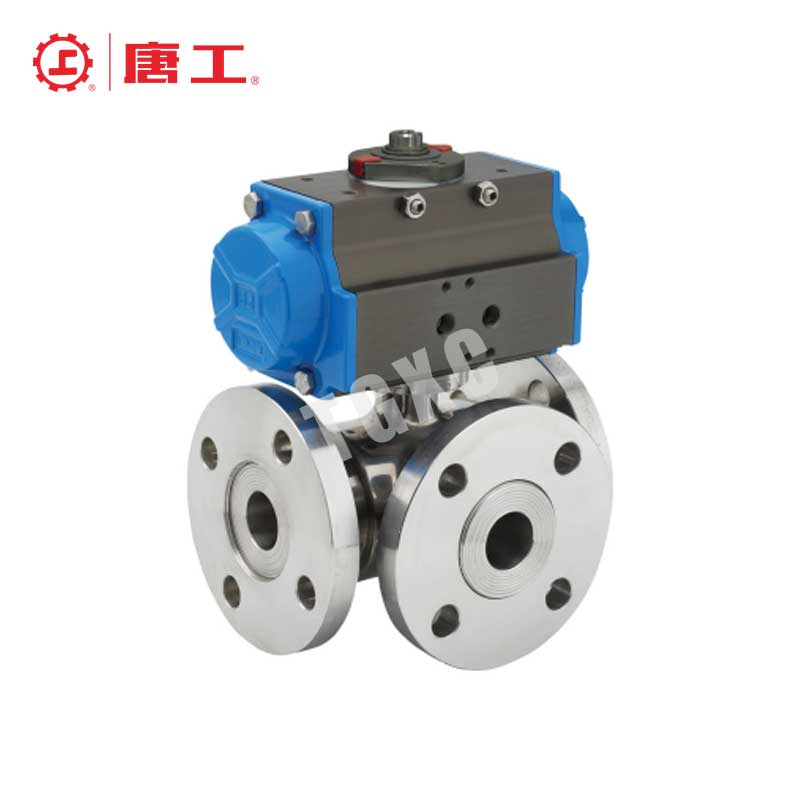

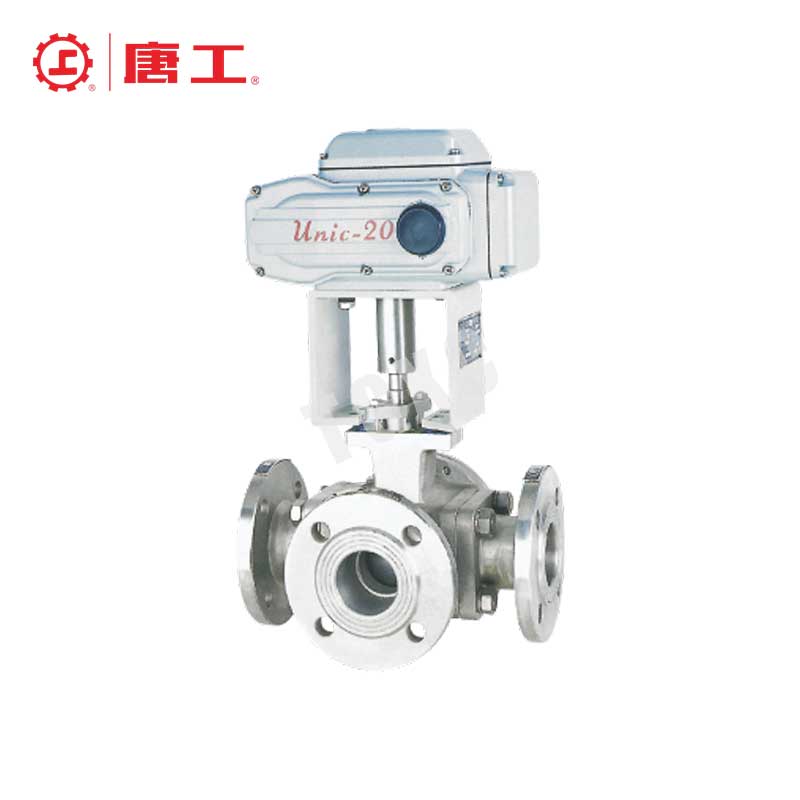

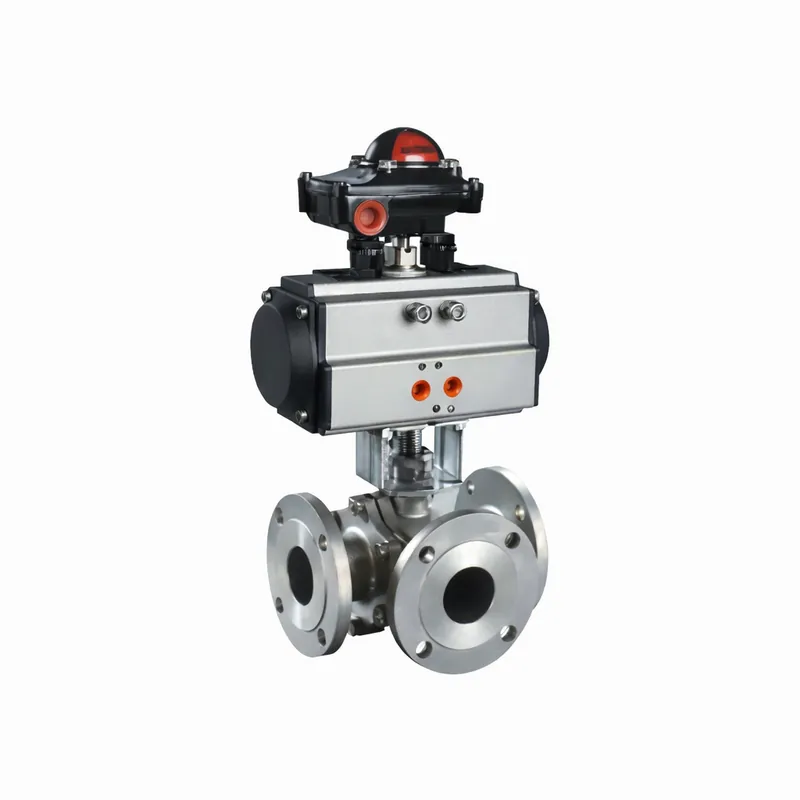

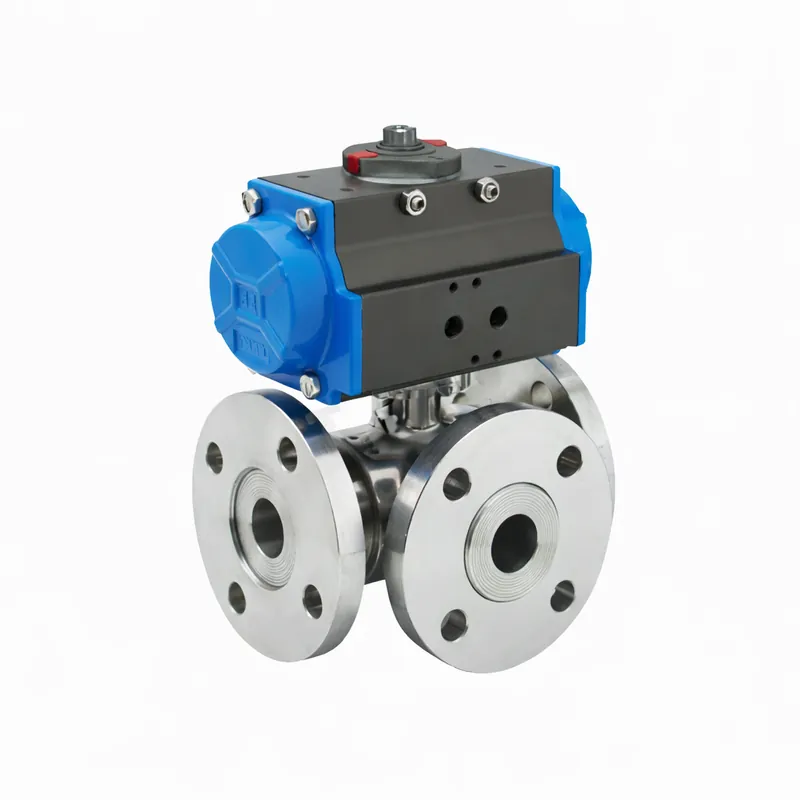

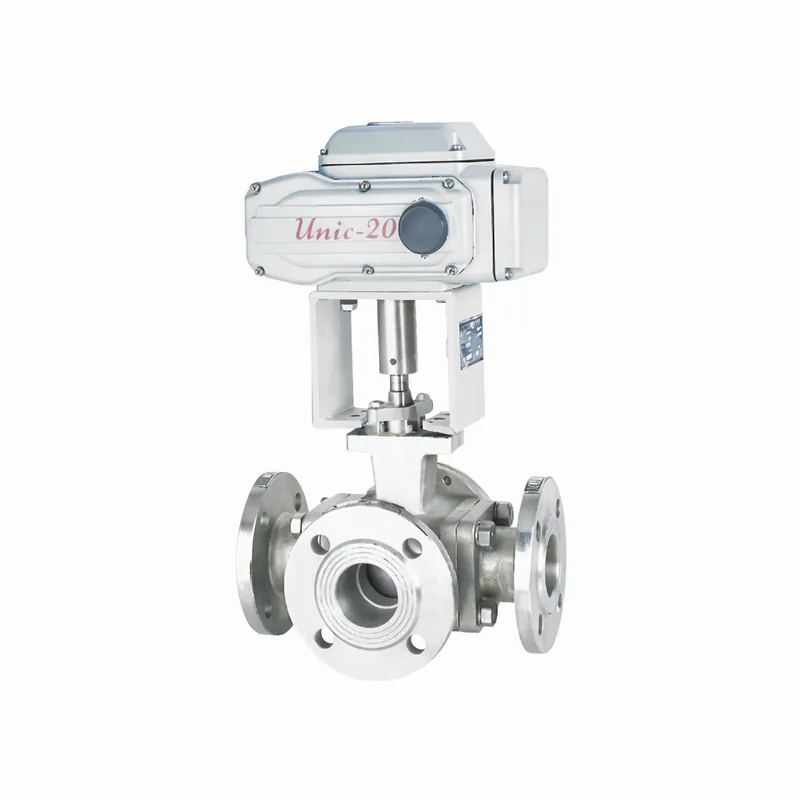

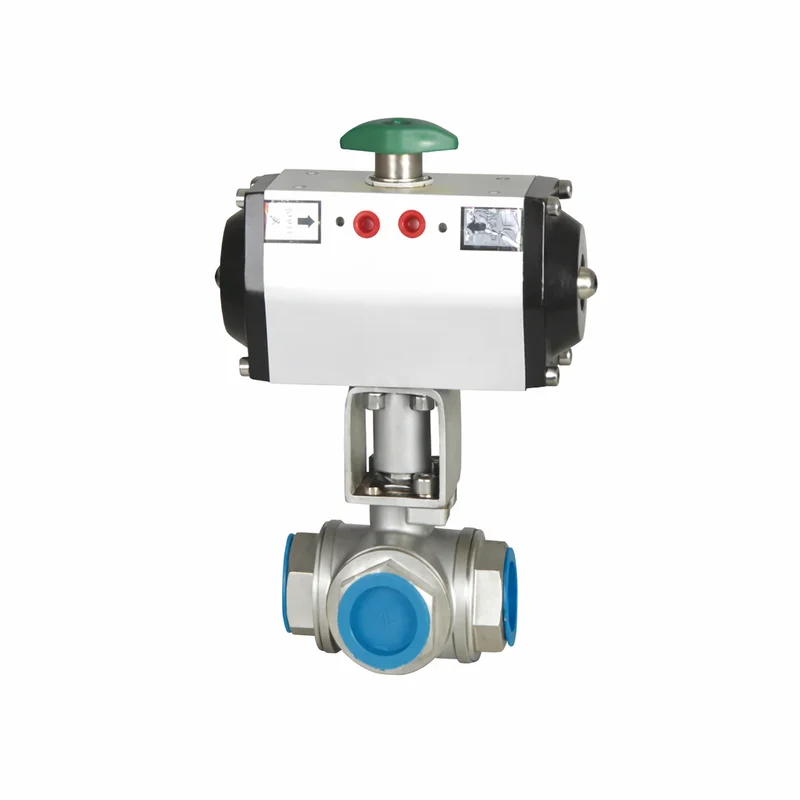

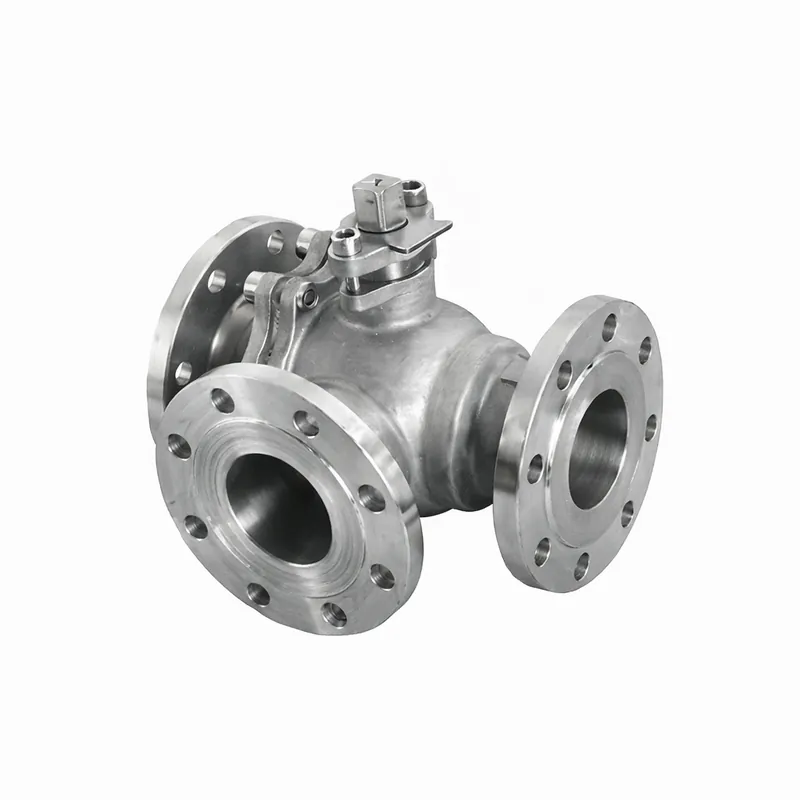

A 3-Way Ball Valve features a ball with three ports, enabling the control of fluid flow in multiple directions. By rotating the valve handle, the ball’s internal passages align with the ports, directing the flow as required. This design allows for diversion, mixing, or combining flows within a single valve.

Types of 3-Way Ball Valves

There are two primary configurations of 3-Way Ball Valves:

1. L-Port (L-Shaped) Valves:

   • Function: Directs flow from one inlet to one of two outlets, or from one outlet to one of two inlets.
   • Applications: Ideal for diverting flow from one source to another, such as switching between pumps or redirecting flow in a piping system.

2. T-Port (T-Shaped) Valves:

   • Function: Allows flow from one inlet to either of two outlets, or from two inlets to a single outlet.
   • Applications: Suitable for mixing two fluids into one stream or diverting flow from one source to two destinations.

Advantages of 3-Way Ball Valves

• Versatility: Capable of diverting or mixing flows, reducing the need for multiple valves.
• Space Efficiency: Combines functions of two valves into one, conserving space in piping systems.
• Cost-Effectiveness: Reduces the number of components required, leading to lower installation and maintenance costs.
• Quick Operation: Offers rapid quarter-turn operation, facilitating swift flow control.

Common Applications

3-Way Ball Valves are utilized across various industries, including:

• Chemical Processing: For mixing chemicals or diverting flow between reactors.
• Oil and Gas: In pipeline systems to redirect flow or combine streams.
• Water Treatment: To control the flow of water to different treatment stages.
• HVAC Systems: For regulating the flow of heating or cooling fluids.
