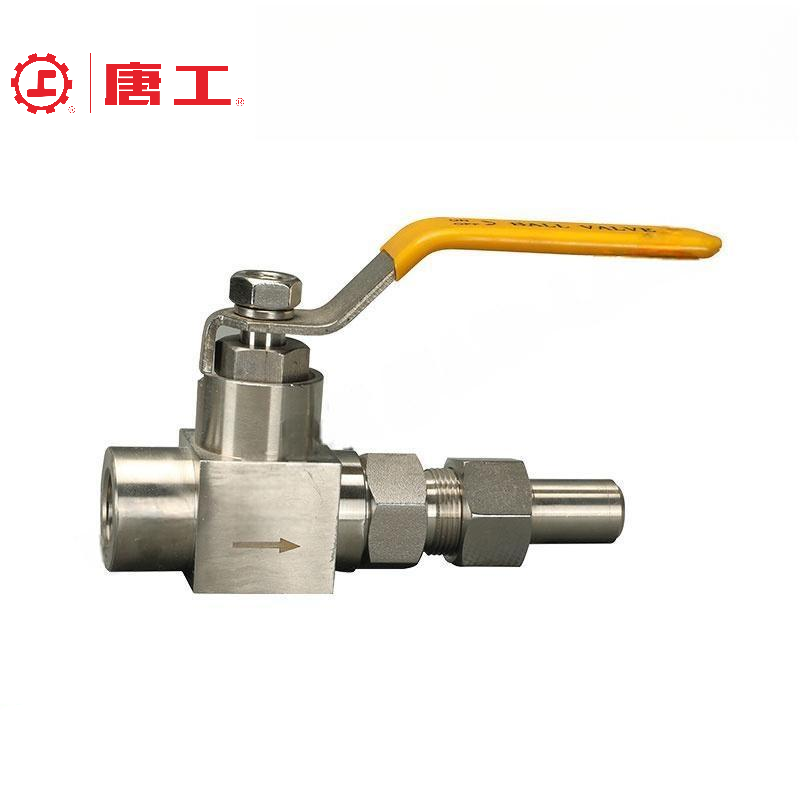

Air source ball valves are a specific type of ball valve designed to control the flow of air in pneumatic systems. They function similarly to standard ball valves but are optimized for air applications, offering quick and reliable shut-off capabilities. These valves are commonly used in industrial settings where precise control of air flow is crucial for the operation of machinery and equipment.
Air source ball valves are integral components in pneumatic systems, utilizing compressed air to control the flow of gases. Their operation hinges on a straightforward yet effective mechanism:
Valve Mechanism: At the heart of the valve is a spherical ball with a central bore. When the valve is open, this bore aligns with the pipeline, allowing air to flow freely. A 90-degree rotation of the ball, typically achieved via an actuator, shifts the bore perpendicular to the flow path, effectively sealing the valve and halting airflow. This quarter-turn operation ensures swift and reliable control.
Role of Compressed Air: The actuation of air source ball valves is powered by compressed air. In pneumatic actuators, compressed air enters the actuator chamber, exerting pressure on a piston or diaphragm. This pressure drives the actuator, which in turn rotates the valve stem and the attached ball to the desired position. The actuator’s design—whether single-acting or double-acting—determines how the valve responds when air pressure is applied or removed.
(Learn more about the differences between single-acting and double-acting pneumatic actuators. )
The durability and performance of air source ball valves are significantly influenced by their material composition. Common materials include:
Stainless Steel: Renowned for its corrosion resistance and strength, stainless steel is ideal for harsh environments. For instance, Swagelok’s 60 Series ball valves are constructed from stainless steel, providing robust performance across various applications.
Brass: Offering good corrosion resistance and machinability, brass is suitable for applications where moderate pressure and temperature conditions prevail. Parker Hannifin provides brass ball valves that cater to diverse industrial needs.
Alloy Materials: In specialized applications, alloys such as Monel, Hastelloy, and Inconel are used for their exceptional resistance to extreme temperatures and corrosive substances. These materials are often employed in industries like petrochemical processing.
Air source ball valves come in various designs to accommodate different flow requirements:
Full Bore (Full Port): These valves feature a ball with a bore diameter equal to the pipeline, allowing for unrestricted flow and minimal pressure drop. They are particularly beneficial in applications requiring pigging operations.
Reduced Bore (Reduced Port): In these valves, the ball’s bore is smaller than the pipeline diameter, resulting in a slight pressure drop but offering a more compact and cost-effective solution. They are suitable for applications where space and budget constraints are a concern.
Selecting a valve with appropriate pressure and temperature ratings is crucial for ensuring safety and optimal performance:
Pressure Ratings: Valves are rated to withstand specific pressures, which can vary based on material and design. For example, Swagelok’s 83 Series trunnion ball valves are designed to handle pressures up to 6,000 psig (413 bar) at ambient temperatures.
Temperature Ratings: The materials used in valve construction determine their temperature tolerance. Emerson’s valves conforming to ASME B16.34 standards have specific pressure/temperature limits depending on component materials, ensuring they operate safely within designated temperature ranges.
Air source ball valves are integral to pneumatic systems, effectively controlling the flow of compressed air in various industrial settings. Their robust design and quick-response mechanism make them ideal for applications requiring precise air flow regulation.
In pneumatic systems, air source ball valves serve as on/off control devices, managing the flow of compressed air to actuators, cylinders, and other components. Their quarter-turn operation allows for rapid and reliable shut-off, ensuring efficient system performance. These valves are particularly valued for their durability and minimal maintenance requirements, making them suitable for continuous operation in demanding environments.
Air source ball valves are utilized across a diverse range of industries, including:
Manufacturing: In manufacturing plants, these valves control air flow to machinery and automation systems, enhancing production efficiency and safety.
Oil & Gas: In the oil and gas sector, air source ball valves are used to regulate air flow in drilling operations and equipment, ensuring precise control in critical applications.
HVAC: In heating, ventilation, and air conditioning (HVAC) systems, these valves manage air flow to maintain optimal environmental conditions in buildings and facilities.
Yes, air source ball valves are designed to operate effectively in high-pressure environments. High-pressure ball valves are specifically engineered to withstand pressures ranging from approximately 500 to 700 bars (7,252 to 10,152 psi). These valves are commonly used in applications such as water distribution plants, chemical industries, and water parks, where precise flow control under high pressure is essential.
In summary, air source ball valves are crucial components in pneumatic systems, offering advantages such as durability, leak-proof performance, quick shut-off capabilities, and low maintenance. They are designed to handle high-pressure systems and are available in various materials and designs to suit different applications. Whether you’re working in manufacturing, oil and gas, or HVAC, selecting the right air source ball valve involves considering factors like compatibility with fluids, environmental conditions, and industry certifications. Understanding these features and benefits will help you choose the best valve for your needs, ensuring long-term reliability and efficiency in your systems.
