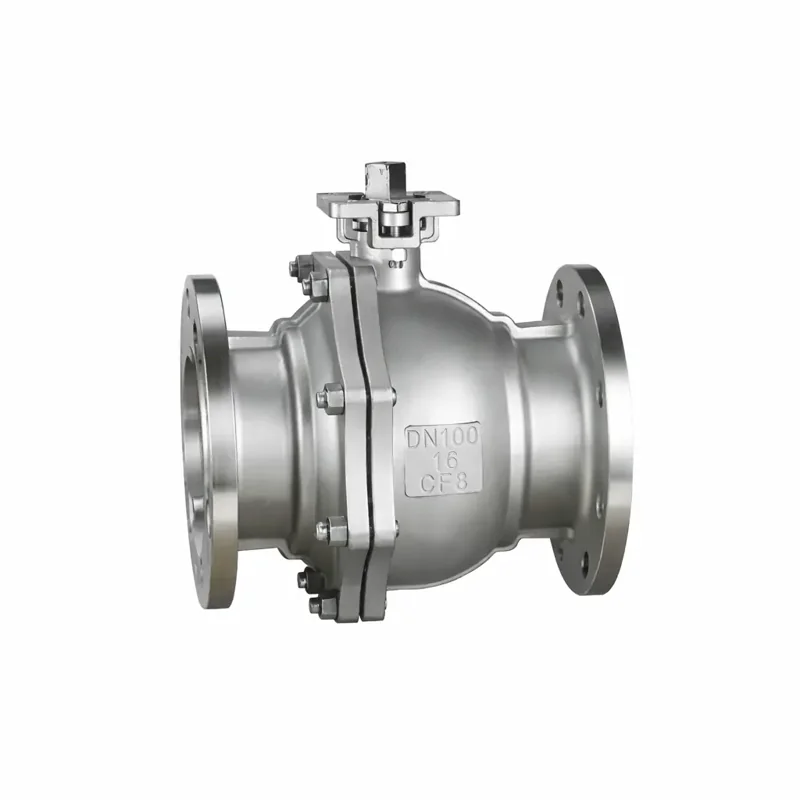

What is a Ball Valve?

A ball valve is a type of quarter-turn valve that regulates fluid flow through a spherical component known as a ball. The ball has a central hole, called a port, which aligns with the flow path when the valve is open, allowing fluid to pass through. When the valve is closed, the ball rotates 90 degrees, and the solid section blocks the flow. This simple yet effective mechanism makes ball valves highly reliable for both flow control and shut-off applications.

How Does a Ball Valve Work?

A ball valve works by utilizing a quarter-turn rotational motion to control the flow of fluid. The valve has a handle connected to a stem, which is attached to a spherical ball inside the valve body. When the handle is turned 90 degrees, the ball rotates accordingly. In the open position, the hole in the ball aligns with the flow path, allowing fluid to pass through. When the handle is turned again, the solid part of the ball obstructs the flow path, effectively closing the valve. This mechanism ensures reliable shut-off and precise flow regulation, making ball valves highly efficient for various applications.

Key Components of a Ball Valve

Ball valves consist of several essential components that contribute to their functionality:

1. Body: The body is the outer shell that houses all internal components. It is typically made from materials such as stainless steel, brass, or carbon steel, providing strength and corrosion resistance.
2. Ball: The ball, which has a hole in the center, is the core component that controls the flow. It rotates to open or close the valve.
3. Stem: The stem connects the ball to the handle or actuator, transmitting the rotational force needed to move the ball.
4. Seats: The seats provide a seal between the ball and the body, preventing leakage. They are commonly made from materials like PTFE (Teflon).
5. Handle or Actuator: The handle or actuator is used to manually or automatically rotate the ball, thereby opening or closing the valve.

Next, let’s break down the structure of a V-type ball valve as an example.

Drive Modes of Ball Valves

Ball valves can be operated using various drive modes, providing flexibility in automation and control based on specific application needs. Each drive mode is suitable for different operational requirements:

• Manual Operation: Manual ball valves are operated by a handle or lever, which allows the user to rotate the ball inside the valve to open or close it. This type is simple and cost-effective, making it ideal for systems where automation is not required.

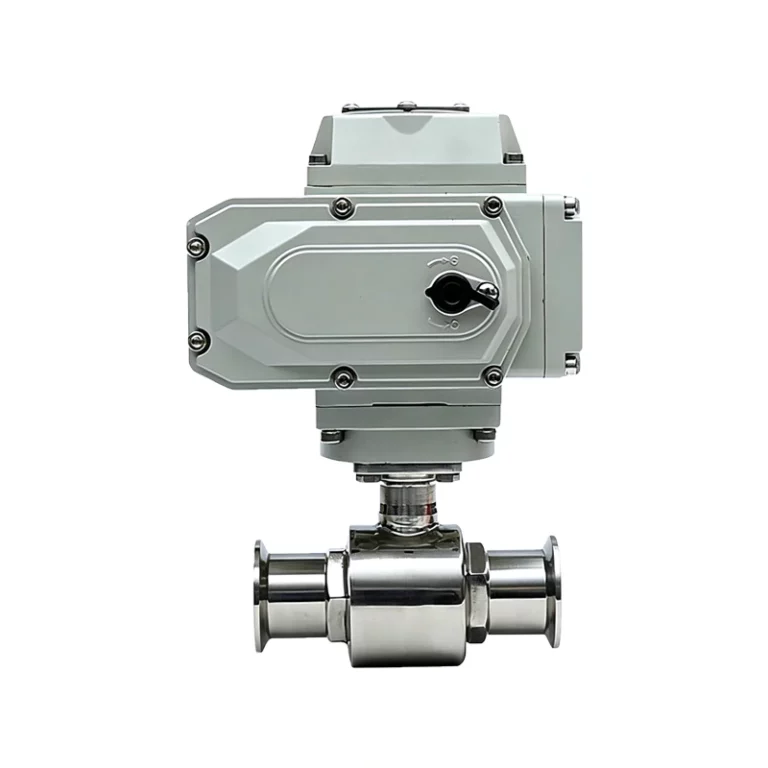

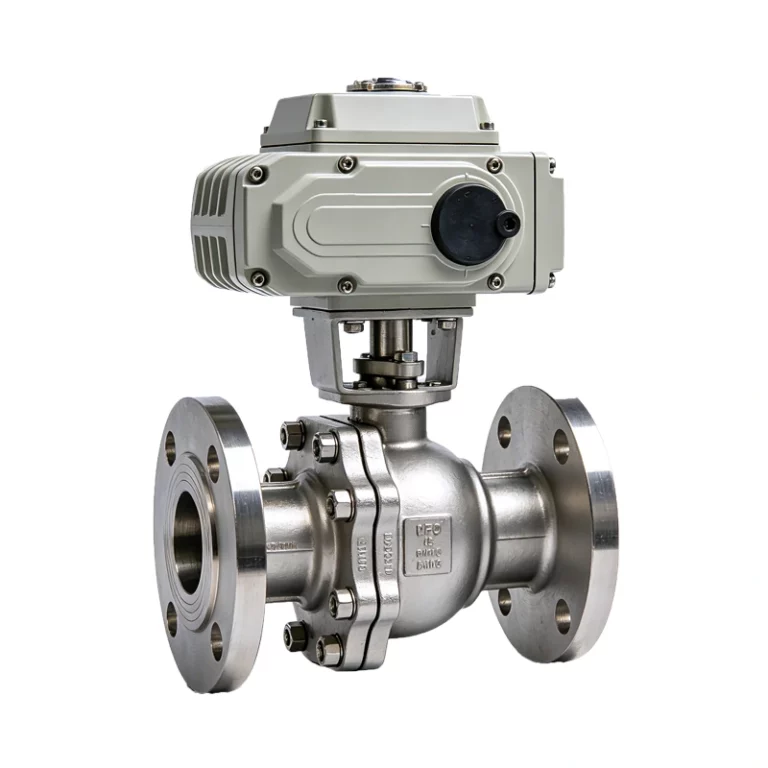

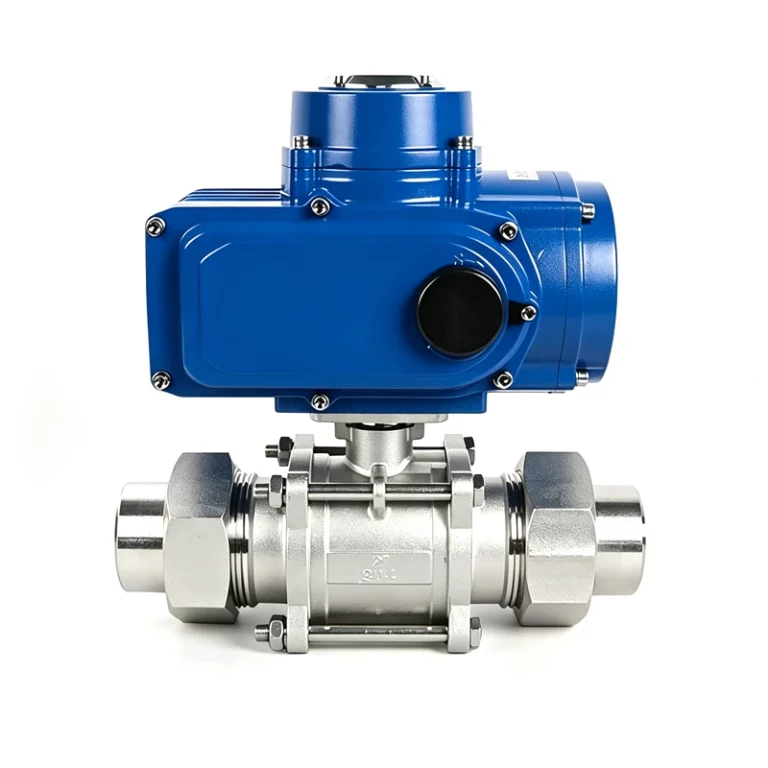

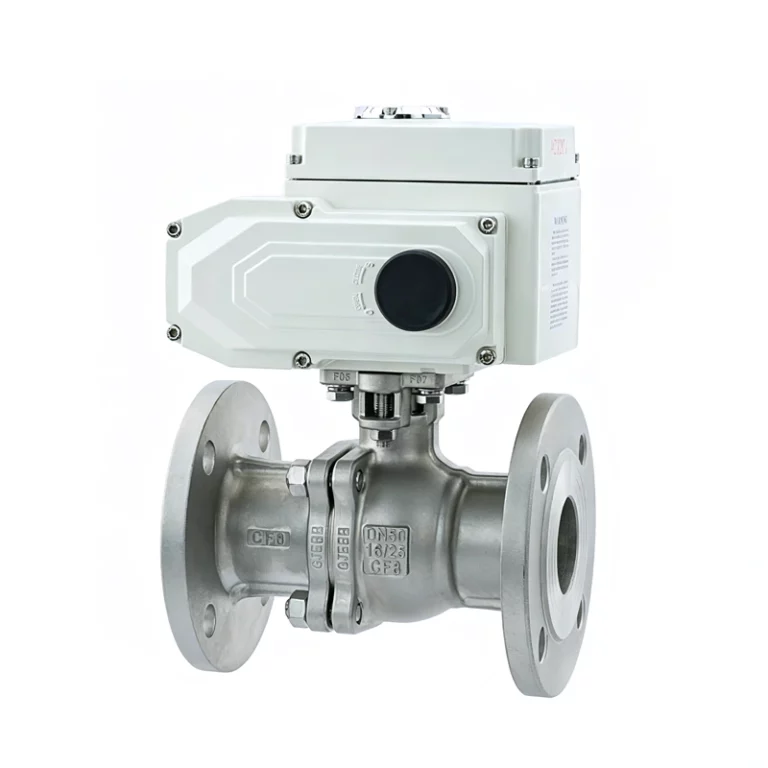

• Electric Actuation: Electric ball valves use an electric actuator to control the valve’s operation. They are suitable for automated systems where remote control or integration with a control system is needed.

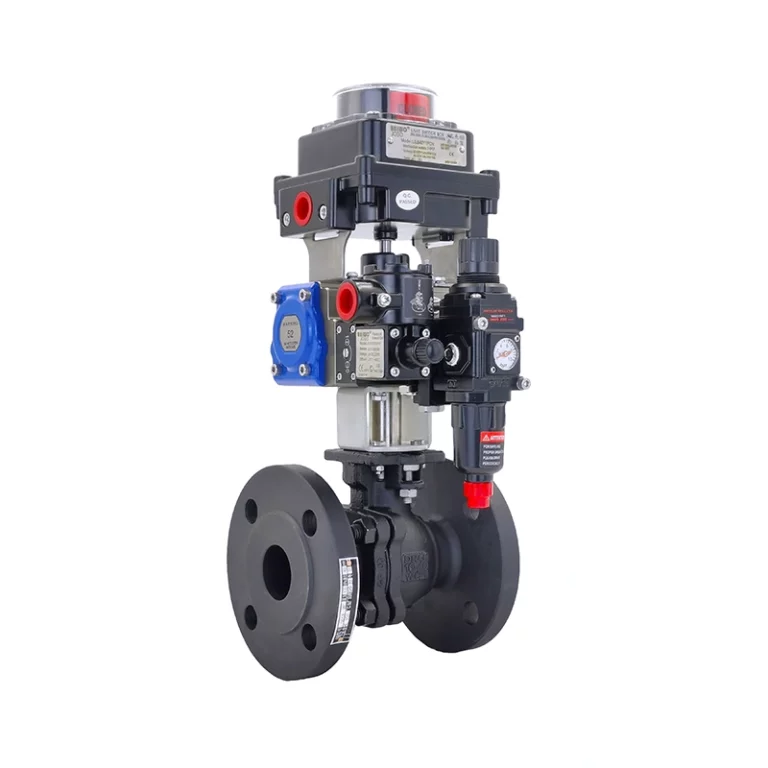

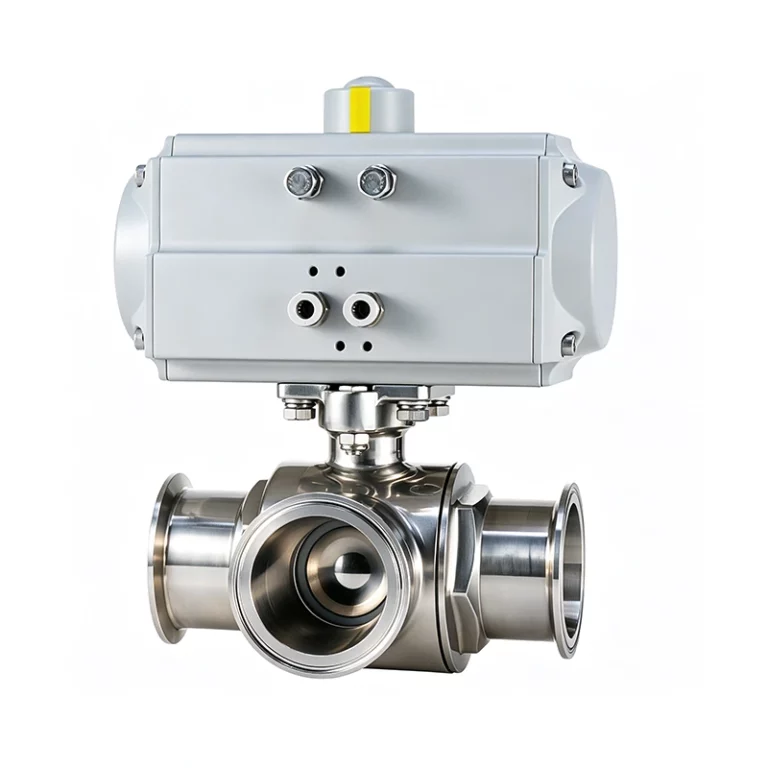

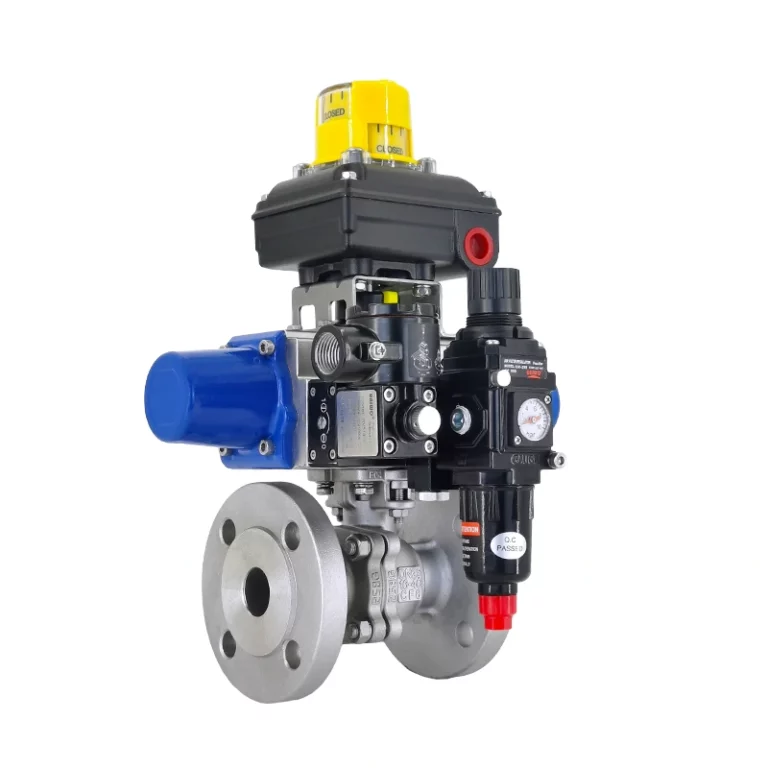

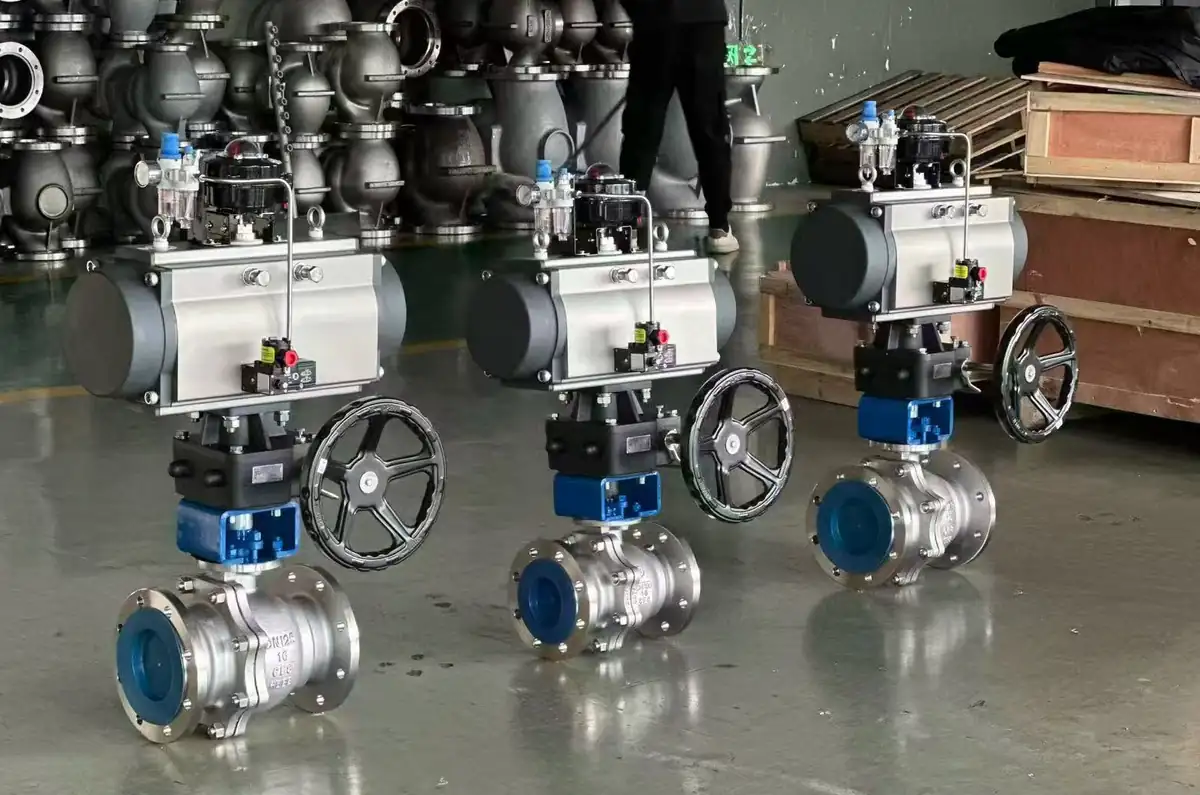

• Pneumatic Actuation: Pneumatic ball valves are operated using compressed air to move the actuator. These valves are commonly used in systems where rapid operation is required, and they are often preferred for safety reasons in environments where electric sparks are a concern.

Model Compilation Method

| Z | SH | QV | Y – 16 | K | 25 |

Example 1: ZDRQY-16K 25C refers to a “QV” type electric hard seal cutting ball valve with a nominal pressure of PN1.6 MPa. It operates with an electric open mechanism and has a nominal diameter of DN25. The body material is WCB.

Example 2: ZSHQY-16KD 100P refers to a pneumatic piston type “QV” sealing cut-off ball valve with a nominal pressure of PN1.6 MPa. It operates with a gas-open double-acting mechanism and has a nominal diameter of DN100. The body material is CF8.

Common Types of Ball Valves

Ball valves come in various types, each tailored to specific applications and operational requirements:

1. Floating Ball Valves

In floating ball valves, the ball is supported by the valve seats but is not fixed to the stem. When the valve is closed, fluid pressure pushes the ball against the downstream seat, creating a seal. Floating ball valves are typically used for smaller pipe sizes and moderate pressure applications.

2. Trunnion Ball Valves

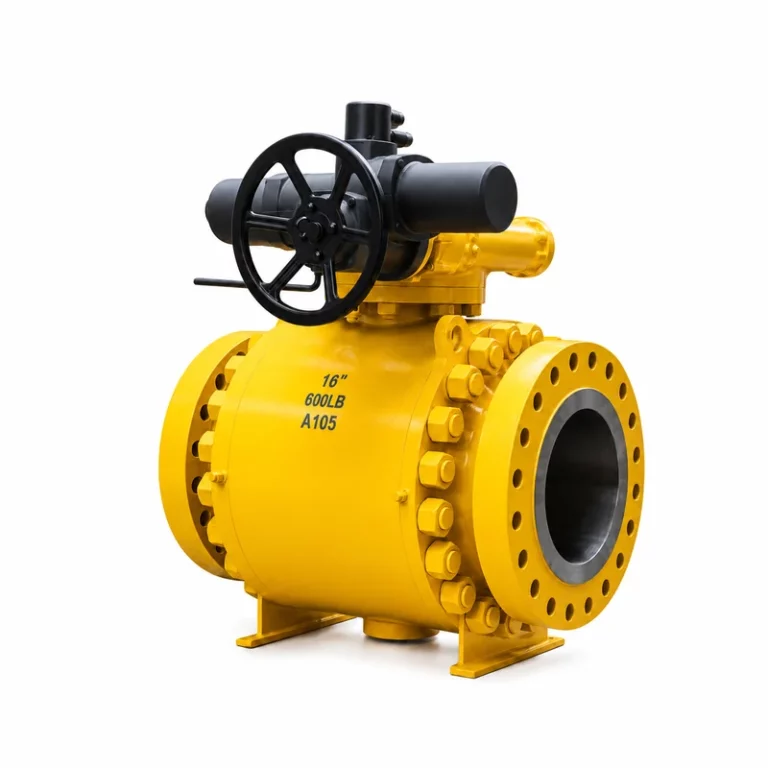

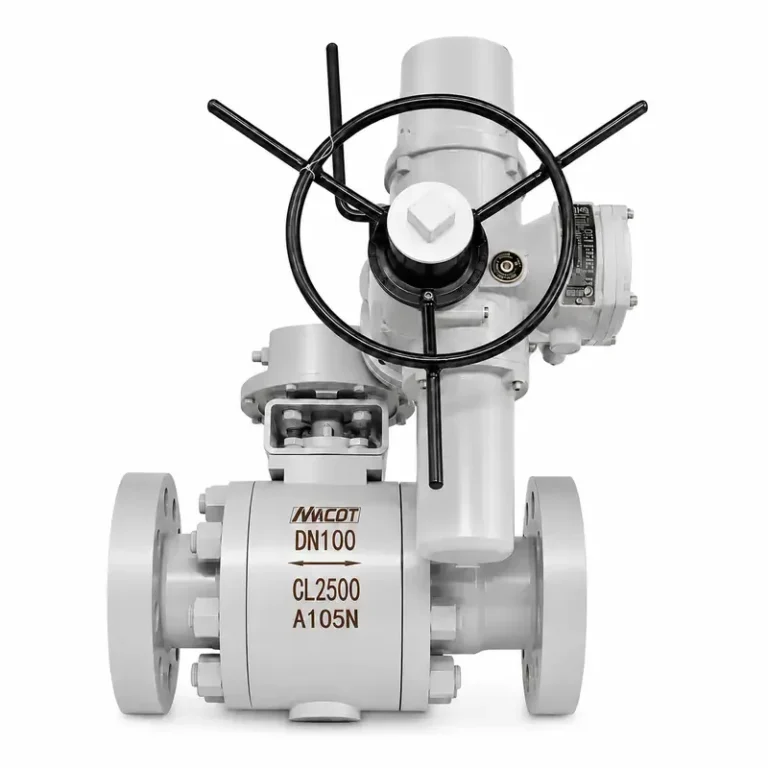

Trunnion ball valves feature additional anchoring points, called trunnions, that support the ball. These valves are ideal for larger diameters and higher-pressure systems, as the trunnions help reduce the operating torque needed to move the ball.

3. Full Port vs. Reduced Port

• Full Port Ball Valves: The port size matches the pipeline diameter, allowing for unrestricted flow with minimal pressure drop.
• Reduced Port Ball Valves: The port size is smaller than the pipeline diameter, which restricts flow to some extent. Reduced port valves are more compact and cost-effective compared to full port versions.

4. V-Port Ball Valves

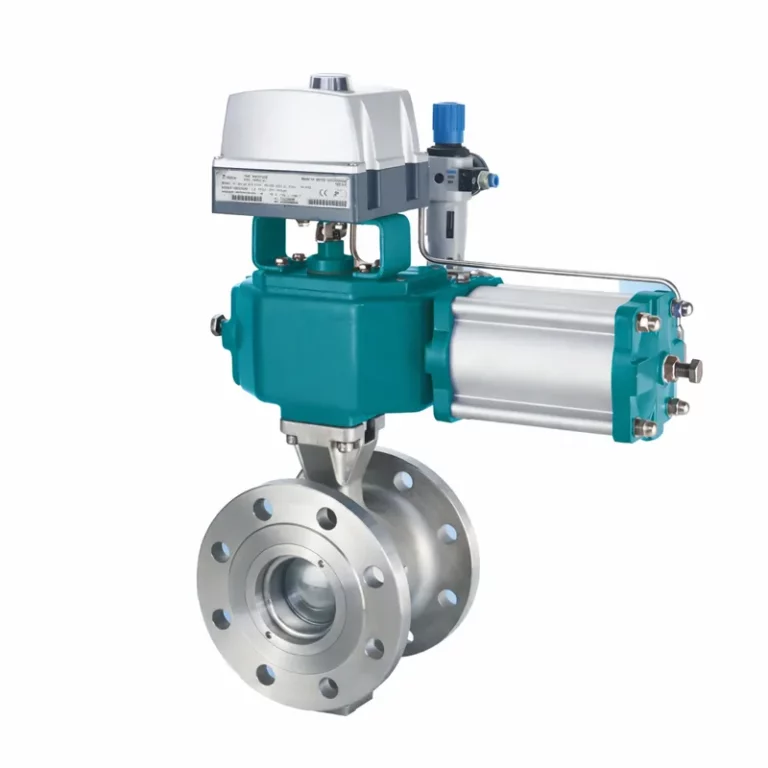

V-port ball valves have a V-shaped opening in the ball or the seat, which provides better flow control. They are often used in applications requiring more precise control of flow rate and can handle both high and low flow rates effectively. For example, V-port ball valves are particularly beneficial in chemical dosing processes, where accurate control of fluid flow is essential to ensure proper mixing and safety.

5. Multi-Port Ball Valves

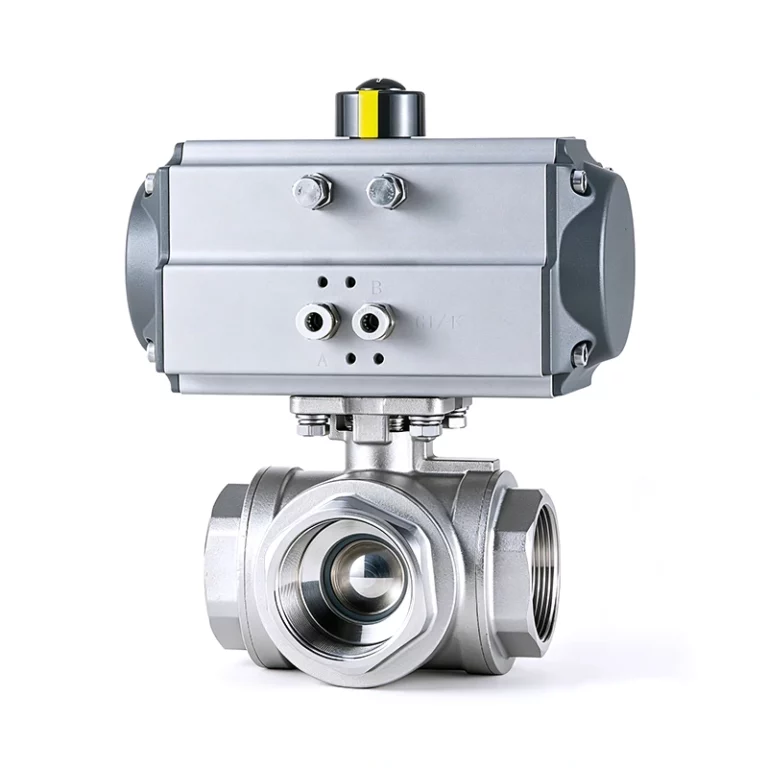

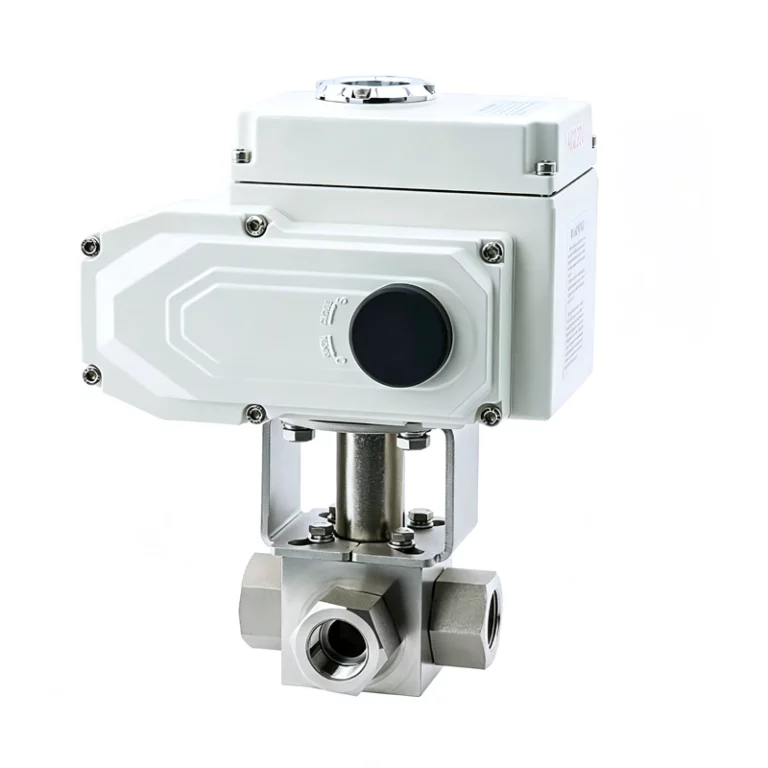

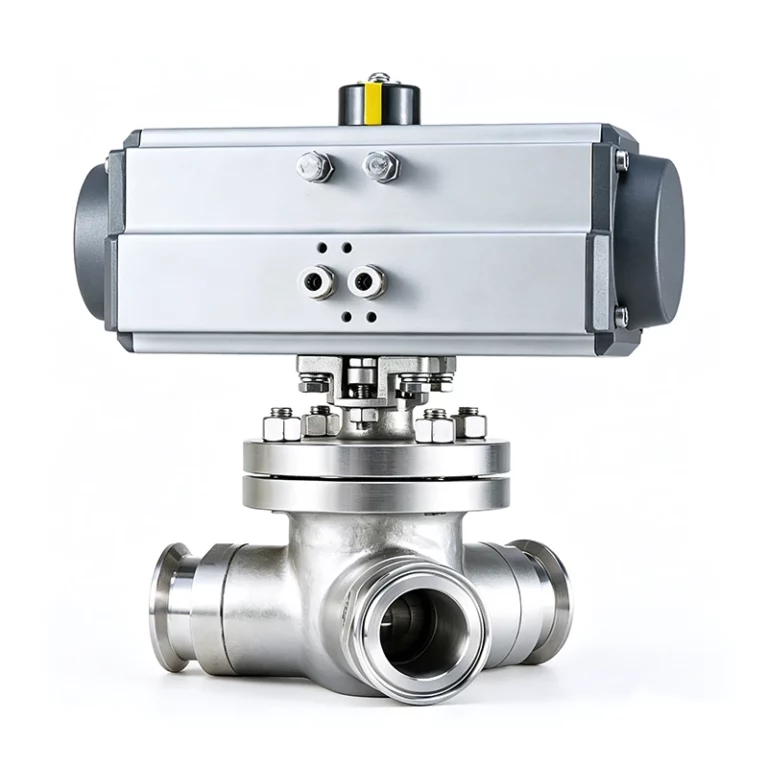

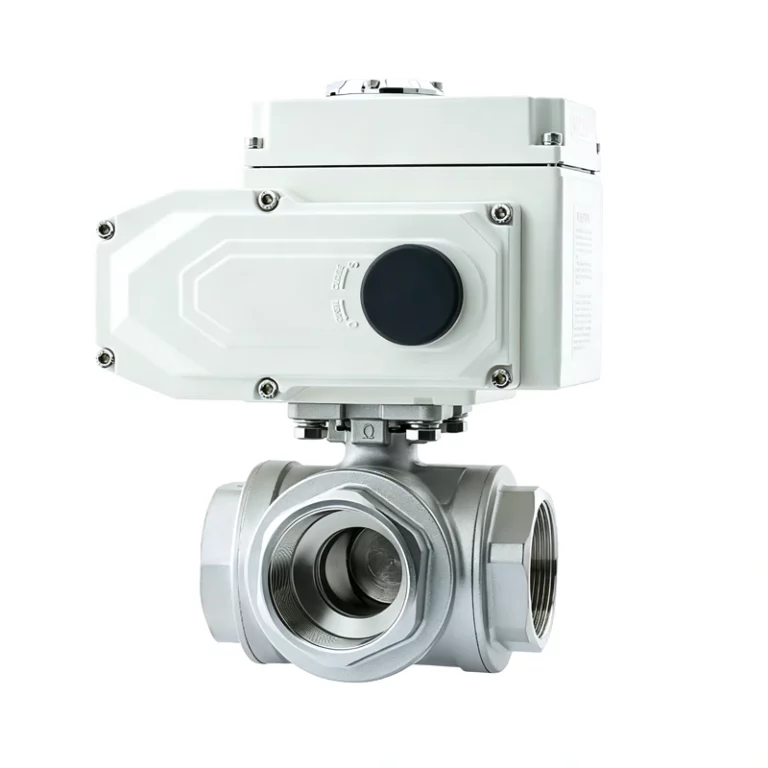

Multi-port ball valves have multiple ports, usually three or four, that allow for the redirection of flow in different directions. These valves are often used in complex piping systems where multiple flow paths need to be controlled from a single valve.

6. Top Entry vs. Side Entry Ball Valves

• Top Entry Ball Valves: These valves have a single-piece body with the ball and internals accessible from the top. This design allows for easy maintenance without removing the valve from the pipeline.
• Side Entry Ball Valves: These valves are assembled in halves or multiple pieces and are bolted together. They are commonly used in applications where cost and ease of manufacturing are key considerations.

Advantages of Ball Valves

Ball valves offer numerous benefits that make them a popular choice across different industries:

Flow-Related Advantages

• Quick Shut-Off: The quarter-turn mechanism allows for rapid opening and closing, making ball valves suitable for applications where quick action is needed.
• Low Flow Resistance: When fully open, ball valves have very low flow resistance, especially full port versions, ensuring efficient fluid movement.
• Tight Seal: Ball valves provide an excellent seal even under high-pressure and high-temperature conditions, minimizing the risk of leakage.

Maintenance and Cost-Related Advantages

• Durability: Constructed from robust materials, ball valves have a long operational life, even in demanding environments.
• Versatility: Ball valves are suitable for handling a wide variety of fluids, including oil, gas, water, and chemical solutions.
• Cost-Effectiveness: Different types of ball valves offer advantages tailored to specific needs. Floating ball valves are simple and cost-effective, ideal for low to medium-pressure applications. Trunnion ball valves, with their trunnion support, reduce wear and are well-suited for high-pressure environments. Reduced port ball valves are compact and economical, while multi-port valves help simplify piping systems by reducing the number of valves required.
• Precise Flow Control: V-port ball valves provide accurate flow regulation, making them suitable for modulating applications that require variable flow rates. Top entry ball valves simplify maintenance tasks, particularly in systems where regular servicing is needed without removing the valve from the pipeline.

Differences Among One, Two, and Three Piece Ball Valves

Ball valves are available in one, two, and three-piece designs, each offering distinct features and advantages based on their construction:

• One-Piece Ball Valves: These valves have a single, solid body that houses all the internal components. One-piece valves are usually the most economical option, as their design reduces the number of joints, which in turn minimizes the risk of leakage. However, they are generally non-repairable, meaning the entire valve must be replaced if a failure occurs.

• Two-Piece Ball Valves: These valves consist of two separate parts that are bolted or threaded together. The two-piece design allows for disassembly, making it easier to maintain or clean the valve. This type of valve provides a good balance between cost and maintainability, making it popular for a wide range of applications.

• Three-Piece Ball Valves: Three-piece valves are made up of three separate parts: two end caps and a central body. This design provides maximum flexibility for maintenance and cleaning, as the central body can be removed while the end caps remain attached to the piping. Three-piece ball valves are ideal for applications that require frequent servicing or cleaning, as they can be easily disassembled and reassembled without affecting the piping.

In summary, one-piece valves are the most economical but not repairable, two-piece valves offer a good balance of cost and maintenance, while three-piece valves provide the greatest ease of maintenance and flexibility, making them suitable for applications requiring frequent servicing.

Main External connection Dimensions

Common Applications of Ball Valves

Ball valves are widely used due to their versatility, reliability, and ease of operation:

1. Oil & Gas Industry

In the oil and gas industry, ball valves control the flow of crude oil, natural gas, and other hydrocarbons. Their capability to withstand high pressures and harsh conditions makes them an ideal choice.

2. Water Treatment and Distribution

Ball valves are used in water treatment facilities to regulate the flow of clean and wastewater. Their quick shut-off feature makes them valuable for maintenance and emergency operations.

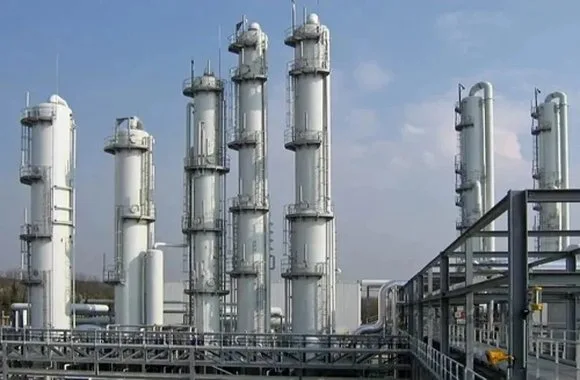

3. Chemical Processing

The chemical industry requires valves that can handle aggressive and corrosive fluids. Stainless steel ball valves are preferred for these applications due to their resistance to corrosion.

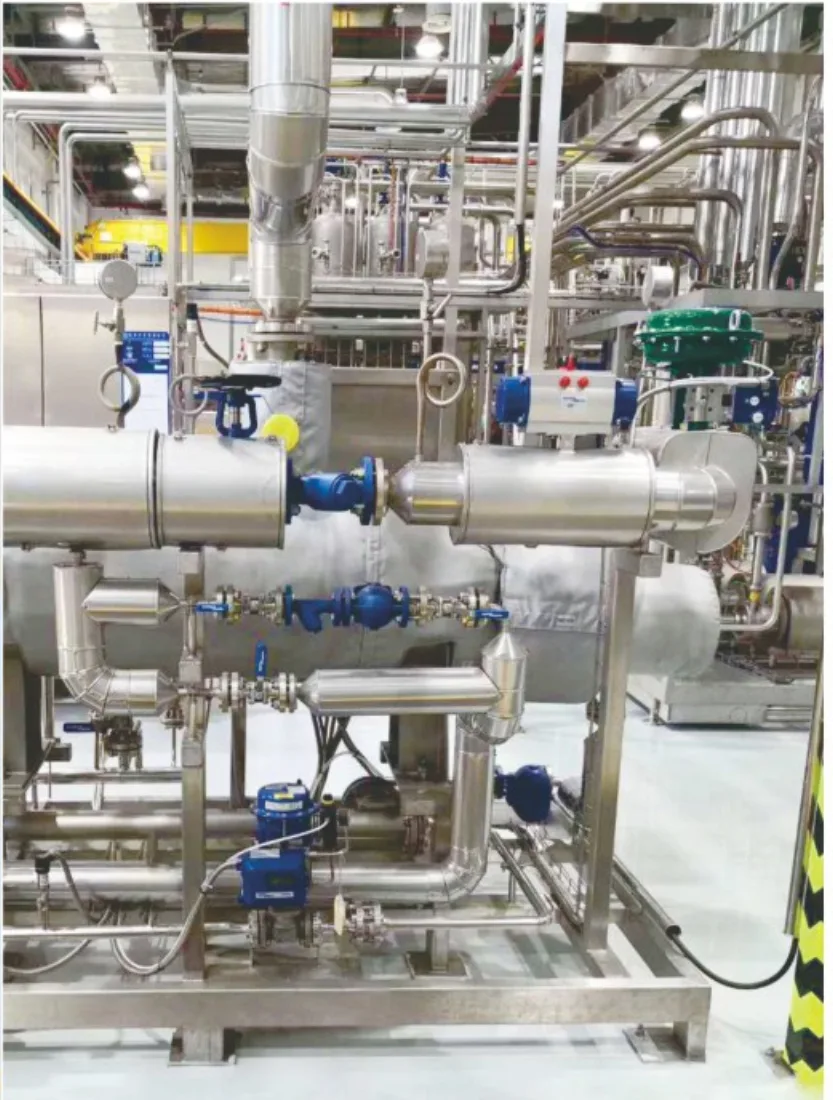

4. HVAC Systems

In HVAC (Heating, Ventilation, and Air Conditioning) systems, ball valves are employed for isolation and control, managing the flow of refrigerants and other fluids effectively.

Conclusion

Ball valves are an essential component in a wide range of industries due to their simple yet highly effective design. With their quarter-turn mechanism, they offer quick shut-off, low flow resistance, and tight sealing, making them ideal for applications requiring reliable fluid flow control. The key components of a ball valve—the body, ball, stem, and seats—work together to ensure durability, minimal leakage, and smooth operation. Additionally, the versatility of ball valves, including various types like floating, trunnion, and V-port ball valves, allows them to be tailored for specific requirements such as high-pressure systems, precise flow control, or multi-directional flow management.

Moreover, ball valves are available in different drive modes, including manual, electric, and pneumatic actuation, offering flexibility in operation for diverse applications. Whether used for isolation, flow regulation, or safety shut-off, ball valves are indispensable in industries such as oil and gas, water treatment, chemical processing, and HVAC systems.

By choosing the right type of ball valve based on factors such as application, pressure rating, and maintenance needs, you can ensure reliable and efficient system performance across various operational environments.
