What is a Check Valve?

A check valve, also known as a non-return valve or one-way valve, is a type of valve that allows fluid (liquid or gas) to flow in only one direction. Its primary function is to prevent backflow, ensuring efficient and safe fluid movement through a system. Check valves are commonly used in a wide range of applications, including household plumbing, industrial processes, oil and gas, water treatment, chemical processing, and HVAC systems.

How Does a Check Valve Work?

Check valves operate using a simple mechanism that allows fluid to flow in one direction while preventing backflow. They typically consist of a valve body, seat, and a disc or ball that controls the flow. When fluid flows in the correct direction, the disc or ball moves away from the seat, allowing passage. If the flow reverses, the disc or ball returns to the seat, blocking the flow and preventing backflow. Some check valves, like spring-loaded models, respond to pressure differences. The spring mechanism ensures the valve closes securely when the flow reverses. The minimum pressure required to open the valve is called the cracking pressure. Check valves are entirely self-automated and do not require manual intervention to operate.

Types of Check Valves

Check valves come in various types, each designed for specific applications and conditions. The choice of check valve depends on factors such as pressure requirements, flow characteristics, the type of fluid being handled, and installation orientation. Below is an overview of the most common types of check valves and their unique characteristics.

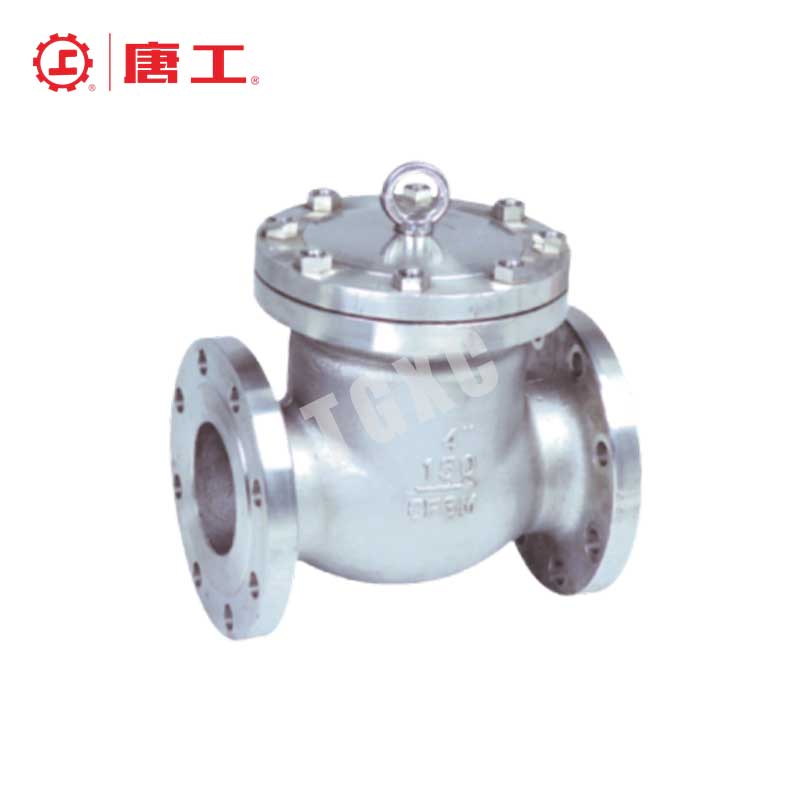

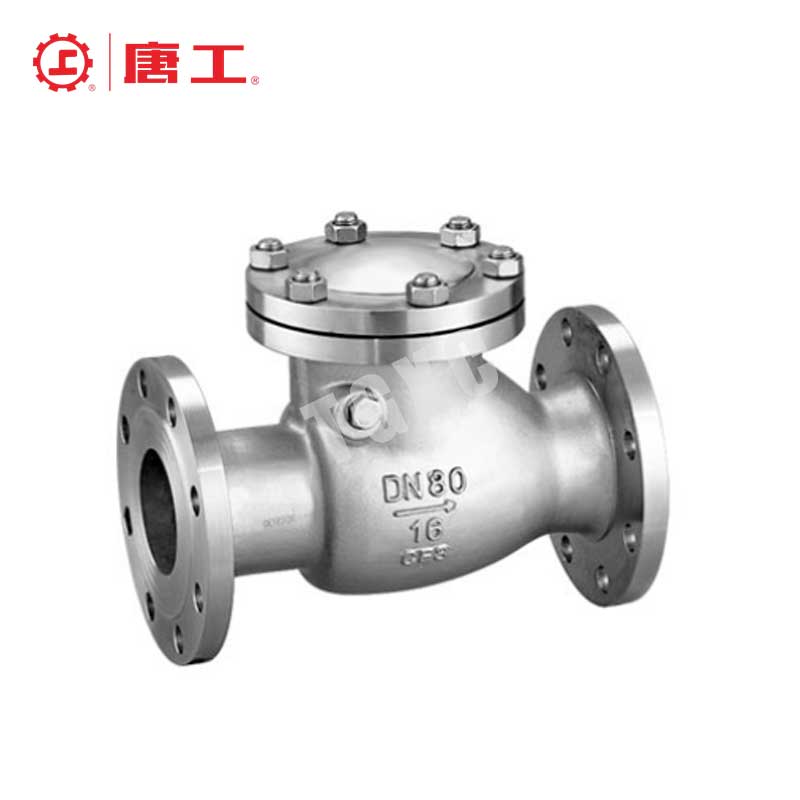

1. Swing Check Valve: This type features a hinged disc that swings open to allow flow in the forward direction. When the flow stops or reverses, the disc swings back to seal against the valve seat, preventing backflow. Swing check valves are suitable for low-pressure systems with steady, unidirectional flow.

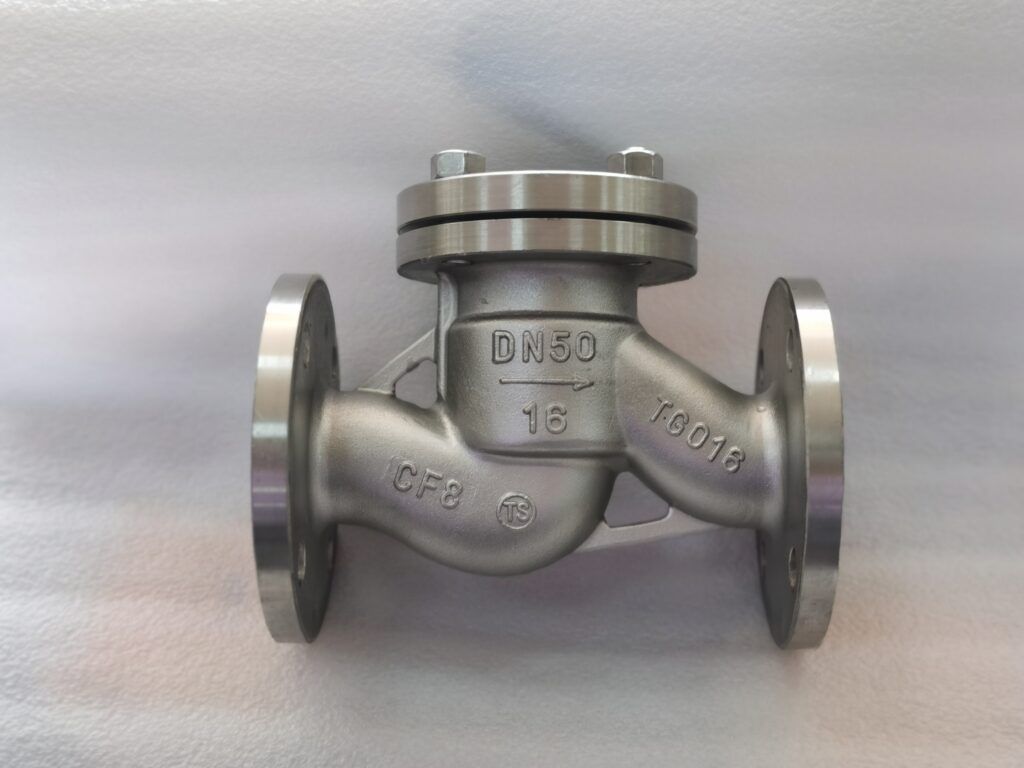

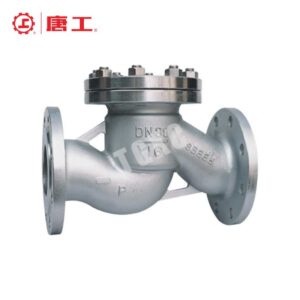

1. Lift Check Valve: A lift check valve has a disc that moves up and down within the valve body. When fluid flows in the correct direction, the disc is lifted off the seat, allowing flow. When flow stops or reverses, gravity or reverse pressure forces the disc back onto the seat, closing the valve. These valves are typically used in high-pressure systems and are effective in gas or steam applications.

1. Ball Check Valve: This type uses a spherical ball as the closing element. The ball is pushed away from the seat when fluid flows in the correct direction, allowing passage. When flow reverses, the ball is forced back onto the seat, blocking the flow. Ball check valves are often used in wastewater and slurry applications due to their simple design and ability to handle suspended solids.
2. Diaphragm Check Valve: A diaphragm check valve uses a flexible rubber diaphragm that flexes to allow flow in one direction and returns to block reverse flow. These valves are used in low-pressure applications, such as medical devices and chemical dosing systems.
3. Duckbill Check Valve: This valve type features a flexible, duckbill-shaped elastomeric sleeve that opens to allow fluid flow and closes to prevent backflow. Duckbill check valves are often used in wastewater and stormwater management because they handle debris without clogging.

Functions of a Check Valve

The primary function of a check valve is to prevent backflow, ensuring fluid flows in one direction only. This function protects system components, such as pumps and compressors, from damage caused by reverse flow. Check valves also help maintain system pressure, contributing to stable and efficient operation. Additionally, they protect against contamination, isolate system sections for maintenance, minimize water hammer, and improve system efficiency by reducing energy consumption and operational costs.

Differences between Check Valve and Globe Valve

Advantages of Check Valves

Check valves offer several advantages that make them suitable for various applications. They prevent backflow, which helps protect pumps and other system components from damage. Their automatic operation, requiring no manual intervention or external power, makes them reliable and easy to use. With few internal moving parts, check valves generally require minimal maintenance, which helps reduce operational costs. Additionally, they are available in various designs and materials, making them versatile for both domestic and industrial applications.

Disadvantages of Check Valves

One of the main disadvantages of check valves is the potential for water hammer, which occurs when a valve closes suddenly, causing noise and possibly damaging pipes or equipment. Water hammer is a pressure surge that results from a sudden change in flow velocity, and it can lead to significant stress on the system. This issue can be mitigated by using slower closing mechanisms or dampening devices. Another disadvantage is the flow resistance they introduce, which can reduce system efficiency, particularly in complex designs. Check valves may also stick in the open or closed position due to debris or wear; regular inspection and cleaning are essential to prevent this.

Common Applications of Check Valves

1. Household Plumbing Systems: Check valves are used in residential plumbing to prevent backflow, ensuring that wastewater does not contaminate the freshwater supply.
2. Water and Wastewater Treatment: In water treatment plants, check valves maintain the direction of flow, preventing treated water from mixing with untreated sources.
3. Pumping Systems: Check valves are installed at the discharge side of pumps to prevent backflow when the pump stops, helping protect the pump from damage.
4. Oil and Gas Industry: Check valves are used to prevent backflow in pipelines, ensuring safe and efficient transportation of crude oil, natural gas, and other fluids.
5. HVAC Systems: In heating, ventilation, and air conditioning systems, check valves help control airflow and prevent backflow, maintaining system efficiency.

In summary, check valves are versatile components used across various industries to ensure unidirectional flow, prevent contamination, and protect equipment from damage.

Key Considerations for Selecting a Check Valve

When selecting a check valve, consider the following factors to ensure optimal performance:

• Material Compatibility: Choose a valve material that is compatible with the fluid being handled. For example, stainless steel is suitable for corrosive fluids, while PVC is often used for water and low-pressure applications.
• Flow Characteristics: Determine the flow rate and pressure requirements to select a valve that can handle these conditions without causing excessive flow restriction.
• Installation Orientation: Some check valves, such as swing check valves, are sensitive to installation orientation. Make sure the valve is installed in a position that supports proper operation.
• Maintenance Requirements: Consider maintenance needs. Some check valves require more frequent inspection and cleaning, particularly in systems with particulate matter or debris.

FAQs

1. What is a check valve and why is it used?A check valve is a type of valve that allows fluid to flow in one direction and prevents backflow, protecting system components like pumps and compressors from potential damage.
2. What types of check valves are available, and can they be used in high-pressure systems?Common types of check valves include swing, lift, ball, diaphragm, and duckbill valves. Certain types, like lift check valves, are suitable for high-pressure systems, particularly in gas or steam applications.
3. What are common issues with check valves and how can they be mitigated?Common issues include valve sticking, flow restriction, and water hammer. Regular maintenance and choosing the right type of valve can help mitigate these issues.

Conclusion

Check valves are essential components in many fluid systems, providing an effective way to prevent backflow and protect equipment. Their automatic operation, versatility, and low maintenance requirements make them popular across various industries. Understanding the different types of check valves and their specific applications helps in selecting the right valve for your system, ensuring safety, efficiency, and reliability.
