What is a Electric Valve?

Electric Valve are crucial components in fluid control systems and are used across multiple industries, including oil and gas, power generation, chemical processing, and water treatment. These valves use an electric motor to control fluid flow, allowing for remote or automatic operation. Depending on system needs, MOVs can adjust, throttle, or completely stop the flow of fluids.

How Electric Valves Work

A Electric Valve is composed of three main components: the valve body, an actuator, and an electric motor. The electric motor drives the actuator, which moves the valve stem to either open or close the valve and regulate fluid flow. The movement can involve lifting or rotating the stem, depending on the valve type (e.g., gate, globe, or ball valve). Lifting moves the valve element upward to allow flow, while rotating turns the element to open or close the passage. This flexibility allows electric valve to handle both simple on/off tasks and precise flow adjustments.

The actuator usually includes a gearbox to amplify the torque produced by the motor, making it easier to move the valve. Additionally, limit switches help determine if the valve is fully open or closed, ensuring precise control and easy monitoring. MOVs are designed for high reliability and accuracy, providing a consistent response to control commands.

Types of Electric Valve

Electric Valves come in various designs to fulfill different functions. Common types include:

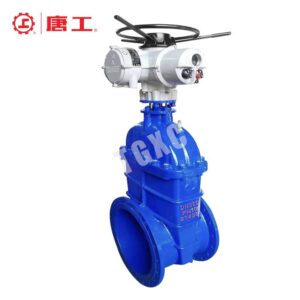

1. Gate Valves: Gate valves use a flat gate to control fluid flow. The motor raises or lowers the gate to start or stop the movement of fluid, providing minimal resistance when fully open. These are ideal for simple on/off control.

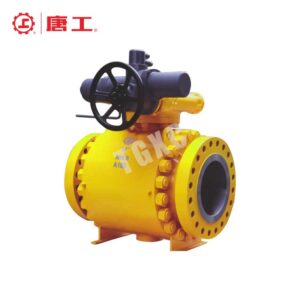

2. Ball Valves: Ball valves feature a spherical disc that rotates to either open or close the valve. They provide a quick and reliable shutoff, making them suitable for on/off applications.
3. Butterfly Valves: Butterfly valves use a rotating disc to control flow. They are lightweight and often used in low-pressure systems requiring flow regulation.

Reasons for Using Electric Valves

Electric Valves are used in fluid management systems because of their versatility, precise control, and features like remote operation, accurate positioning, integration with automated systems, various actuator options, and feedback mechanisms for enhanced accuracy. In scenarios where manual operation is impractical or unsafe—such as remote or hazardous locations—MOVs offer an effective alternative. The ability to operate remotely greatly enhances safety and convenience.

MOVs are essential for precisely controlling flow rates and pressure in industries like power generation, oil and gas, chemical processing, and water treatment. This precision helps maintain stable operating conditions, reduce variability, and improve overall system performance compared to manually operated valves.

By reducing the need for manual intervention, MOVs not only decrease labor costs but also reduce the risk of human errors. They can be integrated with advanced monitoring systems, such as SCADA, to provide real-time data and enhance automation. MOVs also respond quickly and reliably to changes in process conditions, which helps protect equipment and ensure safety.

Overall, MOVs combine automation, remote control, precision, and reliability, making them indispensable in many industrial and commercial settings.

Applications of Electric Valves

Electric Valves are used across various industries and applications, including:

• Power Generation: MOVs control steam, feedwater, and cooling systems, ensuring safe and efficient operations in power plants.
• Oil and Gas: In refineries, pipelines, and offshore platforms, MOVs control the flow of crude oil, natural gas, and refined products, providing precision during regular operations and emergency shutdowns.
• Chemical Processing: MOVs are used to safely regulate the flow of aggressive chemicals, maintaining control in critical process lines.
• Water Treatment: In water treatment facilities, MOVs manage the flow of water, chemicals, and wastewater to ensure smooth treatment processes.
• HVAC Systems: MOVs regulate water and air flow in HVAC systems to maintain appropriate temperature and pressure conditions.

These examples show the versatility of MOVs, making them a valuable solution for various industrial applications requiring reliable and precise fluid control.

Advantages of Electric Valves

1. Remote Operation: The ability to operate remotely makes MOVs particularly useful in hazardous or hard-to-access areas, improving worker safety.
2. Automation Integration: MOVs can be integrated with automated systems, allowing precise control via PLCs or distributed control systems (DCS), ultimately improving process efficiency and consistency.
3. Precision and Reliability: With accurate positioning, MOVs provide reliable performance in critical applications requiring precise flow management.
4. Versatility: MOVs are compatible with different types of applications, including on/off control, flow regulation, and emergency shutoff, making them highly versatile.

Limitations of Electric Valves

1. Complex Setup: The integration of electric motors and actuators makes MOVs more complex than manual valves, leading to higher initial costs and maintenance needs.
2. Dependence on Power: MOVs require electrical power, making them vulnerable to power outages and necessitating backup power solutions.
3. Response Time: MOVs generally have a slower response time compared to pneumatic or hydraulic actuators, which can be a limitation for applications needing rapid valve actuation.

Electric Valve Symbols

Electric Valves are depicted in process and instrumentation diagrams (P&IDs) with standardized symbols to show their function in a piping system. These symbols are essential for understanding how MOVs interact with other system components. A typical MOV symbol includes a valve symbol with an actuator indicator, usually depicted as a circle with the letter ‘M’ above it to indicate motor operation. This representation helps engineers and technicians visualize the control system and understand the role of each valve.

For example, an MOV symbol in a P&ID might show a motor actuator connected to a valve, signifying its remote operation capabilities. This helps engineers visualize how the valve integrates with other components in the system.

Comparing Electric Valves with Other Types of Valves

Electric Valves differ from other valve types as follows:

• Pneumatic Valves: Pneumatic valves are powered by compressed air, providing faster response times compared to MOVs. However, they require an air supply system, which adds complexity.
• Hydraulic Valves: Hydraulic valves use pressurized fluid to operate, offering high force and making them suitable for heavy-duty applications. They require a more complex hydraulic system compared to MOVs.
• Manual Valves: Manual valves are simpler and more cost-effective but require hand operation. Unlike MOVs, they cannot be automated, limiting their use in large-scale or hazardous applications.
• Solenoid Valves: Solenoid valves are electrically actuated and suitable for low-flow or low-pressure applications. They are effective for basic on/off control but lack the versatility of MOVs in high-pressure systems or for throttling.

Differences between Electric Valves and Control Valves

Conclusion

Electric Valves are essential components in modern fluid control systems, providing effective, automated, and reliable flow management across various industries, including power generation, oil and gas, chemical processing, and water treatment. Their remote operation capabilities, integration with automated systems, and precise control make them well-suited for applications that require safety, accuracy, and efficiency. Despite their complexity and dependence on electric power, the benefits of MOVs—such as automation, consistency, and reduced manual intervention—make them a preferred choice in many industrial settings.
