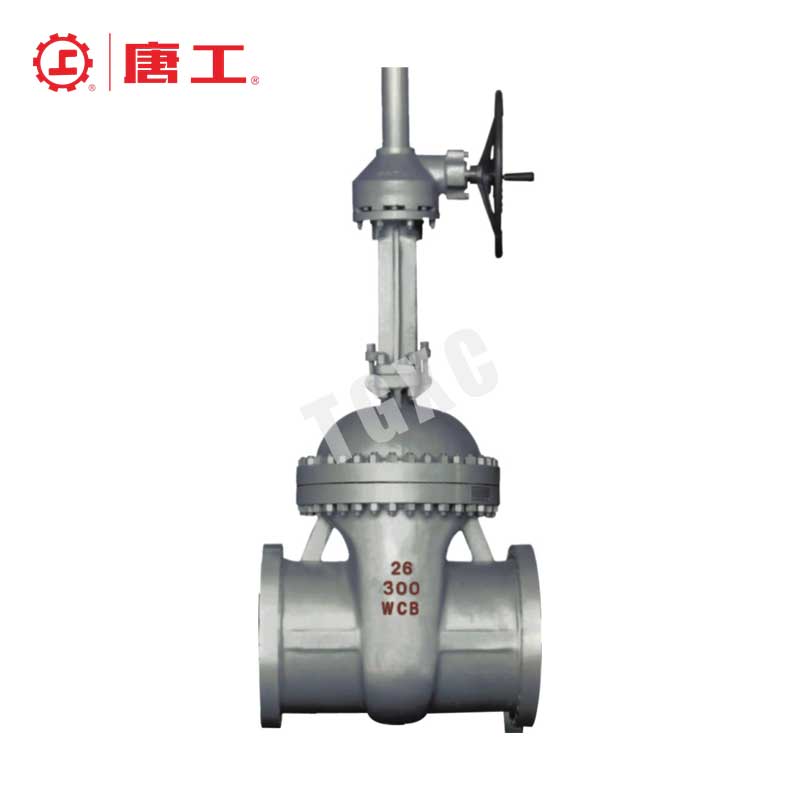

What is a Gate Valve?
Gate valves are crucial components in many industrial systems, providing reliable control over fluid flow in a wide range of applications. A gate valve is a type of linear motion valve primarily used to start or stop the flow of fluid in a pipeline. It operates by moving a flat or wedge-shaped gate up and down to control fluid flow. When fully open, the valve provides minimal resistance to flow, making it ideal for on/off control applications where a direct flow path with minimal restriction is needed. Gate valves are widely utilized in industries such as oil and gas, water treatment, and chemical processing.

How Does a Gate Valve Work?
Gate valves control fluid flow by raising or lowering a gate within the valve body. The gate moves between two seat rings, allowing or blocking the flow of fluid. When fully open, the gate is lifted entirely out of the flow path, resulting in minimal resistance. When closed, the gate moves down between the seats, effectively stopping the flow.
Gate valves can have different gate shapes, such as wedge or parallel, based on their intended application. These valves are ideal for applications requiring either full flow or complete shut-off and are not recommended for throttling purposes.

Key Components of a Gate Valve
Gate valves consist of several components that work together to ensure effective and reliable operation. These components each play a crucial role in the functionality of the valve:
- Body: The body is the main housing of the valve that contains all other components. It is typically made from durable materials like cast iron, stainless steel, or brass.
- Gate: The gate is the flat or wedge-shaped element that moves to block or allow fluid flow. It can be made from various materials depending on the specific application requirements.
- Stem: The stem connects the gate to the handwheel or actuator and transmits the motion required to open or close the valve. The stem can be rising or non-rising based on the design.
- Seats: The seats provide sealing surfaces for the gate, ensuring no leakage occurs when the valve is closed. They are usually made from resilient or metallic materials.
- Handwheel or Actuator: The handwheel or actuator is used to operate the valve by moving the gate. Manual gate valves use a handwheel, while motorized actuators are employed for automated or remote control.

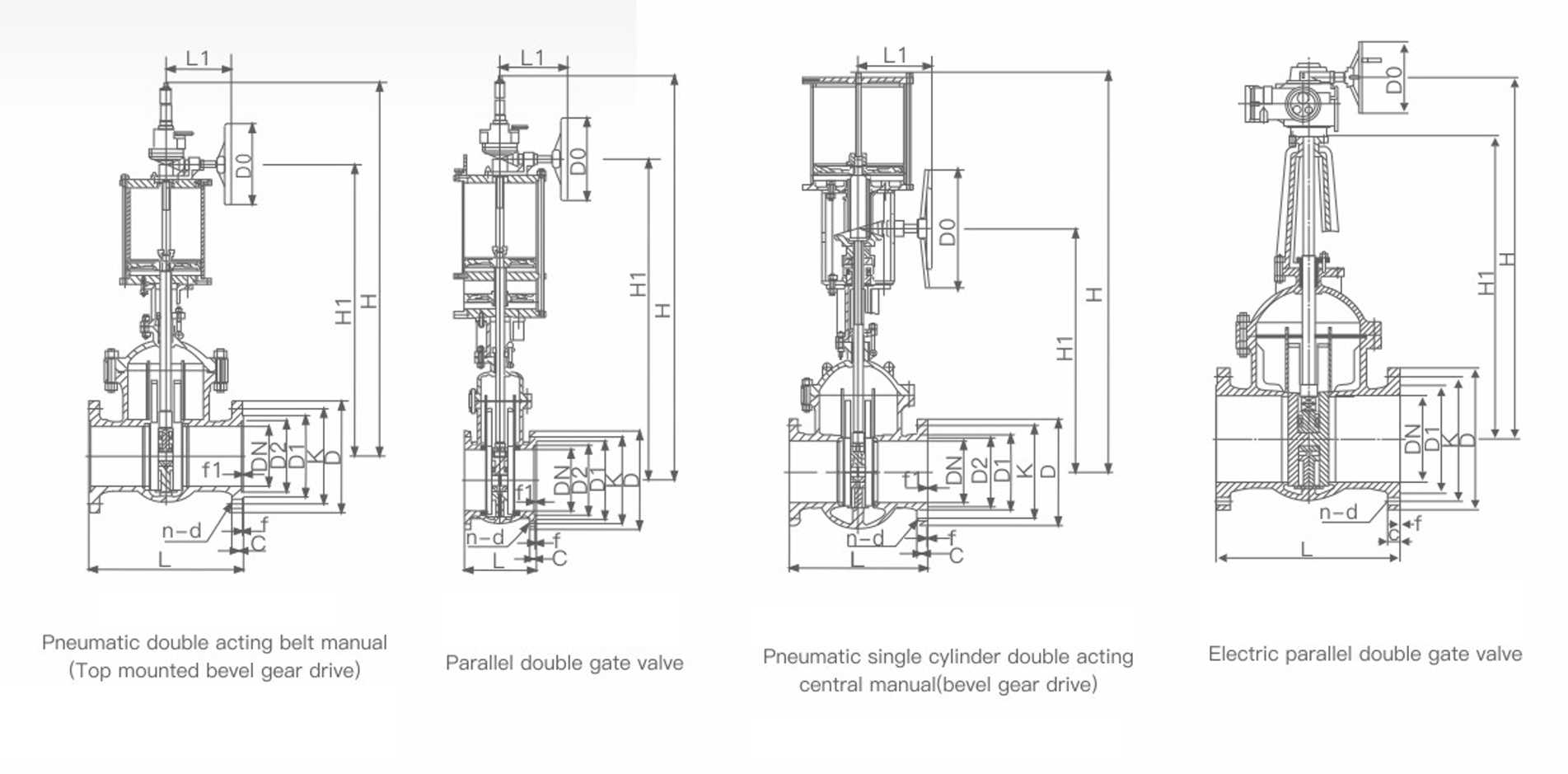

Boundary Connection Dimensions of Parallel Double Gate Valve 1.6PN
| PN (MPa) |
DN |
Overall dimensions |
Connection size |
Sealing surface |
Reference Weight (kg) |
| L (3/Short) |
L (1/15Long) |
H |
H1 |
L1 |
D0 |
D |
K |
n-d |
C |
D1 |
f |
| 1.6 |
15 |
108 |
130 |
472 |
380 |
185 |
250 |
95 |
65 |
4-14 |
16 |
45 |
2 |
27 |
| 20 |
117 |
150 |
485 |
390 |
185 |
250 |
105 |
75 |
4-14 |
18 |
58 |
2 |
30 |
| 25 |
127 |
160 |
490 |
400 |
185 |
250 |
115 |
85 |
4-14 |
18 |
68 |
2 |
32 |
| 32 |
140 |
180 |
530 |
414 |
185 |
250 |
140 |
100 |
4-18 |
18 |
78 |
2 |
35 |
| 40 |
165 |
240 |
600 |
430 |
185 |
250 |
150 |
110 |
4-18 |
20 |
88 |
2 |
42 |
| 50 |
178 |
250 |
729 |
488 |
185 |
250 |
165 |
125 |
4-18 |
20 |
102 |
2 |
57 |
| 65 |
190 |
270 |
802 |
550 |
185 |
250 |
185 |
145 |
8-18 |
22 |
122 |
2 |
68 |
| 80 |
203 |
280 |
891 |
604 |
185 |
250 |
200 |
160 |
8-18 |
20 |
138 |
2 |
80 |
| 100 |
229 |
300 |
1051 |
710 |
185 |
250 |
220 |
180 |
8-18 |
20 |
158 |
2 |
100 |
| 125 |
254 |
325 |
1283 |
740 |
185 |
250 |
250 |
210 |
8-22 |
22 |
188 |
2 |
125 |
| 150 |
267 |
350 |
1385 |
925 |
185 |
250 |
285 |
240 |
8-22 |
22 |
212 |
2 |
155 |
| 200 |
292 |
400 |
1700 |
1119 |
258 |
350 |
340 |
295 |
12-22 |
24 |
268 |
2 |
265 |
| 250 |
330 |
450 |
1904 |
1226 |
258 |
350 |
405 |
355 |
12-26 |
26 |
320 |
2 |
350 |
| 300 |
356 |
500 |
2245 |
1438 |
258 |
350 |
460 |
410 |
12-26 |
28 |
378 |
2 |
470 |
| 350 |
381 |
550 |
2620 |
1640 |
290 |
400 |
520 |
470 |
16-26 |
30 |
428 |
2 |
640 |
| 400 |
406 |
600 |
2715 |
1400* |
290 |
400 |
580 |
525 |
16-30 |
32 |
490 |
2 |
840 |
| 450 |
432 |
650 |
2840 |
1550* |
445 |
650 |
640 |
585 |
20-30 |
40 |
550 |
2 |
1200 |
| 500 |
457 |
700 |
3220 |
1700* |
445 |
650 |
715 |
650 |
20-33 |
44 |
610 |
2 |
1380 |
| 600 |
508 |
800 |
3750 |
1900* |
480 |
650 |
840 |
770 |
20-36 |
54 |
725 |
2 |
1620 |
| 700 |
610 |
900 |
4365 |
2280* |
480 |
650 |
910 |
840 |
24-36 |
42 |
795 |
2 |
2780 |
| 800 |
711 |
1000 |
4890 |
2504* |
525 |
900 |
1025 |
950 |
24-39 |
42 |
900 |
2 |
4215 |
| 900 |
711 |
1100 |
5305 |
2725* |
530 |
900 |
1125 |
1050 |
28-39 |
44 |
1000 |
2 |
4850 |
Note: The mark with “*” in the table is the central double-acting pneumatic parallel double gate valve. The data in the above table is for reference only, please call the Technical Department for the actual working conditions, and hereby declare!
Common Types of Gate Valves
Gate valves are available in different types, each designed for specific applications:
- Rising Stem Gate Valves: These valves have a stem that moves up and down as the valve is operated, providing a visual indication of whether the valve is open or closed. They are often used in situations where visibility of the valve position is important and vertical space is not a concern.
- Non-Rising Stem Gate Valves: In these valves, the stem remains stationary while the gate moves internally. Non-rising stem gate valves are ideal for applications with limited vertical space, such as underground installations.
- Parallel Slide Gate Valves: These valves have a flat gate that presses against parallel seats, making them easier to operate in low-pressure systems. They are also effective in handling fluids with suspended solids.
- Wedge Gate Valves: Wedge gate valves feature a wedge-shaped gate that ensures a tight seal against the seats, making them suitable for high-pressure applications. The wedge design helps maintain a secure seal even under challenging conditions.

- Knife Gate Valves: Knife gate valves are designed with a sharp-edged gate that can cut through thick fluids or slurries. These valves are particularly suitable for applications involving viscous or abrasive media, such as in wastewater treatment or mining operations. They are ideal for low-pressure systems and are effective in handling fluids with suspended solids.

In summary, the key differences between these types of gate valves lie in their stem design, sealing mechanism, and suitability for specific environments, which influences their application in various industries.
Differences Between Rising Stem and Non-Rising Stem Gate Valves
| Feature |
Rising Stem |
Non-Rising Stem |
| Stem Movement |
Stem moves up and down as valve operates |
Stem remains stationary while gate moves internally |
| Visibility of Valve Position |
Provides a visual indication of valve status (open/closed) |
No external visual indication of valve position |
| Maintenance Ease |
Easier to maintain, accessible stem and packing |
More challenging to access, limited maintenance |
| Space Requirements |
Requires more vertical space |
Compact design, ideal for restricted spaces |
| Applications |
Commonly used above ground where visual position is important |
Preferred for underground or confined spaces |
Advantages of Gate Valves
Gate valves offer several advantages that make them a popular choice for on/off control in piping systems:
- Minimal Flow Resistance: When fully open, gate valves provide a straight-through flow path, resulting in very low flow resistance.
- Bidirectional Flow: Gate valves can be used for fluid flow in either direction, providing versatility in system configurations.
- Effective Shut-Off: They provide reliable shut-off, particularly in applications requiring tight sealing under high pressure.
- Durability: Gate valves have a robust construction, ensuring long service life even under demanding conditions.
- Cost Efficiency: They are often less expensive compared to other valve types, especially for larger diameters.
Gate Valve Actuation Methods
Gate valves can be actuated through different methods depending on the application and operational requirements:
- Manual Actuation: The most common method, using a handwheel or lever to operate the valve. This is suitable for applications where the valve does not require frequent operation or precise flow control. Pros: Simple, cost-effective, and easy to use. Cons: Limited to manual control, not ideal for remote or automated systems.

- Electric Actuation: Electric actuators use an electric motor to open or close the valve. This method is appropriate for remote or automated control, especially when frequent operation or precise positioning is needed. Electric actuators can be integrated with control systems for enhanced efficiency. Pros: Excellent for automation, precise control, and integration with control systems. Cons: Higher cost, requires electrical power.

- Pneumatic Actuation: Pneumatic actuators use compressed air to operate the valve, providing a rapid response ideal for process control systems. This method is also suitable for hazardous environments where electrical actuation might be unsafe. Pros: Fast response, safe in hazardous environments. Cons: Requires a compressed air supply, less precise compared to electric actuation.

- Hydraulic Actuation: Hydraulic actuators use pressurized fluid to operate the valve, providing high force ideal for large valves or high-pressure systems. Hydraulic actuation is common in industrial applications requiring substantial force for operation. Pros: High force output, suitable for large valves. Cons: Requires a hydraulic power unit, can be complex to maintain.

Common Applications of Gate Valves
Gate valves are employed across a wide range of industries and applications:
- Oil & Gas Industry: Gate valves are used to control the flow of crude oil, natural gas, and other hydrocarbons, given their ability to handle high pressures and temperatures.
- Water Treatment and Distribution: These valves are widely used in water treatment systems to isolate pipeline sections for maintenance or repair, ensuring effective shut-off.
- Chemical Processing: Gate valves are suitable for managing a broad spectrum of fluids, including corrosive chemicals. Stainless steel gate valves are often used due to their corrosion resistance.
- Power Generation: In power plants, gate valves are used in steam and cooling systems to manage high-temperature and high-pressure conditions, providing durability and reliability.
Frequently Asked Questions
What is a gate valve and how does it work?
A gate valve (also called a sluice valve) controls fluid flow by lifting a flat or wedge-shaped gate out of the fluid path. When fully open, it offers minimal resistance; when closed, it creates a tight seal. Most gate valves are operated via a handwheel and threaded stem mechanism.
What are the main applications of gate valves?
Gate valves are commonly used to fully stop or allow fluid flow—not for regulating flow rates. They’re ideal for large-diameter pipelines (typically 2″ and above) due to their simple design and low cost, especially in high-pressure systems where throttling isn’t required.
When should you choose a rising stem versus a nonrising stem gate valve?
Rising-stem gate valves visually indicate whether the valve is open or closed (the stem moves up/down). Nonrising-stem valves, conversely, are compact and turn in place—better suited for installations with limited vertical space.
What materials are gate valves made from, and how do you choose one?
Gate valves are manufactured from materials including cast iron, cast and ductile carbon steel, stainless steel, alloy steels, bronze, and gunmetal. Selection depends on medium (water, oil, gas), pressure, temperature, and required durability.
Why aren’t gate valves suitable for flow regulation?
Because of the valve’s design, as the gate moves partially, the flow path changes nonlinearly. This can cause vibrations and unpredictable flow control. Instead, they are best used only in fully open or fully closed positions.
