What Are Lined Valves?
Definition and Basic Concept

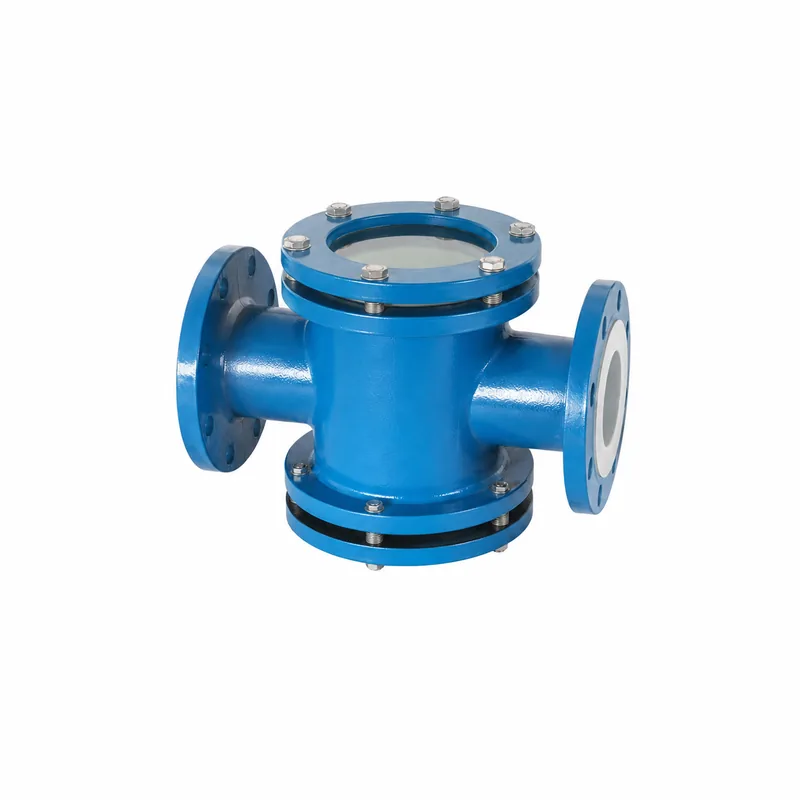

Lined valves are industrial valves whose wetted surfaces are coated or encapsulated with a chemically-resistant lining—typically fluoropolymers (e.g. PTFE, PFA) or rubber—to isolate the valve body and trim from corrosive or abrasive media. The lining acts as a protective barrier, extending valve durability and preventing leakage into the metal components. Crafted with a metal shell for strength and a non‑metallic internal lining for chemical resistance, lined valves combine mechanical robustness with process safety.
How Lined Valves Work
These valves operate through standard opening/closing or flow‑regulating mechanisms (such as quarter‑turn or throttling actions), but all wetted surfaces remain shielded by the lining. For example:
-

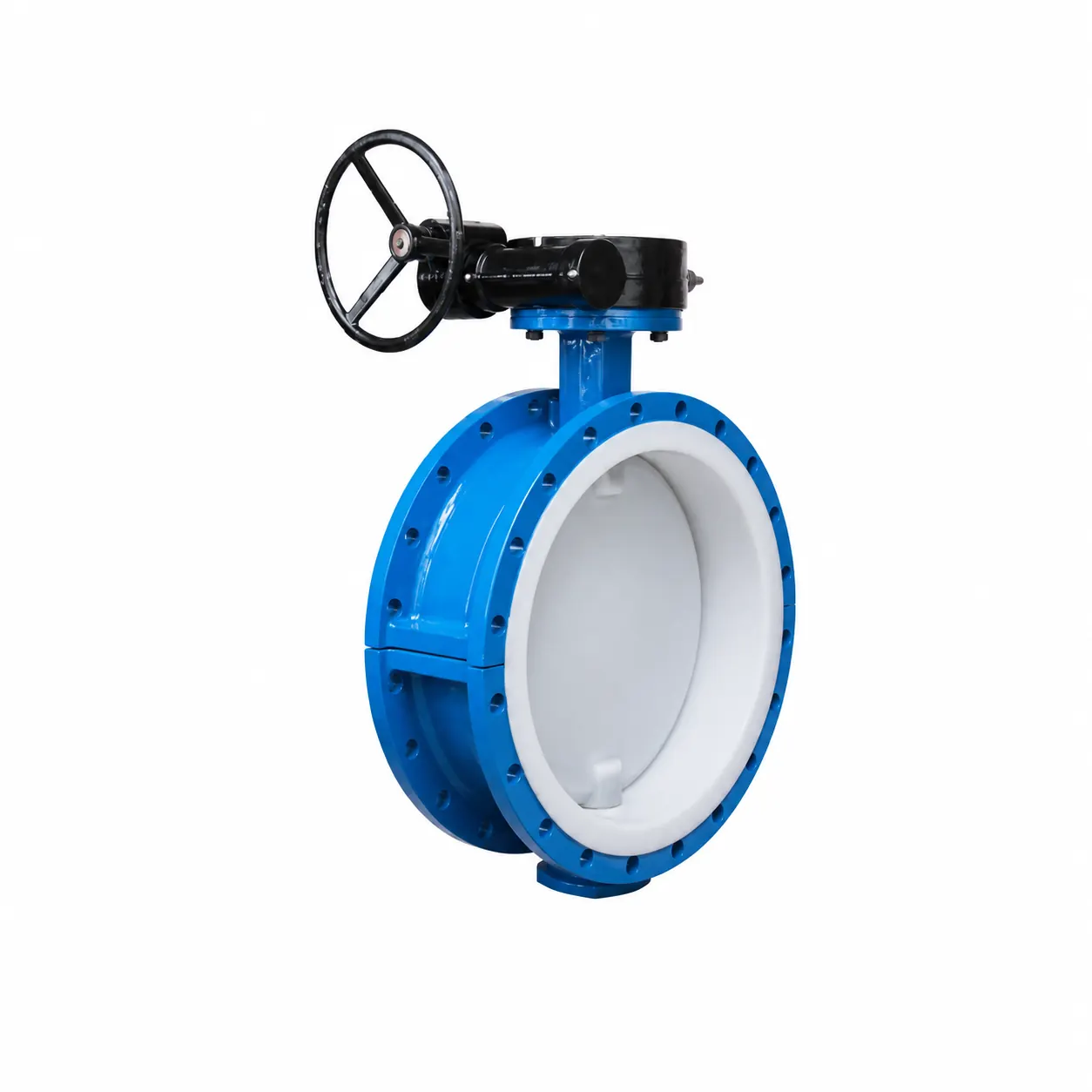

PTFE‑lined butterfly valves use a disc encased in PTFE, which acts both as the sealing and barrier element; the lining also extends over the flange face, often replacing a separate gasket.
-
PTFE‑lined ball and plug valves line both the interior of the body and the rotating plug or ball element, providing tight shut‑off and resistance to aggressive fluids.
In essence, the lining ensures that corrosive or reactive fluids never contact the metal body or internals, maintaining integrity, reducing maintenance, and preventing contamination.
Key Components and Construction
| Component |
Function & Structure |
| Valve Body |
Usually steel, stainless steel, cast iron, or alloy; provides mechanical structure and pressure rating. The internal cavity is lined completely or partially depending on design. |
| Lining Material |
Common choices include PTFE, PFA, FEP, PVDF, rubber (e.g. EPDM, BUNA‑N), even glass or special fluoropolymers (like TFM) depending on media compatibility and operating temperature or abrasion resistance. |
| Internal Element |
In ball or plug valves, the ball or plug is also lined. In butterfly valves, the disc is coated or molded in lining material to isolate media contact. |
| Seat and Energizer |
In butterfly valves, a resilient seat energizer (often PTFE-backed spring) provides compressive sealing force, independent of flange torque. In ball/plug valves, the seat sealing surface is also lined to ensure tight shut-off. | |
| Stem, Packing & Non‑wetted Parts |
These are non‑lined or isolated from the medium. They are typically metal (stem, bearings, springs) and sealed from exposure by the lining layer. |
Types of Valve Linings
PTFE (Polytetrafluoroethylene) Lined Valves
PTFE is the most widely used fluoropolymer lining due to its universal chemical resistance and ability to perform across extreme temperature ranges (approximately –240 °C to +260 °C).
It resists nearly all industrial chemicals, offers a very low coefficient of friction, and is non-stick—ideal for aggressive media handling in chemical processing, water treatment, and food industries.
PFA (Perfluoroalkoxy) Lined Valves
PFA combines the fluoropolymer benefits of PTFE with melt-processability. It resists temperatures up to around 260 °C and maintains excellent chemical purity and electrical insulation properties.
Compared to PTFE, PFA has lower cold flow but superior flexibility and folding endurance—suitable for high-purity applications like pharmaceutical, semiconductor, and automated valve systems.
FEP (Fluorinated Ethylene Propylene) Lined Valves
FEP shares PTFE’s chemical inertness but is easier to form and weld because it’s melt-processable. It operates up to approximately 200 °C and retains good resistance to UV and electrical activity.
Its flexibility and transparency make FEP liners useful where moderate chemical resistance and visual inspection are needed, and where PTFE’s processing limits are problematic.
Rubber Lined Valves
Rubber linings (e.g. natural rubber, EPDM, BUNA‑N, neoprene) are selected for systems handling acidic, alkaline, or abrasive slurries at relatively low temperature (–10 °C to +110 °C typically).
Such linings provide resilient sealing, shock absorption, and abrasion resistance, making them ideal for diaphragm valves in mining, water treatment, or pulp and paper applications.
Ceramic Lined Valves
Ceramic linings use advanced materials like stabilized zirconia or alumina for remarkable wear, abrasion, and corrosion resistance. The ceramic trim—disc, seat, ball—is enclosed within a robust metal body to protect against shock and temperature swings.
Often found in handling abrasive slurries, fly ash, or FGD (flue gas desulfurization) streams, ceramic‑lined valves deliver long service life in harsh environments.
Glass Lined Valves
Glass lining offers outstanding resistance to strong acids and alkalis. Coated on cast bodies, the smooth glass surface is chemically inert and easy to clean. It operates up to ~260 °C but is vulnerable to thermal shock and mechanical stress.
Commonly used in chemical, pharmaceutical, and high‑purity systems where minimal contamination and smooth flow are priorities.
Industries and Applications
Chemical Processing Industry
Lined valves are indispensable in chemical and petrochemical plants, where highly corrosive acids, solvents, and aggressive fluids are handled routinely. PTFE-, PFA-, and FEP-lined solutions protect the valve internals and extend service life, making them standard equipment in chemical isolation and sampling systems.
Pharmaceutical and Biotechnology
In pharmaceutical and biotech facilities, hygiene and chemical purity are critical. Lined valves—especially with PTFE or PFA—are used in ultra-pure and aseptic processes. Their smooth, non-contaminating surfaces facilitate clean-in-place (CIP) systems and minimize cross-contamination risk.
Food and Beverage Industry
Food and beverage processing demands valves that withstand cleaning cycles, acidic wash-downs, and hygienic standards. Lined valves made from PTFE or compatible polymers offer excellent non-stick surfaces and compatibility with CIP routines common in breweries, dairies, and bottling plants.
Water Treatment and Municipal Applications
Municipal and industrial water treatment facilities use lined valves for chemical dosing, pH control agents, and disinfectants. These valves resist aggressive treatment chemicals and safeguard infrastructure in filtration, desalination, and sludge handling systems.
Oil and Gas Industry
The oil and gas sector frequently uses lined valves—especially lined ball and plug types—for handling corrosive fluids, produced water, and refinery chemicals. Their leak-minimizing design is essential for high-reliability flow control in harsh environments.
Mining and Mineral Processing

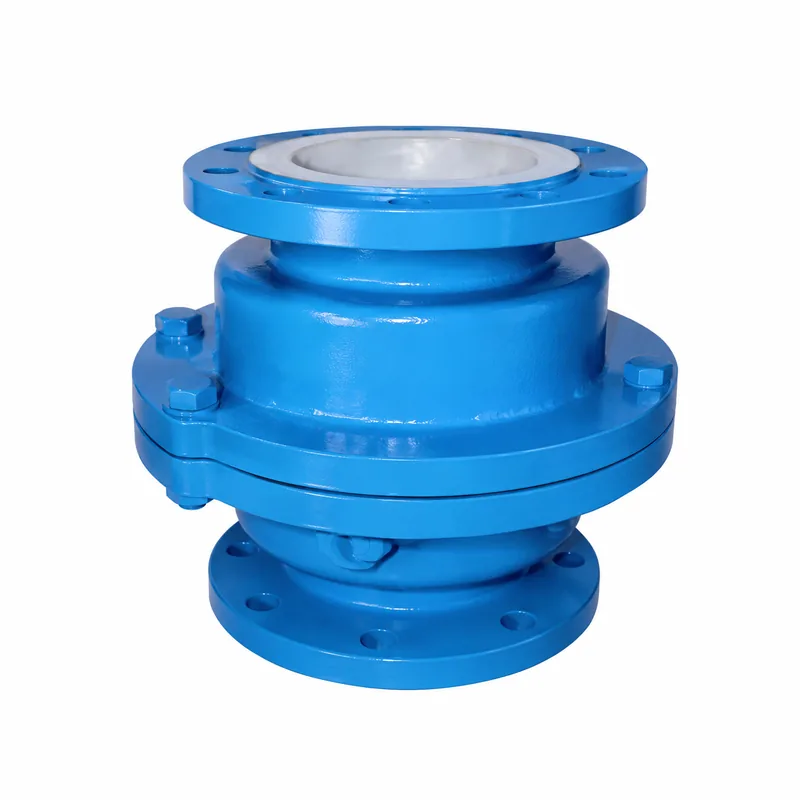

Mining operations often involve abrasive slurries, acid leachates, and solids-laden fluids. Ceramic-, rubber-, or PTFE-lined diaphragm and check valves provide superior abrasion resistance and tight sealing to prevent downtime and equipment wear in extraction, dewatering, and solvent-extraction stages.
Advantages and Benefits of Lined Valves
Corrosion Resistance
Lined valves provide exceptional protection against corrosive environments by isolating aggressive fluids from the metal body and internal components. PTFE and other fluoropolymer linings act as an impenetrable barrier, greatly reducing corrosion-related wear and extending service life—even when exposed to acids, bases, steam, or solvents.
Chemical Compatibility
Fluoropolymer linings like PTFE, PFA, and FEP offer nearly universal compatibility with industrial chemicals. They resist a broad spectrum of media without degradation or contamination risk—making them ideal for high-purity and hygiene-critical applications in industries such as pharmaceuticals and food & beverage.
Cost‑Effectiveness vs. Exotic Alloys
Compared to expensive exotic metal alloys (such as Hastelloy or super‑duplex stainless steel), lined valves offer a more economical solution for corrosive services. Their lower initial purchase cost, combined with reduced maintenance and replacement needs, significantly improves total cost of ownership.
Temperature and Pressure Capabilities
Though exotic alloys may handle extreme temperatures and pressures, lined valves with PTFE or PFA linings still offer broad operational ranges—typically from –80 °C to around +250 °C (PTFE) and up to +260 °C (PFA). These ranges suffice for many chemical and industrial processes without sacrificing reliability.
Reduced Maintenance Requirements
The non-stick, inert properties of fluoropolymer linings minimize fouling, mechanical wear, and seal degradation. This translates to fewer shutdowns, less frequent part replacement, and longer service intervals. Lined valves are proven to require significantly less regular upkeep compared to unlined metallic or exotic alloy alternatives.
Lined Valve Selection Criteria
Chemical Compatibility Assessment
Start by identifying the process fluid(s): their chemical composition, concentration, temperature, and abrasiveness. Choose lining and seat materials (PTFE, PFA, rubber, ceramic, etc.) based on compatibility with each substance to avoid degradation or embrittlement. Most manufacturers provide chemical resistance charts—align your application’s chemical profile with recommended lining systems for long-term reliability.
Temperature and Pressure Requirements
Match the valve’s specified temperature and pressure ratings with process conditions. Manufacturer pressure-temperature curves vary by body and lining material, so verify maximum allowable pressure at the process temperature. Ensure both body shell and lining remain within their safe operational envelope—even under excursions.

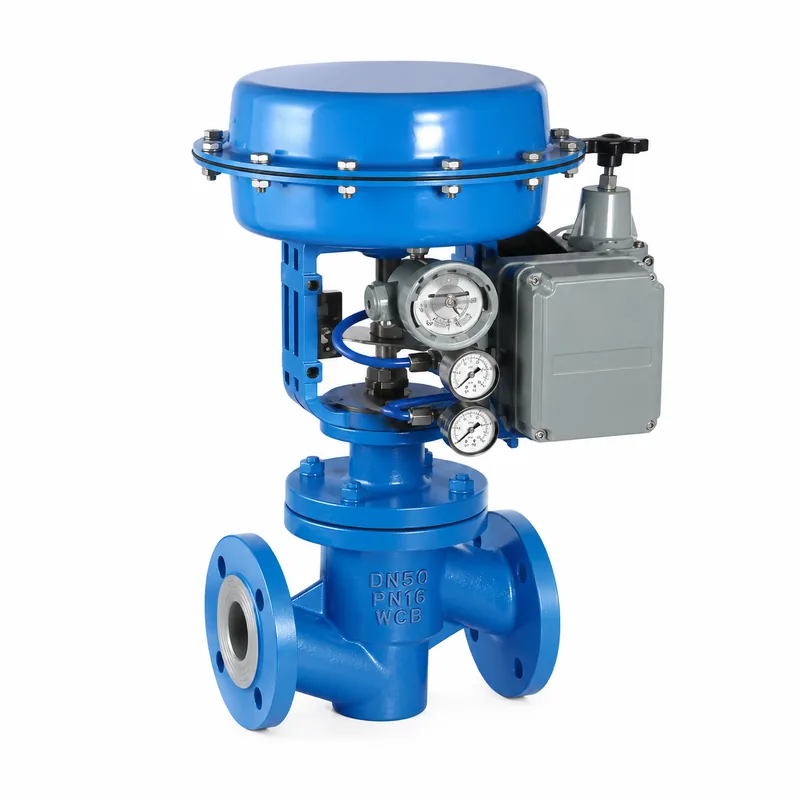

Flow Characteristics and Cv Values
Determine required Cv (flow coefficient) based on process flow rate and pressure drop. Valve size and lining design affect Cv, and oversized valves can compromise control accuracy (e.g., excessive deadband). Engage suppliers who provide Cv data or calculators and account for phenomena like cavitation and flashing in dynamic applications.
End Connection Types
Select end connections that match piping layout and maintenance needs: threaded ends (lower cost), welded ends (high leak integrity), flanged (easy removal), wafer or lugged (compact footprint). Consider pressure ratings, bolt compatibility, and standards compliance (ANSI, DIN). Connection type also affects ease of lining and long-term sealing performance.

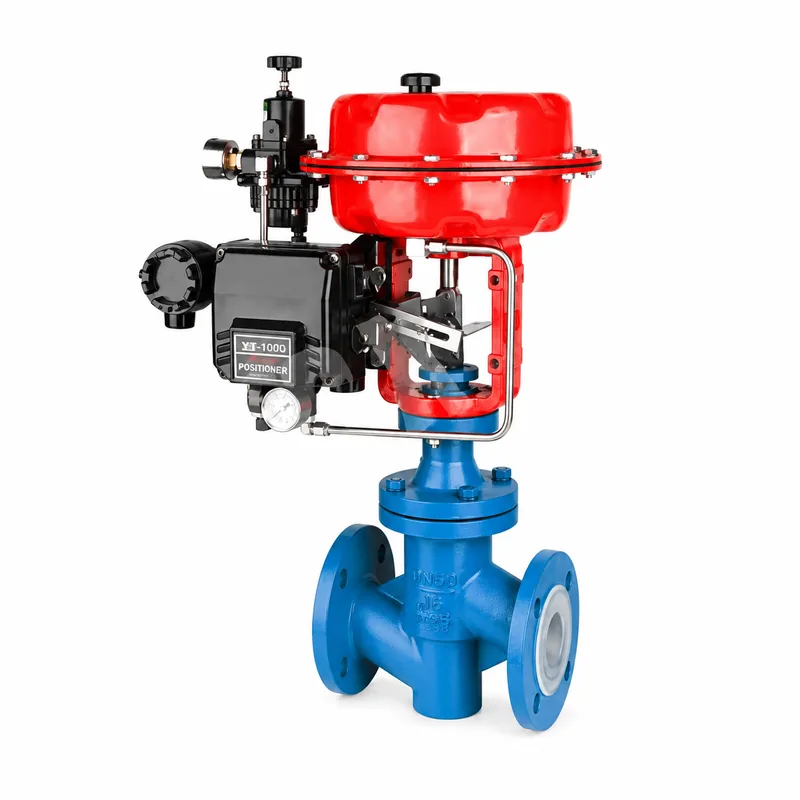

Actuator Compatibility
Verify the valve’s torque or thrust requirements for operations (manual or automated). Lined valves may have higher initial friction or torque needs due to thicker seals or liners. Choose electric, pneumatic, or hydraulic actuators designed to meet static and dynamic torque with a safety margin (10‑20 %). Also ensure actuator housing meets IP and explosion-proof ratings if required.
Installation and Maintenance Best Practices
Pre‑Installation Inspection
-
Inspect the valve immediately after delivery. Look for physical damage, missing tags, or dents that occurred during transit. All valves should carry a visible identification tag—do not remove it—to ensure traceability.
-
Check that the valve body, lining, and seat are in good condition and free from damage such as scratches, pits, or misalignment. Replace any valve that shows visible defects before installing.
Proper Handling Techniques
-
Remove protective coatings from machined flow surfaces and ensure cleanliness before installation. Never use force-multiplying devices (like hammers or levers) to force-fit components.
-
Handle lined valves with care—lining surfaces (especially PTFE, PFA) are susceptible to scratches or micro-cracks if dropped or impacted. Use appropriate lifting and support to avoid damage.
Torque Specifications and Guidelines
-
Follow manufacturer torque and flange dimensional guidelines carefully—particularly for PTFE‑lined butterfly valves—to avoid disc interference or improper flange sealing.
-
Ensure bolting torque is compatible with flange strength. If flange girth or material limits torque, use gaskets as recommended to maintain seal integrity.
Routine Maintenance Procedures
-
Even if valves are infrequently used, cycle them (open/close) at least once per month to prevent sticking or silt buildup in bearings, especially in slurries or vertical installations.
-
Conduct periodic inspections every ~50 cycles or every three months (whichever comes first), checking shaft seals, bearings, actuators, and operating mechanism for wear or leaks.
-
For fluoropolymer-lined valves, clean and lubricate seals and stems (using compatible lubricant like silicone-based for PFA) and check for leak-tight performance.
Signs of Lining Deterioration
-
Monitor visibly for discoloration, dulling, cracking, chips, pits, or peeling on lining surfaces—especially at areas exposed to aggressive fluid flow. These are early signs of aging and corrosion.
-
Use non‑destructive methods like ultrasonic thickness gauges to detect local thinning or delamination of the lining. Media sampling may reveal lining fragments in suspension, another indicator of material shedding.
-
For minor damage, repair-compatible agents and polishing can restore surface smoothness. Moderate damage may require partial relining; extensive wear or delamination typically necessitates valve replacement.
Lined Valves vs. Alternative Solutions
Lined Valves vs. Solid Exotic Alloy Valves
-
Corrosion Protection: Lined valves—using materials like PTFE or PFA—offer chemical resistance nearly matching exotic alloys like Hastelloy or super‑duplex stainless steel, but at a fraction of the cost.
-
Cost Efficiency: Exotic alloy valves perform exceptionally in high-temperature and pressure applications but come with a high purchase price. In contrast, lined valves deliver similar chemical service durability and lower maintenance over time, making them attractive for many corrosive-service applications.
-
Limitations: Exotic alloys can handle higher temperature, pressure, and erosion scenarios better, whereas lined valves have limits defined by the lining material’s temperature and mechanical ratings.
Lined Valves vs. Coated Valves
-
Type of Protection: Lined valves feature a full encapsulation of all wetted metal surfaces—ideal for long-term resistance. Coated valves rely on surface coatings (e.g. PTFE spray, rubber, or noble metal finishes), which may degrade or chip from abrasion over time.
-
Durability & Integrity: Lined valves are more resilient to chemical attack and mechanical wear. Coated valves can break down under abrasion or thermal cycling, while linings provide consistent, durable isolation.
-
Application Fit: Coatings suit light-duty or budget-driven cases. For critical or high-purity service, fully lined valves are preferable due to their higher sealing reliability and material stability.
Cost-Benefit Analysis
| Solution |
Upfront Cost |
Corrosion Resistance |
Maintenance Effort |
Typical Applications |
| Exotic Alloy Valves |
High |
Excellent |
Moderate |
Very high temperature/pressure or abrasive services |
| Lined Valves (PTFE/PFA) |
Moderate |
Excellent |
Low |
Chemical, pharmaceutical, food & beverage, wastewater |
| Coated Valves |
Low |
Moderate |
Higher |
Light chemical service, budget-limited applications |
- Total Cost of Ownership: Lined valves often outperform exotic alloys over the life cycle thanks to lower maintenance, replacement frequency, and downtime costs.
- Performance Match: For harsh chemical service, PTFE or PFA liners achieve comparable chemical resistance to exotic metals, but exotic alloys remain unmatched under extreme thermal or erosive stress.
Industry Standards and Compliance
ASME and ANSI Standards
Most lined valves comply with ASME/ANSI standards including body design, flange dimensions, and hydrostatic testing protocols. Commonly referenced standards are ASME B16.34 (valve design and pressure ratings), B16.5 (flange dimensions and ratings), and B16.10 (face‑to‑face and end‑to‑end dimensions).
Manufacturers may also cite HG/T 3704 and GB/T 12221 for Chinese specifications in parallel with ANSI compliance.
FDA and 3‑A Sanitary Standards
In food, beverage, and pharmaceutical sectors, sanitary valve design must meet FDA requirements for food contact materials as well as 3‑A Sanitary Standards, which demand equipment to be nontoxic, cleanable, inspectable, and free of crevices or dead legs.
3‑A certification, overseen by 3‑A SSI, ensures that valve design and fabrication meet industry-accepted hygienic specifications for processing equipment.
API Standards for Oil & Gas
For valves deployed in oil and gas pipelines and refineries, API standards are critical. Examples include:
-
API 6D, defining pipeline valve requirements (design, testing, documentation) for ball, gate, plug, and check valves in pipeline service.
-
API 600, API 603, and API 624, which cover gate and other valve types used in refining environments and fugitive emissions applications.
-
Additionally, API RP 615 provides guidance on valve selection for hydrocarbon processing and petrochemical facilities in conjunction with ASME B16.34 standards.
ISO Compliance Requirements
ISO standards offer global guidelines for valve materials, dimensions, and performance. Applicable documents include ISO 17292 for metal ball valves and ISO 15761 for steel valves DN100 and under, while ISO 16948–17177 cover LNG systems, CO₂ environment materials, and risk management frameworks in oil and gas applications.
ISO standards often work alongside ASME and API norms for international engineering alignment and product certification.
Common Challenges and Troubleshooting
Lining Cracking and Delamination
Rapid thermal cycling or process excursions can induce stress at the lining‑substrate interface. In PTFE‑lined systems, this may cause micro‑cracks or delamination—visible as tiny separation lines or peeling. Glass and ceramic-lined systems are particularly sensitive: their brittle layers may crack or flake when temperature changes exceed material limits.
Temperature Shock Issues
Thermal shock—sudden introduction of cold fluid into a hot-lined system or vice versa—can produce stress fractures or full delamination. Reported cases include glass-lined vessels cracking under rapid changes and PTFE liners separating under thermal cycling. Critical prevention includes limiting ΔT to manufacturer-specified ranges and gradual fluid introductions.
Installation‑Related Problems
Improper handling or over‑torquing can warp liners or initiate stress cracks. Misalignment during flange tightening may compress the lining unevenly, leading to seal failure or premature delamination. Also, dropping or scraping components during installation may introduce micro-damage invisible to the naked eye.
Preventive Measures
-
Control thermal transients: introduce fluids via dip tubes, jacket spargers, or controlled feed nozzles to avoid direct flow impingement on lined surfaces. Limit temperature differentials per material charts.
-
Handle and install with care: avoid force fittings, impacts, or sharp tools near lined areas. Adhere to manufacturer torque tables and ensure alignment during installation to protect internal seals and liner uniformity.
-
Use non-destructive inspections: periodic ultrasonic thickness or tap testing can detect early delamination before leaks or failures occur. Visual inspections should look for discoloration, blistering, or cracking.
Conclusion
Frequently Asked Questions
What is a lined valve, and why use one?
Lined valves have an internal protective coating (like PTFE, PFA, or glass) that shields the valve body from corrosive or abrasive media, enhancing durability, leak resistance, and reliability—making them ideal for harsh industrial environments.
Which lining materials are available, and how do they differ in performance?
-
Glass – excellent for strong acids/alkalis; temperature tolerance from about –29 °C to 260 °C.
-
PFA – a fluoropolymer that withstands –20 °C to 240 °C, resists chemicals well, and maintains purity.
-
TFM – a second‑generation PTFE with better stress response and higher temperature/pressure performance.
How do lined ball valves compare with lined diaphragm valves?
-
Lined ball valves offer bubble‑tight sealing, rapid quarter‑turn operation, and zero leakage—great for pure corrosive liquids or gases.
-
Lined diaphragm valves excel in handling slurries or abrasive fluids, provide precise flow control, and isolate media to eliminate stem leakage.
Are lined valves suitable for high-temperature or cryogenic use?
-
PTFE‑lined ball valves typically handle temperatures up to ~204 °C; PFA and FEP linings may allow even higher ranges.
-
Specific lined butterfly valves and other types can also be designed for extreme cold (cryogenic) or high‑temperature environments, depending on material selection.
How do lined valves compare to unlined ones in terms of cost and application?
Unlined valves (stainless steel, brass, PVC) are more cost‑effective and suitable for non‑corrosive media, like water or oil. In contrast, lined valves, while more expensive, offer significantly enhanced chemical resistance, longevity, and lower maintenance in corrosive or demanding applications.
