What is a Manifold Valve

​Valves are fundamental components in industrial systems, serving to control the flow and pressure of fluids, gases, and slurries within a pipeline or process. They regulate, direct, or control fluid flow by opening, closing, or partially obstructing passageways, ensuring the safe and efficient operation of various industrial processes. In this article, we will explore the concept of manifold valves, delving into their design, various types, applications, and the benefits they offer to industrial operations.



Manifold Valve Definition

A manifold valve is a device that integrates multiple valves into a single, compact assembly, facilitating efficient control and management of fluids within hydraulic systems. This design streamlines operations by reducing the need for multiple separate valves, thereby saving space and minimizing potential leak points.​

Structurally, manifold valves consist of a solid block—often machined from materials like stainless steel or brass—with multiple ports and integrated valves, such as ball, needle, bleed, or vent valves. Each valve within the manifold has a separate opening to connect to pipes, while sharing a common valve chamber. This configuration allows for precise control over fluid flow paths, enabling functions like isolation, equalization, and bleeding within a unified unit. ​

Manifold valves are widely utilized across various industries, including:​

• Oil and Gas: For isolating instruments and controlling high-pressure fluid flow. ​

• Petrochemicals: To regulate pressure and ensure safe operations. ​

• Power Generation: For managing fluid control in power plants. ​

• Water and Wastewater Treatment: To control fluid flow and pressure in treatment facilities.



How Does a Manifold Valve Work?

A manifold valve is an assembly that integrates multiple valves into a single unit, designed to efficiently distribute fluids or gases in a controlled manner. This integration simplifies piping systems by reducing the need for multiple separate valves, thereby minimizing potential leak points and conserving space. ​

Key Components and Functions:

• Isolation Valves: These valves allow for the blocking of fluid flow to isolate sections of the system for maintenance or emergency purposes.​

• Equalizing Valves: Used to balance pressure between different sections of the system, ensuring stable and accurate measurements.​

• Vent (Bleed) Valves: Enable the safe release of trapped air or fluid from the system, preventing pressure build-up and ensuring accurate readings.​

Operating Mechanism:

In a typical application, a manifold valve operates by using isolation valves to block the process fluid, equalizing valves to balance pressures, and vent valves to safely release any trapped pressure. This coordinated operation ensures accurate measurements and safe maintenance procedures. ​



Types of Manifold Valves

​Manifold valves are essential components in fluid control systems, designed to streamline operations by integrating multiple valves into a single, compact unit. They come in various configurations, each tailored to specific applications:​

2-Valve Manifold:

This configuration comprises one block (isolation) valve and one bleed (vent) valve. It’s commonly used in gauge pressure measurement systems to isolate the pressure instrument from the process for maintenance or calibration. The block valve isolates the instrument, while the bleed valve allows for safe venting of pressure. ​

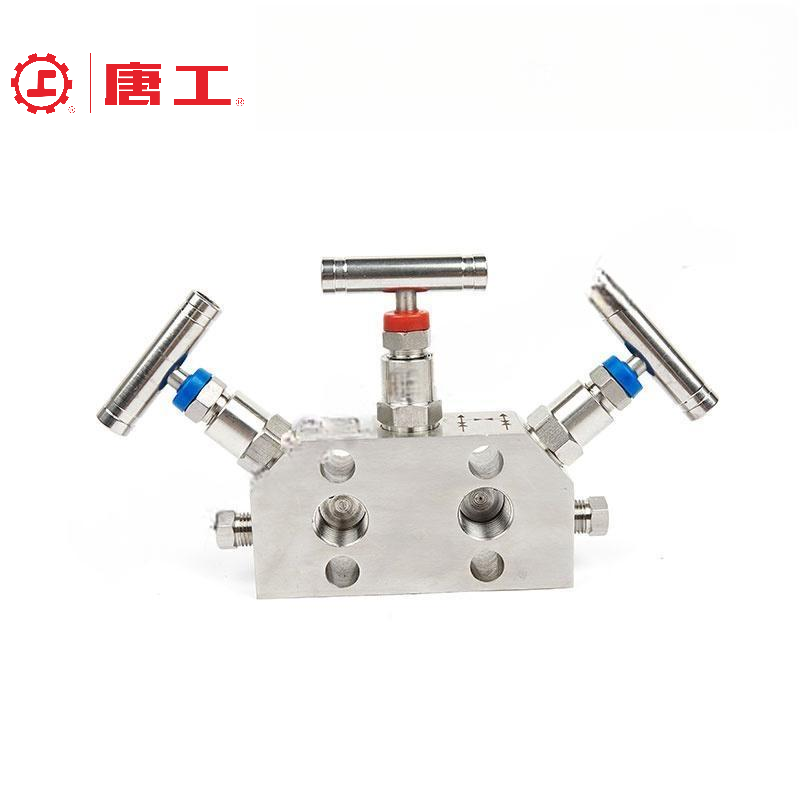

3-Valve Manifold:

Consisting of two block valves and one equalizing valve, the 3-valve manifold is primarily utilized in differential pressure transmitter systems. The block valves isolate the high-pressure (HP) and low-pressure (LP) process sides, and the equalizing valve balances the pressure between them. This setup ensures accurate calibration and prevents over-ranging of the transmitter.

5-Valve Manifold:

This manifold includes two block valves, one equalizing valve, and two bleed valves. It’s designed for differential pressure applications requiring isolation, equalization, and venting. The additional bleed valves facilitate the safe release of trapped pressure from both the HP and LP sides, allowing for maintenance or calibration without process interruption. ​

Block and Bleed Manifold:

This type integrates one block valve and one bleed valve within a single assembly. It’s commonly used to isolate a section of the process and safely vent pressure or fluids, enhancing safety during maintenance or instrument calibration.



Key Applications of Manifold Valves

​Manifold valves are integral components across various industries, offering efficient control and management of fluid and gas systems. Their applications include:​

Oil and Gas:

In the oil and gas sector, manifold valves are crucial for wellhead monitoring and pipeline pressure management. They enable precise control of fluid flow and pressure, ensuring safe and efficient extraction and transportation processes. Redundant valve manifolds, such as the RVM system by Norgren, are employed to enhance safety and reduce costs in these applications. ​

Chemical Processing:

Manifold valves are utilized in chemical processing to handle corrosive fluids safely. They provide centralized control, allowing for the isolation, venting, and pressure equalization necessary to manage aggressive chemicals effectively. This centralized control is essential for maintaining safety and efficiency in chemical processing operations. ​

Water Treatment:

In water and wastewater treatment facilities, manifold valves play a vital role in flow control and system calibration. They facilitate the management of water flow through treatment processes, ensuring accurate measurements and adjustments. This precision is crucial for maintaining the quality and safety of treated water. ​

Pharmaceuticals:

The pharmaceutical industry relies on manifold valves for hygienic fluid transfer in sterile environments. These valves ensure that fluids are transported without contamination, adhering to strict hygiene standards essential for producing safe pharmaceutical products. Their design supports easy cleaning and sterilization processes, maintaining the integrity of sensitive operations.



Advantages of Using Manifold Valves

Manifold valves offer several significant advantages in industrial systems:​

Space-Saving Design for Complex Systems

By integrating multiple valves into a single, compact assembly, manifold valves reduce the need for extensive piping and separate valve installations. This consolidation leads to a more streamlined system layout, making them ideal for applications where space is limited. ​

Reduced Leakage Risks with Fewer Connection Points

The design of manifold valves minimizes the number of external connections and joints within a system. Fewer connections mean fewer potential points for leaks, enhancing the overall integrity and safety of the system. ​

Simplified Maintenance and Cost Efficiency

Manifold-mounted valves simplify maintenance processes. When servicing is required, individual valves can be easily accessed and replaced without disturbing the entire system. This ease of maintenance leads to reduced downtime and lower operational costs. ​

Enhanced Safety Through Pressure Isolation

Manifold valves, especially those with block and bleed configurations, allow for effective isolation and venting of pressure. This capability ensures that maintenance and calibration tasks can be performed safely without exposing personnel to pressurized fluids or gases.



Installation and Maintenance Best Practices

​Proper installation and maintenance of manifold valves are crucial for ensuring optimal performance and longevity in industrial systems. Below are best practices to consider:​

Installation:

• Alignment Tips: Ensure that all components are properly aligned during installation to prevent undue stress and potential leakage. Misalignment can lead to operational inefficiencies and premature wear. ​

• Torque Specifications: Adhere to the manufacturer’s recommended torque values when tightening connections. Over-tightening or under-tightening can compromise the integrity of the valve assembly. For example, bonnet assemblies should be torqued to 30-35 ft.-lbs.

• Sealing Techniques: Apply appropriate thread sealants, such as Teflon tape or Grafoil tape, to threaded connections to ensure a leak-proof seal. The choice of sealant should be compatible with the operating temperature and fluid characteristics. ​

Maintenance:

• Regular Inspection Schedules: Implement routine inspections to detect signs of wear, corrosion, or leakage. Regular assessments help in early identification of potential issues, ensuring timely interventions. ​

• Lubrication: Regularly lubricate moving components to minimize friction and prevent wear. Use lubricants that are compatible with the valve materials and the operating environment. ​

• Part Replacement: Replace worn or damaged parts promptly to maintain valve functionality and prevent system failures. ​

Safety Precautions During Installation:

• Depressurization: Before performing any installation or maintenance work, ensure that the system is fully depressurized to prevent accidents. ​

• Cleanliness: Ensure that all components are free from debris and contaminants prior to installation to prevent operational issues. ​

• Use of Appropriate Tools: Utilize tools that are suitable for the specific tasks to avoid damaging valve components.



Manifold Valves vs. Individual Valves: Which is Better?

​When selecting between manifold valves and individual (non-manifold) valves, it’s essential to consider factors such as functionality, cost, space requirements, and maintenance needs. Each configuration offers distinct advantages and is suited to specific applications.​

Functionality:

• Manifold Valves: These integrate multiple valves into a single unit, allowing for centralized control of fluid or gas flow. This integration facilitates functions like isolation, bleeding, and calibration within one assembly, enhancing operational efficiency. ​

• Individual Valves: Each valve operates independently, providing greater flexibility for customized flow control setups. This independence is beneficial in systems requiring unique configurations or where modularity is a priority. ​

Cost:

• Manifold Valves: While the initial investment may be higher due to their integrated design, manifold valves can lead to cost savings over time by reducing the number of fittings and connections required, thereby lowering installation and maintenance expenses. ​

• Individual Valves: These typically have a lower upfront cost per unit. However, when considering the additional expenses for fittings, connections, and potential maintenance, the overall cost can increase, especially in complex systems. ​

Space Requirements:

• Manifold Valves: Their compact design consolidates multiple valves into a single assembly, saving valuable space—a critical factor in systems with limited room or where a streamlined layout is desired. ​

• Individual Valves: Installing separate valves requires more space due to the need for additional piping and fittings, potentially leading to a more cluttered system layout. ​

Maintenance:

• Manifold Valves: Centralized valve configurations simplify maintenance procedures, as technicians can access multiple valves simultaneously. This setup reduces downtime and associated labor costs. ​

• Individual Valves: Maintenance can be more time-consuming, as each valve must be serviced separately. The increased number of connections also raises the potential for leaks, necessitating more frequent inspections. ​

Scenarios Where Manifold Valves Outperform Standalone Valves:

• Instrumentation Systems: In applications requiring precise pressure measurements and control, such as in the oil and gas industry, manifold valves provide integrated functions like isolation and equalization, enhancing measurement accuracy. ​

• Space-Constrained Environments: Industries where equipment footprint is a concern benefit from the compact nature of manifold valves, allowing for efficient use of limited space. ​

• High-Reliability Systems: Manifold valves reduce the number of potential leak points due to fewer connections, making them ideal for systems where reliability and safety are paramount.



How to Choose the Right Manifold Valve

Selecting the appropriate manifold valve is crucial for ensuring optimal performance, safety, and longevity in industrial applications. Key factors to consider include:​

Material Compatibility

Choosing the right material for a manifold valve is essential to prevent corrosion and ensure durability:​

• Stainless Steel: Ideal for corrosive environments due to its high resistance to rust and chemical damage.​

• Brass: Suitable for non-corrosive applications, offering good machinability and cost-effectiveness.​

• Alloys (e.g., Monel, Hastelloy): Designed for highly corrosive or specialized environments, providing superior resistance to specific chemicals.​

Pressure and Temperature Ratings

Manifold valves must withstand the system’s operating pressures and temperatures:​

• Pressure Ratings: Ensure the valve’s pressure rating exceeds the maximum system pressure to maintain safety and functionality.​

• Temperature Ratings: Verify that the valve materials and seals can operate effectively within the system’s temperature range.​

Industry Standards and Certifications

Compliance with industry standards ensures reliability and safety:​

• API (American Petroleum Institute): Standards for design, manufacturing, and testing of valves in the oil and gas industry.​

• ANSI (American National Standards Institute): Provides guidelines on dimensions, pressure ratings, and performance requirements.​

• NACE (National Association of Corrosion Engineers): Specifies material requirements for resistance to sulfide stress cracking in corrosive environments.​

Customization Options

Tailoring manifold valves to specific system requirements enhances performance and integration:​

• Port Configurations: Options for 2-way, 3-way, or 5-way configurations to match system needs.​

• Mounting Styles: Choices between direct mounting, remote mounting, or modular systems for flexibility in installation.​

• Connection Types: Availability of various end connections, such as NPT threads or flanged ends, to suit existing piping.



Conclusion

In conclusion, manifold valves provide remarkable versatility and efficiency by integrating multiple valve functions into a compact, reliable assembly, making them indispensable across industries like oil and gas, chemical processing, water treatment, and pharmaceuticals. To ensure optimal performance, safety, and cost-efficiency in your system, it’s essential to choose manifold valves tailored to your specific requirements. At Tanggong Valve, we offer a comprehensive range of high-quality manifold valves designed to meet diverse industrial needs. Explore our range of high-performance manifold valves today and discover how we can support your business with customized valve solutions.
