The Comprehensive Needle Valve Guide

Needle valves are a critical component in a wide range of industries, from oil and gas to pharmaceuticals and instrumentation. They are particularly valued for their precision and control in regulating fluid flow. If you’re looking to understand more about needle valves and why they may be the ideal choice for your application, you’ve come to the right place. In this needle valve guide, we’ll explore what needle valves are, how they work, their various uses, and why they are essential for your operations.

What is a Needle Valve?

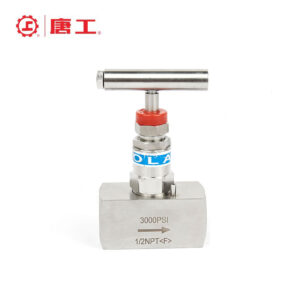

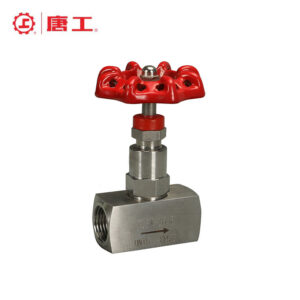

A needle valve is a type of valve that allows precise control over the flow rate of liquids or gases. The valve’s name comes from the sharp, needle-like point of the stem, which fits into a conical seat to regulate flow. This structure enables extremely fine adjustments, making needle valves perfect for applications that require precise control.

Needle valves are widely used in processes where small flow rates are involved or where precise, reliable flow control is needed. They are also frequently used in high-pressure systems, as they are built to withstand demanding environments.

How Does a Needle Valve Work?

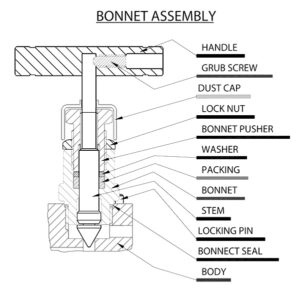

Image Source:(payalengineering)

The working mechanism of a needle valve involves a small, tapered needle-like plunger that precisely controls the fluid flow by moving into or out of a conical seat. This mechanism is operated by turning a handle, which adjusts the position of the plunger. When the handle is turned clockwise, the plunger moves down into the seat, reducing the flow rate. Conversely, turning the handle counterclockwise raises the plunger, allowing more fluid to pass through the valve.

The incremental movement of the needle valve’s plunger allows for very fine adjustments in flow, unlike other valves that tend to be either fully open or fully closed. This precision makes needle valves ideal for applications requiring meticulous flow regulation, such as calibration, testing, and sampling.

Operating a Needle Valve: Step-by-Step Guide

To operate a needle valve correctly, follow these steps:

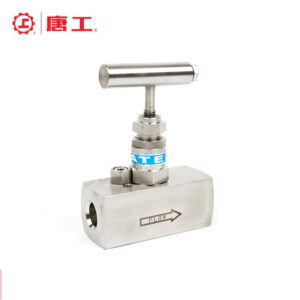

1. Ensure Proper Installation: Confirm that the needle valve is properly installed with the correct flow direction aligned with the arrow indicated on the valve body. Proper installation ensures optimal performance and avoids potential leakage.
2. Adjust Gradually: Turn the handle slowly to avoid sudden changes in pressure or flow, which could damage the system or reduce the accuracy of adjustments. Fine-tune the handle until the desired flow rate is achieved.
3. Monitor System Parameters: During operation, monitor system parameters such as pressure and flow rate to ensure that the valve is functioning as intended. This is particularly important in high-pressure environments where over-adjustment could lead to safety concerns.
4. Use Appropriate Tools: If necessary, use suitable tools for adjustment to avoid damaging the valve handle or stem. Avoid over-tightening, as it could cause wear and compromise the valve’s sealing capabilities.

By following these guidelines, you can ensure that the needle valve provides consistent and precise flow control, which is essential in many industrial applications.

Common Applications of Needle Valves

Needle valves are found in a diverse array of applications due to their precise control abilities. Here are some common uses:

• Flow Metering in Pipelines: Needle valves are frequently used in flow metering applications where precise control is essential. This makes them perfect for applications involving sampling or adjusting flow rates in calibration.
• Fuel Systems: In automotive and aerospace applications, needle valves are often used in fuel systems to regulate the flow of fuel to an engine.

• Hydraulic and Pneumatic Systems: Needle valves play a vital role in controlling the pressure and flow rate in hydraulic and pneumatic systems, ensuring that machinery operates smoothly.

• Chemical Processing: In chemical industries, needle valves are used for metering small quantities of chemicals with high accuracy, ensuring consistent quality and safety.

Needle Valve Advantages and Disadvantages

Advantages of Needle Valves

• Precision Control: Needle valves provide precise control over flow rates, making them ideal for applications where accuracy is crucial.
• High Pressure Handling: They are suitable for high-pressure applications, as their robust design allows them to handle demanding environments safely.
• Versatility: Available in different materials and sizes, needle valves are used in various industries, from chemical processing to aerospace.
• Reliability: Made from durable materials like stainless steel and brass, needle valves are designed to last, ensuring consistent performance over time.

Disadvantages of Needle Valves

• Flow Restriction: Due to their design, needle valves can restrict flow significantly when fully open, which may not be suitable for applications requiring high flow rates.
• Manual Operation: Most needle valves are manually operated, which may not be ideal for automated systems unless equipped with an actuator.
• Cost: Needle valves can be more expensive compared to other types of valves, especially those made from high-grade materials designed for corrosive environments.

Choosing the Right Needle Valve

When selecting a needle valve, there are several important factors to consider:

• Material Compatibility: Choose the valve material based on the fluid it will be handling. For corrosive or high-temperature environments, stainless steel or other corrosion-resistant alloys are often preferred. For less aggressive applications, materials like brass or bronze may be suitable. Material compatibility with the fluid being controlled is crucial to ensure long-lasting performance and safety.
• Pressure, Temperature, and Environmental Conditions: The pressure and temperature ratings of the valve are critical. Ensure that the needle valve you select is rated for the maximum operating pressures and temperatures your system will encounter. Temperature factors include both the fluid temperature and the ambient temperature, as extreme temperatures can affect valve materials and performance. Using a valve with inadequate ratings could result in system failure or hazards.
• Size and Flow Requirements: Consider the valve size and the flow requirements of your application. Needle valves are typically used in low flow rate applications, so it’s essential to select a valve that provides adequate flow without compromising precision. Oversized valves may lack the necessary accuracy, while undersized valves may restrict the flow excessively.
• Valve Connection Type: Needle valves come with different connection types, such as threaded, welded, or flanged connections. The choice of connection type depends on the application requirements, installation considerations, and the type of piping used in the system.
• Actuation Requirements: Most needle valves are manually operated, but some can be equipped with actuators for automated systems. If the valve needs to be part of an automated process, consider using an electric or pneumatic actuator that can provide the necessary control and repeatability.
• Flow Characteristics: Understand the flow characteristics needed for your application. Needle valves provide precise control, but the specific flow profile may vary. Consider whether a linear or equal percentage flow profile is needed for your system.
• Industry Standards and Certifications: Verify that the needle valve meets relevant industry standards and certifications for your specific application. Standards such as ASME, API, or ISO provide assurances of quality and suitability for demanding environments.

Conclusion

Needle valves are a vital tool for applications where precision, reliability, and durability are required. Their unique design and functionality make them ideal for industries ranging from chemical processing to hydraulic systems.
