What are Non-slam Check Valves

Non-slam check valves are specialized devices designed to prevent reverse flow in piping systems, thereby safeguarding equipment like pumps and compressors from potential damage. Unlike traditional check valves, non-slam check valves close swiftly and silently, minimizing the risk of water hammer—a pressure surge caused by sudden changes in flow velocity. This rapid closure ensures that the valve seat is sealed before any backflow can occur, maintaining the integrity of the system.

Key Differences in Design and Functionality

Non-slam check valves and standard check valves differ significantly in their design and operational mechanisms:

• Design Mechanism: Standard check valves, such as swing check valves, utilize a disc that swings open and closed based on fluid flow and gravity. In contrast, non-slam check valves incorporate a spring-assisted mechanism that ensures the valve closes swiftly and smoothly, regardless of flow conditions.

• Closure Speed: The spring-assisted design of non-slam check valves enables rapid closure, effectively preventing reverse flow before it can occur. Standard check valves may close more slowly, allowing for potential backflow.

• Installation Orientation: Non-slam check valves are versatile and can be installed in both horizontal and vertical piping systems. Standard swing check valves are typically suited for horizontal installations due to their reliance on gravity for closure.

The Problem of Water Hammer and How Non-Slam Valves Prevent It

Water hammer is a pressure surge caused when a fluid in motion is suddenly forced to stop or change direction. This phenomenon can lead to noise, vibration, and potential damage to piping systems. Standard check valves, especially swing check valves, may close slowly, allowing reverse flow and increasing the risk of water hammer.

Non-slam check valves address this issue by closing rapidly and smoothly, preventing reverse flow and thereby mitigating the occurrence of water hammer. Their design ensures that the valve closes before any reverse flow can develop, maintaining system integrity and reducing the risk of damage.

“Learn how to effectively prevent water hammer in pipelines and improve system reliability, click here!“

How Do Non-Slam Check Valves Work?

Non-slam check valves are engineered to close swiftly and smoothly, effectively preventing backflow and mitigating the risk of water hammer—a pressure surge caused by sudden changes in flow velocity. Their design incorporates various mechanisms to achieve controlled closure:

• Spring-Assisted Closure: Many non-slam check valves feature an internal spring that assists in closing the valve. As the forward flow decreases, the spring mechanism ensures the valve closes promptly, preventing reverse flow and associated pressure surges.

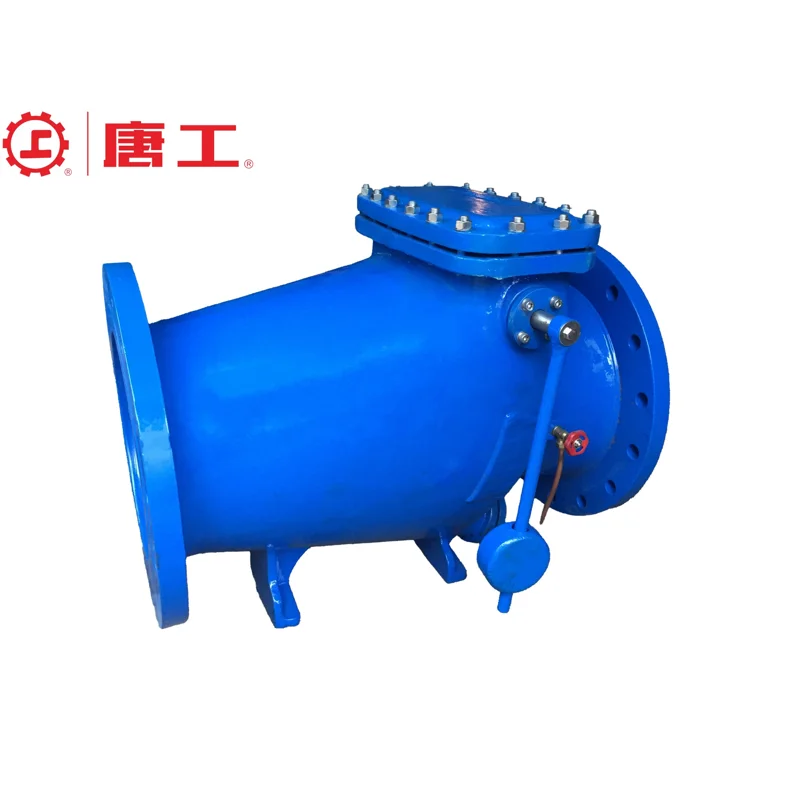

• Lever-Weighted Mechanism: Some designs utilize a lever-weighted system, where a weighted lever controls the disc’s movement. This mechanism allows for smooth and controlled closure, reducing the risk of slamming.

• Axial Flow Design: Axial flow check valves are designed with a streamlined flow path, minimizing turbulence and energy loss. The valve closes rapidly in response to flow changes, effectively preventing backflow and water hammer.

Role of Controlled Closure in Preventing Slamming

The controlled closure of non-slam check valves is crucial in preventing slamming, which can lead to water hammer and potential system damage. By ensuring the valve closes before reverse flow occurs, these valves maintain system integrity and enhance operational efficiency. The rapid yet smooth closure minimizes pressure surges, thereby protecting piping systems and associated equipment from the detrimental effects of water hammer.

Key Applications of Non-Slam Check Valves

1. Water Treatment and Wastewater Systems

• Pumping Stations: Non-slam check valves are crucial in pumping stations to prevent backflow, ensuring the integrity of the water supply and protecting pumps from potential damage.

• Distribution Lines: In water distribution systems, these valves maintain one-way flow, preventing contamination and ensuring the safe delivery of potable water.

2. Oil and Gas Industry

• Centrifugal Compressor Discharge: Non-slam check valves are used to prevent reverse flow in compressor discharge lines, safeguarding equipment and maintaining system efficiency.

• Gas/Oil Gathering Systems: They are employed to prevent backflow in gathering systems, ensuring the safe and efficient transport of hydrocarbons.

3. HVAC Systems

• Service Water Recirculators: In HVAC systems, non-slam check valves prevent backflow in service water recirculators, maintaining system pressure and preventing contamination.

• Cooling Towers: They are used to prevent backflow in cooling towers, ensuring the proper operation of HVAC systems.

4. Chemical Processing Plants

• Chemical Recovery Systems: Non-slam check valves are used to prevent backflow in chemical recovery systems, ensuring the safe and efficient operation of chemical processes.

• Acid Handling Systems: They are employed to prevent backflow in acid handling systems, protecting equipment and personnel from potential hazards.

5.Use Cases in Vertical and Horizontal Pipelines

• Vertical Pipelines: Non-slam check valves are ideal for vertical installations due to their spring-assisted design, which ensures rapid closure and prevents backflow without relying on gravity.

• Horizontal Pipelines: While non-slam check valves can be used in horizontal pipelines, their design is particularly advantageous in vertical configurations where gravity may not assist in closure.

6.High-Pressure Systems

Non-slam check valves are well-suited for high-pressure applications, such as those found in the oil and gas industry, due to their robust construction and ability to handle pressure surges effectively.

Advantages of Non-Slam Check Valves

Reduced Wear and Tear

The design of non-slam check valves minimizes the impact forces during closure, leading to less mechanical stress on valve components. This reduction in stress translates to decreased wear and tear, resulting in longer service life and reduced maintenance requirements.

Prevention of Water Hammer Damage

Water hammer—a pressure surge caused by the sudden stopping or change in direction of fluid flow—can cause significant damage to piping systems. Non-slam check valves close swiftly and smoothly, effectively preventing water hammer and its associated effects, thereby protecting the integrity of the entire system.

Improved System Efficiency and Longevity

By preventing water hammer and reducing mechanical stress, non-slam check valves contribute to the overall efficiency and longevity of the piping system. Their ability to maintain consistent flow conditions and protect against pressure surges ensures that the system operates smoothly over an extended period, leading to cost savings and enhanced reliability

Conclusion

In summary, non-slam check valves offer significant advantages across various industries, including water treatment, oil and gas, HVAC systems, and chemical processing. Their ability to prevent water hammer and backflow enhances system efficiency and longevity. By selecting the appropriate non-slam check valve tailored to your specific application, you can ensure optimal performance and reliability. For more detailed information or assistance in choosing the right valve for your needs, consider consulting with our valve experts.
