Side entry ball valves are a type of quarter-turn valve that utilize a hollow, perforated, and pivoting ball to control the flow of fluids within a piping system. These valves are characterized by their side-entry design, which allows for the insertion of the ball and internal components from the side of the valve body. This design facilitates easier maintenance and assembly, making them a popular choice in various industrial applications.
The primary function of side entry ball valves is to regulate the flow of liquids, gases, or vapors through a pipeline. By rotating the ball a quarter turn (90 degrees), the valve either permits or blocks the flow, providing a reliable and efficient means of flow control. This mechanism ensures a tight shut-off, minimizing the risk of leaks and enhancing the safety and efficiency of the system.
Side entry ball valves operate using a spherical closure element with a central bore. By rotating the ball a quarter turn (90 degrees), the valve either allows or blocks the flow of fluid through the pipeline. When the bore aligns with the pipeline, the valve is open, permitting fluid flow. Conversely, when the bore is perpendicular to the pipeline, the valve is closed, stopping the flow. This straightforward quarter-turn operation ensures quick and reliable control of fluid flow.
The side-entry design of these valves features a body typically constructed in two or three pieces, secured together with bolts and nuts. This configuration allows for the insertion of the ball and internal components from the side of the valve body, facilitating easier assembly and disassembly. During maintenance, this design enables access to internal parts without the need to remove the entire valve from the pipeline, streamlining repair and replacement processes. However, it’s important to note that, unlike top-entry ball valves, side-entry valves may require removal from the pipeline for certain maintenance tasks, depending on the specific design and application.
Side entry ball valves are essential in various industrial applications, offering reliable flow control through their robust design. Understanding their key components is crucial for selecting the appropriate valve for specific needs.
Body Construction
The body of a side entry ball valve is typically constructed using a two or three-piece design, allowing for easier assembly and maintenance. Materials commonly used include stainless steel, brass, and other alloys, chosen for their durability and resistance to corrosion. This construction method facilitates straightforward disassembly for repairs or inspections.
Ball and Seats
The ball, often made from materials like stainless steel or brass, features a central bore that controls fluid flow. The seats, which can be soft (such as PTFE) or metal, provide a sealing surface to prevent leaks. The choice of materials and sealing mechanisms depends on the specific application requirements, including pressure, temperature, and the nature of the fluid being controlled.
Stem and Actuation
The stem connects the valve handle or actuator to the ball, transmitting the rotational movement that opens or closes the valve. Actuation can be manual, using a handle or lever, or automated, employing pneumatic, hydraulic, or electric actuators. Automated actuation is often preferred in applications requiring precise control or remote operation.
Side entry ball valves are essential components in various industrial applications, offering reliable flow control through their robust design. Understanding the different types based on body configuration, material, and application is crucial for selecting the appropriate valve for specific needs.
Two-Piece Design: This configuration consists of two body parts bolted together, enclosing the ball and internal components. It is commonly used for smaller valve sizes and offers a compact design.

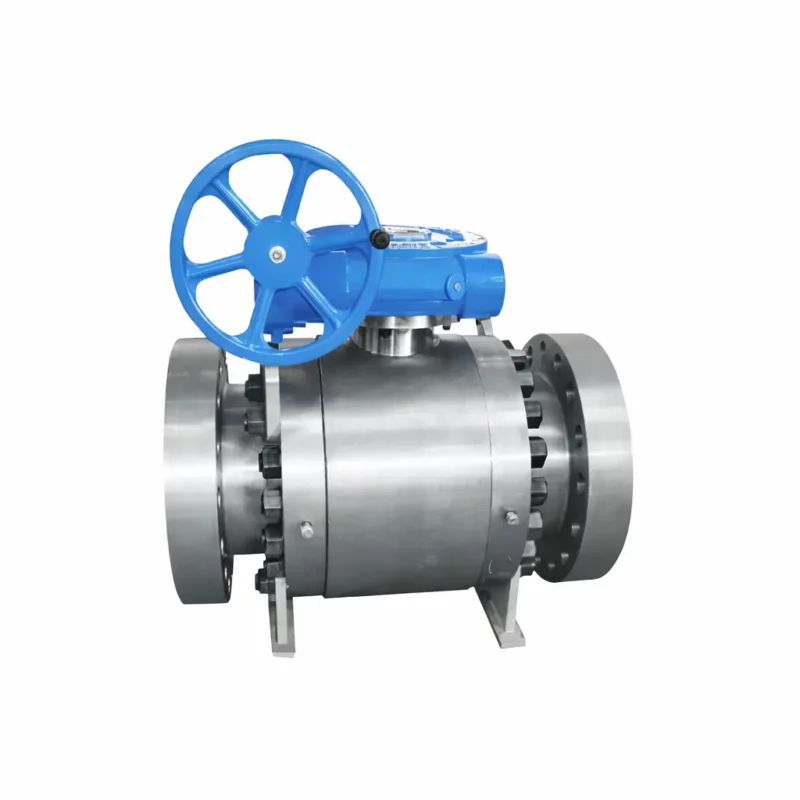

Three-Piece Design: Featuring a central body section with two end caps, this design allows for easy maintenance and replacement of internal parts without removing the entire valve from the pipeline. It is suitable for larger valve sizes and applications requiring frequent servicing.
Stainless Steel: Known for its excellent corrosion resistance and strength, stainless steel is ideal for applications involving aggressive fluids and high temperatures.
PVC (Polyvinyl Chloride): Lightweight and resistant to corrosion, PVC valves are suitable for handling water and other non-aggressive fluids at lower pressures and temperatures.
Carbon Steel: Offering high strength and durability, carbon steel valves are used in applications where strength is essential, though they may require protective coatings to prevent corrosion.
High-Pressure Applications: Designed to withstand elevated pressures, these valves are commonly used in oil and gas pipelines, power plants, and chemical processing industries.
Cryogenic Applications: Specially designed to operate at extremely low temperatures, these valves are used in industries dealing with liquefied gases like LNG.
Corrosive Environments: Valves constructed with materials resistant to corrosion, such as stainless steel or specialized alloys, are essential in chemical processing and wastewater treatment facilities.
Side entry ball valves are integral to various industries due to their robust design and reliable performance. Below are some of the key sectors where these valves are commonly utilized:
In the oil and gas sector, side entry ball valves are essential for controlling the flow of crude oil and natural gas in pipelines and refineries. Their ability to provide a tight seal and quick shut-off makes them suitable for applications where precise control of the flow is critical.
Side entry ball valves play a vital role in managing the distribution of water in treatment plants. Their resistance to corrosion makes them ideal for use in chemical processing where exposure to corrosive substances is common.
In chemical processing plants, side entry valves are ideal for controlling the flow of aggressive chemicals and gases. The heavy-duty construction and superior sealing capabilities make them perfect for handling volatile substances and operating in extreme temperature environments.
In HVAC systems, side entry ball valves regulate the flow of fluids such as water and refrigerants in heating and cooling applications. Their compact size and effective sealing capabilities make them ideal for controlling flows in both residential and industrial settings.
Side entry ball valves are integral components in various industrial applications, offering several advantages that enhance operational efficiency and reliability.
Easy Maintenance and Repair
The split-body design of side entry ball valves simplifies maintenance and repair processes. This configuration allows for straightforward disassembly, enabling quick access to internal components for inspection or replacement without the need to remove the entire valve from the pipeline. This ease of maintenance reduces downtime and operational costs.
Durability and Leak-Proof Performance
Constructed from robust materials such as stainless steel and brass, side entry ball valves are designed to withstand harsh operating conditions, including high pressures and temperatures. Their durable construction ensures long service life and reliable performance. Additionally, these valves provide a tight shut-off, effectively preventing leaks and enhancing system safety.
Versatility Across Industries and Environments
Side entry ball valves are versatile and can be tailored to meet the specific requirements of various industries, including oil and gas, chemical processing, water treatment, and pharmaceuticals. They are available in different materials and configurations to handle a wide range of fluids and operating conditions, making them suitable for diverse applications.
Proper installation and regular maintenance are crucial for ensuring the optimal performance and longevity of side entry ball valves. Below is a structured guide to assist you through the installation process, routine maintenance, and troubleshooting common issues.
Preparation:
Alignment:
Connection:
Torque Specifications: Refer to the manufacturer’s guidelines for specific torque values to prevent over-tightening or under-tightening, both of which can lead to leaks or valve damage.
Testing: After installation, conduct a pressure test to check for leaks. Gradually increase the pressure to the system’s operating level and monitor for any signs of leakage.
Regular Inspection: Periodically check the valve for signs of wear, corrosion, or damage.
Seal Inspection: Examine the valve seals for integrity. Replace any damaged or worn seals promptly to maintain leak-proof performance.
Lubrication: Apply appropriate lubricant to the valve stem and moving parts to ensure smooth operation and prevent sticking.
Cleaning: Remove any debris or buildup from the valve body and surrounding areas to prevent operational issues.
Functional Testing: Regularly operate the valve through its full range to ensure it opens and closes smoothly without resistance.
Leaks:
Stuck Stem:
Difficulty in Operation:
Selecting the appropriate side entry ball valve is crucial for ensuring optimal performance and longevity in your specific application. Consider the following factors to make an informed decision:
Pressure Rating: Ensure the valve’s pressure rating aligns with your system’s operating pressures. Valves are available in various pressure classes, such as ANSI Class 150, 300, 600, and higher, to accommodate different pressure requirements.
Temperature: Choose a valve that can withstand the operating temperatures of your system. Materials like stainless steel offer higher temperature resistance compared to PVC.
Fluid Compatibility: Select materials that are compatible with the fluids in your system to prevent corrosion and ensure longevity. For instance, stainless steel is suitable for a wide range of chemicals, while PVC is ideal for non-corrosive fluids.
Sizing: Ensure the valve size matches the pipeline diameter to maintain flow efficiency and prevent pressure drops. Valve sizes typically range from 0.2 to 48 inches (5 to 1200 mm).
Actuation Options:
Side entry ball valves offer a robust and versatile solution for controlling fluid flow across various industries, including oil and gas, chemical processing, and water treatment. Their durable construction, ease of maintenance, and adaptability to different applications make them a preferred choice for many industrial operations. Explore our range of side entry ball valves tailored to your needs.
