What Are Stainless Steel Gate Valves

A stainless steel gate valve is a type of valve designed to control the flow of fluids within a pipeline by lifting a gate (or wedge) out of the flow path. This design allows for minimal flow resistance when the valve is fully open, making it ideal for applications requiring a straight-line flow of fluid with minimal obstruction. Gate valves are primarily used for on/off control, not for regulating flow.

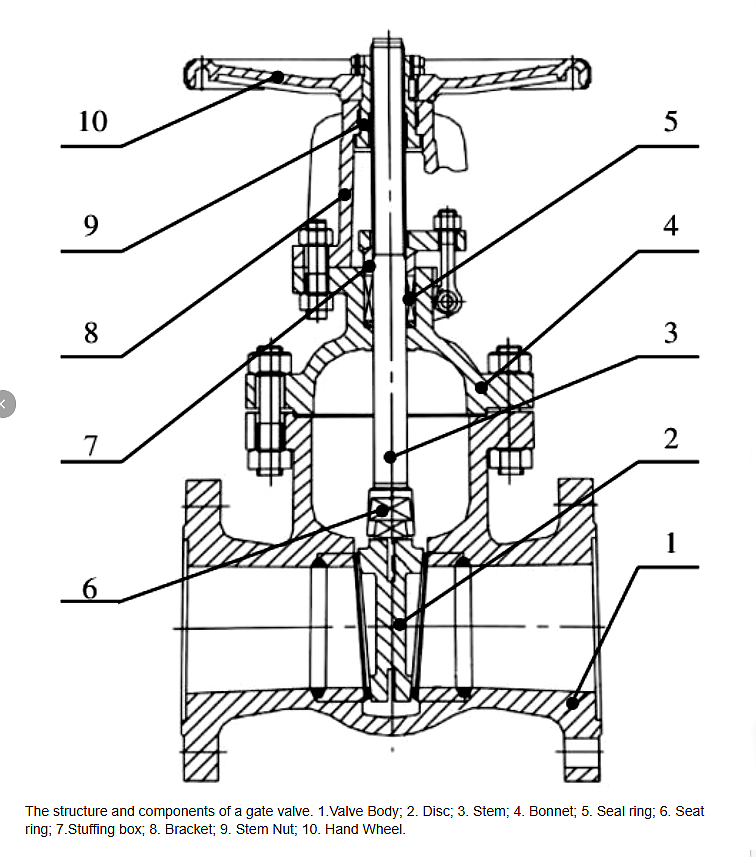

Key Components

The main components of a stainless steel gate valve include:

• Body: The main pressure-retaining part of the valve, housing other operational parts such as the gate and seat. It provides passage for flow and connects to the piping on both ends.

• Bonnet: Encloses and protects the valve’s stem and gate. It connects to the body and provides access for maintenance or repair of internal components.

• Gate: The closure element that moves to obstruct or allow flow through the valve. Common designs include wedge, slab, and knife gates, each suited to specific applications.

• Stem: The shaft that transfers motion from the actuator (e.g., handwheel or motor) to the gate, facilitating its movement to open or close the valve.

• Seat: The surface against which the gate seals to prevent flow when the valve is closed. Seats can be integral to the body or constructed as separate rings, depending on the valve design.



Key Advantages of Stainless Steel Gate Valves

Stainless steel gate valves are highly valued across various industries due to their exceptional properties. The key advantages include:

Corrosion Resistance in Harsh Environments

Stainless steel’s inherent corrosion resistance makes it ideal for applications involving aggressive chemicals, seawater, and other corrosive substances. The chromium content in stainless steel forms a passive oxide layer that shields the material from rust and degradation, ensuring longevity and reliability in challenging environments.

High-Temperature and High-Pressure Suitability

Certain grades of stainless steel, such as 316, offer excellent resistance to high temperatures and pressures. This makes them suitable for applications in chemical processing, power generation, and other industries where valves are exposed to extreme conditions.

Longevity and Low Maintenance

The durability of stainless steel gate valves translates to a longer service life and reduced maintenance requirements. Their robust construction minimizes the need for frequent repairs or replacements, leading to cost savings over time.



Common Applications of Stainless Steel Gate Valves

Stainless steel gate valves are integral to various industries due to their durability, corrosion resistance, and high-temperature tolerance. Below are some of the primary sectors where these valves are extensively utilized:

1. Oil and Gas Pipelines

In the oil and gas industry, stainless steel gate valves are essential for controlling the flow of crude oil, natural gas, and other fluids within pipelines, refineries, and offshore drilling platforms. Their resistance to corrosion from oil and gas makes them ideal for these applications.

2. Water Treatment and Distribution Systems

Stainless steel gate valves are widely used in water treatment plants for controlling the flow of water, wastewater, and chemicals in pipelines, pumps, and other equipment. Their corrosion resistance to chemicals and water makes them an ideal choice for water treatment applications.

3. Chemical and Petrochemical Industries

In chemical processing plants, stainless steel gate valves are used for controlling the flow of corrosive and abrasive fluids in pipelines, reactors, and other equipment. Their ability to withstand exposure to a wide range of chemicals and their high resistance to corrosion make them suitable for chemical processing applications.

4. Food and Pharmaceutical Processing

In food and beverage processing plants, stainless steel gate valves are used for controlling the flow of liquids and gases, as well as for cleaning and sterilizing equipment. Stainless steel is easy to clean and does not react with food or beverages, making it a popular choice in the food and beverage industry.



Stainless Steel Gate Valves vs. Other Valve Materials

Selecting the appropriate material for gate valves is crucial to ensure optimal performance, longevity, and cost-effectiveness in various industrial applications. Below is a comparison of stainless steel gate valves with those made from cast iron, brass, and carbon steel, highlighting their respective advantages and ideal use cases.

1. Cast Iron Gate Valves

• Advantages:

  • Cost-Effective: Cast iron is generally less expensive than stainless steel, making it a budget-friendly option for certain applications.
  • Durability: It offers good durability and can withstand high temperatures and pressures.

• Disadvantages:

  • Corrosion Susceptibility: Cast iron is susceptible to rust and corrosion, especially in corrosive or high-temperature environments.
  • Brittleness: It is more brittle compared to other materials, which can lead to cracking under certain conditions.

2. Brass Gate Valves

• Advantages:

  • Corrosion Resistance: Brass offers good resistance to corrosion, particularly in water systems.
  • Machinability: It is easy to machine and has good thermal conductivity.

• Disadvantages:

  • Temperature Limitations: Brass has a lower melting point, making it unsuitable for high-temperature applications.
  • Mechanical Strength: It is generally weaker than stainless steel and may not withstand high-pressure conditions.

3. Carbon Steel Gate Valves

• Advantages:

  • Strength: Carbon steel provides high strength and is suitable for high-pressure applications.
  • Cost-Effective: It is more affordable than stainless steel.

• Disadvantages:

  • Corrosion Susceptibility: Carbon steel is prone to corrosion and requires protective coatings or regular maintenance in corrosive environments.
  • Temperature Limitations: It may not perform well in extremely high-temperature settings without proper alloying.



How to Choose the Right Stainless Steel Gate Valve

Selecting the appropriate stainless steel gate valve is crucial for ensuring optimal performance, safety, and longevity in your piping system. Consider the following factors to make an informed decision:

1. Valve Size and Pressure Rating

• Valve Size: Ensure the valve’s size matches the pipeline’s diameter to maintain proper flow and sealing. An appropriately sized valve prevents issues like turbulence and pressure drops.

• Pressure Rating: Choose a valve with a pressure rating that meets or exceeds your system’s operating pressure. This ensures the valve can handle the required pressure without compromising safety or functionality.

2. Temperature Range and Media Compatibility

• Temperature Range: Select a valve that can withstand the operating temperatures of your system. Stainless steel valves are available in grades suitable for various temperature ranges, from cryogenic to high-temperature applications.

• Media Compatibility: Ensure the valve material is compatible with the fluids or gases in your system. Stainless steel offers excellent resistance to many chemicals, but specific grades may be required for highly corrosive substances.

3. Standards Compliance (API, ASTM, ISO)

• API Standards: The American Petroleum Institute (API) sets standards for valves used in the oil and gas industry. Ensure the valve complies with relevant API standards for quality and performance.

• ASTM Standards: The American Society for Testing and Materials (ASTM) provides specifications for materials and products. Verify that the valve meets the appropriate ASTM standards for material composition and mechanical properties.

• ISO Standards: The International Organization for Standardization (ISO) offers global standards for valves. Confirm that the valve adheres to relevant ISO standards to ensure international compatibility and quality assurance.



FAQs

1. Can stainless steel gate valves handle abrasive fluids?

Yes, stainless steel gate valves can handle abrasive fluids, especially when equipped with appropriate seating materials and designs. For instance, Tanggong Valve Group’s metal-seated unidirectional cast stainless steel knife gate valves are specifically designed for applications involving corrosive, abrasive liquid slurries or dry materials, making them suitable for industries like pulp and paper, mining, and wastewater treatment.

2. Are stainless steel gate valves suitable for cryogenic temperatures?

Yes, stainless steel gate valves can be designed for cryogenic temperatures. Manufacturers like Babcock Valves produce cryogenic gate valves capable of operating effectively at temperatures below -40ºC, primarily used in gas liquefaction systems. These valves often feature extended bonnets to keep stem packing away from the effects of extreme low temperatures, ensuring reliable operation in cryogenic conditions.



Conclusion

In summary, stainless steel gate valves offer exceptional durability, versatility, and leak prevention, making them ideal for applications in industries such as oil and gas, water treatment, and chemical processing. Their resistance to corrosion and high temperatures ensures reliable performance in demanding environments. However, considerations such as higher initial cost, increased weight, and slower operation compared to ball valves should be taken into account when selecting the appropriate valve for your specific needs.
