Globe valves are linear motion valves primarily designed to start, stop, and regulate the flow of fluids within a pipeline. They consist of a movable disc or plug and a stationary ring seat, allowing for precise control over fluid flow.

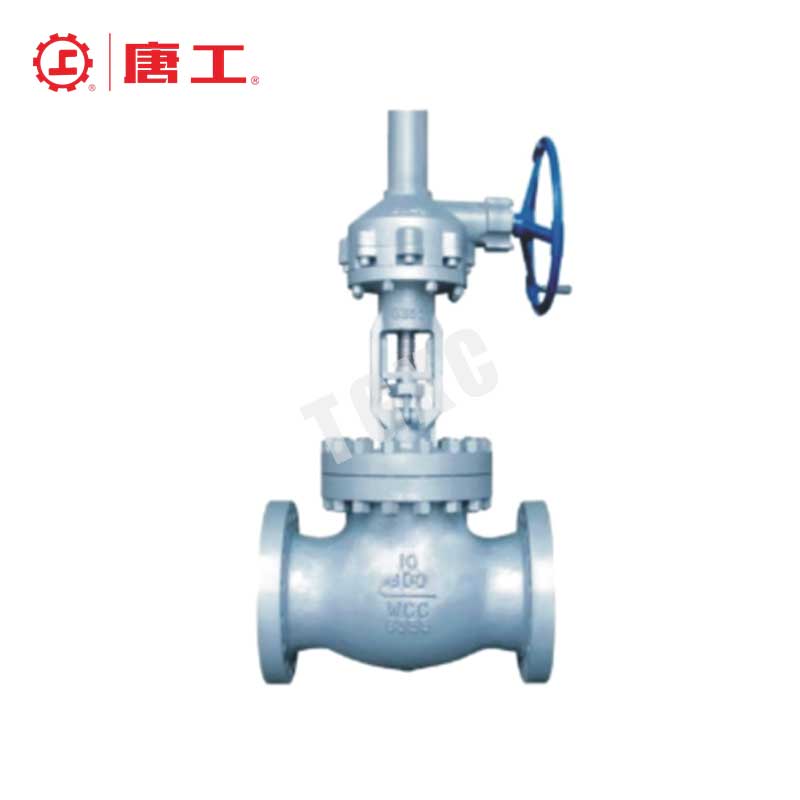

Straight pattern globe valves, also known as tee-pattern globe valves, feature a body design where the inlet and outlet ports are aligned in a straight line. This configuration provides a direct flow path, reducing pressure drop and enhancing flow efficiency compared to other designs like angle or Y-pattern globe valves.
Straight pattern globe valves are linear motion valves designed to start, stop, and regulate fluid flow within a pipeline. They consist of a movable disc (or plug) and a stationary ring seat, allowing for precise flow control. When the valve is open, fluid flows through the space between the disc and the seat. As the valve closes, the disc moves toward the seat, gradually reducing the flow area and thereby restricting the flow. When the disc fully contacts the seat, the flow is completely stopped. This design enables excellent throttling capabilities, making straight pattern globe valves ideal for applications requiring precise flow regulation.
Straight pattern globe valves consist of several key components:
Body: The main structure of the valve, typically made from materials like cast iron, carbon steel, or stainless steel, housing all internal parts.
Bonnet: Attached to the body, it provides a leak-proof closure and houses the stem and packing.
Disc (Plug): The movable element that regulates flow by obstructing the flow path.
Seat: The stationary component that the disc seals against to prevent fluid flow.
Stem: Connects the disc to an external actuator, transmitting motion to control the valve’s position.
Actuator: The mechanism (manual or automated) used to operate the valve, adjusting the stem and disc to regulate flow.
The linear motion mechanism in straight pattern globe valves involves the stem and disc. The stem connects to the disc and is operated by an external actuator, such as a handwheel or automated actuator. Turning the actuator moves the stem and attached disc in a linear motion toward or away from the seat. This movement allows for precise control over the valve’s opening, enabling operators to adjust the flow rate as needed. The linear motion mechanism is crucial for the valve’s ability to modulate flow effectively.
Straight pattern globe valves, also known as T-pattern or Z-pattern valves, have a body design where the inlet and outlet ports are aligned in a straight line. This configuration provides a direct flow path, reducing pressure drop and enhancing flow efficiency compared to other designs like angle or Y-pattern globe valves. In contrast, angle pattern globe valves have their ends at a 90-degree angle, allowing the fluid to flow in a single perpendicular turn. This design is suitable for applications where space is limited or where a change in flow direction is required. Y-pattern globe valves feature a body design where the seat and stem are positioned at a 45-degree angle, resulting in a more direct flow path and reduced pressure drop compared to straight pattern valves. This design is advantageous in applications requiring minimal resistance to flow and is often used in high-pressure systems.
Straight pattern globe valves are integral to various industries due to their precise flow control and reliable shut-off capabilities.
Oil & Gas: In the oil and gas industry, straight pattern globe valves are essential for regulating the flow of crude oil and natural gas, ensuring safe and efficient transportation.
HVAC Systems: In heating, ventilation, and air conditioning (HVAC) systems, straight pattern globe valves play a crucial role in controlling the flow of water or steam to regulate the temperature in buildings.
Power Generation: In power plants, straight pattern globe valves control the flow of steam and other fluids, handling high-temperature, high-pressure fluids. Their precise regulation helps maintain the correct operational conditions in boilers, turbines, and cooling systems.
Water Treatment: In water treatment plants, straight pattern globe valves regulate the flow of water through filtration and treatment systems. These valves are used to adjust the flow rate and pressure, ensuring that the water is processed effectively.
Throttling Steam: Straight pattern globe valves are ideal for throttling steam in power plants, allowing for precise control over steam flow to turbines and other equipment.
High-Pressure Systems: Due to their robust design, straight pattern globe valves are suitable for high-pressure applications, such as in the oil and gas industry, where they regulate the flow of fluids under high-pressure conditions.
Frequent Operation: Straight pattern globe valves are designed for frequent operation, making them suitable for applications that require regular opening and closing, such as in HVAC systems and water treatment plants.
Straight pattern globe valves are renowned for their exceptional ability to regulate fluid flow with high precision. Their linear motion design allows for fine adjustments, making them ideal for applications that require accurate flow control. This capability is particularly beneficial in processes where maintaining specific flow rates is critical.
Designed to withstand demanding conditions, straight pattern globe valves are well-suited for high-pressure and high-temperature applications. Their robust construction ensures reliable performance even under extreme operational stresses, making them a preferred choice in industries such as power generation and chemical processing.
Straight pattern globe valves are designed with maintenance in mind. Their straightforward construction allows for easy disassembly and reassembly, facilitating efficient maintenance and repair processes. This ease of maintenance contributes to reduced downtime and lower operational costs, enhancing the overall efficiency of the systems in which they are installed.
Selecting the appropriate straight pattern globe valve is crucial for ensuring optimal performance and longevity in your fluid control system. Consider the following factors during selection:
Ensure the valve’s pressure and temperature ratings align with your system’s operating conditions. Valves are designed to withstand specific pressure and temperature ranges; exceeding these limits can lead to valve failure. For instance, valves used in power generation or chemical processing must handle high-pressure and high-temperature environments.
The valve material must be compatible with the fluid it will control. For corrosive fluids, gases, or high-temperature applications, materials like stainless steel or specialized alloys are preferable. Conversely, for non-corrosive fluids, carbon steel or cast iron may suffice. Selecting the correct material prevents corrosion, erosion, and ensures the valve’s longevity.
Choose the valve’s connection type based on your piping system:
Flanged Connections: Suitable for larger valves and high-pressure applications, providing a robust and leak-proof seal.
Threaded Connections: Ideal for smaller valves and lower-pressure systems, offering ease of installation and cost-effectiveness.
Welded Connections: Recommended for high-pressure, high-temperature systems, ensuring a permanent, leak-proof joint.
Verify that the valve complies with relevant industry standards and certifications, such as API, ANSI, or ISO. Compliance ensures the valve meets quality, safety, and performance requirements, which is essential for critical applications.
In summary, straight pattern globe valves are essential components in various industries, offering precise flow control, durability in demanding environments, and ease of maintenance. When selecting the appropriate valve, it’s crucial to consider factors such as pressure and temperature ratings, material compatibility with the media, connection types, and adherence to industry standards. By carefully evaluating these aspects, you can ensure optimal performance and longevity of your fluid control systems.
