What are Thread Ball Valves

A threaded ball valve is a type of valve that utilizes a spherical ball with a central hole to control fluid flow within a pipeline. The valve’s body houses the ball, which rotates 90 degrees to either permit or block the flow of the fluid. Threaded ball valves are designed with threaded ends, allowing them to be screwed directly onto matching threaded pipes, facilitating easy installation and maintenance.

Key Components

Threaded ball valves consist of several essential components:

Key Components of Threaded Ball Valves

• Valve Body: The main housing that contains all internal components, including the ball, seats, and stem. It provides the structural integrity of the valve.
• Ball: A spherical element with a central hole (bore) that controls fluid flow. When the bore aligns with the pipeline, the valve is open; when rotated 90 degrees, it blocks the flow.
• Seats: Located on either side of the ball, seats provide a sealing surface when the valve is closed, preventing fluid from passing through. They are typically made from materials like PTFE or elastomers.
• Stem: Connects the handle or actuator to the ball, transmitting rotational movement to control the valve’s position.
• Handle or Actuator: The external mechanism used to operate the valve. Manual valves use a handle, while automated valves may use pneumatic, hydraulic, or electric actuators.
• Threaded Ends: The connection points of the valve, featuring internal threads that match the external threads of the connecting pipes. This design allows for straightforward assembly and disassembly without the need for welding or flanges.

Threaded Connections vs. Welded or Flanged Connections

Threaded connections offer several advantages over welded or flanged connections:

• Ease of Installation and Maintenance: Threaded connections allow for quick assembly and disassembly, making maintenance and replacement more straightforward. In contrast, welded connections require specialized equipment and skills, while flanged connections involve bolting and gaskets, which can be more time-consuming to install and maintain.

• Cost-Effectiveness: Threaded ball valves are generally more affordable due to their simpler design and manufacturing process. Flanged valves, on the other hand, are bulkier and more expensive, making them suitable for larger pipe sizes and higher pressure applications.

• Space Efficiency: Threaded connections are more compact, making them ideal for applications with limited space. Flanged connections require additional space for bolts and gaskets, and welded connections may need more space for the welding process.



How Do Threaded Ball Valves Work?

Threaded ball valves operate on a straightforward principle: a spherical ball with a central hole (bore) rotates within the valve body to control fluid flow. When the valve handle is turned 90 degrees (a quarter turn), the ball rotates, aligning or misaligning the bore with the pipeline, thereby opening or closing the valve. This design allows for quick and reliable shut-off control.



Types of Thread Ball Valves

 Understanding Threaded ball valves’ classifications based on thread standards, design, and materials is crucial for selecting the appropriate valve for specific needs.

By Thread Standard

Threaded ball valves are available in different thread standards, each suited to specific regional and application requirements:

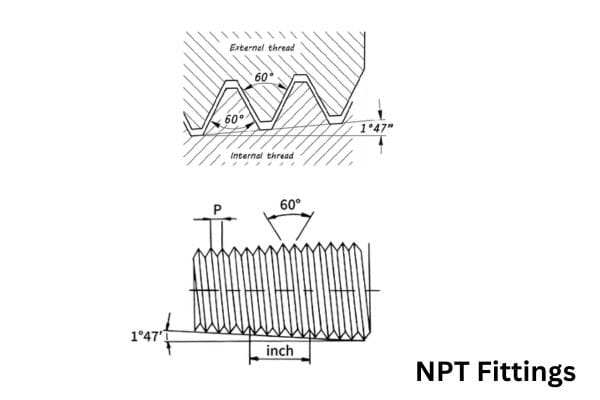

• NPT (National Pipe Thread): Commonly used in North America, NPT threads are tapered, providing a self-sealing connection. They are ideal for low-pressure applications and are widely used in plumbing and gas systems.

• BSP (British Standard Pipe): Predominant in Europe and other regions, BSP threads come in two types:

  • BSPT (Tapered): Similar to NPT, BSPT threads are tapered and offer a self-sealing connection, suitable for low-pressure applications.

  • BSPP (Parallel): These threads are parallel and require a sealing washer or O-ring to prevent leaks, making them suitable for medium-pressure applications.



Explore more about the differences between NPT, BSPP, and BSPT threads in our detailed blog article. Click here!



By Design

Threaded ball valves are designed in various configurations to meet specific operational needs:

• Full Port vs. Reduced Port:

  • Full Port: Also known as full-bore, these valves have a ball with a bore the same size as the pipeline, allowing for unrestricted flow and minimal pressure drop. They are ideal for applications requiring maximum flow capacity.

  • Reduced Port: These valves have a smaller bore than the pipeline, resulting in a slight pressure drop but offering a more compact and cost-effective solution. They are suitable for applications where space and budget are considerations.

• Two-Piece vs. Three-Piece:

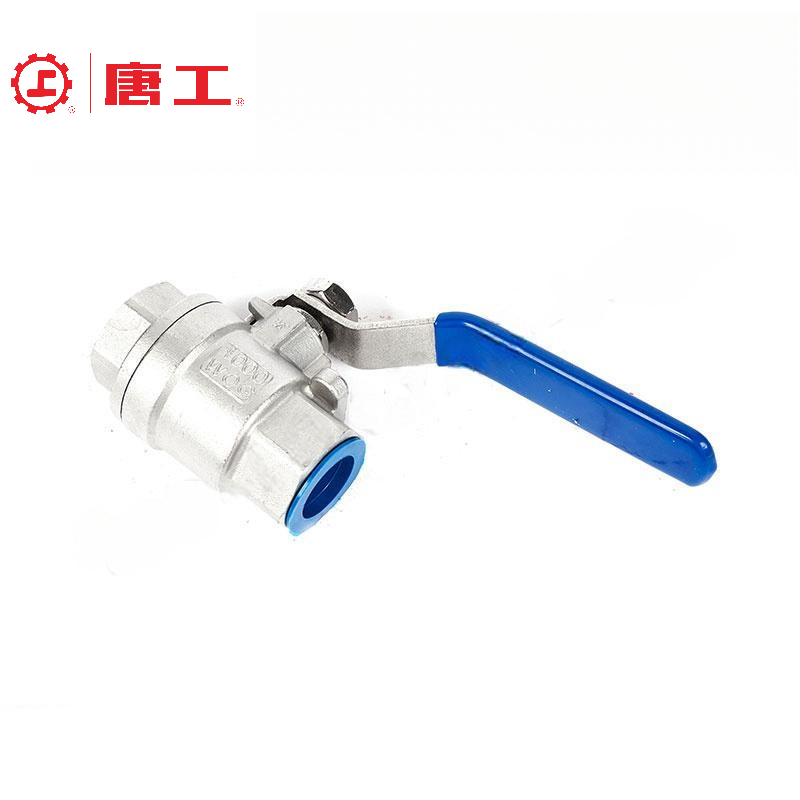

  • Two-Piece: Consist of a body and an end cap, making them compact and cost-effective. They are suitable for applications where space is limited and maintenance is infrequent. However, disassembly for maintenance requires removing the valve from the pipeline.

  • Three-Piece: Comprise a body and two end caps, allowing for easy removal of the central body for maintenance without disturbing the end connections. This design is advantageous for applications requiring frequent maintenance or where the valve needs to be cleaned or serviced regularly.

By Material

The material of a threaded ball valve significantly influences its performance, durability, and suitability for specific applications:

• Brass:

  • Pros: Corrosion-resistant, cost-effective, and easy to machine.

  • Cons: Not suitable for high-pressure or high-temperature applications; can be susceptible to dezincification in certain conditions.

• Stainless Steel:

  • Pros: Highly resistant to corrosion, durable, and suitable for high-pressure and high-temperature applications.

  • Cons: More expensive than brass and may require specialized tools for machining.

• PVC (Polyvinyl Chloride):

  • Pros: Lightweight, resistant to corrosion and chemicals, and cost-effective.

  • Cons: Not suitable for high-pressure or high-temperature applications; can become brittle over time, especially under UV exposure.



Common Industries Utilizing Threaded Ball Valves

• HVAC (Heating, Ventilation, and Air Conditioning): Threaded ball valves are employed in HVAC systems to control the flow of heating and cooling fluids, ensuring efficient temperature regulation and system performance.

• Water Treatment: In water treatment facilities, these valves manage the flow of water through various stages of purification and distribution, maintaining the integrity and safety of the water supply.

• Chemical Processing: Threaded ball valves are used to control the flow of chemicals in processing plants, offering precise shut-off capabilities and resistance to corrosive substances.



Pros and Cons of Thread Ball Valves

Advantages of Threaded Ball Valves

• Easy Installation: Threaded ball valves feature threaded ends that allow for quick and straightforward installation using basic tools. This simplicity reduces labor costs and installation time.

• Cost-Effectiveness: Generally, threaded ball valves are more affordable compared to other valve types, making them a budget-friendly option for various applications.

• Compact Design: Their compact and lightweight nature makes threaded ball valves ideal for installations in tight spaces, such as residential plumbing systems.

Disadvantages of Threaded Ball Valves

• Pressure and Temperature Limitations: Threaded ball valves are typically suitable for low to medium-pressure and temperature applications. They may not perform well under high-pressure or high-temperature conditions, which can lead to potential leakage or failure.

• Potential Leakage Risks: Over time, threaded connections may experience wear or loosening, leading to potential leakage. Proper installation, periodic inspection, and maintenance are necessary to ensure the integrity of threaded valves.



How to Choose the Right Thread Ball Valve

Selecting the appropriate threaded ball valve is crucial for ensuring optimal performance, safety, and longevity in your fluid control system. Consider the following factors when making your choice:

1. Material Compatibility

The valve material must be compatible with the fluid it will control. For instance, stainless steel offers excellent corrosion resistance, making it suitable for aggressive chemicals, while brass is more appropriate for water or oil applications. Assess the chemical properties of the fluid, including its pH, temperature, and potential for causing corrosion or erosion. Selecting a valve material that withstands these conditions is essential for durability and performance.

2. Pressure Rating

Ensure the valve’s pressure rating aligns with your system’s operating pressure. Using a valve with a lower pressure rating than required can lead to failures or leaks. Conversely, selecting a valve with an unnecessarily high pressure rating may result in increased costs and unnecessary bulk. It’s advisable to choose a valve with a pressure rating that meets or slightly exceeds your system’s maximum operating pressure to provide a safety margin.

3. Thread Standard

Threaded ball valves come in various thread standards, such as NPT (National Pipe Thread) and BSP (British Standard Pipe). Compatibility between the valve’s threads and your piping system is essential to ensure a proper seal and prevent leaks. Verify the thread type and size to match your system’s requirements.

Key Questions to Consider

• Fluid Type: What is the chemical composition of the fluid? Is it corrosive, abrasive, or prone to crystallization?

• Temperature: What is the operating temperature range? Will the valve be exposed to extreme temperatures?

• System Requirements: Are there space constraints? Is quick operation necessary? What are the maintenance requirements?



FAQs

1. Can threaded ball valves handle high-pressure systems?

Threaded ball valves are available in high-pressure variants designed to withstand elevated pressures. For instance, certain models are rated up to 3,000 PSI, making them suitable for high-pressure applications.

2. Are threaded ball valves reusable?

Threaded ball valves can be reused if they are in good condition and have not been subjected to conditions beyond their design specifications. Before reinstallation, inspect the valve for signs of wear, corrosion, or damage. Ensure that the threads are clean and free from debris. Applying appropriate thread sealant or PTFE tape during reinstallation can help prevent leaks. If the valve shows signs of damage or degradation, it’s advisable to replace it to maintain system integrity and safety.



Conclusion

In conclusion, threaded ball valves offer a cost-effective, easy-to-install solution for a variety of applications, from HVAC systems to water treatment and chemical processing. Their compact design, reliability, and straightforward operation make them an excellent choice for low-pressure systems and compact installations. However, it’s essential to consider their pressure and temperature limitations when selecting the right valve. For tailored solutions and high-quality threaded ball valves that meet your specific needs, feel free to contact our team.
