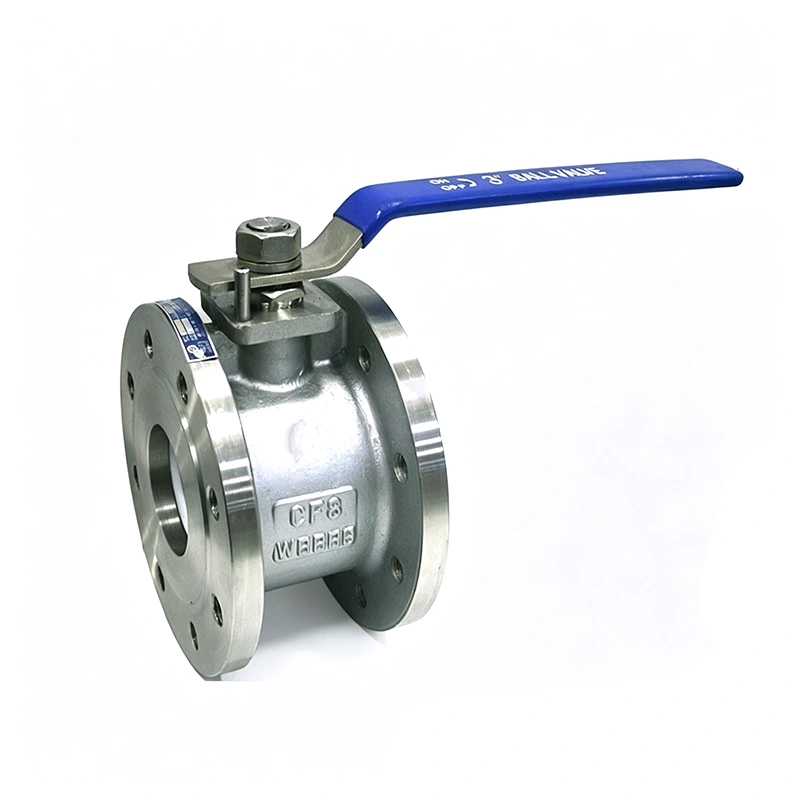

What are Wafer ball valves

Wafer ball valves are a type of valve characterized by their compact, disc-like design, resembling a wafer. Engineered to control and regulate the flow of fluids within a system, they effectively prevent backflow and maintain consistent fluid direction. Typically installed between two flanges in a piping system, secured by bolts or studs and nuts, their lightweight yet durable design makes them ideal for various industrial applications. Wafer ball valves play a pivotal role in industries such as oil and gas, wastewater treatment, manufacturing, and chemical processing, where their space-saving design and efficiency in controlling fluid flow are crucial. These valves are highly effective in preventing backflow, ensuring smooth operation, and requiring less maintenance compared to other valve types, making them a cost-effective long-term solution. Their adaptability to different systems and ease of installation further enhance their importance across a wide range of industrial applications.



How Do Wafer Ball Valves Work?

Wafer ball valves are engineered to control fluid flow through a pipeline by rotating a spherical ball with a central hole, known as the valve core. This rotation aligns or misaligns the hole with the pipeline, effectively regulating or stopping the flow. The valve’s body is designed in a wafer style, meaning the valve is clamped between two pipeline segments with bolts, eliminating the need for additional space required by traditional flange connections. This design simplifies installation and maintenance, making wafer ball valves a cost-effective solution for various applications.

Role of the “Wafer” Design in Space and Weight Optimization

The “wafer” design of these valves contributes significantly to their compactness and lightweight nature. By eliminating the need for flanges and bolt connections, wafer ball valves are relatively lightweight, helping to reduce the load on the pipeline system. This space-saving design makes them particularly suitable for installations with limited space, such as on the bottom of tanks or in confined areas where significant alterations to pipework are not feasible.



Key Components of a Wafer Ball Valve

Wafer ball valves are integral to fluid control systems, comprising several key components that ensure their functionality and reliability:

1. Ball

The ball is the central element of the valve, featuring a spherical shape with a hole (or port) through its center. By rotating 90 degrees, the ball aligns or misaligns the port with the pipeline, effectively controlling the flow of fluids. Materials commonly used for the ball include stainless steel, brass, and specialized alloys like Stellite, chosen for their durability and resistance to wear and corrosion.

2. Seat

The seat provides a sealing surface that ensures a tight shut-off when the valve is closed. Materials such as PTFE (Polytetrafluoroethylene), reinforced PTFE, and metal alloys are commonly used for seats, selected based on the specific requirements of the application, including chemical compatibility and temperature resistance.

3. Stem

The stem connects the actuator (manual handle or automated system) to the ball, transmitting the rotational movement that opens or closes the valve. Stems are typically made from stainless steel or other corrosion-resistant materials to withstand the operational environment.

4. Body

The body houses all internal components and connects the valve to the pipeline. Materials for the body include stainless steel, carbon steel, and various alloys, selected based on factors like pressure, temperature, and the nature of the fluid being controlled.

Differences Between One-Piece and Two-Piece Wafer Ball Valves

Wafer ball valves are available in various designs, with one-piece and two-piece configurations being the most common:

One-Piece Wafer Ball Valves

• Construction: Comprised of a single, solid body without separate end connections.
• Advantages: Compact design, reduced risk of leakage due to fewer joints, and cost-effectiveness.
• Limitations: Typically not repairable; if a component fails, the entire valve may need replacement.
• Applications: Suitable for applications where space is limited and the valve is not subject to frequent maintenance.

Two-Piece Wafer Ball Valves

• Construction: Consists of two separate pieces—one body and one end connection—joined together.
• Advantages: Allows for disassembly, facilitating maintenance and repair.
• Limitations: Slightly larger and more complex than one-piece valves, potentially increasing installation time and cost.
• Applications: Ideal for systems requiring regular maintenance or where internal components may need replacement.



Wafer Ball Valves vs. Other Valve Types

Wafer ball valves are designed to be installed between two flanges, secured by bolts, resulting in a compact and lightweight structure. This design is particularly advantageous in applications where space and weight are critical considerations. In contrast, lug-style ball valves feature threaded inserts on both sides, allowing for bi-directional flow and enabling the valve to be removed without disturbing the entire pipeline system. Flanged ball valves have flanged ends that bolt directly to the pipeline, providing a robust connection suitable for high-pressure applications. Threaded ball valves, on the other hand, have threaded ends that screw into the pipeline, offering ease of installation but typically limited to lower pressure and temperature applications.

Pros and Cons of Wafer Design in Specific Scenarios

Pros:

• Space and Weight Efficiency: The wafer design’s compactness makes it ideal for installations with limited space and where weight is a concern.

• Cost-Effectiveness: Generally, wafer ball valves are more affordable due to their simpler design and reduced material usage.

• Ease of Installation: Their lightweight nature and straightforward installation process can lead to reduced labor costs and installation time.

Cons:

• Pressure Limitations: Wafer ball valves may not be suitable for high-pressure applications, as the lack of flanges can lead to potential leakage, especially if the valve is not properly aligned or if the pipe flanges are not perfectly flat.

• Limited Bi-Directional Flow: Unlike lug-style valves, wafer ball valves typically do not support bi-directional flow, which can be a limitation in certain systems.

• Installation Constraints: Wafer valves cannot be used as pipe ends or end-of-line service. The entire line must be shut down if either side of the valve requires maintenance.



In summary, while wafer ball valves offer advantages in terms of space efficiency, cost, and ease of installation, they may not be suitable for high-pressure applications or scenarios requiring bi-directional flow. The choice between wafer and other valve types should be based on specific application requirements, including pressure, flow direction, and space constraints.



Common Applications of Wafer Ball Valves

Wafer ball valves are integral components in various industrial systems due to their compact design and efficient performance. In HVAC systems, they regulate the flow of air, water, and refrigerants, ensuring optimal heating, ventilation, and air conditioning operations. In water treatment facilities, wafer ball valves control the flow of water and chemicals, playing a crucial role in the purification process. Similarly, in chemical processing plants, these valves manage the flow of various chemicals, gases, and other fluids under high pressure and harsh conditions, ensuring safe and efficient processing.

Suitability for Low-Pressure and Moderate-Temperature Environments

Wafer ball valves are typically designed for medium-low pressure systems, offering excellent sealing performance and fluid control capabilities to meet the requirements of most medium-low pressure conditions. For example, in municipal water supply, HVAC, and general industrial pipeline systems, wafer ball valves can provide reliable performance. They are generally suitable for applications where pressures do not exceed 20 bar (approximately 290 psi) and temperatures are within the range of -20°C to 180°C (-4°F to 356°F).



How to Install a Wafer Ball Valve

Step-by-Step Installation Guidelines

1. Preparation:

   • Ensure the pipeline is clean and free from debris to prevent damage to the valve’s sealing surfaces.
   • Verify that the valve’s specifications match the pipeline requirements, including pressure, temperature, and fluid type.

2. Positioning the Valve:

   • Place the wafer ball valve between the two flanges of the pipeline.
   • Align the valve’s bolt holes with those of the flanges to ensure proper fitment.

3. Gasket Installation:

   • Select gaskets compatible with the fluid and operating conditions.
   • Place the gaskets on the valve’s flange faces, ensuring they are centered and free from wrinkles or misalignment.

4. Bolting:

   • Insert bolts through the aligned bolt holes of the valve and flanges.
   • Tighten the bolts in a crisscross pattern to ensure even pressure distribution.
   • Use a calibrated torque wrench to tighten bolts to the manufacturer’s specified torque values, preventing over-tightening or under-tightening.

5. Final Checks:

   • After installation, operate the valve to ensure smooth opening and closing.
   • Inspect for any signs of leakage around the valve and flanges.
   • If leaks are detected, re-tighten the bolts evenly and recheck.

Importance of Proper Gasket Alignment and Bolting

Proper gasket alignment and bolting are crucial for achieving a reliable seal and preventing leaks:

• Gasket Alignment:

  • Ensures uniform compression across the sealing surface, preventing localized stress and potential leaks.
  • Misalignment can lead to uneven sealing, causing fluid leakage and potential system failures.

• Bolting:

  • Evenly tightened bolts distribute pressure uniformly, maintaining gasket integrity and preventing leaks.
  • Uneven or incorrect torque can result in gasket deformation, leading to compromised sealing and potential leaks.



Material Considerations for Wafer Ball Valves

Selecting the appropriate materials for wafer ball valves is crucial to ensure optimal performance, longevity, and safety in various applications. The choice of materials should be based on the specific characteristics of the fluid being controlled and adherence to industry standards.

Choosing Materials Based on Fluid Type

The compatibility of valve materials with the transported fluid is paramount. Incompatible materials can lead to corrosion, contamination, or degradation, compromising system integrity.

• Corrosive Fluids: For handling corrosive chemicals, stainless steel is often preferred due to its excellent resistance to corrosion. Materials like Alloy 20 are suitable for sulfuric acid applications, while Hastelloy is ideal for high-temperature processes.

• Abrasive Fluids: Ceramic valves are suitable for abrasive or slurry-like fluids, offering durability against wear.

• Non-Corrosive Fluids: For non-corrosive liquids like water, PVC valves are commonly used due to their cost-effectiveness and adequate performance in such applications.

Industry Standards (e.g., ANSI, API)

Adhering to industry standards ensures that valves meet specific performance, safety, and quality requirements.

• ANSI (American National Standards Institute): ANSI standards provide guidelines for valve dimensions, pressure ratings, and materials, ensuring compatibility and reliability across various applications.

• API (American Petroleum Institute): API standards, such as API 608, outline specifications for steel ball valves, including design, materials, and testing requirements, ensuring valves are suitable for the oil and gas industry.



FAQs

1. Can wafer ball valves be used for gas applications?

Yes, wafer ball valves are suitable for gas applications, provided they are constructed from materials compatible with the specific gas and meet the necessary pressure and temperature requirements. It’s essential to ensure that the valve’s design and materials are appropriate for the type of gas being handled to maintain safety and performance.

2. Are wafer valves reusable after removal?

Wafer ball valves can be reused after removal, but their reusability depends on their condition and the nature of the application. Before reinstallation, inspect the valve for any signs of wear, corrosion, or damage. Replace any worn or damaged components, such as seals or gaskets, to ensure proper functionality. It’s advisable to consult the manufacturer’s guidelines for specific recommendations regarding the reuse of wafer ball valves.



Conclusion

Wafer ball valves offer a compact, lightweight, and cost-effective solution for fluid control in various industries, including HVAC systems, water treatment, and chemical processing. Their efficient design and ease of installation make them ideal for applications with space constraints and moderate pressure and temperature conditions. For bulk orders or customized solutions tailored to your specific needs, please contact us directly to discuss how we can assist you.
