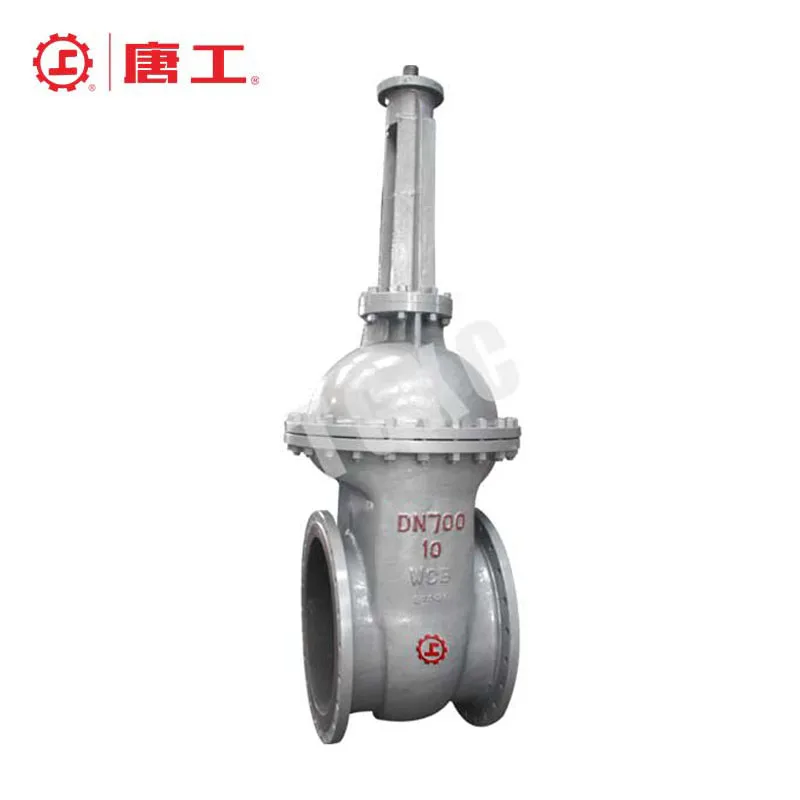

A wedge gate valve is a type of valve designed to control the flow of fluids within a pipeline. It features a wedge-shaped gate that moves perpendicular to the flow direction, effectively sealing the passage when closed. This design ensures a tight shut-off, making it ideal for on/off applications. When fully open, the valve provides an unobstructed path for fluid flow, minimizing resistance and pressure drop.
Wedge gate valves are engineered to control fluid flow through pipelines by utilizing a wedge-shaped gate that moves perpendicularly to the flow direction. This design ensures a tight shut-off when the valve is closed and provides an unobstructed path for fluid when fully open. The primary components of a wedge gate valve include:
Valve Body: The main structure housing all internal components.
Wedge Disc: The wedge-shaped gate that moves to open or close the valve.
Seats: The surfaces against which the wedge disc seals to prevent leakage.
Stem: The component that connects the actuator to the wedge disc, facilitating its movement.
When the valve is operated, the actuator turns the stem, causing the wedge disc to move upward to open the valve or downward to close it. The wedge design allows for a tight seal against the seats, effectively preventing fluid flow when closed. This mechanism is particularly advantageous in high-pressure and high-temperature applications, as it provides a reliable shut-off and minimal flow resistance when open.
The wedge-shaped design of the gate plays a crucial role in the valve’s sealing and flow control capabilities:
Sealing Mechanism: The angled surfaces of the wedge disc and the valve seats create a wedging action that ensures a tight seal when the valve is closed. This design is effective in preventing leakage, even under high-pressure conditions.
Flow Control: When the valve is fully open, the wedge disc retracts into the valve body, providing an unobstructed path for fluid flow. This design minimizes flow resistance and pressure drop, ensuring efficient fluid transport through the pipeline.

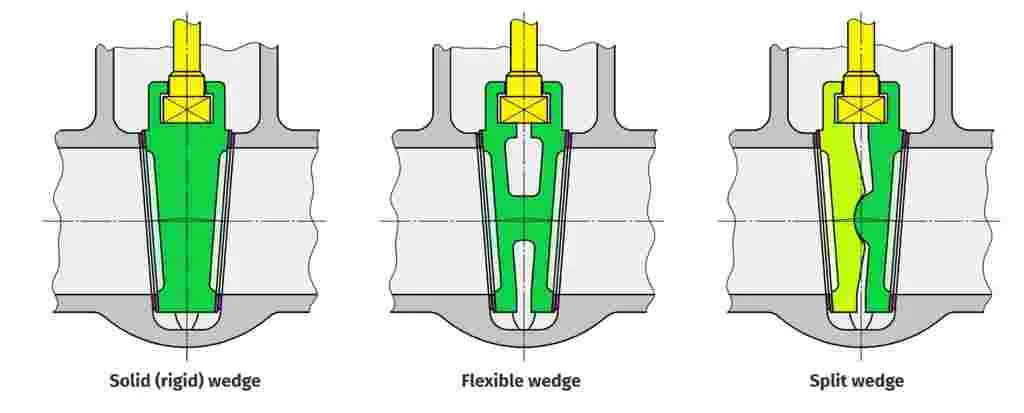

Wedge gate valves are essential components in various industries, each type tailored to specific operational requirements. The primary types include:
Solid wedge gate valves feature a single-piece, solid construction. This robust design ensures durability and strength, making them suitable for a wide range of applications. They are commonly used in moderate to lower pressure-temperature environments, such as water distribution systems and general industrial applications. However, they may not compensate for changes in seat alignment due to pipe loads or thermal expansion, which can lead to leakage.
Flexible wedge gate valves incorporate a one-piece disc with a cut around its perimeter, enhancing flexibility. This design allows the valve to adapt to changes in seat alignment caused by thermal expansion or piping stresses, reducing the risk of thermal binding. They are particularly advantageous in high-temperature and high-pressure systems, such as steam lines, where thermal fluctuations are common.
Split wedge gate valves consist of two-piece discs that seat between tapered seats in the valve body. This self-adjusting mechanism ensures a tight seal, even when the valve seats are distorted due to pipeline strain. They are ideal for handling non-condensing gases and liquids at normal or high temperatures, making them suitable for corrosive environments where precise sealing is crucial.
Wedge gate valves are integral components in various industrial applications, offering several key advantages:
Wedge gate valves are engineered to provide a tight seal, effectively preventing leakage in high-pressure applications. The wedge-shaped gate ensures a secure closure against the valve seats, making these valves indispensable in industries such as oil and gas, chemical processing, and water treatment.
When fully open, wedge gate valves offer minimal resistance to fluid flow, resulting in low pressure loss across the valve. This design enhances energy efficiency and reduces pumping costs, which is vital in high-pressure systems.
Constructed from high-quality materials like stainless steel and carbon steel, wedge gate valves are designed to endure harsh conditions, minimizing wear and tear and offering long-term reliability. Their robust construction allows them to withstand extreme pressures and temperatures, reducing the need for frequent maintenance and ensuring uninterrupted performance over extended periods.
Wedge gate valves are integral components in various industries, providing reliable flow control and isolation. Their robust design and excellent sealing capabilities make them suitable for several critical applications:
In the oil and gas industry, wedge gate valves are essential for managing high-pressure pipelines and extensive transmission networks. They are used throughout the industry stages, from ensuring safe extraction of crude oil and natural gas from wells, managing the flow through pipelines to maintain optimal pressure, to controlling fluids in refining processes where high temperature and pressure conditions are common.
Wedge gate valves are widely used in water supply systems because they provide reliable sealing and have a long lifespan. These valves play a crucial role in several key areas:
Isolation of Mains: Isolating sections of water distribution mains for maintenance or repair, minimizing disruption to the system.
Flow Control: Managing water flow through different stages of the treatment process.
Pump Stations and Compliance: Regulating discharge from pumping stations, ensuring consistent water flow, and complying with standards like BS EN1074-1 & 2, BS EN558, and NSF/ANSI/CAN 61 and 372, making them ideal for drinking water applications.
In power generation facilities, wedge gate valves are essential for controlling steam flow in boilers and turbines and managing cooling water flow to maintain optimal operating temperatures in power plants. They ensure reliable shut-off capabilities during emergencies to protect equipment and personnel.
In the chemical industry, wedge gate valves play a critical role in maintaining safety and efficiency. In reaction vessels, they manage high-temperature and high-pressure media to ensure safe chemical reactions. They also control the flow of various chemicals and acids, providing precise handling of hazardous materials, and offer reliable sealing and durability in corrosive environments.
Selecting the appropriate wedge gate valve is crucial for ensuring optimal performance and longevity in your piping system. Key considerations include:
Pressure Rating: Ensure the valve’s pressure rating aligns with your system’s operating pressures to prevent leaks or failures.
Temperature: Choose materials and valve designs that can withstand your system’s temperature ranges, including potential temperature fluctuations.
Fluid Type: Select valves compatible with the specific fluids in your system, considering factors like corrosiveness, viscosity, and potential for scaling or sedimentation.
Adhering to industry standards ensures valve reliability and compatibility:
API (American Petroleum Institute): Standards like API 600 and API 602 specify requirements for steel gate valves, ensuring they meet performance and safety criteria.
ASTM (American Society for Testing and Materials): ASTM standards define material specifications and testing methods, ensuring valves meet necessary quality and performance benchmarks.
ANSI (American National Standards Institute): ANSI standards, such as B16.34, provide guidelines on valve dimensions, pressure-temperature ratings, and materials, ensuring uniformity and compatibility across valve products.
Wedge gate valves are an essential component in a wide range of industries, offering several key benefits, including superior shut-off capability, low fluid resistance, high flow efficiency, and exceptional durability in high-pressure systems. These valves are ideal for applications in oil & gas pipelines, water treatment systems, power generation plants, and chemical industries due to their reliable sealing and ability to handle extreme conditions.
By understanding the different types of wedge gate valves and how they work, along with the factors to consider when selecting the right valve for your needs, you can ensure optimal performance in your fluid control systems. Adhering to industry standards further enhances the reliability and safety of these critical components.
